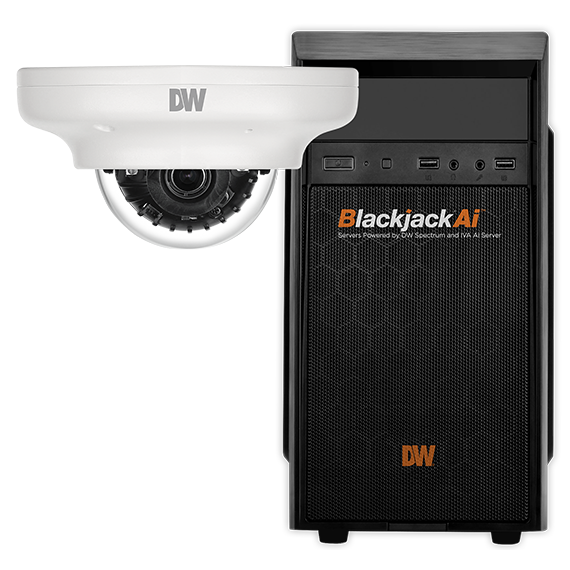

Camera Description
This MEGApix IP camera provides 2.1MP/1080p resolution at real-time 30fps. It includes 2.8mm, 4.0mm and 6.0mm fixed lens options, simultaneous H.265/H.264/MJPEG codec support and Star-Light Plus™ color in near-total darkness technology for quality video in any lighting condition, all in an IP67-rated, IK-10 impact-resistant ultra low-profile vandal dome housing. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Features:
- 2.1MP/1080p 1/2.8" image sensor at real-time 30fps
- Star-Light Plus color in near-total darkness technology
- 2.8mm fixed lens (DWC-MV72Wi28TW)
- 4.0mm fixed lens (DWC-MV72Wi4TW)
- 6.0mm fixed lens (DWC-MV72Wi6TW)
- True Wide Dynamic Range (WDR) / Digital Wide Dynamic Range (D-WDR)
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- 80' Smart IR with intelligent camera sync
- Ultra low-profile vandal dome camera
- Smart DNR 3D digital noise reduction
- True day/night mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Audio in
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Web server built-in
- PoE class 2 and DC12V
- ONVIF conformant, profile S
- NDAA/TAA compliant
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
NVR Description
Blackjack AI mid-tower, Windows OS on SSD, 4 DW Spectrum recording licenses and 4 IVA Ai Server licenses pre-installed, 64 cameras @ 2.1MP, 64 analytic streams, 480Mbps throughput, Intel i7, 32GB RAM, 24TB storage, 5 Year Limited Warranty
Blackjack Ai Tower Artificial Intelligence Network Video Recorder (Ai NVR) is a purpose-built server, with built-in server-side analytics that unlock advanced Ai capabilities on any connected video stream via our DW Ai Server software. This cost-effective, plug-and-play appliance combines high-performance recording with video analytics in an easy-todeploy turnkey solution. The NDAA and TAA compliant server features up to 320Mbps throughput, 64 secondary streams and comes preloaded with DW Spectrum IPVMS, with four complimentary recording licenses. Add the power of advanced neural-network-based analytics to your video streams with a Blackjack Ai NVR, backed by our 5 year limited warranty.
Features:
- Hosting DW Ai software deep learning and color filter
- Server-side analytics for non-analytic cameras
- Deep learning classifiers and logical rules engine
- A single device for NVR and Analytics server for lower deployment cost
- Record and manage single- and multi-sensor IP cameras of any resolution up to 320Mbps throughput
- Up to 64 analytic streams
- Supports all ONVIF conformant IP cameras
- 16-48TB internal storage
- 12th Gen Intel Core i7 processor
- Mini Display Port local output for system configuration
- Dual network ports
- Windows 10 on SSD
- Hosting DW Spectrum for setup, configuration, monitoring and recording
- One-time recording license charge, fully transferable between cameras and encoders
- One (1) 4-channel recording license included (DW-SPECTRUMLSC004)
- One (1) 4-channel Ai license included (DW-IVAAiSERVERLSC004)
- No annual maintenance fees
Camera Specs
IMAGE | |
| Image sensor | 2.1MP/1080p 1/2.8” Star-Light Plus CMOS |
| Total pixels | 1945 (H) × 1109 (V) |
| Minimum scene illumination | 0.5 lux (color) (DW-MV72Wi28TW) 0.9 lux (color) (DW-MV72Wi4TW, DW-MV72Wi6TW) |
| 0.0 lux (B/W) | |
| Video output | Local video output CVBS 1.0V p-p (75?), 4:3 aspect ratio |
LENS | |
| Focal length | 2.8mm, F2.0 (DWC-MV72Wi28TW) 4.0mm, F2.6 (DWC-MV72Wi4TW) 6.0mm, F2.0 (DWC-MV72Wi6TW) |
| Lens type | Fixed lens |
| Field of view (FoV) | 115° (DWC-MV72Wi28TW) 86° (DWC-MV72Wi4TW) 55° (DWC-MV72Wi6TW) |
| IR distance | 80ft range |
OPERATIONAL | |
| Shutter mode | Auto, manual, anti-flicker, slow shutter |
| Shutter speed | 1/30 ~ 1/32,000 |
| Slow shutter | 1/2,1/3,1/5,1/6,1/7.5, 1/10 |
| Auto gain control | Auto |
| Day / night | Auto, day (color), night (B/W) |
| Smart DNR™ 3D digital noise reduction | 3D DNR |
| Wide dynamic range (WDR) | True WDR (D-WDR) On, Off |
| Wide dynamic range (WDR) dB | 120dB |
| Privacy zones | 16 programmable privacy masks |
| Mirror and flip | Yes |
| Alarm notifications | Notifications via e-mail, FTP, alarm output and SD card recording |
| Memory slot | Micro SD / SDHC / SDXC (card not included) |
NETWORK | |
| LAN | RJ45 (10/100Base-T) |
| Video compression type | H.265, H.264, MJPEG |
| Resolution | H.265: 2.1MP/1080p, 720p, VGA, D1, CIF H.264: 2.1MP/1080p, 720p, VGA, D1, CIF MJPEG: 1280x720, 800x600, VGA, 768x432, D1, CIF |
| Frame rate | Up to 30fps at all resolutions |
| Video bitrate | 100Kbps ~ 10Mbps, multi-rate for preview and recording |
| Bitrate control | Multistreaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth) |
| Streaming capability | Dual-stream at different rates and resolutions |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF |
| Security | HTTPS(TLS), IP filtering, 802.1x, digest authentication(ID/PW) |
| ONVIF conformance | Yes |
| Web viewer | OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari® |
| Video management software | DW Spectrum® IPVMS |
ENVIRONMENTAL | |
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Operating humidity | 10–90% RH (non–condensing) |
| IK rating | IK10 impact-resistant |
| IP rating | IP67-rated |
| Other certifications | CE, FCC, RoHS |
ELECTRICAL | |
| Power requirement | DC12V, POE IEEE 802.3af class 2 (adaptor not Included) |
| Power consumption | DC12V: max 3.7W PoE: max 5.5W |
MECHANICAL | |
| Material | Aluminum vandal housing, polycarbonate dome |
| Dimensions | 4.13" x 2.4" (105 x 61mm) |
| Weight | 0.79 lbs (0.36kg) |
| Warranty | 5 year warranty |
NVR Specs
| VIDEO | |
|---|---|
| CPU | Intel Core i7 processor |
| Display Modes | Unlimited, Customizable, Sequence |
| Local Video Outputs | 1x mini Display Port, For initial configuration and server management |
| Memory | 32GB |
| Video Card | NVIDIA RTX A2000 12GB |
| Video Compression | H.264, H.265 |
| Video Operating System | Windows 10 IoT Enterprise LTSC |
| OS on SSD | 480GB SSD |
| Max throughput (Mbps) | 320Mbps |
| STORAGE | |
| Raw internal storage options |  |
| RAID Options | No RAID |
| Max HDD Bay | 3 x SATA HDD |
| Maximum Storage | 16TB (DW-BJAiMT16T), 24TB (DW-BJAiMT24T), 36TB (DW-BJAiMT36T), 48TB (DW-BJAiMT48T) |
| PERFORMANCE | |
| Max # of analytic streams (secondary) | Up to 64 |
| Performance features | A single device for NVR and Analytics server for lower deployment cost, Deep learning classifiers and logical rules engine, Server-side analytics for non-analytic cameras |
| Playback Functions | Calendar, Event search, Smart motion search, Thumbnail search, Timeline |
| PTZ control | ONVIF |
| Recording Modes | Continuous, Motion + low res always, Motion + Object, Motion + Object + Low res, Motion detection, Object + Low res, Object only |
| System Operation | Graphical user interface (GUI), Remote via DW Spectrum IPVMS, USB mouse (included) |
| NETWORK | |
| Backup | Network backup via DW Spectrum IPVMS |
| Ethernet Ports | 2x 1G Ethernet (RJ45) |
| Pre-loaded VMS software | DW Spectrum IPVMS |
| Network Remote Software | Cross-platform - Windows, Linux Ubuntu and Mac, DW Mobile Plus, DW Spectrum Mobile App |
| ELECTRICAL | |
| Power Consumption | 500W, A UPS is recommended |
| GENERAL | |
| Accessories | Keyboard, Mouse |
| Ai Configuration Tool supported OS | Cross-platform - Windows and Linux Ubuntu |
| Included DW Ai Server Licenses | 4 channel (DW-DWAiSLSC004) |
| Included IP licenses | 4 |
| Operating Temperature and Humidity | 20 ~ 90% RH, 41 ~ 104 °F (5~40 °C) |
| Preloaded Analytic software | DW Ai Server |
| Recorder Dimensions (H X W X D) | 7.46” x 15.7” x 14.21” (189.52 x 398.8 x 631.02 mm) |
| Recording Licenses (Optional. Sold Separately) | Custom-ordered licenses are available by request. DW-SPCP04LSC004 - Four (4) DW Spectrum Analog Encoder IPVMS Licenses DW-SPCP16LSC016 - Sixteen (16) DW Spectrum Analog Encoder IPVMS Licenses DW-SPECTRUMLSC001 - Single DW Spectrum IPVMS Recording License DW-SPECTRUMLSC004 - Four (4) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC010 - Ten (10) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC020 - Twenty (20) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC050 - Fifty (50) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC100 - One hundred (100) DW Spectrum IPVMS Recording Licenses DW-SPIOLSC001 - Single DW Spectrum I/O Module IPVMS License DW-SPVWALL1X2 - Single DW Spectrum Video Wall IPVMS License Lifetime upgrades are included with no annual renewal fees. |
| USB interface | Yes |
| Warranty | 5 Year Limited Warranty |
| Weight (barebone, HDD not included) | 11.8 lbs (5.35 kg) |
| Certification | |
| Form Factor | Mid-size Tower |
