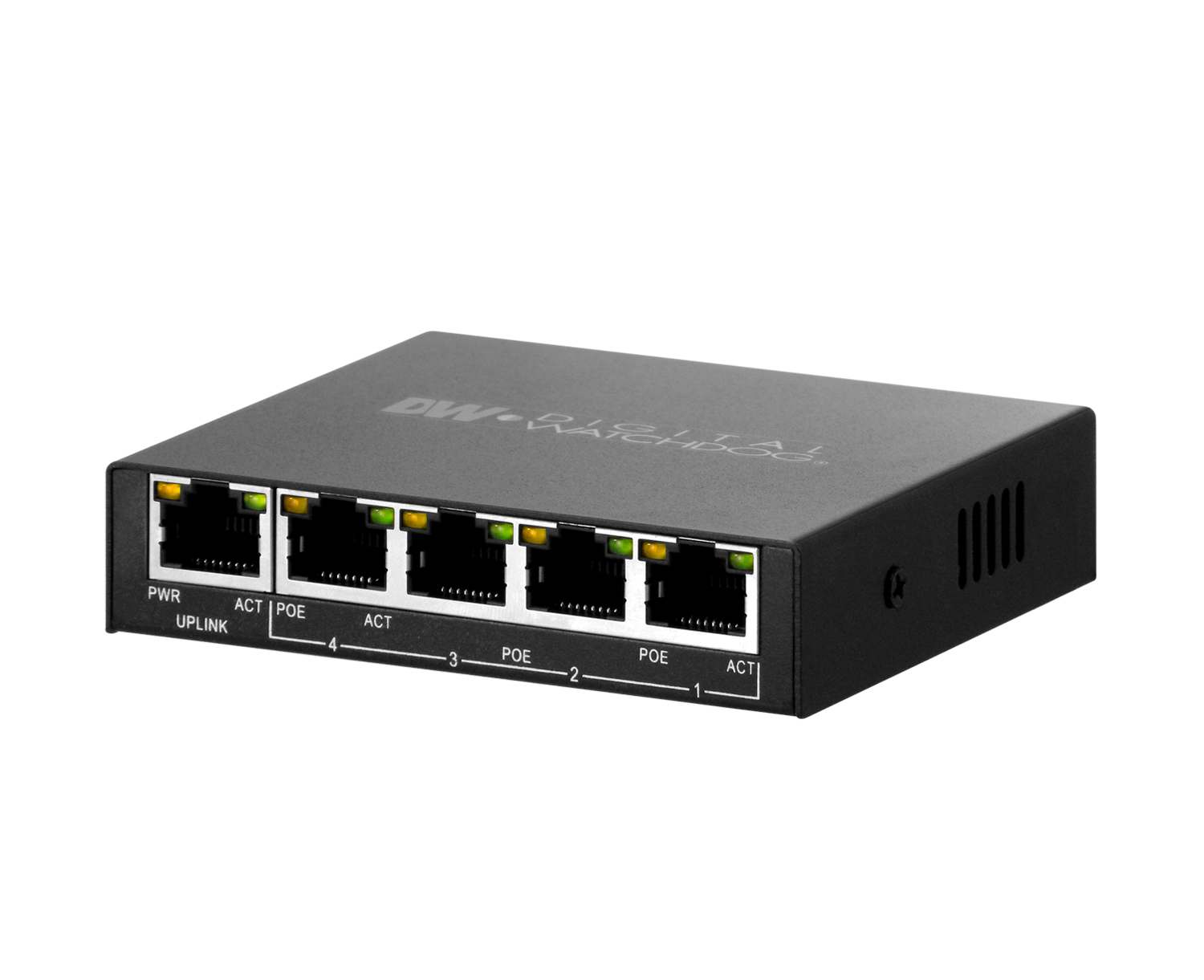

DW®’s Power over Ethernet Switch is a 10/100Mbps PoE switch with 48V/2A external power and 4 or 8 channel configuration options. The switch simplifies installation of PoE devices such as IP cameras, wireless AP, and VoIP by transmitting both power and data through a single cable. The switch supplies up to 15.4 watts per port and can automatically detect your PoE devices and their power class, minimizing the possibility of damaging your equipment with wrong power supply. The switch can support PoE devices installed up to 320 feet away using Cat5 cables. Plug and Play makes the installation quick and easy, with no need for advanced configuration or installation, making this PoE switch a perfect choice for any application with IP cameras, wireless AP, and VoIP. The DW-POE496M comes with a 2 years warranty.
- 5 10/100Mbps Auto-Negotiation RJ45 ports with 4 PoE port
- IEEE 802.3af Power over Ethernet PoE compliant
- Each port support auto-negotiation-10/20, 100/200Mbps Fast Ethernet
- Bandwidth 1Gbps
- Max power for single PoE port is 15.4W
- Auto PoE Class detection
- LED indicators for monitoring power, link, activity and speed
- 48V/2A external power adapter
- Store-and-forward switching method
- Plug and Play
- 2 years warranty
Environmental* |
|
|
|
Certificate
|
|
CE, FCC, RoHS
|
|
Power Requirements
|
|
48V/2A external power adapter
|
|
Power Consumption
|
|
Input:100-240 V/50/60 Hz 48V/2A external power Power pin:12(+) 36(-)
|
|
Operating Temperature
|
|
0°-40°
|
|
Operating Humidity
|
|
10%-90%,no condensing
|
|
Warranty
|
|
2 Year Warranty
|
|
Dimensions
|
|
3.6 x 3.2 x 0.86 In (92 x 82 x 22mm)
|
Network* |
|
|
|
Data Transfer Rate
|
|
Ethernet: 10/100 Mbps (Half / Full Duplex)
|
|
Forwarding Rate
|
|
10 Mbps / 148,00 pps, 100 Mbps / 14,8800 pps
|
|
Interface
|
|
4 10/100/Mbps RJ45 ports (Auto-negotiation, Auto MDIX) Port 5 is a 10/100Mbps uplink port
|
|
Network Media
|
|
10Base-T: UTP category 3, 4, 5 cable (max 100m) EIA/TIA-568 100Ù STP (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (max 100m) EIA/TIA-568 100Ù STP (max 100m)
|
|
Transfer Method
|
|
Store-and Forward
|
Network |
|
|
|
Protocols
|
|
IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3x Flow Control CSMA/CD, TCP/IP
|
Environmental |
|
|
|
Storage Temperature
|
|
-40°-70°
|
