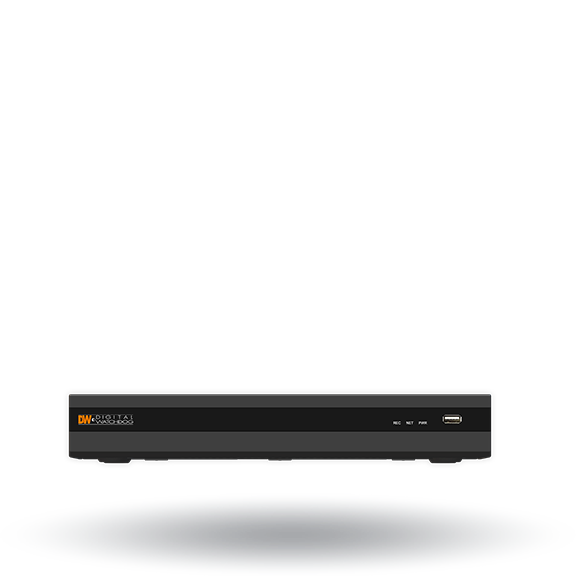

VMAX A1 G4 Universal HD over Coax DVR records HD-Analog, HD-TVI and standard coax up to 5MP resolution, 4ch, NO HDD, 120fps real-time 30fps recording, Up to 5MP recording resolution at 48fps, 4 audio inputs, 1 audio output, 4 sensor inputs, 1 relay output, 4K (3840 x 2160) True HD, VGA and Spot video outputs, Free C3 CMS Software, Free Mobile for IPhone, IPad, Apple TV, Android Smart Phones and Tablets, MAC Compatible, USB Backup, Free DDNS, Watermark Images, Help Menu, Email and Text Event Notification with Snapshot, PTZ Control, Quick Setup Wizard, Pathfinder auto port forwarding, 5 Year Limited Warranty, NDAA/TAA compliant, 2 year warranty.

PathFinder

• Easy and secure remote connection with NAT Traversal (STUN/TURN) support without opening ports.

Status Monitoring

• A real-time graphical representation of all system connections. Receive connection alerts via email or text.

Group Recording

• Designate a group of cameras to respond to an alert from one camera.

Channel Swap

• Swap a camera’s channel assignment without changing the cable connections.

C3 CMS

• C3 CMS takes video management to the next level. You are in complete command to control all your video surveillance systems in one intuitive interface. Easy-to-program alerts let you take action in real-time and manage the health of your devices.

Real-Time Streaming Protocol (RTSP)

• RTSP provides a live video stream for live streaming applications between DW VMAX G4 recorders and third-party software applications. RTSP streams offer a secondary backup location for recorded video and smart home integration, an alternative for ONVIF integration and a way to broadcast a stream to live streaming services, such as CCTV live monitoring in animal sanctuaries and public cameras.

Features:

• Universal HD over Coax DVR records HD-Analog, HD-TVI and standard coax up to 5MP resolution
• Advanced H.265, H.264 Linux embedded DVR
• 4-channels, 120fps real-time 30fps recording
• Up to 5MP recording resolution at 48fps
• PathFinder easy remote connection
• Remote management with C3 CMS
• Event camera group recording
• Complete system analysis with real-time system and network status monitoring
• Mobile Application for iOS and Android devices
• OSD and PTZ control via coax (UTC)
• Signal hybrid detects the camera signal automatically
• Instant channel swap, no need to disconnect or reboot the DVR
• Snapshot Notify: programmable interval snapshot email notifications
• 4K (3840 x 2160) True HD, VGA and CVBS video outputs
• Up to 16TB internal storage
• Transfer real-time data using Real Time Streaming Protocol (RTSP)
• HDD calculation and auto-recording configuration
