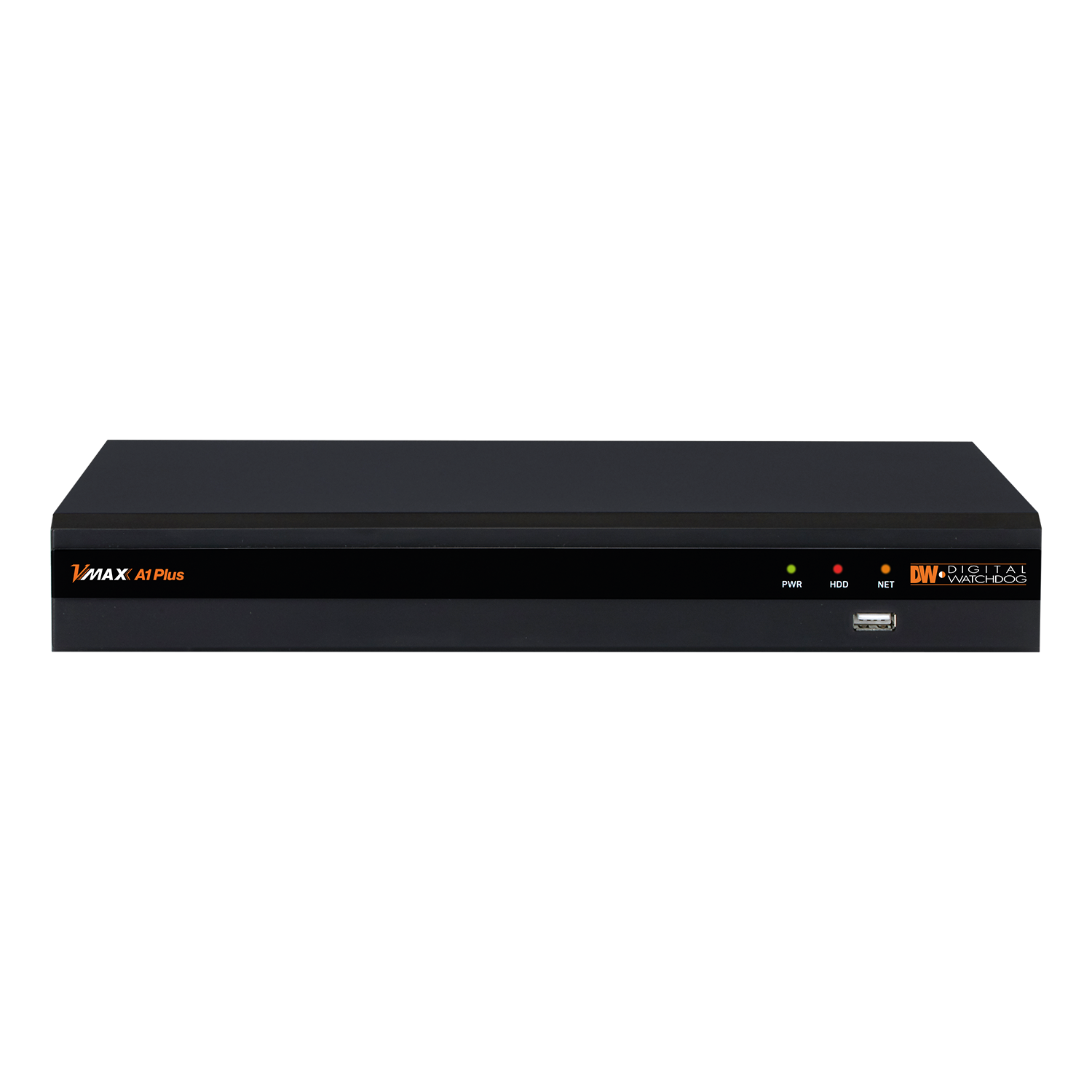

Digital Watchdog - DW-VA1P8 - Universal HD over Coax 8-Channel Digital Video Recorder
Part number:
DW-VA1P8
Price:
HD Analog Resolution
Support for all analog signals and HD analog signals up to 5MP.
PathFinder
Easy and secure remote connection with NAT Traversal (STUN/TURN) support without opening ports.
C3 CMS
C3 CMS takes video management to the next level. You are in complete command to control all your video surveillance systems in one intuitive interface. Easy-to-program alerts let you take action in real-time and manage the health of your devices.
Group Recording
Designate a group of cameras to respond to an alert from one camera.
Channel Swap
Swap a camera’s channel assignment without changing the cable connections.
Status Monitoring
A real-time graphical representation of all system connections. Receive connection alerts via email or text.
Designed and commissioned in the U.S.A
All DW recorders, workstations and NAS devices are designed, assembled and inspected in our California facility. Each product undergoes multiple levels of quality control to guarantee the highest quality and performance.
Features
- Universal HD over Coax DVR records HD-Analog and HD-TVI and all analog up to 960H signals
- Advanced H.264 Linux embedded DVR
- 8-channels, real-time 30fps recording up to 5MP
- Up to 5MP recording resolution at 80fps
- PathFinder Peer-to-Peer (P2P) remote connection
- C3 CMS and event server software up to 288Channels
- Event camera group recording
- Complete system analysis with real-time system and network status monitoring
- Mobile Application for iPhone, iPad, iPod, Android Smart Phones and Tablets and Apple TV
- Mac compatible remote ACS software
- OSD and PTZ control via coax (UTC)
- Signal hybrid detects any camera at HD-Analog, HD-TVI and 960H automatically.
- Instant channel swap, no need to disconnect or reboot the DVR.
- Snapshot Notify: programmable interval snapshot notifications
- 4K (3840 x 2160) True HD, VGA and Spot video outputs
- 0TB - 16TB storage options
- HDD calculation and auto-recording configuration
- Thumbnail search with hour and 5-minute previews
- 10-second jump buttons for playback and fast forward
- Event notifications via email and C3 CMS and push notifications to mobile devices
- Multiplex - live, playback, recording, backup, network, configuration
- 4 audio input, 1 audio output
- 4 sensor input, 1 relay output
- Digital spot monitoring output at D1 resolution
- Simple and free DDNS service
- Push notifications via DW VMAX Plus app
- Add public view monitors with Spot Monitoring Modules
- Easy web-based client with multi-user access
- Help menu on major functions
- Auto and manual firmware upgrades
- 5 year limited warranty
| Operating system | Embedded Linux |
| Channels | 8CH |
| Signals supported | Analog signal up to 960H, HD-Analog and HD-TVI up to 5MP |
| Monitor | True HD, VGA and Spot outputs |
| Framerate | 240fps |
| Resolution | HDMI: 2560x1440, 3840×2160 (4K), 800x600, 1024x768, 1280x1024, 1920x1080 VGA: 800x600, 1024x768, 1280x1024, 1920x1080 Spot: D1 |
| Screen mode | 1, 4, 6 and 9 |
| Audio Input/output | 4 inputs/ 1 output |
| Audio Codec | ADPCM |
| Alarm input/output | 4 inputs/1 output |
| Serial | 1x RS485 for keyboard and PTZ control |
| User interface | Graphical user interface (GUI), IR remote control, USB mouse |
| PERFORMANCE | |
| Compression | H.264 |
| Recording mode | Continuous, schedule, sensor, motion, pre- and post- alarm, emergency, quick backup |
| Prerecording | 0~ 5sec |
| Post-recording | 0~5min |
| Recording and playback rate | 960x480/576 (960H): 240fps |
| 1280x720 (HD): 240fps | |
| 1920x1080 (HD): 240fps | |
| 2560x1600 (4MP): 120fps | |
| 2560x1944 (5MP): 80fps | |
| Recording resolutions | 353 x 240, 720 x 480, 960 x480, 1280x720, 1920x1080, 2560x1600, 2560x1440, 2560x 1944 |
| Fast forward | x1, x2, x4, x8, x16, x32 |
| Playback functions | Intelli-search time-bar, calendar, event search, thumbnail |
| HDD interface | 4x SATA HDDs, up to 16TB storage |
| HDD health check | Temperature, S.M.A.R.T. with email notifications |
| Camera control | Via UTC |
| Digital zoom | Live and playback |
| Software upgrade | USB flash drive, network upgrade, FTP remote upgrade |
| Mobile client | Mobile app for Apple and Android devices |
| Covert channel | Yes |
| Import/export settings | Import and export DVR settings |
| NETWORK | |
| LAN | Ethernet (1 x gigabit) |
| Streaming Transmission speed live | 960x480/576 (960H): 240fps |
| 1280x720 (HD): 240fps | |
| 1920x1080 (HD): 240fps | |
| 2560x1600 (4MP): 120fps | |
| 2560x1944 (5MP): 80fps | |
| Protocol | Fixed IP, DHCP, UPnP, DDNS |
| Web viewer | Live, playback and configuration up to 10 multiple connections |
| Monitoring software | Mac, C3 CMS, DW Mobile Plus mobile app |
| Network features | Dual stream, separate for recording and network transmission |
| Network bandwidth control (25 Kbps ~ 1000 Mbps) | |
| PathFinder P2P service (auto port forwarding) | |
| Backup device | Local backup by USB and CMS over the network and FTP |
| System recovery after power failure | Auto-reboot and journaling file system |
| GENERAL | |
| Operating temp. and humidity | 41°F ~ 104°F (5°C ~ 40°C), less than 80% (non-condensing) |
| Certification | CE, FCC, KCC, WEEE, RoHS |
| Power | DC12V, 39.6W, 3.3A |
| Dimension (W x D x H) | 12.4” x 9.52” x 1.77” (315 × 242 × 45 mm) (1U) |
| Weight | 2.86 lbs (1.3kg) |
| Warranty | 5 year limited |
