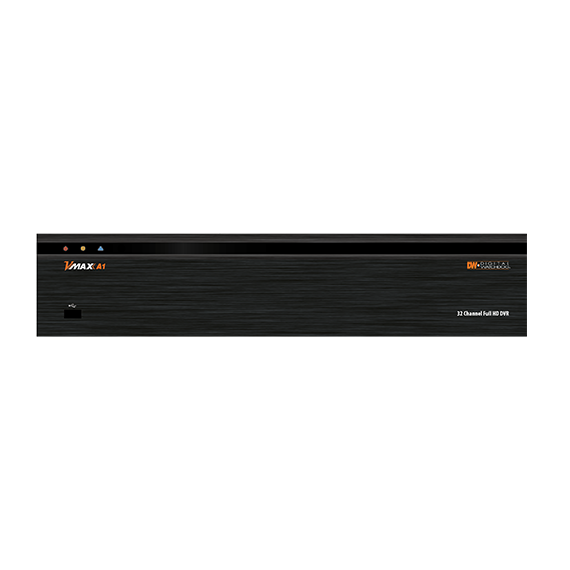

Digital Watchdog - DW-VAONE324T - Universal HD over Coax 32-Channel 4T Digital Video Recorder
Part number:
DW-VAONE324T
Price:
The VMAX A1 Digital Video Recorder supports HD-Analog, HD-TVI and HD-CVI formats and all analog to 960H via Coaxial cables, offering a seamless upgrade to HD resolution. Up the Coax (UTC) remote configuration is available with all compatible cameras. The A1 is available with up to 32TB of storage.
Features:
- Universal HD over Coax DVR Records HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signals
- Advanced H.264 Embedded DVR
- Up to 480fps at 1080p recording
- PathFinder auto port forwarding
- C3 CMS and event server software up to 288Channels
- Event camera group recording
- Mobile application for iPhone®, iPad®, iPod®, Android® smartphones and tablets and Apple TV
- Mac compatible remote ACS software
- OSD and PTZ Control via Coax (UTC)
- Signal Hybrid Detects Any Camera at Any Output Automatically.
- 4K (3840 x 2160) and True HD Video Outputs
- HDD Calculation and Auto Recording Configuration
- Event notifications via e-mail and C3™ CMS and push notifications to mobile devices
- Multiplex - Live, Playback, Recording, Backup, Network, Configuration
- USB 3.0
- 8 Audio Input, 1 Audio Output
- 16 Sensor Input, 2 Relay Output
- Digital Spot Monitoring Output at D1 resolution
- Simple and Free DDNS Service
- Push notifications via DW® VMAX® Plus™ app
- Easy Web-Based Client with Multi-User Access
- Help Menu on Major Functions
- Auto and Manual Firmware Upgrade Available
- 5 Year Limited Warranty
VIDEO | ||
| Signals supported | Analog signal up to 960H, HD-Analog, HD-TVI and HD-CVI | |
| Input video | 32 channels | |
| Video live | Frame rate | 1-30, max 480fps total |
| Resolution | All HD Analog 720p (not CVI 720p) and 2.1MP/1080p Cameras and All Analog Resolutions up to 960H | |
| Video output | HD output (max resolution: 3840 x 2160@30 fps), spot output (D1 display resolution), VGA | |
| Audio | Input | 8 input |
| Output | 1 output | |
| Codec | G.711A | |
| Alarm | Alarm input | 16 input |
| Alarm output | 2 output | |
| Operating system | Embedded Linux® | |
| Serial | Control I/O, 2x RS485 for keyboard and PTZ control | |
| User interface | Menu display | Graphical user interface (GUI) |
| Control method | IR remote control, USB mouse | |
| Screen display mode | 1,4,9,16,25,32, sequence | |
| Screen resolution | 3840 x 2160, 1920x1080p, 1280x1024, 1024x768 | |
PERFORMANCE | ||
| Recording | Compression | H.264 |
| Recording mode | Schedule, event, panic, continuous, pre- and post-event, motion, recording configuration per channel | |
| Pre-recording | 1~5 seconds | |
| Post recording | 5~15 seconds | |
| Recording rate | Up to 480fps total at up to 2.1MP/1080p | |
| Recording resolutions | HD-Analog, HD-TVI and HD-CVI 720p and 1080p cameras and all analog resolutions up to 960H | |
| Playback | Playback rate | Up to 480fps total at up to 2.1MP/1080p |
| Playback resolution | HD-Analog, HD-TVI and HD-CVI 720p and 2.1MP/1080p cameras and all analog resolutions up to 960H | |
| Fast forward functions | x1/16, x1/8, x1/4, x1/2, x1, x2, x4, x8, x16, x32 | |
| Playback functions | First data, last data, date/time, record table, calendar, bookmark, system log | |
| Storage | HDD interface | 4x SATA HDD |
| Max. internal storage | Up to 32TB | |
| HDD interface type | SATA | |
| HDD health check | Temperature, S.M.A.R.T. with e-mail notifications | |
| Features | Camera color control | Brightness, contrast, saturation, hue |
| Digital zoom | Yes (live & playback) | |
| Software upgrade | USB flash drive, network upgrade, FTP remote upgrade | |
| Mobile client | Mobile app for Apple® and Android® smartphones and tablets | |
| Covert channel | Yes (live & playback) | |
NETWORK | ||
| Network connection | Ethernet (1 x Gigabit) | |
| Streaming | Transmission speed live | Up to 480fps total at up to 2.1MP/1080p |
| Protocol | Static, DDNS, DHCP, uPnP, RTSP | |
| Access | Web viewer | Live, playback and configuration up to 5 multiple connections |
| Client monitoring software | Mac® (Apple® S/W), Pivot™ (CMS S/W) | |
GENERAL | ||
| Operating temperature / humidity | 41°F ~ 104°F (5°C ~ 40°C), less than 80% (non-condensing) | |
| Electrical | Power requirement | 12V DC |
| Power consumption | 108W, 9A | |
| Dimensions | 17.04 x 3.46 x 13.77 in (433 x 88 x 350mm) | |
| Weight | 13.84lb (6.28kg) | |
