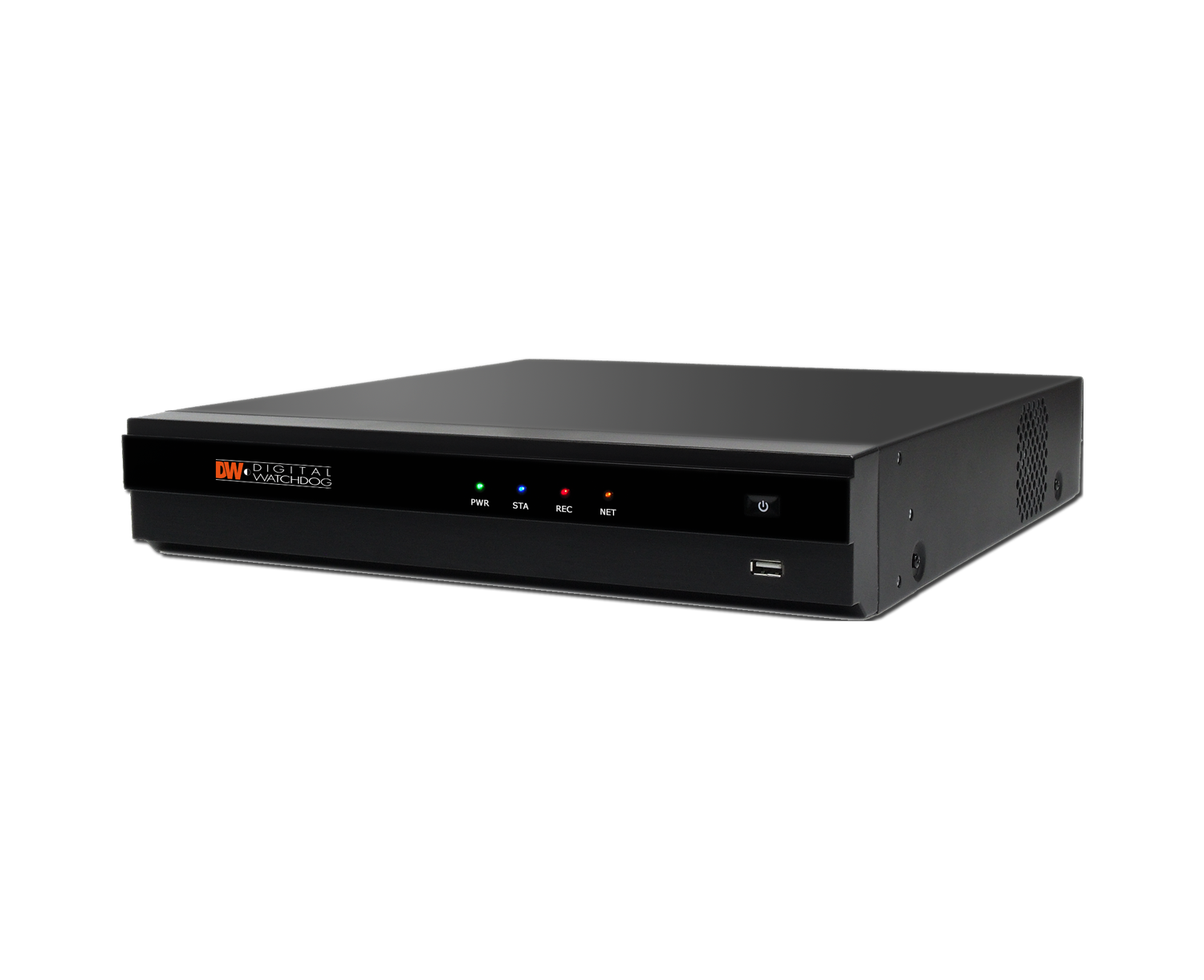

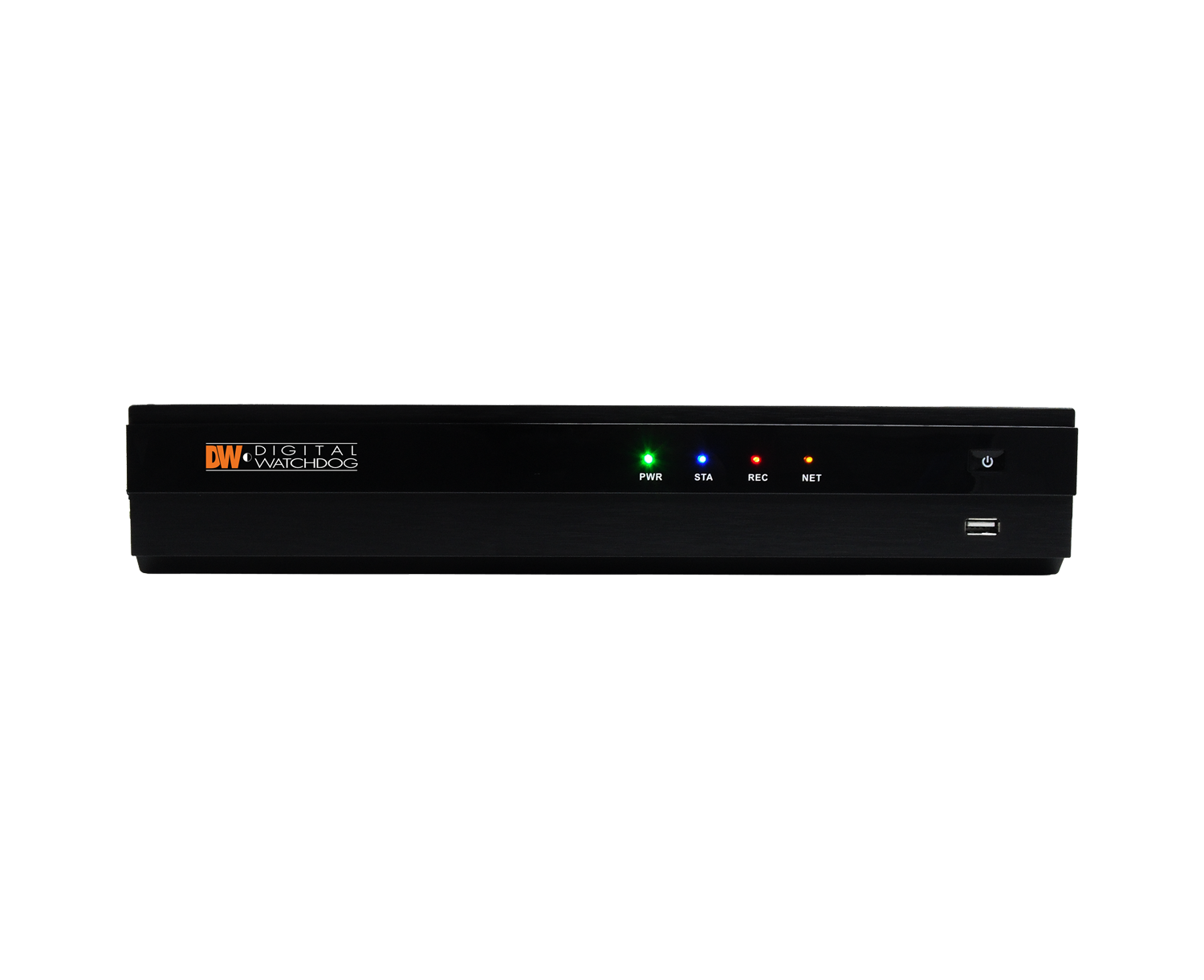

DIGITAL WATCHDOG - DW-VP123T8P - VMAX IP PLUS 8-CHANNEL POE NVR WITH 4 VIRTUAL CHANNELS
Part number:
DW-VP123T8P
Price:
The VMAX® IP Plus™ is an easy to use PoE NVR that allows you to go from power up to monitoring in less than three minutes! The NVR offers unique features such as CCIP™ camera encryption and internal systems diagnostics, keeping your system healthy, secure and up to date. Combine with the DW Witness™ app to turn the camera on a smartphone or tablet into a surveillance camera that can be viewed and recorded on the NVR. Combine your VMAX IP Plus with DW Spot™ Monitoring Modules for public view monitors. Each NVR can support up to 16 remote connections and share a maximum of 64 channels simultaneously.

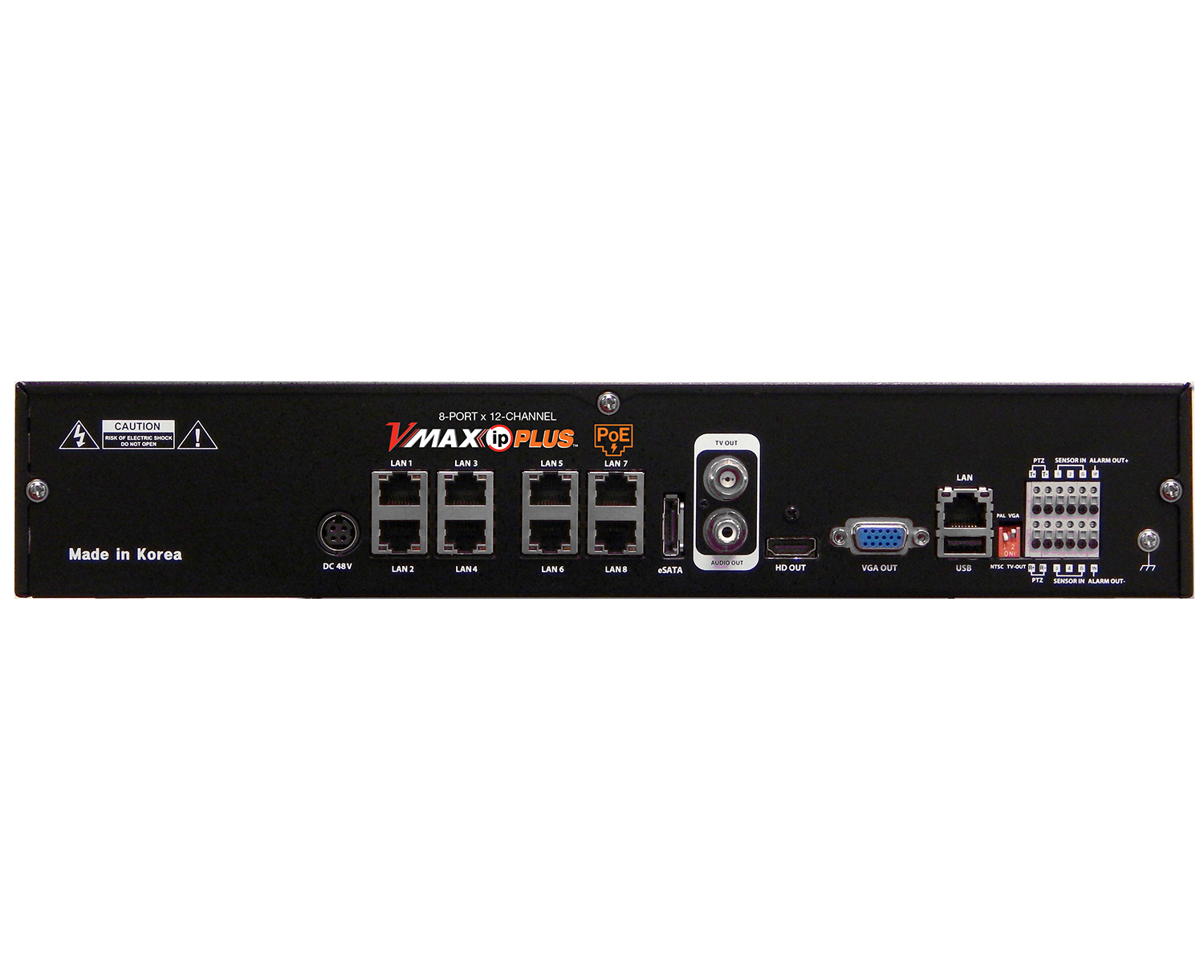

Available with 8 PoE ports (expandable to 12 cameras by adding an external PoE switch), the NVRs can record and manage single-sensor IP cameras up to 4K resolution with 80Mbps throughput.
- Complete installation, set up and camera configuration in under three minutes!
- CCIP™ system encryption protects your surveillance system from out of network attacks
- Record and manage single-sensor IP cameras up to 4K (3840×2160), with 80Mbps maximum throughput
- Local power for up to 8 IP cameras via resident PoE switch
- DW Witness™ turns a smartphone or tablet into an additional surveillance camera
- PathFinder™ Peer-to-Peer (P2P) remote connection
- HTTPS encryption supported
- Automatic device discovery
- Control any ONVIF camera’s set up and features remotely
- 0TB-24TB storage options
- Snapshot Notify™: camera notifications sent to an email or CMS
- C3™ CMS and event server software up to 144 Channels
- Event notifications via email, text and C3™ CMS and push notifications to mobile devices
- Mobile application for iPhone, iPad, iPod, Android smartphones and tablets and Apple TV
- Dual-stream recording
- Easy drag and drop camera management
- Instant backup during playback
- Full HD output for local live and playback display up to 4K (3840×2160)
- Complete system analysis with real-time system, network and PoE status monitoring
- True HD and VGA simultaneous output support
- 4 sensor input, 1 alarm relay output
- Transaction verification via TCP and USB-serial
- Email event notifications with video clip
- Simple and free DDNS support for remote management
- Easy web-based client with multi-user access
- Advanced H.264 Linux embedded NVR
- Simultaneous live, playback, recording, back-up and network
- NVR health check with email notification
- NVR calculation and auto-recording configuration
- Help menu on major functions
- Auto or manual firmware upgrade available
- Automatic private IP addressing
- NTP (network time protocol)
- Screen saver to protect monitor screen
- Import/export configuration between multiple NVRs
- USB mouse and GUI control
- 5 year limited warranty
- Note: ONVIF conformant fisheye cameras will be recognized in VMAX IP Plus NVRs, but image dewarping capabilities are not included.
|
Operating system
|
Embedded Linux®
|
|
|
System
|
Channel
|
12 Channel (DW-PVX16W multi-sensor IP camera uses 4 channels in the recorder, one per sensor).
|
|
No. of PoE
|
8 Ch
|
|
|
Max supported resolution
|
IP camera max. 5MP (2592 x 1920), fisheye dewarping not supported
|
|
|
Communication protocol
|
ONVIF®
|
|
|
PoE type
|
100Mbps, 802.3af
|
|
|
Display
|
Speed
|
360fps
|
|
Screen mode
|
1, 4, 9 and 12
|
|
|
Video-Out
|
Monitor
|
True HD and VGA
|
|
resolution
|
True HD output: 800 x 600, 1024 x 768, 1280 x 1024, 1920 x 1080
|
|
|
Recording speed
|
Up to 360fps up to 5MP resolution
|
|
|
Max. throughput
|
80 Mbps
|
|
|
Max. HDD bay
|
2 x SATA HDD
|
|
|
Recording resolution
|
Dual-stream
|
|
|
Recording modes
|
Continuous, C+M, C+S, scheduled, sensor and motion detection recording
|
|
|
Pre-alarm recording, emergency recording, quick backup
|
||
|
Playback and search
|
Speed
|
x1, x2, x4, x8, x16, x32
|
|
Function
|
Intelli-search by time bar, calendar (date and time) and event search
|
|
|
Audio output
|
1 Ch
|
|
|
Alarm input/ relay output
|
4 Ch/ 1 Ch
|
|
|
PTZ control
|
RS-485, ONVIF
|
|
|
Transaction verification
|
TCP and USB-serial interface
|
|
|
LAN
|
1x gigabit ethernet (RJ45) – fixed IP, DHCP and DDNS
|
|
|
Access
|
Web viewer: Live, playback and configuration up to 10 multiple connections
|
|
| Client monitoring software: Mac® (Apple® S/W), C3™ (CMS S/W) | ||
|
Backup device
|
Local backup by USB, network backup by CMS
|
|
|
System recovery after power failure
|
Auto-reboot and journaling file system
|
|
|
Other function
|
Firmware upgrade
|
FTP, USB
|
|
Back-up
|
Remote, USB
|
|
|
Special features
|
Local PoE switch
|
|
|
Health check
|
Real-time system, network and PoE status monitoring
|
|
|
System operation
|
IR remote controller (optional), USB mouse, PTZ control by keyboard (optional)
|
|
|
Power requirements
|
48V DC
|
|
|
Power consumption
|
158.4W total power budget, 3.3A, 15.4W per PoE Channel
|
|
|
Operating temperature and humidity
|
41~104 °F (5~40 °C) / 20~90% RH
|
|
|
Dimension (WxDxH)
|
14.21 x 14.96 x 2.6 Inch(361 x 380 x 66 mm)
|
|
|
Certification
|
CE, FCC, KCC, WEEE, RoHS
|
|
|
Warranty
|
5 year limited
|
|
