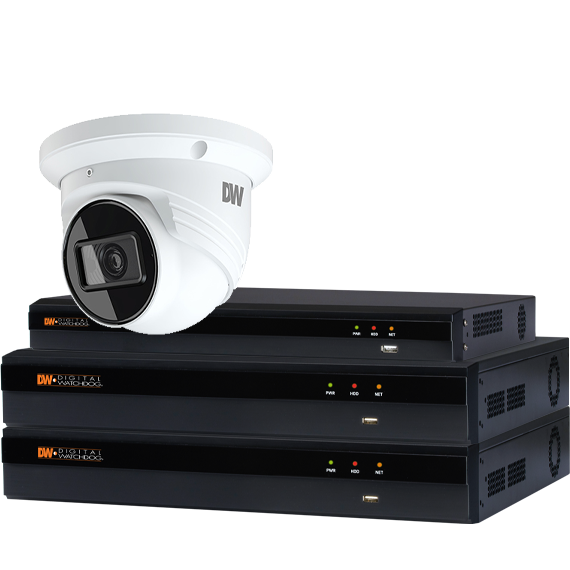

Digital Watchdog - DW-VP12T9KIT28 - BUNDLE AND SAVE 21% - (8) 5MP Fixed Vandal Turret cameras with 2TB HDD NVR
Consist of 1 - DW-VG4122T8P & 8 - DWC-MT95Wi28TW
Part number:
DW-VP12T9KIT28
Price:
The VMAX IP Plus is an easy to use to use PoE NVR that allows youto go from power up to monitoring in less than three minutes! Combinewith the DW Witness app to turn the camera on a smartphone or tabletinto a surveillance camera that can be viewed and recorded on the NVR.Available with 16 PoE ports, the NVRs can record and manage single-sensor IP cameras up to 4K, with 160Mbps maximum throughput.
These MEGApix IP cameras are NDAA compliant and delivercrystal-clear images at 5MP resolution and real-time 30fps. TheIP67-rated turret camera features 2.8mm and 3.6mm fixed lensoptions and a 360° camera gimbal for absolute view adjustment.Added intelligence includes line crossing, perimeter intrusion, videotampering detection and object classification. All MEGApix camerasare ONVIF conformant, assuring their successful integration with anyopen platform solution on the market.
Features :
- Kits w/ 2TB, 3TB and 4TB of storage capacity.
- Supports all ONVIF conformant IP cameras.
- Record/manage single-sensor IP cameras up to 4K, with 160Mbps maximum throughput.
- Local power for 4, 8, or 16 IP cameras via resident PoE switch.
- Kits w/ 4, 8, or 12 turret IP cameras with 2.8mm fixed lens.
- Smart IR, True WDR, H.265, H.264, MJPG.
| Specification (5MP turret IP camera) | ||
| IMAGE | DWC-MT95Wi28T | DWC-MT95Wi36T |
| Image sensor | 5MP 1/2.7” CMOS | |
| Total pixels | 2592 (H) x 1944 (V) | |
| Minimum scene illumination | 0.02 lux (color) | |
| 0.0 lux (B/W) | ||
| S/N ratio | 50dB | |
| LENS | ||
| Focal length | 2.8mm, F1.6 | 3.6mm, F1.6 |
| Lens type | Fixed lens | |
| Field of view (FoV) | 98.5° | 81.4° |
| IR distance | 100ft range | |
| I/O | ||
| Audio in / out | 1 audio input and 1 microphone built-in | |
| Audio compression | G.711A / U | |
| OPERATIONAL | ||
| Shutter mode | Auto, manual | |
| Shutter speed | 1/30s ~ 1/100000s | |
| Auto gain control | Auto | |
| Day / night | Auto, day (color), night (B/W), schedule | |
| Smart DNR™ 3D digital noise reduction | 3D DNR | |
| Wide dynamic range (WDR) | True WDR low, middle, high | |
| Wide dynamic range (WDR) dB | 120dB | |
| Privacy zone | 4 programmable privacy masks | |
| Camera analytics | Line crossing, perimeter intrusion, video tampering detection (scene change, video blur, abnormal color detection), object classification (differentiate humans from objects) | |
| Backlight compensation (BLC) | Yes | |
| De-Fog | Yes | |
| Mirror and flip | Yes | |
| Alarm notifications | Notifications via email or FTP server | |
| Memory slot | Micro SD / SDHC / SDXC card up to 256GB (card not Included) | |
| NETWORK | ||
| LAN | 802.3 compliance 10/100 LAN | |
| Video compression type | H.265, H.264, MJPEG | |
| Resolution | 5MP, 4MP, 2K, 3MP, 2.1MP/1080P, 720P (60Hz: 1 ~ 30fps; 50Hz: 1~25fps ) HFR mode: 1080P / 720P (60Hz : 1 ~ 60fps; 50Hz: 1~50fps ) | |
| Frame rate | Up to 30fps at all resolutions | |
| Video bitrate | 64 Kbps ~ 8 Mbps | |
| Bitrate control | Multi-streaming CBR/VBR at H.264/ H.265 (controllable frame rate and bandwidth) | |
| Streaming capability | Dual-stream at different rates and resolutions | |
| IP | IPv4, IPv6 | |
| Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, ICMP, IGMP, PPPoE, DDNS, SMTP, FTP, SNMP,HTTP, 802.1x, UPnP, HTTPs, QoS | |
| Security | IP filtering, MAC filtering, authentication (ID/PW), SSL/TSL | |
| ONVIF conformance | Yes | |
| Web viewer | OS: Windows® | |
| Browser: Internet Explorer | ||
| Video management software | DW Spectrum® IPVMS | |
| ENVIRONMENTAL | ||
| Operating temperature | -22°F ~ 140°F (-30°C ~ 60°C) | |
| Operating humidity | 95% RH (non–condensing) | |
| IP rating | IP67-rated | |
| IK rating | IK10 impact-resistant | |
| Other certifications | FCC, CE, ROHS, POE, ONVIF | |
| ELECTRICAL | ||
| Power requirement | DC 12V, PoE IEEE 802.3af Class 3. (Adapter not included) | |
| Power consumption | 7W | |
| MECHANICAL | ||
| Material | Metal turret housing | |
| Dimensions | 4.66” x 3.58” (118.6 x 91 mm) | |
| Weight | 1.01 lb (0.46 kg) | |
| Warranty | 5 year warranty | |
| Specification - DW-VG4122T8P | ||
| Hardware | ||
| Display Modes | 1 | |
| 12 | ||
| 4 | ||
| 6 | ||
| 9 | ||
| Sequence | ||
| Display Speed | Up to 30fps per channel | |
| Local Video Output Resolution | 1024x768 | |
| 1280x1024 | ||
| 1280x720 | ||
| 1920x1080 (1080p) | ||
| 800x600 | ||
| 3840×2160 (4K) | ||
| 2560x1440 (1440p) | ||
| Local Video Outputs | 1x True HD output | |
| 1x VGA output | ||
| Max Supported Recording Resolution | 4K (3840×2160) | |
| Video Compression | H.264 | |
| H.265 | ||
| OS on SSD | N/A | |
| Max throughput (Mbps) | 80Mbps | |
| Input channels | 12 Channels | |
| 8 PoE channels | ||
| Storage | ||
| Raw internal storage options | 2TB, 4TB, 6TB, 8TB,10TB, 12TB, 16TB, 32 TB | |
| RAID Options | No RAID | |
| Max HDD Bay | 2 x SATA HDD | |
| Maximum Storage | No storage (DW-VG4128P) | |
| 2TB (DW-VG4122T8P) | ||
| 4TB (DW-VG4124T8P) | ||
| 6TB (DW-VG4126T8P) | ||
| 8TB (DW-VG4128T8P) | ||
| 10TB (DW-VG41210T8P) | ||
| 12TB (DW-VG41212T8P) | ||
| 16TB (DW-VG41216T8P) | ||
| 20TB (DW-VG41220T8P) | ||
| 32TB (DW-VG41232T8P) | ||
| VMS features | ||
| Alarm in/out | 1 alarm output | |
| 4 alarm inputs | ||
| Audio in/out | 1 output | |
| Performance features | Camera Color Control | |
| CCIP | ||
| Covert Channel | ||
| Digital Zoom in live and playback | ||
| Import and export settings | ||
| PoE built-in | ||
| Quick Setup under 3 Minutes | ||
| Real-time temp alert | ||
| Playback Functions | Calendar | |
| Event search | ||
| Smart motion search | ||
| Thumbnail search | ||
| Timeline | ||
| Playback speed | x1 | |
| x16 | ||
| x2 | ||
| x32 | ||
| x4 | ||
| x64 | ||
| x8 | ||
| x99 | ||
| Post-recording | 0~5 minutes | |
| Pre- recording | 0~5 seconds | |
| PTZ control | RS485 | |
| UTC | ||
| Recording Modes | Continuous | |
| Emergency | ||
| Motion detection | ||
| Pre- and post-alarm | ||
| Quick backup | ||
| Scheduled | ||
| Sensor | ||
| Recording Resolution and Recording Rate | Up to 3840×2160 (4K): 360fps | |
| System Operation | Graphical user interface (GUI) | |
| Joystick Controller (optional) | ||
| USB mouse (included) | ||
| Network | ||
| Backup | Local backup via USB | |
| Network backup via CMS | ||
| Ethernet Ports | 1x 1G Ethernet (RJ45) | |
| Firmware Upgrade | CMS over network | |
| FTP | ||
| USB | ||
| Protocol | DDNS | |
| DHCP | ||
| RTSP | ||
| Static fixed IP | ||
| uPNP | ||
| System recovery after power failure | Auto-reboot and journaling file system | |
| Transmission speed live | Up to 3840×2160 (4K): 360fps | |
| Remote Client | DW VMAX Plus App | |
| C3 CMS | ||
| DW Mobile Plus | ||
| DW Witness | ||
| Electrical | ||
| Maximum Power per Port | Up to 30W | |
| Power Consumption | 120W total power budget (recorder + PoE ports) | |
| Power Requirements | 48V DC, 2.5A | |
| Total PoE Power Budget | 12W per PoE port | |
| 96W | ||
| General | ||
| Accessories | Mouse | |
| Operating Temperature and Humidity | 10~90% RH | |
| 32~113 °F (0~45 °C) | ||
| Rail kit | DW-G419RE (optional. Sold separately) | |
| Recorder Dimensions (H X W X D) | 1.77" x 14.96" x 10.58" (45 x 380 x 268.8mm) | |
| Serial ports | RS485 | |
| USB interface | Yes | |
| Warranty | 5 Year Limited Warranty | |
| Weight (barebone, HDD not included) | 3.74 lbs (1.69 kg) | |
