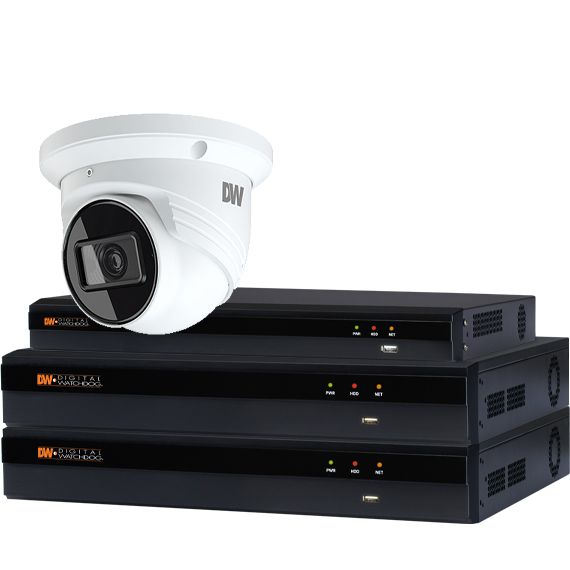

Digital Watchdog - DW-VP163T12VTF - BUNDLE AND SAVE - (12) 4MP Fixed Vandal Turret cameras with 3TB HDD NVR
Consist of 1 - DW-VP163T16P & 12 - DWC-VSTB04Bi
While Supplies Last - no substitutions
Part number:
DW-VP163T12VTF
Price:
BUNDLE AND SAVE - (12) 4MP Fixed Vandal Turret cameras with 3TB HDD NVR Consist of 1 - DW-VP163T16P & 12 - DWC-VSTB04Bi
While Supplies Last - no substitutions.
Features:
DW-VP163T16P:
- Complete installation, set up and camera configuration in under three minutes!
- CCIP system encryption protects your surveillance system from out of network attacks
- Record and manage single-sensor IP cameras up to 4K (3840×2160), with 160Mbps maximum throughput
- Local power for up to 16 IP cameras via resident PoE switch
- DW Witness turns a smartphone or tablet into an additional surveillance camera
- PathFinder Peer-to-Peer (P2P) remote connection
- HTTPS encryption supported
- Automatic device discovery
- Control any ONVIF camera’s set up and features remotely
- 0TB-32TB storage options
- Snapshot Notify: camera notifications sent to an email or CMS
- C3 CMS and event server software up to 144 Channels
- Event notifications via email, text and C3 CMS and push notifications to mobile devices
- Mobile application for iPhone, iPad, iPod, Android smartphones and tablets and Apple TV
- Dual-stream recording
- Easy drag and drop camera management
- Instant backup during playback
DWC-VSTB04Bi:
- 4MP 1/3" image sensor at real-time 30fps
- 2.8mm fixed lens
- True Wide Dynamic Range (WDR) for clear images in challenging light
- Simultaneous streaming and multiple codec options for smart bandwidth management
- 100' Smart IR with intelligent camera sync for clear B/W images with no need for external light
- Line crossing video analytics
- Perimeter intrusion video analytics
- Video tampering with scene-change detection video analytics
- Video tampering with video-blur detection video analytics
- Video tampering with abnormal color detection video analytics
- White and black housing options available
- Smart DNR 3D digital noise reduction reduces noise and ghosting for motion in low-light environments.
- Privacy zones cover sensitive areas in the camera's field of view.
- Backlight compensation (BLC)
- Built-in microphone and audio input for direct communication between the monitoring station and the camera's location
- Local SD card slot for local recording in case of network loss
- Web server built-in for easy camera management from any browser
| Specification - DW-VP163T16P | |
|---|---|
| Hardware | |
| Display Modes | 1 16 4 9 Sequence |
| Display Speed | Up to 30fps per channel |
| Local Video Output Resolution | 1024x768 1280x1024 1280x720 1920x1080 (1080p) 3840×2160 (4K) |
| Local Video Outputs | 1x True HD output 1x VGA output |
| Max Supported Recording Resolution | 4K (3840×2160) |
| PoE Type | 100Mbps, 802.3at |
| Video Compression | H.264 |
| OS on SSD | Hot-swappable bays with lock |
| Max throughput (Mbps) | 160Mbps |
| Input channels | 16 Channels 16 PoE channels |
| Storage | |
| Raw internal storage options | 3TB, 4TB, 6TB, 8TB, 9TB, 12TB, 16TB, 18B, 24TB, 32TB |
| HDD healthcheck | Temperature, S.M.A.R.T. with email notifications |
| Max HDD Bay | 4 x SATA HDD |
| Maximum Storage | No storage (DW-VP16P) 3TB (DW-VP163T-16P) 4TB (DW-VP164T-16P) 6TB (DW-VP166T-16P) 8TB (DW-VP169T-16P) 12TB (DW-VP1612T-16P) 16TB (DW-VP1616T-16P) 18TB (DW-VP1618T-16P) 24TB (DW-VP1624T-16P) 32TB (DW-VP1632T-16P) |
| VMS features | |
| Alarm in/out | 16 alarm outputs 4 alarm outputs |
| Audio in/out | 1 input 1 output |
| Performance features | AVI file backup Camera Color Control CCIP Covert Channel Digital Zoom in live and playback Import and export settings PoE built-in Quick Setup under 3 Minutes Real-time temp alert Snapshot Notify™: Programmable interval camera image verification sent to an email Watermak exported video |
| Playback Functions | Calendar Event search Smart motion search Thumbnail search Timeline |
| Playback speed | x1 x16 x2 x32 x4 x64 x8 x99 |
| Post-recording | 0~5 minutes |
| Pre- recording | 0~5 seconds |
| PTZ control | ONVIF RS485 |
| Recording Modes | Continuous Emergency Motion detection Pre- and post-alarm Quick backup Scheduled Sensor |
| Recording Resolution and Recording Rate | Up to 3840×2160 (4K): 270fps Up to 3840×2160 (4K): 360fps Up to 3840×2160 (4K): 480fps |
| System Operation | Graphical user interface (GUI) Joystick Controller (optional) Remote Control (optional) USB mouse (included) |
| Network | |
| Backup | Local backup via USB Network backup via CMS |
| Ethernet Ports | 1x 1G Ethernet (RJ45) |
| Firmware Upgrade | CMS over network FTP USB |
| Protocol | DDNS DHCP RTSP Static fixed IP uPNP |
| System recovery after power failure | Auto-reboot and journaling file system |
| Transation verification | Text-in Based (USB to Serial support, TCP/IP Network) |
| Transmission speed live | Up to 3840×2160 (4K): 480fps |
| Remote Client | DW VMAX Plus App ACS VMAX Client for MAC C3 CMS DW Mobile Plus DW VMAX App DW Witness Pivot CMS |
| Electrical | |
| Maximum Power per Port | Up to 30W |
| Power Consumption | 300W total power budget, 5.5A 9.37W per PoE channel, simultaneous A UPS is recommended |
| Power Requirements | 110~240V A/C |
| Total PoE Power Budget | 150W |
| General | |
| Accessories | IR remote control (optional) Mouse |
| Operating Temperature and Humidity | 20 ~ 90% RH 41 ~ 104 °F (5~40 °C) |
| Rail kit | DW-VP16RE - 19" rackmount ears |
| Recorder Dimensions (H X W X D) | 2.79” x 17.32” x 15.66” (71 x 440 × 397.8mm) |
| Serial ports | RS485 |
| USB interface | Yes |
| Warranty | 5 Year Limited Warranty |
| Certification | ONVIF Conformant TAA Compliance UL Listed |
| Form Factor | Embedded |
| Specification - DWC-VSTB04Bi | |
|---|---|
| Image | |
| Image sensor | 4MP 1/3" CMOS sensor (x4) |
| Maximum resolution | 4MP |
| Minimum Scene Illumination in color | 0.0 lux (B/W) 0.005 lux (color) |
| Total Pixels | 2560 (H) x 1440 (V) |
| Lens | |
| Focal Length | 2.8mm |
| Horizontal Field of View (HFOV) | 94° |
| Illumination Distance | 100' range Smart IR™ |
| Lens Type | Fixed Lens |
| Vertical Field of View (VFOV) | 50° |
| I/O | |
| Audio compression | G.711A / U |
| I/O Audio in/out | *Cameras provide a line level audio. The use of amplified microphones and speakers is recommended. 1 input 1 microphone built-in |
| Operational | |
| 3D digital noise reduction | Smart DNR™ 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Camera Analytics | Line Crossing Perimeter Intrusion video Tampering Detection (Scene Change, Video Blur, Abnormal Color Detection) |
| Day and night | Auto day/night Day (color) Night (B/W) |
| De-fog | Yes |
| Memory slot | Micro SD/SDHC/SDXC class 10 card (card not included) Up to 1TB micro SD / FAT32 |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Operational Notifications | Email FTP server |
| Privacy Zones | 8 programmable privacy masks |
| Sharpness | Yes |
| Shutter Mode | Auto Manual |
| Shutter Speed | 1/30 ~ 1/100000 |
| White Balance | Yes |
| Wide Dynamic Range (WDR) | True WDR 120dB |
| Network | |
| Bitrate Control | Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth) |
| IP | IPv4 IPv6 |
| LAN | 802.3 compliance 10/100 LAN |
| Network resolution | 4MP, 3MP,2.1MP/1080P, 720P, D1, 480×240, CIF (60Hz: 1 ~ 30fps; 50Hz: 1~25fps) |
| Network Web Viewer | Microsoft Edge® browser Windows OS |
| Protocol | 802.1x FTP HTTP HTTPs ICMP IGMP NTP ONVIF PPPoE QoS RTCP RTP SMTP SNMP UDP |
| Security | Digest authentication (ID/PW) IP filtering MAC filtering |
| Stream Speed | Up to 30fps at all resolutions |
| Streaming Capability | Dual-stream at different rates and resolutions |
| Video Bitrate | 64Kbps~8Mbps |
| Video Compression Type | H.264 H.265 MJPEG |
| Video Management Software | Any ONVIF conformant CMS DW Spectrum® |
| Environmental | |
| Compliance | ONVIF Conformant TAA Compliance UL Listed |
| Environmental Operating Humidity | 0-95% RH (non–condensing) |
| Environmental Operating Temperature | -22°F ~ 140°F (-30°C ~ 60°C) |
| Mounting Accessories (Required/Optional) | Optional. Sold separately |
| Mechanical | |
| Camera Dimensions (H X W X D) | 4.25" x 3.77" (108 x 96 mm) |
| Camera Weight | 1.01 lbs (0.46 kg) |
| Housing | Turret |
| IK rating | IK10-rated housing, IK03-rated glass cover. |
| IP rating | Weather Resistant (IP67) |
| Materials | Aluminum die-casting |
| Electrical | |
| Power Consumption | DC12V: max 5W, 416.6mA PoE: max 5W |
| Power Requirements | Adapter not included PoE |
| General | |
| Warranty | 5 Year Warranty |
