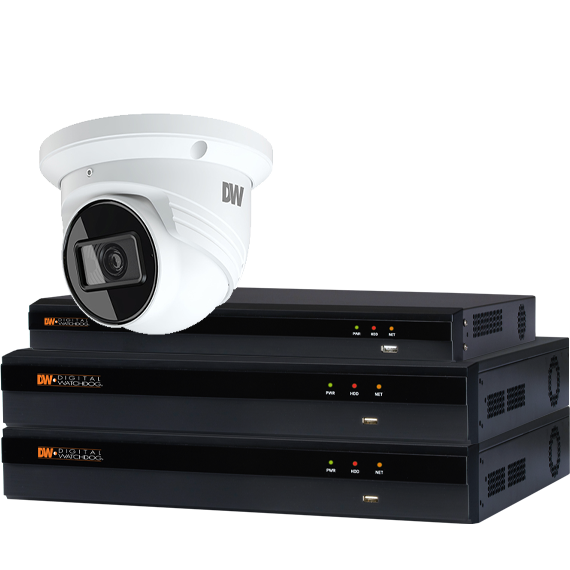

Digital Watchdog - DW-VP16T9KIT212 - BUNDLE AND SAVE 21% - (12) 5MP Fixed Vandal Turret cameras with 2TB HDD NVR
Consist of 1 - DW-VG4162T16P & 12 - DWC-MT95Wi28TW
Part number:
DW-VP16T9KIT212
Price:
The VMAX IP Plus is an easy to use to use PoE NVR that allows youto go from power up to monitoring in less than three minutes! Combinewith the DW Witness app to turn the camera on a smartphone or tabletinto a surveillance camera that can be viewed and recorded on the NVR.Available with 16 PoE ports, the NVRs can record and manage single-sensor IP cameras up to 4K, with 160Mbps maximum throughput.
These MEGApix IP cameras are NDAA compliant and delivercrystal-clear images at 5MP resolution and real-time 30fps. TheIP67-rated turret camera features 2.8mm and 3.6mm fixed lensoptions and a 360° camera gimbal for absolute view adjustment.Added intelligence includes line crossing, perimeter intrusion, videotampering detection and object classification. All MEGApix camerasare ONVIF conformant, assuring their successful integration with anyopen platform solution on the market.
Features :
- Kits w/ 2TB, 3TB and 4TB of storage capacity.
- Supports all ONVIF conformant IP cameras.
- Record/manage single-sensor IP cameras up to 4K, with 160Mbps maximum throughput.
- Local power for 4, 8, or 16 IP cameras via resident PoE switch.
- Kits w/ 4, 8, or 12 turret IP cameras with 2.8mm fixed lens.
- Smart IR™, True WDR, H.265, H.264, MJPG.
| Specification: DW-VG4162T16P | |
|---|---|
| Hardware | |
| Display Modes | 1 12 16 4 6 9 Sequence |
| Display Speed | Up to 30fps per channel |
| Local Video Output Resolution | 1024x768 1280x1024 1280x720 1920x1080 (1080p) 800x600 3840×2160 (4K) 2560x1440 (1440p) |
| Local Video Outputs | 1x True HD output 1x VGA output |
| Max Supported Recording Resolution | 4K (3840×2160) |
| Video Compression | H.264 H.265 |
| OS on SSD | N/A |
| Max throughput (Mbps) | 160Mbps |
| Input channels | 16 Channels 16 PoE channels |
| Storage | |
| Raw internal storage options | 2TB, 4TB, 6TB, 8TB, 12TB, 16TB, 20TB, 32TB |
| RAID Options | No RAID |
| Max HDD Bay | 2 x SATA HDD |
| Maximum Storage | No storage (DW-VG41616P) 2TB (DW-VG4162T16P) 4TB (DW-VG4164T16P) 6TB (DW-VG4166T16P) 8TB (DW-VG4168T16P) 10TB (DW-VG41610T16P) 12TB (DW-VG41612T16P) 16TB (DW-VG41616T16P) 20TB (DW-VG41620T16P) 32TB (DW-VG41632T16P) |
| VMS features | |
| Alarm in/out | 4 alarm outputs |
| Audio in/out | 1 output |
| Performance features | Camera Color Control CCIP Covert Channel Digital Zoom in live and playback Import and export settings PoE built-in Quick Setup under 3 Minutes Real-time temp alert |
| Playback Functions | Calendar Event search Smart motion search Thumbnail search Timeline |
| Playback speed | x1 x16 x2 x32 x4 x64 x8 x99 |
| Post-recording | 0~5 minutes |
| Pre- recording | 0~5 seconds |
| PTZ control | RS485 UTC |
| Recording Modes | Continuous Emergency Motion detection Pre- and post-alarm Quick backup Scheduled Sensor |
| Recording Resolution and Recording Rate | Up to 3840×2160 (4K): 480fps |
| System Operation | Graphical user interface (GUI) Joystick Controller (optional) USB mouse (included) |
| Network | |
| Backup | Local backup via USB Network backup via CMS |
| Ethernet Ports | 1x 1G Ethernet (RJ45) |
| Firmware Upgrade | CMS over network FTP USB |
| Protocol | DDNS DHCP RTSP Static fixed IP uPNP |
| System recovery after power failure | Auto-reboot and journaling file system |
| Transmission speed live | Up to 3840×2160 (4K): 480fps |
| Remote Client | DW VMAX Plus App C3 CMS DW Mobile Plus DW Witness |
| Electrical | |
| Maximum Power per Port | Up to 30W |
| Power Consumption | 180W total power budget (recorder + PoE ports) |
| Power Requirements | 54V DC, 3.33A |
| Total PoE Power Budget | 150W 9.37W per PoE port |
| General | |
| Accessories | Mouse |
| Operating Temperature and Humidity | 10~90% RH 32~113 °F (0~45 °C) |
| Rail kit | DW-G419RE (optional. Sold separately) |
| Recorder Dimensions (H X W X D) | 1.77" x 14.96" x 10.58" (45 x 380 x 268.8mm) |
| Serial ports | RS485 |
| USB interface | Yes |
| Warranty | 5 Year Limited Warranty |
| Weight (barebone, HDD not included) | 4.1 lbs (1.85 kg) |
| Specification: DWC-MT95Wi28TW | |
|---|---|
| Image | |
| Image sensor | 5MP 1/2.7 CMOS sensor |
| Maximum resolution | 5MP |
| Minimum Scene Illumination in color | 0.0 lux (B/W) 0.02 lux (color) |
| Total Pixels | 2592 (H) × 1944 (V) |
| Lens | |
| Focal Length | 2.8mm 3.6mm |
| Horizontal Field of View (HFOV) | 81.4° 98.5° |
| Illumination Distance | 100' range Smart IR™ |
| Lens Type | Fixed Lens |
| I/O | |
| Audio compression | G.711A / U |
| I/O Audio in/out | *Cameras provide a line level audio. The use of amplified microphones and speakers is recommended. 1 input 1 microphone built-in |
| Operational | |
| 3D digital noise reduction | Smart DNR™ 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Camera Analytics | Object Classification (Differentiate Humans from Objects) Line Crossing Perimeter Intrusion video Tampering Detection (Scene Change, Video Blur, Abnormal Color Detection) |
| Day and night | Auto day/night Day (color) Night (B/W) |
| De-fog | Yes |
| Memory slot | Micro SD/SDHC/SDXC class 10 card (card not included) Up to 1TB micro SD / FAT32 |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Operational Notifications | Email FTP server |
| Privacy Zones | 4 programmable privacy masks |
| Sharpness | Yes |
| Shutter Mode | Auto Manual |
| Shutter Speed | 1/30 ~ 1/100000 |
| White Balance | Yes |
| Wide Dynamic Range (WDR) | True WDR 120dB |
| Network | |
| Bitrate Control | Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth) |
| IP | IPv4 IPv6 |
| LAN | 802.3 compliance 10/100 LAN |
| Network resolution | 5MP, 4MP, 2K, 3MP, 2.1MP/1080P, 720P (60Hz: 1 ~ 30fps; 50Hz: 1~25fps) HFR mode: 1080P / 720P (60Hz: 1 ~ 60fps; 50Hz: 1~50fps) |
| Network Web Viewer | Microsoft Edge® browser Windows OS |
| Protocol | 802.1x DDNS DHCP FTP HTTP HTTPs ICMP IGMP NTP ONVIF PPPoE QoS RTCP RTP RTSP SMTP SNMP UDP uPNP |
| Security | Digest authentication (ID/PW) IP filtering MAC filtering |
| Stream Speed | Up to 30fps at all resolutions |
| Streaming Capability | Dual-stream at different rates and resolutions |
| Video Bitrate | 64Kbps~8Mbps |
| Video Compression Type | H.264 H.265 MJPEG |
| Video Management Software | Any ONVIF conformant CMS DW Spectrum® ExacqVision Technologies Milestone Systems |
| Environmental | |
| Environmental Operating Humidity | 0-95% RH (non–condensing) |
| Environmental Operating Temperature | -22°F ~ 140°F (-30°C ~ 60°C) |
| Mounting Accessories (Required/Optional) | Optional. Sold separately |
| Mechanical | |
| Camera Dimensions (H X W X D) | 4.66" x 3.58" (118.6 x 91 mm) |
| Camera Weight | 1.01 lbs (0.46 kg) |
| Housing | Turret |
| Housing Color | White |
| IP rating | Weather Resistant (IP67) |
| Materials | Aluminum die-casting |
| Electrical | |
| Power Consumption | DC12V: max 7.0W, 583.3mA PoE: max 7.0W |
| Power Requirements | Adapter not included PoE |
| General | |
| Warranty | 5 Year Warranty |
