Camera Description

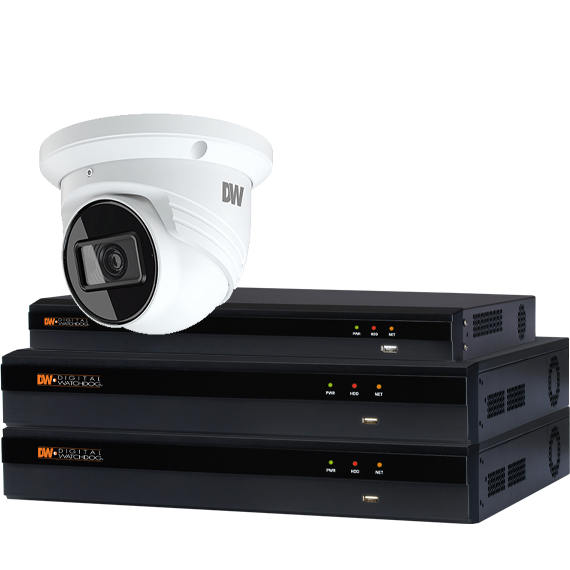

These MEGApix IP cameras are NDAA compliant and deliver crystal-clear images at 4MP resolution and real-time 30fps. The IP67- rated turret camera features a 2.8mm fixed lens and a 360° camera gimbal for absolute view adjustment. Added intelligence includes line crossing, perimeter intrusion and video tampering detection. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.

Features:

• 4MP 1/3" image sensor at real-time 30fps
• 2.8mm fixed lens
• True Wide Dynamic Range (WDR) for clear images in challenging light
• Simultaneous streaming and multiple codec options for smart bandwidth management
• 100' Smart IR with intelligent camera sync for clear B/W images with no need for external light
• Line crossing video analytics
• Perimeter intrusion video analytics
• Video tampering with scene-change detection video analytics
• Video tampering with video-blur detection video analytics
• Video tampering with abnormal color detection video analytics
• White and black housing options available
• Smart DNR 3D digital noise reduction reduces noise and ghosting for motion in low-light environments.
• Privacy zones cover sensitive areas in the camera's field of view.
• Backlight compensation (BLC)
• Two-way audio with a built-in microphone for direct communication between the monitoring station and the camera's location
• Local SD card slot for local recording in case of network loss
• Web server built-in for easy camera management from any browser

NVR Description

CCIP System Encryption

The CCIP (Closed Circuit IP) encryption is activated when the VMAX IP G4™ system sends a request for an encrypted stream from the camera. The camera then encrypts its RTSP stream a second time using TLS, using the encryption's user ID and password. The result is a secured and encrypted RTSP stream that can be read only by the requesting recorder.

3-minute installation

The entire system can be set up and configured in less than four minutes from power-up. Using the user-friendly startup wizard, configure the NVR’s main functions, locate and register all your cameras and set them to record in less than four minutes and with no need for a technical background!

C3 CMS

C3 CMS takes video management to the next level. You are in complete command to control all your video surveillance systems in one intuitive interface. Easy-to-program alerts let you take action in real-time and manage the health of your devices.


PathFinder

Easy and secure remote connection with NAT Traversal (STUN/TURN) support without opening ports.

Push notifications via DW Mobile Plus App

DW’s recorders can send an event notification to your mobile device via the DW Mobile Plus app.

Features:

• Complete installation, set up and camera configuration in under three minutes!
• CCIP system encryption protects your surveillance system from out of network attacks
• Record and manage single-sensor IP cameras up to 4K (3840×2160), with 80Mbps maximum throughput
• Local power for up to 4 IP cameras via resident PoE switch
• DW Witness turns a smartphone or tablet into an additional surveillance camera
• PathFinder Peer-to-Peer (P2P) remote connection
• HTTPS encryption supported
• Automatic device discovery
• Control any ONVIF camera’s set up and features remotely
• 0TB-32TB storage options
• Snapshot Notify: camera notifications sent to an email or CMS
• C3 CMS and event server software up to 144 Channels
• Event notifications via email, text and C3 CMS and push notifications to mobile devices
• Mobile application for iPhone, iPad, iPod, Android smartphones and tablets and Apple TV
• Dual-stream recording
• Easy drag and drop camera management
• Instant backup during playback
• Full HD output for local live and playback display up to 4K (3840×2160)
• Complete system analysis with real-time system, network and PoE status monitoring
• True HD and VGA simultaneous output support
• 4 sensor input, 1 alarm relay output
• Transaction verification via TCP and USB-serial
• Email event notifications with video clip
• Simple and free DDNS support for remote management
• Easy web-based client with multi-user access
• Advanced H.264 Linux embedded NVR
• Simultaneous live, playback, recording, back-up and network
• NVR health check with email notification
• NVR calculation and auto-recording configuration
• Help menu on major functions
• Add public view monitors with Spot Monitoring Modules
• Auto or manual firmware upgrade available
• Automatic private IP addressing
• NTP (network time protocol)
• Screen saver to protect monitor screen
• Import/export configuration between multiple NVRs
• USB mouse and GUI control
• 5 year limited warranty
• Note: ONVIF conformant fisheye cameras will be recognized in VMAX IP Plus NVRs, but image dewarping capabilities are not included.
