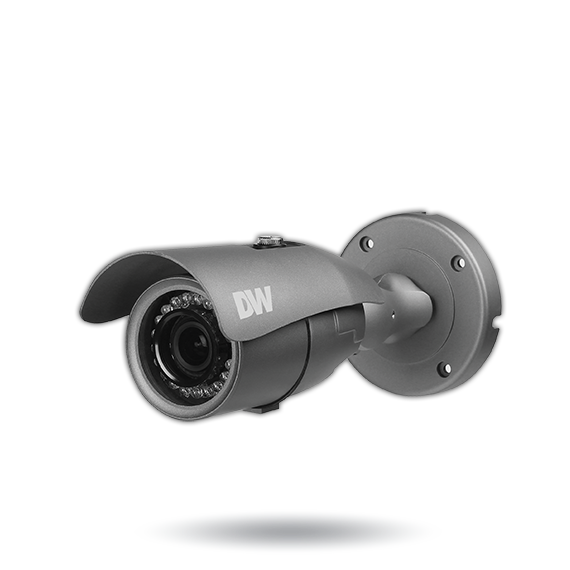

Star-Light Plus Universal HD Series, Weatherproof Bullet, 5MP@20fps/4MP@30fps, HD-Analog, HD-TVI, HD-CVI and all Legacy Resolutions, 2.7-13.5mm Varifocal P-Iris Lens, T-WDR, 100ft IR, TDN with IR Cut Filter, Smart 3D-DNR, OSD Control Via Coax, 1 Alarm Input, De-Fog, Dual Voltage, IP66, 5 Year Warranty
Featuring Star-Light Plus color in near-total darkness, 5MP Star-Light Plus Universal HD over Coax® cameras deliver crystal-clear images and support HD-Analog, HD-TVI and HD-CVI signals. The weather-resistant bullet cameras are IP66 rated and can be controlled via the same coax cable using UTC. All DW® Universal HD over Coax cameras are engineered to work with our VMAX® A1 Plus DVRs using your existing coax infrastructure for a cost-effective, high-resolution surveillance solution.
Features:
- Universal HD over Coax technology with HD-Analog, HD-TVI and HD-CVI signal support
- Star-Light Plus color in near-total darkness technology
- 1/2.8" image sensor
- 5MP at 20fps, 4MP at real-time 30fps
- 2.7~13.5mm vari-focal p-iris lens
- True wide dynamic range (WDR)
- OSD control via coaxial (UTC)
- 100' Smart IR™ with intelligent camera sync.
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- De-Fog™ extreme weather image compensation
- Auto-sensing 24VAC/12VDC with line lock
- Easy icon-driven OSD menu with built-in joystick
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- 1 alarm output
- NDAA/TAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- 5 year warranty
IMAGE | ||
| Image sensor | 5MP 1/2.8" CMOS | |
| Active pixels | 2608 (H) x 1960 (V) | |
| Scanning system | Progressive scan | |
| Frequency | 60Hz / 50Hz | |
| Signal technology | Universal HD over Coax® technology with HD-Analog, HD-TVI and HD-CVI signal support | |
| Synchronization | Internal | |
| Resolution | 2592 x 1944 (5MP) | |
| Minimum scene illumination | 0.08 lux (color) | |
| 0 lux (B&W) | ||
| S/N ratio | 55dB | |
| Video output | HD-Analog and HD-TVI: 5MP/1944p @ 20fps and 12.5fps HD-Analog, HD-TVI and HD-CVI: 4MP/1440p @ 30fps | |
| 2nd Video output | CVBS output for video testing | |
I/O | ||
| Alarm output | 1 alarm output | |
LENS | ||
| Focal length | 2.7 ~ 13.5mm | |
| Lens type | Vari-focal p-iris lens | |
| Field of view (FoV) | 122 - 40.8° | |
| IR distance | 100ft range | |
OPERATIONAL | ||
| Shutter mode | Auto | |
| Shutter speed | 1/30-1/30,000 | |
| Backlight | Yes | |
| Star-Light (sense-up) | Off – x32 | |
| Wide dynamic range (WDR) | True WDR, off, on | |
| Wide dynamic range (WDR) dB | 120dB | |
| Smart DNR™ 3D digital noise reduction | 3D/2D DNR | |
| White balance | Yes | |
| Day / night | Auto, day (color), night (B/W) | |
| Mirror / flip | Yes | |
| Auto gain control | Max 72dB | |
| Motion detection | Yes | |
| Privacy zones | Yes | |
| Sharpness | Yes | |
| Gamma | 0.45 | |
| De-fog | Yes | |
| RS485 / UTP built-in | Pelco D / UTC | |
ENVIRONMENTAL | ||
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) | |
| Operating humidity | 10–90% RH (non–condensing) | |
| IP rating | IP66 environmental-rated dust-tight and water-resistant | |
| Other certifications | FCC, CE, ROHS | |
ELECTRICAL | ||
| Power requirement | DC12V/AC24V dual voltage | |
| Power consumption | DC12V (LED OFF): 3.3W DC12V (LED ON): 5W | |
| AC24V (LED OFF): 3W AC24V (LED ON): 4.7W | ||
MECHANICAL | ||
| Material | Aluminum bullet housing | |
| Dimensions | 8.83" x 3.8" (224.5 x 96.7 mm) | |
| Weight | 1.65 lbs (0.75kg) | |
