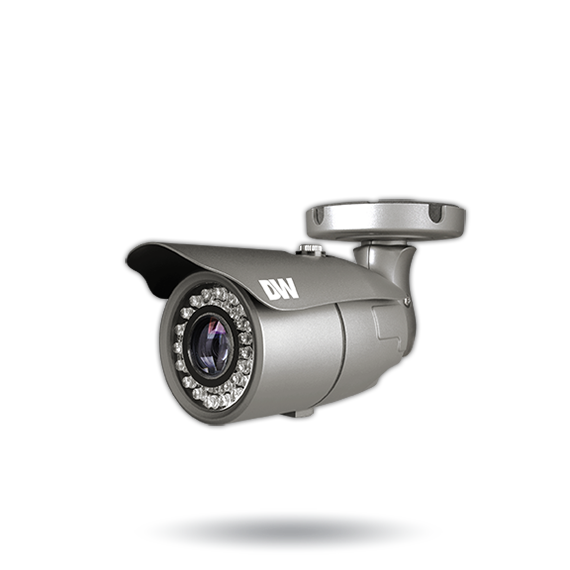

Star-Light Plus Universal HD Series, Weatherproof Bullet, 5MP@20fps/4MP@30fps, HD-Analog, HD-TVI, HD-CVI and all Legacy Resolutions, 6-50mm Varifocal P-Iris Lens, T-WDR, 150ft IR, TDN with IR Cut Filter, Smart 3D-DNR, OSD Control Via Coax, 1 Alarm Input, De-Fog, Dual Voltage, IP66, 5 Year Warranty
Featuring Star-Light Plus color in near-total darkness, 5MP Star-Light Plus Universal HD over Coax cameras deliver crystal-clear images and support HD-Analog, HD-TVI and HD-CVI signals. The 6-50mm long-range weather resistant bullet cameras are IP66 rated and can be controlled via the same coax cable using UTC. All DW Universal HD over Coax cameras are engineered to work with our VMAX A1 Plus DVRs using your existing coax infrastructure for a cost-effective, high-resolution surveillance solution.
Features:
- Universal HD over Coax technology with HD-Analog, HD-TVI and HD-CVI signal support
- Star-Light Plus color in near-total darkness technology
- 1/2.8" image sensor
- 5MP at 20fps, 4MP at real-time 30fps
- 6~50mm vari-focal p-iris lens
- True wide dynamic range (WDR)
- OSD control via coaxial (UTC)
- 150' Smart IR™ with intelligent camera sync.
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- De-Fog™ extreme weather image compensation
- Auto-sensing 24VAC/12VDC with line lock
- Easy icon-driven OSD menu with built-in joystick
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- 1 alarm output
- NDAA/TAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- 5 year warranty
IMAGE | ||
| Image sensor | 5MP 1/2.8" CMOS | |
| Active pixels | 2608 (H) x 1960 (V) | |
| Scanning system | Progressive scan | |
| Frequency | 60Hz / 50Hz | |
| Signal technology | Universal HD over Coax® technology with HD-Analog, HD-TVI and HD-CVI signal support | |
| Synchronization | Internal | |
| Resolution | 2592 x 1944 (5MP) | |
| Minimum scene illumination | 0.1 lux (color) | |
| 0 lux (B&W) | ||
| S/N ratio | 55dB | |
| Video output | HD-Analog and HD-TVI: 5MP/1944p @ 20fps and 12.5fps HD-Analog, HD-TVI and HD-CVI: 4MP/1440p @ 30fps | |
| 2nd Video output | CVBS output for video testing | |
I/O | ||
| Alarm output | 1 alarm output | |
LENS | ||
| Focal length | 6 ~ 50mm | |
| Lens type | Vari-focal p-iris lens | |
| Field of view (FoV) | 50.6 - 6.2° | |
| IR distance | 150ft range | |
OPERATIONAL | ||
| Shutter mode | Auto | |
| Shutter speed | 1/30-1/30,000 | |
| Backlight | Yes | |
| Star-Light (sense-up) | Off – x32 | |
| Wide dynamic range (WDR) | True WDR, off, on | |
| Wide dynamic range (WDR) dB | 120dB | |
| Smart DNR™ 3D digital noise reduction | 3D/2D DNR | |
| White balance | Yes | |
| Day / night | Auto, day (color), night (B/W) | |
| Mirror / flip | Yes | |
| Auto gain control | Max 72dB | |
| Motion detection | Yes | |
| Privacy zones | Yes | |
| Sharpness | Yes | |
| Gamma | 0.45 | |
| De-fog | Yes | |
| RS485 / UTP built-in | Pelco D / UTC | |
ENVIRONMENTAL | ||
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) | |
| Operating humidity | 10–90% RH (non–condensing) | |
| IP rating | IP66 environmental-rated dust-tight and water-resistant | |
| Other certifications | FCC, CE, ROHS | |
ELECTRICAL | ||
| Power requirement | DC12V/AC24V dual voltage | |
| Power consumption | DC12V (LED OFF): 3.3W DC12V (LED ON): 6.2W | |
| AC24V (LED OFF): 3W AC24V (LED ON): 5.9W | ||
MECHANICAL | ||
| Material | Aluminum bullet housing | |
| Dimensions | 9.92" x 3.81" (252 x 96.7 mm) | |
| Weight | 1.76 lbs (0.8kg) | |
