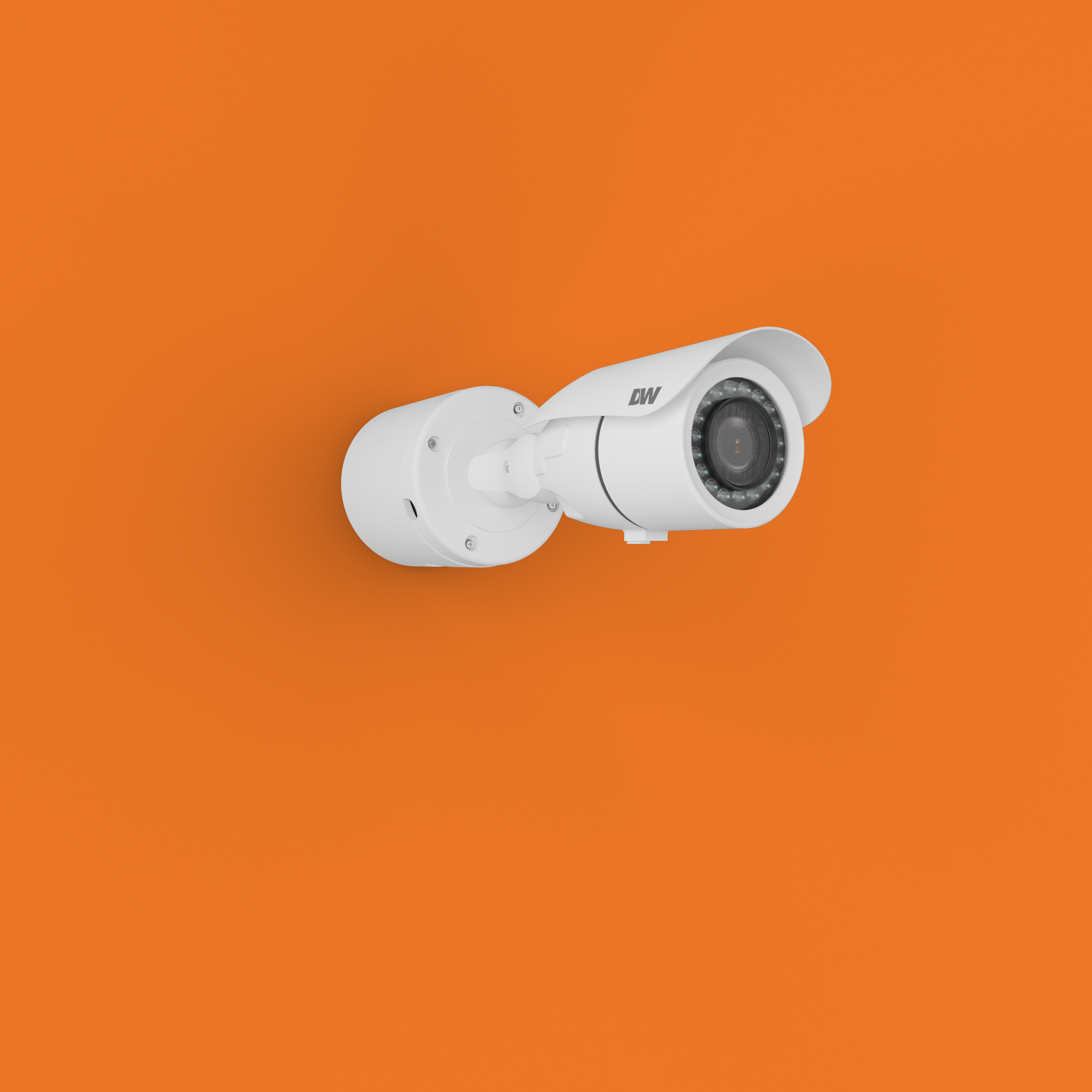

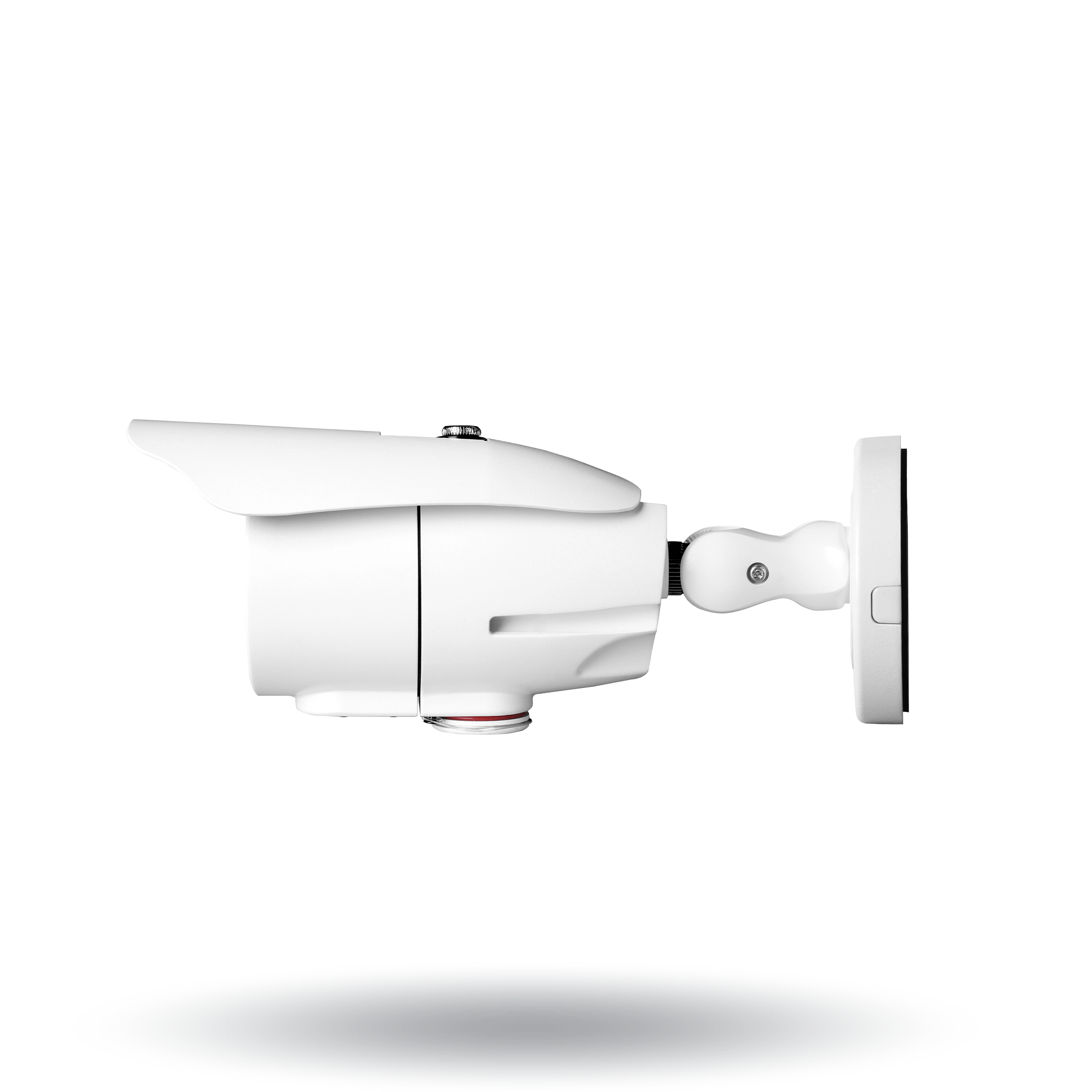

Digital Watchdog - DWC-B6563WTIRW - Star-Light Plus 5MP UHDoC Bullet Camera with a Vari-focal Lens and IR
Part number:
DWC-B6563WTIRW
Price:
Featuring Star-Light Plus color in near-total darkness, 5MP Star-Light Plus Universal HD over Coax cameras are NDAA compliant and deliver crystal-clear images and support HD-Analog, HD-TVI and HD-CVI. The weather resistant bullet cameras are IP66 rated and can be controlled via the same coax cable using UTC. All DW Universal HD over Coax® cameras are engineered to work with our VMAX A1 Plus DVRs using your existing coax infrastructure for a cost effective, high resolution surveillance solution.
Features:
- Universal HD over Coax technology with HD-Analog, HD-TVI and HD-CVI signal support
- Star-Light Plus color in near-total darkness technology
- 1/2.8" image sensor
- 5MP at 20fps, 4MP at real-time 30fps
- 2.7~13.5mm vari-focal p-iris lens
- True wide dynamic range (WDR)
- OSD control via coaxial (UTC)

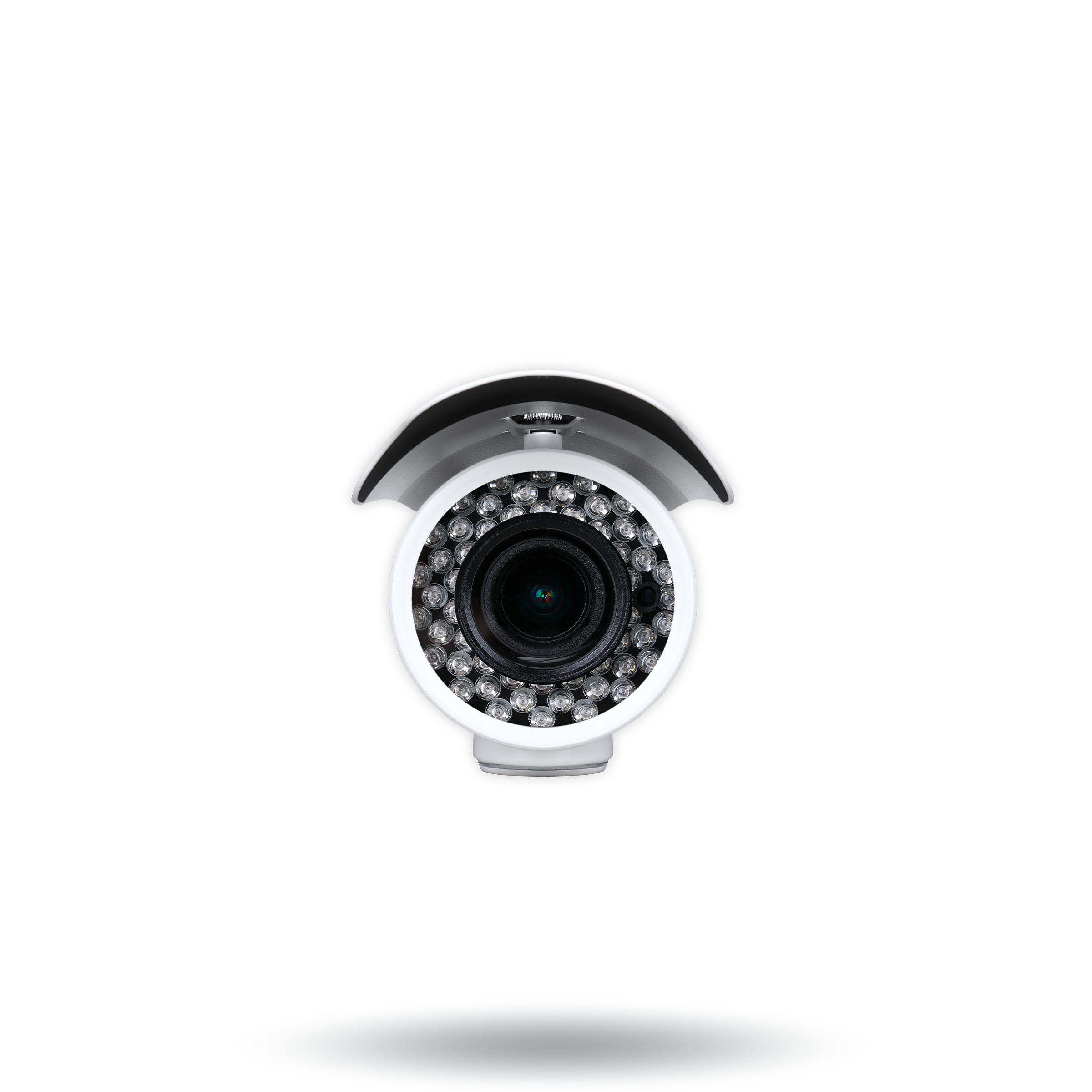

- 100' Smart IR with intelligent camera sync.
- Smart DNR 3D digital noise reduction
- True day/night mechanical IR cut filter
- De-Fog extreme weather image compensation
- Auto-sensing 24VAC/12VDC with line lock
- Easy icon-driven OSD menu with built-in joystick
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- 1 alarm output
- UL listed
- NDAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- 5 year warranty
| IMAGE | |
| Active Pixels | 2608 (H) x 1960 (V) |
| Frequency | 50Hz, 60Hz |
| Image sensor | 5MP 1/2.8" CMOS sensor |
| Maximum resolution | 5MP, Analog CVBS: Up to 960H @ 30fps, HD-Analog and HD-TVI: 5MP/1944p @ 20fps and 12.5fps, HD-Analog, HD-TVI and HD-CVI: 2.1MP/1080p @ 30fp, HD-Analog, HD-TVI and HD-CVI: 4MP/1440p @ 30fps, HD-Analog, HD-TVI and HD-CVI: 720p @ 30fp |
| Minimum Scene Illumination in color | 0.0 lux (B/W), 0.08 lux (color) |
| Scanning System | Progressive scan |
| Signal technology | CVBS up to 960H, HD-Analog, HD-CVI, HD-TVI, Universal HD over Coax® technology |
| Test Video Output | CVBS video output for testing |
| LENS | |
| Advanced Lens Features | P-iris |
| Focal Length | 2.7mm ~ 13.5mm |
| Horizontal Field of View (HFOV) | 102° ~ 31.4° |
| IR Distance | 100' range Smart IR™ |
| Lens Type | Vari-focal Lens |
| Vertical Field of View (VFOV) | 73.9° ~ 23.3° |
| OPERATIONAL | |
| 3D digital noise reduction | Smart DNR™ 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Backlight compensation (BLC) | Yes |
| Camera Control | Pelco C, UTC, UTP built-in |
| Day and night | Auto day/night, Day (color), Night (B/W) |
| De-fog | Yes |
| Gamma | 0.45 |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Privacy Zones | 24 programmable provacy zones |
| Sharpness | Yes |
| Shutter Mode | Auto |
| Shutter Speed | 1/30 ~ 1/30000 |
| Star-Light (sense up) | Off, x2-x32 |
| White Balance | Yes |
| Wide Dynamic Range (WDR) | True WDR 120dB |
| Environmental Operating Humidity | 10-90% (non-condensing) |
| Environmental Operating Temperature | -4°F ~ 122°F (-20°C ~ 50°C) |

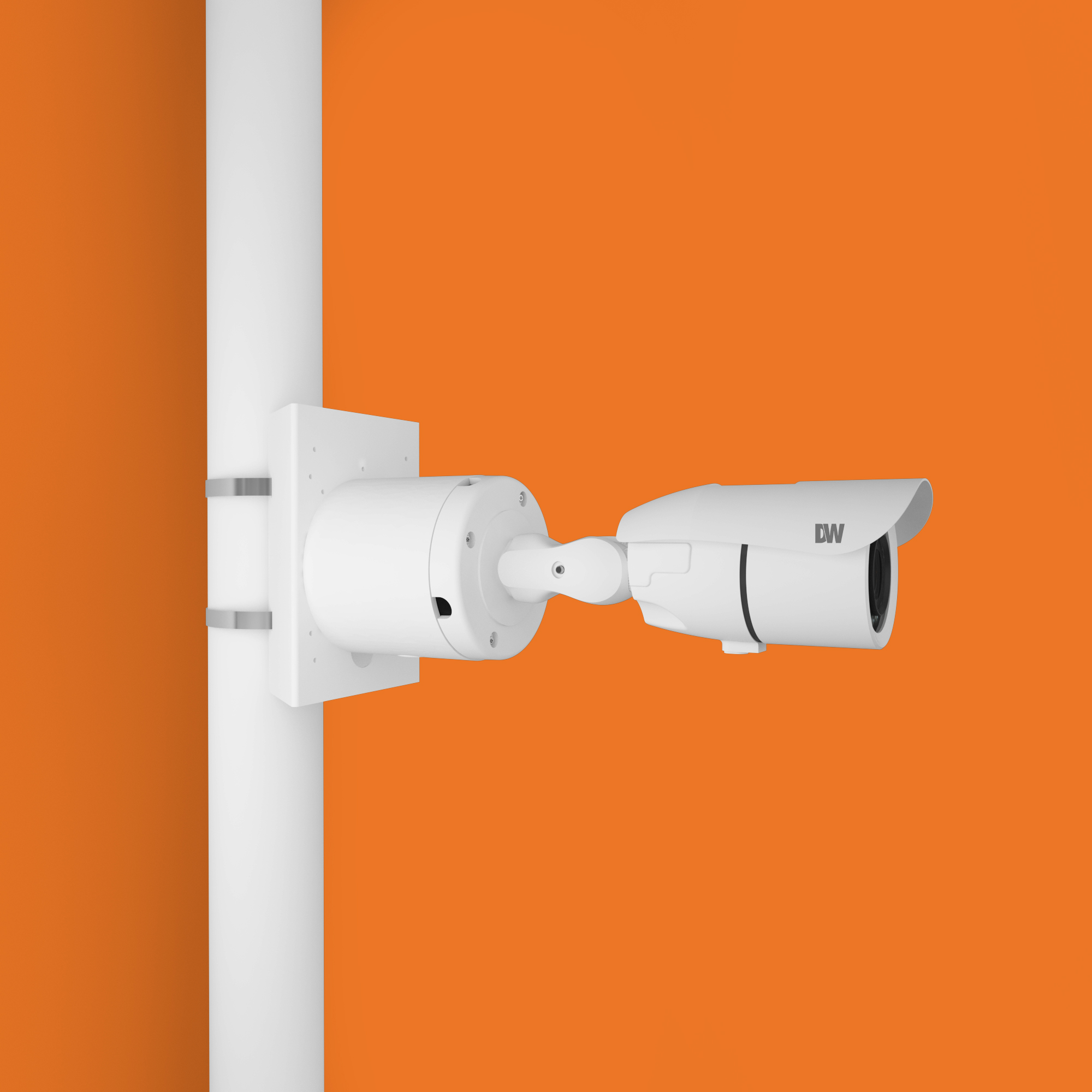

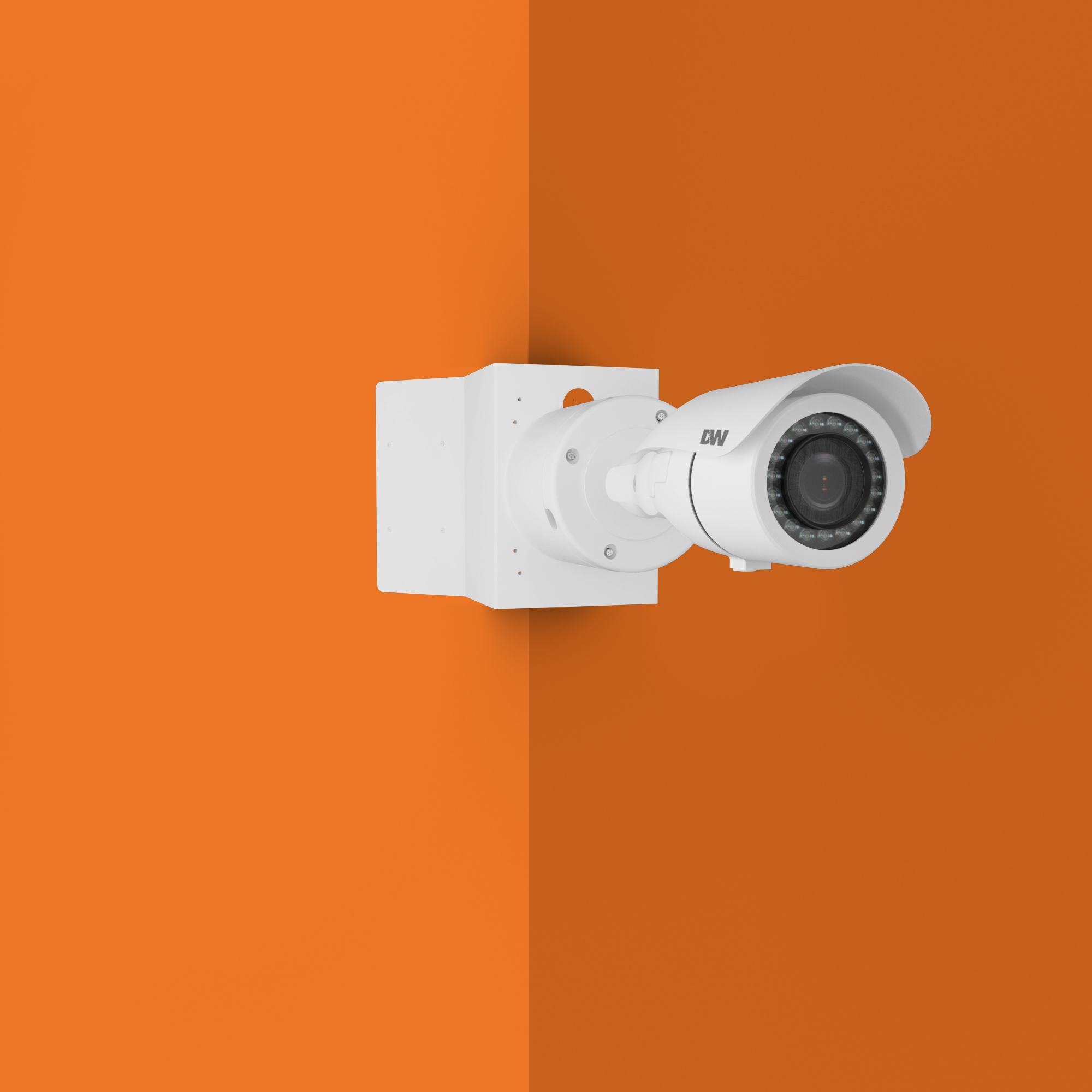

| Mounting Accessories (Required/Optional) | Optional. Sold separately |
| MECHANICAL | |
| Camera Dimensions (H X W X D) | *Dimensions based on the position of the sun shield cover, 8.83" x 3.8" (224.5 x 96.7 mm) |
| Camera Weight | 1.65 lbs (0.75kg) |
| Housing | Bullet |
| Housing Color | White |
| IP rating | Weather Resistant (IP66) |
| Materials | Aluminum die-casting |
| ELECTRICAL | |
| American wire gauge (AWG) | Cable type #18 |
| Power Consumption | AC24V (LED on): 4.4W, 183.3mA, AC24V (no LED): 2.86W, 119.1mA, DC12V (LED On): 5.0W, 420mA, DC12V (no LED): 3.3W, 275mA |
| Power Requirements | 24 V AC |
| GENERAL | |
| Warranty | 5 Year Warranty |
