Featuring Star-Light Plus™ color in near-total darkness, 4K Universal HD over Coax® cameras deliver crystal-clear images and support HD-Analog, HD-TVI, HD-CVI and all legacy analog signals. The weather-resistant bullet cameras are IP66 rated and can be controlled via the same coax cable using UTC. All Star-Light Plus™ 4K cameras are engineered to work with our VMAX® A1 4K™ DVRs using your existing coax infrastructure for a cost-effective, high-resolution surveillance solution.

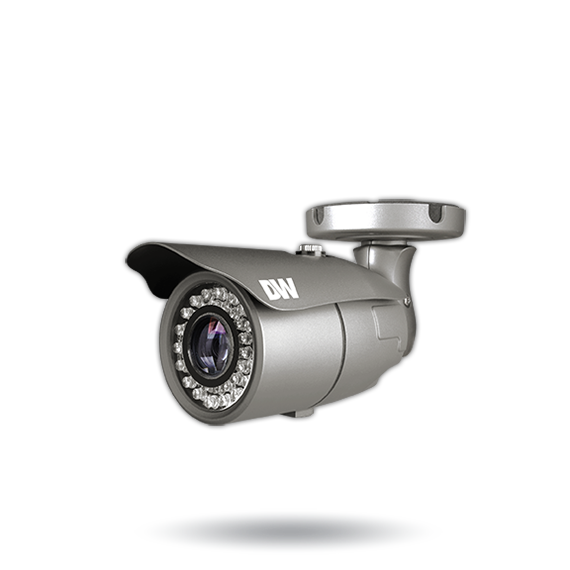

Star-Light Plus Universal HD Series, Weatherproof Bullet, 4K@15fps/4MP or 2.1MP@30fps, HD-Analog, HD-TVI, HD-CVI and all Legacy Resolutions, 3.6-10mm Varifocal Motorized Autofocus Lens, T-WDR, 150ft IR, TDN with IR Cut Filter, Smart 3D-DNR, OSD Control Via Coax, De-Fog, 24VAC/12VDC, IP66, 5 Year Warranty
Features:
- Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all legacy analog signal support
- Star-Light Plus™ color in near-total darkness technology
- 1/1.8" image sensor
- 4K at 15fps, 4MP or 2.1MP/1080p at real-time 30fps
- 3.6 ~ 10mm vari-focal motorized zoom p-iris lens with auto-focus
- True wide dynamic range (WDR)
- OSD control via coaxial (UTC)
- 150' Smart IR™ with intelligent camera sync.
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- De-Fog™ extreme weather image compensation
- Auto-sensing 24VAC/12VDC with line lock
- Easy icon-driven OSD menu with a built-in joystick
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- NDAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- 5 year warranty
IMAGE |
||
|
Image sensor |
8MP 1/1.8" CMOS |
|
|
Active pixels |
3864(H) x 2176(V) |
|
|
Scanning system |
Progressive scan |
|
|
Frequency |
60Hz / 50Hz |
|
|
Signal technology |
Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI to 4K and CVBS at 960H |
|
|
Synchronization |
Internal |
|
|
Resolution |
Max 3840 x 2160 |
|
|
Minimum scene illumination |
0.09 lux (color) |
|
|
0 lux (B/W) |
||
|
S/N ratio |
55dB |
|
|
Video output |
4K @ 15fps |
|
| 2nd Video output | CVBS output for video testing | |
LENS |
||
|
Focal length |
3.6 ~ 10mm |
|
|
Lens type |
Vari-focal p-iris lens with motorized zoom and auto-focus |
|
|
Field of view (FoV) |
98.4 - 45.7° |
|
|
IR distance |
150ft range |
|
OPERATIONAL |
||
|
Shutter mode |
Auto |
|
|
Shutter speed |
1/30-1/30,000 |
|
|
Backlight |
Yes |
|
|
Star-Light (sense-up) |
Off-x32 (disabled at 4K) |
|
|
Wide dynamic range (WDR) |
Double shutter true WDR, off, on |
|
|
Wide dynamic range (WDR) dB |
120dB |
|
|
Smart DNR™ 3D digital noise reduction |
3D/2D DNR |
|
|
White balance |
Yes |
|
|
Highlight masking exposure (HME) |
Yes |
|
|
Dynamic range compression (DRC) |
Yes |
|
|
Day / night |
Auto, day (color), night (B/W) |
|
|
Mirror / flip |
Yes |
|
|
Auto gain control |
Max 60dB |
|
|
Motion detection |
Yes |
|
|
Privacy zones |
Yes |
|
|
Sharpness |
Yes |
|
|
Gamma |
0.45 |
|
|
De-fog |
Yes |
|
|
RS485 / UTP built-in |
UTC |
|
ENVIRONMENTAL |
||
|
Operating temperature |
-4°F ~ 122°F (-20°C ~ 50°C) |
|
|
Operating humidity |
10–90% RH (non–condensing) |
|
|
IP rating |
IP66 environmental-rated water and dust-resistant |
|
|
Other certifications |
FCC, CE, ROHS |
|
ELECTRICAL |
||
|
Power requirement |
DC12V/24VAC dual voltage |
|
|
Power consumption |
DC12V(LED off): 5.49W, 457mA |
|
|
AC24V(LED off): 4.95W, 346mA |
||
MECHANICAL |
||
|
Material |
Aluminum vandal ball housing |
|
|
Dimensions |
9.92" x 3.8" (252 x 96.7 mm) |
|
|
Weight |
1.76 lbs (0.8 kg) |
|
|
Warranty |
5 year warranty |
|
