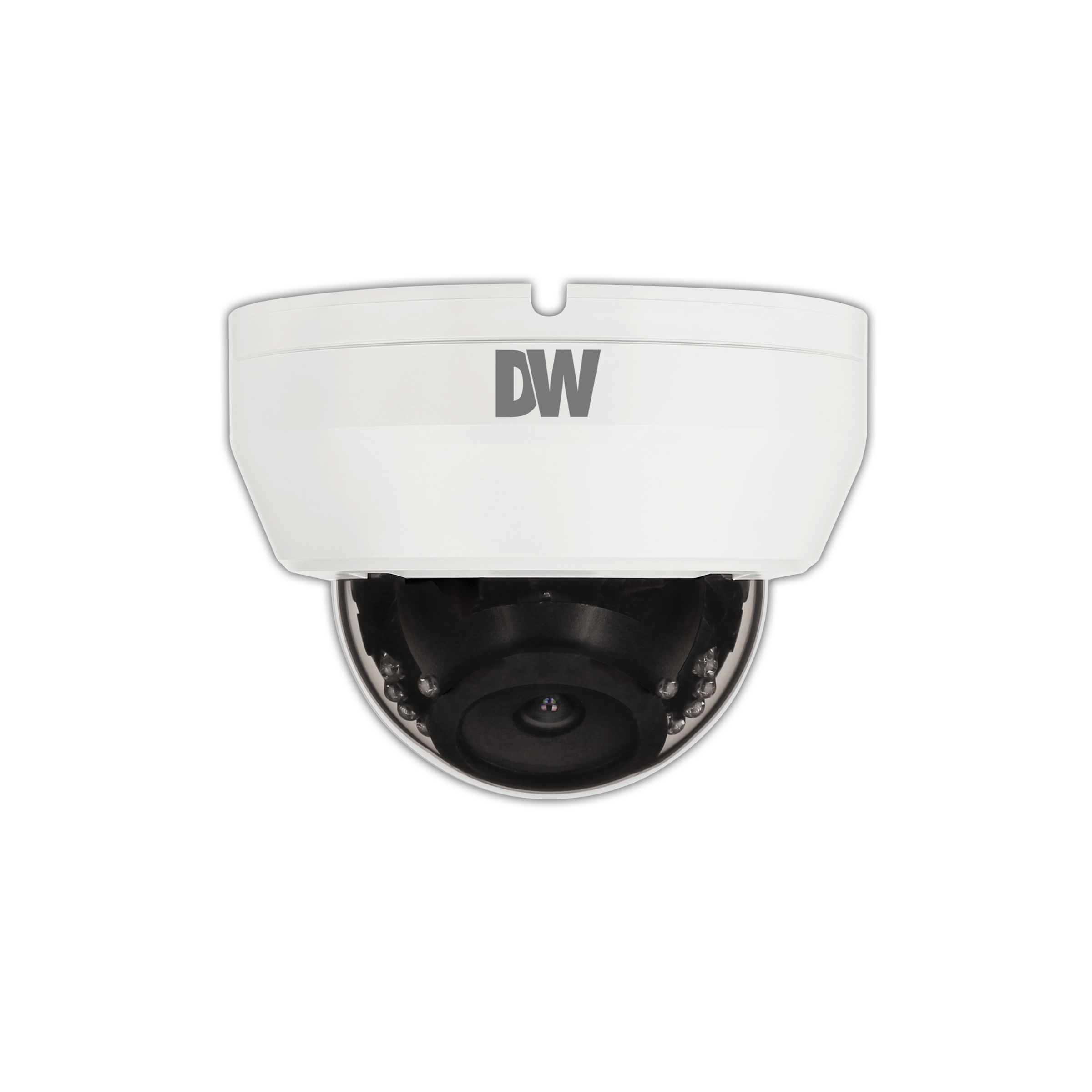

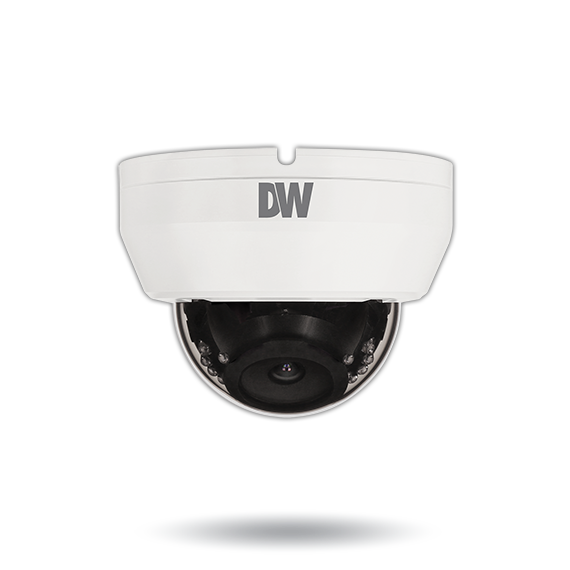

Digital Watchdog - DWC-D3863WTIRW - Star-Light Plus 4K UHDoC Indoor Dome Camera with a Vari-focal Lens and IR
Product Overview
The Digital Watchdog DWC-D3863WTIRW is a high-performance 4K UHDoC indoor dome camera featuring a 3.6~10mm vari-focal lens and a 1/1.8" CMOS sensor. Utilizing Universal HD over Coax technology, it is compatible with HD-Analog, HD-TVI, HD-CVI, and legacy 960H signals, delivering 4K resolution at 15 fps or real-time 30 fps at 4MP/1080p. Equipped with Star-Light Plus™ technology for color imaging in near-total darkness, True WDR (120dB), and Smart IR up to 100 feet, it ensures exceptional forensic detail across diverse indoor lighting environments.
Key Configuration
- • Image sensor: 8MP 1/1.8" CMOS; active pixels: 3864 × 2176; max resolution: 3840 × 2160 (4K)
- • Lens: 3.6~10mm vari-focal p-iris lens; field of view: 100.3° ~ 46.4°
- • IR distance: Smart IR up to 100 ft (30.5 m); minimum illumination: 0.1 lux color, 0 lux B/W
- • Video output: 4K @ 15 fps, 4MP/1440p @ 30 fps, 2.1MP/1080p @ 30 fps; 2nd CVBS output for video testing
- • Power: DC12V/24VAC dual voltage; power consumption: DC12V – 4.27W (LED off), 6.98W (LED on); AC24V – 3.96W (LED off), 6.38W (LED on)
Key Features
This NDAA-compliant camera excels in challenging environments with Star-Light Plus™ for color vision in near-total darkness and True WDR (120dB) for high-contrast scenes. Advanced image enhancement tools like Smart DNR, De-Fog, and Highlight Masking Exposure (HME) work together to maintain clarity. Security is further bolstered by integrated motion detection and 16 programmable privacy masks.
Technical Context
Engineered for signal integrity, the unit boasts a 55dB S/N ratio and a progressive scan system for crisp, noise-free output across all HD-Analog and CVBS formats. It features auto-sensing 24VAC/12VDC power with line lock to prevent video rolling and an electronic shutter reaching 1/30,000s. The camera is globally certified (FCC, CE, RoHS) and maintains stable operation in temperatures up to 122°F.
Installation Notes
Designed for discreet indoor placement, the 0.66 lb plastic housing offers a compact footprint with easy Up-the-Coax (UTC) OSD management. It is purpose-built for seamless pairing with VMAX A1 4K DVRs, allowing users to upgrade to 4K resolution using existing cables. The installation is finalized with a 360° gimbal for precise aiming and is protected by a 5-year warranty.
IMAGE | |
| Image sensor | 8MP 1/1.8" CMOS |
| Active pixels | 3864(H) x 2176(V) |
| Scanning system | Progressive scan |
| Frequency | 60Hz / 50Hz |
| Signal technology | Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI to 4K and CVBS at 960H |
| Synchronization | Internal |
| Resolution | Max 3840 x 2160 |
| Minimum scene illumination | 0.1 lux (color) |
| 0 lux (B/W) | |
| S/N ratio | 55dB |
| Video output | 4K @ 15fps 4MP/1440p @ 30fps 2.1MP/1080p @ 30fps |
| 2nd Video output | CVBS output for video testing |
LENS | |
| Focal length | 3.6 ~ 10mm |
| Lens type | Vari-focal p-iris lens |
| Field of view (FoV) | 100.3 ~ 46.4° |
| IR distance | 100ft range |
OPERATIONAL | |
| Shutter mode | Auto |
| Shutter speed | 1/30-1/30,000 |
| Backlight | Yes |
| Star-Light (sense-up) | Off-x32 (disabled at 4K) |
| Wide dynamic range (WDR) | True WDR, off, on |
| Wide dynamic range (WDR) dB | 120dB |
| Smart DNR™ 3D digital noise reduction | 3D/2D DNR |
| White balance | Yes |
| Highlight masking exposure (HME) | Yes |
| Dynamic range compression (DRC) | Yes |
| Day / night | Auto, day (color), night (B/W) |
| Mirror / flip | Yes |
| Auto gain control | Max 60dB |
| Motion detection | Yes |
| Privacy zones | Yes |
| Sharpness | Yes |
| Gamma | 0.45 |
| De-fog | Yes |
| RS485 / UTP built-in | UTC |
ENVIRONMENTAL | |
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Operating humidity | 10–90% RH (non–condensing) |
| Other certifications | FCC, CE, ROHS |
ELECTRICAL | |
| Power requirement | DC12V/24VAC dual voltage |
| Power consumption | DC12V(LED off): 4.27W, 356mA DC12V(LED on): 6.98W, 582mA |
| AC24V(LED off): 3.96W, 290mA AC24V(LED on): 6.38W, 440mA | |
MECHANICAL | |
| Material | Plastic indoor housing, polycarbonate dome |
| Dimensions | 4.72" x 3.51" (120 x 89.4 mm) |
| Weight | 0.66 lbs (0.3g) |
| Warranty | 5 year warranty |
