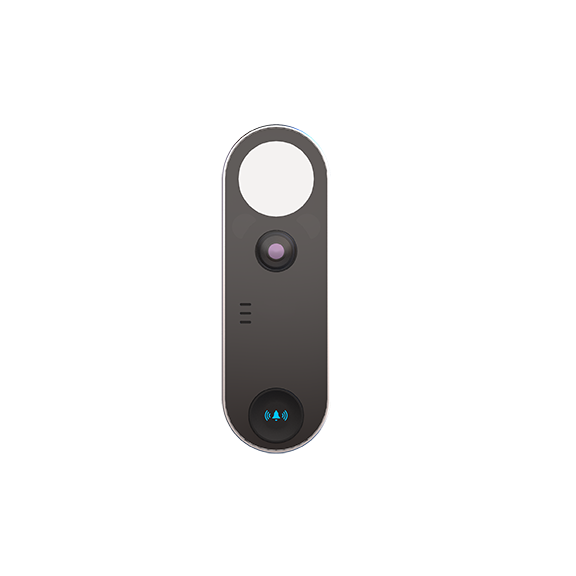

Digital Watchdog - DWC-INTCAM02 - MEGApix Intercam Door Station, 2.1 Megapixel, 2.3mm Fixed Lens, 10ft Smart IR, 3ft White Light, T-WDR, Multi Codec(H.265,H.264,JPEG, Person Detection, Video Tampering Detection and Alarm with Scene Change, Blur and A
Part number:
DWC-INTCAM02
Price:
The NDAA-compliant MEGApix InterCam 2.1MP/1080p IP intercom door station streamlines door access management by combining video, audio and person detection alerts. The sleek but rugged DWC-INTCAM02 has a wideangle lens, white light emitter, IR LEDs, a built-in microphone and speaker, making it ideal for commercial and residential installations.
Person and Tampering Detection
The camera can detect a person approaching its field of view and set alerts or start recording. The camera’s anti-tamper housing also ensures that no vandalism, change of scenery, or blurry image goes unnoticed.
Features:
- 2.1MP/1080p 1/2.8” image sensor at real-time 30fps.
- 2.3mm fixed lens with wide coverage FoV for full entrance view.
- True Wide Dynamic Range (WDR) for clear images in challenging light.
- Simultaneous streaming and multiple codec options for smart bandwidth management.
- 1-10’ Smart IR range with intelligent camera sync for clear B/W images with no need for external light.
- 1-3’ white light LED range for deterrence and color images in low-light.
- Person detection for intelligent alarm and recording management.
- Video tampering detection and alarm with scene change, blur and abnormal color detection.
- Noise suppression and echo cancellation for clean two-way audio communications.
- Smart DNR 3D digital noise reduction reduces noise and ghosting for motion in low-light environments.
- Privacy zones cover sensitive areas in the camera’s field of view.
- Backlight compensation (BLC) adjusts the camera’s exposure settings to compensate for strong backlight in a scene.
- Two-way audio with built-in microphone and speaker for direct communication between the monitoring station and the camera’s location.
- Local SD card slot for local recording in case of network loss.
- Alarm sensor input and door lock output for access control integration.
- Web server built-in for easy camera management from any browser.
- PoE and DC12V for single cable simplified installation.
- NDAA-compliant for federal and government projects.
- IP65-rated housing is dust-proof and protected against water jets.
- 5 year warranty
| Image | |
| Color temperature | 5600K Cold light |
| WL wavelength (lumen) | 34.1lm |
| Image sensor | 2.1MP/1080p 1/2.8" CMOS sensor |
| Maximum resolution | 2.1MP/1080p |
| Minimum Scene Illumination in color | 0.0038 lux (color) |
| Total Pixels | 1920 (H) x 1080 (V) |
| Lens | |
| Focal Length | 2.3mm |
| Horizontal Field of View (HFOV) | 139° |
| Illumination Distance | 1ft - 10ft (0.3 - 3m) range 1ft - 3ft ( 0.3 - 1m) range |
| Lens Type | Fixed Lens |
| Vertical Field of View (VFOV) | 74° |
| I/O | |
| Audio compression | G.711A / U |
| I/O Alarm in/out | 1 door lock output (1A 125VAC / 1A 24VDC) 1 input |
| I/O Audio in/out | 1 microphone built-in 1 speaker built-in |
| LED Indicator | Flashing Blue: Doorbell Button Pressed Flashing Green: System Update Green: Standby Mode at Night White |
| Operational | |
| 3D digital noise reduction | Smart DNR™ 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Backlight compensation (BLC) | Yes |
| Camera Analytics | Person Detection video Tampering Detection (Scene Change, Video Blur, Abnormal Color Detection) |
| Day and night | Auto day/night Day (color) Night (B/W) |
| LPR Capture Range | Wall Mounted Intercam |
| Memory slot | Micro SD/SDHC/SDXC class 10 card (card not included) Up to 1TB micro SD / FAT32 |
| Operational Notifications | Alarm output activation HTTP action Recording SD card recording |
| Sharpness | Yes |
| Shutter Mode | Auto Manual |
| Shutter Speed | 1/2s ~ 1/100000s |
| White Balance | Yes |
| Wide Dynamic Range (WDR) | True WDR 120dB |
| Network | |
| Bitrate Control | Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth) |
| IP | IPv4 IPv6 |
| LAN | 802.3 compliance 10/100 LAN |
| Network resolution | 2.1MP/1080p, 720p, D1 |
| Network Web Viewer | Google Chrome® browser Linux® OS Mac® OS Microsoft Edge® browser Mozilla Firefox® browser Safari® browser Windows OS |
| Protocol | 802.1x DDNS DHCP FTP HTTP HTTPs NTP ONVIF QoS RTSP SMTP UDP uPNP |
| Security | Digest authentication (ID/PW) IP filtering MAC filtering Multi-user authority SSL/TSL |
| Stream Speed | Up to 30fps at all resolutions |
| Streaming Capability | Dual-stream at different rates and resolutions |
| Video Bitrate | 64 Kbps ~ 4 Mbps |
| Video Compression Type | H.264 H.265 MJPEG |
| Video Management Software | Any ONVIF conformant CMS DW Spectrum® |
| Environmental | |
| Compliance |     |
| Environmental Operating Humidity | 0-95% RH (non–condensing) |
| Environmental Operating Temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Mechanical | |
| Camera Dimensions (H X W X D) | 5.9” x 1.96” x 1.17” (150 × 50 × 29.8mm) |
| Camera Weight | 0.31 lbs (0.145kg) |
| Housing Color | Black |
| IP rating | Dust-Proof and Water Jets Resistant (IP65) |
| Materials | Anti-Tamper Interface Doorbell Button Plastic |
| Electrical | |
| Power Consumption | DC12V: max 6.0W, 500mA PoE: max 6.0W |
| Power Requirements | 12V DC Adapter not included PoE |
| General | |
| Warranty | 5 Year Warranty |
Name
Description
Size
Downloads
File
Datasheet
0.4mb
File
A&E Specifications
0.1mb
File
Quick Start Guide
1.1mb
