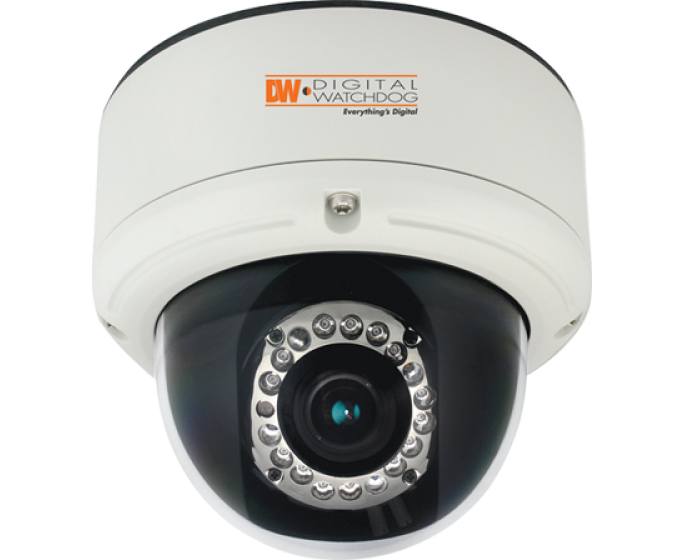

Digital Watchdog - DWC-iV3377WTIR - Star-Light 1/3" Sony Super Omni Focus 2.9~8.5mm, 3X Motorized Zoom Camera
Digital Vandal Resistant Dome Camera, Infinity Series, High Res 560 Lines, 1/3" Sony Super II HAD CCD Chip, Omni-Focus 2.9~8.5mm 3X Motorized Zoom, Wide Dynamic Range, Star-Light Smart-DNR (Digital Noise Reduction), Highlight Masking Exposure (HME), True Day & Night, IR LED (100'), easy to navigate drop down menu, OSD Joystick, Low Power Consumption, POE & Dual Voltage, AGC, BLC, AWB, 5 Year Warranty.
Features:
- 1/3" Sony Super HAD II CCD
- 560 TV Lines
- Omni Focus 9~8.5mm, 3X Motorized Zoom, Auto Iris
- Easy Icon Driven OSD Menu with Built-in Joystick
- Power over Ethernet [PoE] 3af
- 70ft Range IR with Intelligent Camera Sync
- 3D-DNR (3D Digital Noise Reduction)
- EWDR (Electronic Wide Dynamic Range)
- Star-Light (Super Low Light Technology)
- TDN (True Day and Night/IR Cut Filter)
- HME (Highlight Masking Exposure)
- Produces Negative Image
- Secondary Video-BNC Output for Easy Installation
- Auto Sensing 24 VAC/12 VDC with Line Lock
- Zoom and OSD Control by IR Remote Controller
- 3X Digital Zoom
- AGC (Auto Gain Control)
- BLC (Back Light Compensation)
- AWB (Auto White Balance)
- Mirror Image Control
- Programmable Privacy Zone (6) & Motion Detection
- Sharpness Control
|
Model |
iV3377WTIR |
|
|
Image Sensor |
1/3" Super HAD II CCD |
|
|
Number of Pixels |
811(H) x 508 (V), 411K pixels |
|
|
Pixels-E ective |
768(H) x 494(V) |
|
|
Scanning System |
NTSC 525 lines. 2:1 interlace |
|
|
Horizontal Resolution |
560 TV Lines [Color], 580 TV Lines [B/W] |
|
|
Minimum Illumination |
F1.2: 0.14 lux, x256 Starlight: 0.0005 lux in Color |
|
|
IR Distance |
70ft Range |
|
|
Video Out |
VBS 1.0Vp-p(75 ohm Load) |
|
|
Video S/N Ratio |
50dB or higher(AGC o ) |
|
|
Varifocal |
Omni-Focus Lens [2.9 ~ 8.5mm] |
|
|
Zoom |
3X Motorized Zoom |
|
|
Shutter Speed |
1/60s up to 1/100,000s |
|
|
Gamma |
0.45 |
|
|
Synchronizing System |
Internal & External Line Lock |
|
|
OSD |
StarLight |
OFF - x256 |
|
3D DNR |
OFF / LOW / MIDDLE / HIGH |
|
|
AWB |
ATW / AWC / MANUAL / PUSH |
|
|
Gamma |
USER / 0.45 / 0.6 / 1.0 |
|
|
Motion Detection |
ON / OFF |
|
|
Mirror |
ON / MIRROR / V-FLIP / ROTATE |
|
|
Digital Zoom |
3X |
|
|
Negative Image |
ON / OFF |
|
|
Sharpness |
0 -49 |
|
|
Privacy Zone |
6 Programmable Zones |
|
|
HME |
ON/OFF set level 0~60 |
|
|
SLC |
ON/OFF set level 0~50 |
|
|
PERPORMANCE |
||
|
Video |
Resolution |
D1 / 4CIF / VGA / CIF / QVGA |
|
Comperssion |
H.264 |
|
|
Bitrate |
32kbps ~ 8Mbps |
|
|
Frame Rate |
30 fps @ All Resolution |
|
|
Network |
Streaming |
H.264 Dual Stream or Simultaneous H.264 and MJPEG |
|
Ethernet |
Ethernet (10/100 Based-T), RJ-45 Connector |
|
|
Protocol |
TCP, IP, HTTP, DHCP, PPPoE, DDNS, ICMP, UPnP |
|
|
Max. Remore Users |
10 Clients |
|
|
Audio |
Compression |
G.711 / G.726 / ADPCM |
|
Communication |
Full Duplex |
|
|
Input / Output |
1Ch In / 1Ch Out |
|
|
Operating Temperature |
-10 ℃ ~ +55 ℃(14 ℉ ~ 131 ℉) |
|
|
Storage Temperature |
-20 ℃ ~ +75 ℃ |
|
|
Humidity |
Less than 90% |
|
|
Power Requirement |
12VDC / 24VAC (60Hz) / PoE (IEEE 802.3af) |
|
|
Power Consumption |
DC12V: 4.4[W], IR-On: 7.4[W] AC24V: 4.4[W], IR-On: 7.5[W] |
|
|
Dimensions |
140.3mm x 124.6mm |
|
|
Nema Type |
IP66 |
|
|
Weight (approx.) |
2.2 lbs |
|
|
Certi cation |
CE, FCC, RoHS |
|
