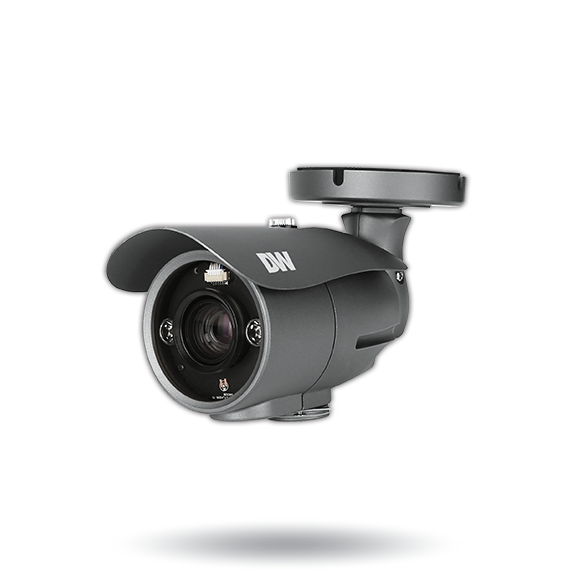

Star-Light Universal HD High Definition Cameras use existing coaxial cables to transmit crystal-clear 1080p images. The AHD LPR camera delivers consistent, reliable plate capture both day and night with 6-50mm P-Iris lens and 100ft range Smart IR™, capturing images from a range of 13-100 feet in moving vehicles up to 50mph. The LPR comes in an IP66-Certified No Fog or Condensation under any Condition bullet housing to make sure license plates are captured clearly and visibly no matter the lighting challenge or weather condition. The cameras are engineered to work with VMAX AHD DVRs, offering an easy upgrade from analog to high definition. 5 Year Warranty.
2.1MP/1080p Universal HD over COAX cameras deliver crystal-clear images and support real-time 30fps HD-Analog, HD-TVI, HD-CVI and all analog signals to 960H. The camera is engineered to capture license plates of moving vehicles in extreme light conditions, from ranges of 13 to 115 feet at up to 50mph. The IP66 rated vandal housing assures that license plates are captured clearly and visibly no matter the lighting challenge or weather condition. Universal HD over Coax cameras are engineered to work with our VMAX A1 Universal HD over COAX DVRs using your existing coax infrastructure for a cost-effective, high resolution surveillance solution.
Features:
- Universal HD over Coax technology with HD-Analog, HD-TVI, HD-CVI and all analog to 960H signal support
- 2.1MP/1080p 1/3" image sensor at real-time 30fps
- HD analog LPR license plate recognition technology captures reflective license plates up to 50mph with a 13’ ~ 115’ Capture Range
- Reliable performance under any lighting conditions
- External OSD and lens adjustment
- 6 ~ 50mm varifocal p-iris lens
- OSD control via coaxial (UTC)
- 115' Smart IR with intelligent camera sync.
- Smart DNR 3D digital noise reduction
- Highlight masking exposure (HME)
- Auto-sensing 24VAC/12VDC with line lock
- Easy icon-driven OSD menu with built-in joystick
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Dynamic range compressor (DRC) reveals low light detail
- No fog or condensation under any weather conditions
- NDAA/TAA compliant
- IP66 certified weather and tamper-resistant
- 5 year warranty
IMAGE | ||
| Image sensor | 2.1MP/1080p 1/3" CMOS | |
| Active pixels | 1944 (H) x 1092 (V) | |
| Scanning system | Progressive scan | |
| Frequency | 60Hz / 50Hz | |
| Signal technology | Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all analog to 960H signal support | |
| Synchronization | Internal | |
| Resolution | 1920 x 1080 (1080p) | |
| Minimum scene illumination | 0 lux (B&W) | |
| S/N ratio | 55dB | |
| Video output | HD-Analog, HD-TVI, HD-CVI 2.1MP/1080p CVBS Analog up to 960H | |
I/O | ||
| Alarm output | 1 alarm output | |
LENS | ||
| Focal length | 6 ~ 50mm | |
| Lens type | Varifocal p-iris lens | |
| Field of view (FoV) | 45.3° ~ 5.7° | |
| IR distance | 115ft range | |
OPERATIONAL | ||
| Shutter mode | Auto, manual, FLC | |
| Shutter speed | 1/30-1/30,000 | |
| Backlight | On, off | |
| Dynamic range compressor (DRC) | Off, low, middle, high | |
| Smart DNR™ 3D digital noise reduction | Off, low, middle, high | |
| Day / night | Night | |
| Mirror / flip | Yes | |
| Auto gain control | 0~10 | |
| Motion detection | Yes | |
| Privacy zones | 16 programmable privacy zones | |
| Sharpness | 0 ~ 10 | |
| Gamma | 0.45 ~ 0.75 | |
| De-fog | On, off | |
| RS485 / UTP built-in | Pelco D / Pelco C | |
ENVIRONMENTAL | ||
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) | |
| Operating humidity | 10–90% RH (non–condensing) | |
| IP rating | IP66 certified weather and tamper resistant | |
| Other certifications | FCC, CE, ROHS | |
ELECTRICAL | ||
| Power requirement | DC12V/AC24V dual voltage | |
| Power consumption | DC12V (LED ON): 6.12W | |
| AC24V (LED ON): 5.7W | ||
MECHANICAL | ||
| Material | Aluminum bullet housing | |
| Dimensions | 9.4” x 3.81” (264 x 96.7mm) | |
| Weight | 1.83lbs (0.83kg) | |
