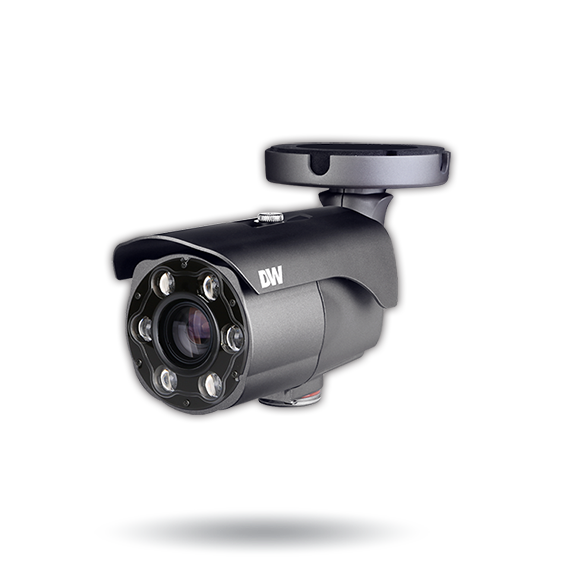

Digital Watchdog - DWC-MB44iALPR - MEGApix 4MP License Plate Recognition (LPR) bullet camera with 6~50mm vari-focal p-iris lens with motorized zoom and auto-focus and IR
Part number:
DWC-MB44iALPR
Price:
These MEGApix LPR IP cameras deliver crystal-clear images at 4 Megapixel resolution and real-time 30fps. The cameras are engineered to capture license plates of moving vehicles in extreme light conditions, from ranges of up to 60’ at up to 50mph. The IP66 weather resistant housing and Cold Start at -40º F/-40º C assure that license plates are captured clearly and visibly no matter the lighting challenge or weather condition.
Features:
- 4MP 1/3” CMOS Sensor at Real-Time 30fps
- License Plate Recognition Technology captures reflective license plates up to 50mph with up to 60’ Capture Range
- Reliable Performance under Any Lighting Conditions
- 6~50mm Motorized Zoom Auto-Focus P-Iris Lens
- Dual Codecs (H.264, MJPEG) with Simultaneous Dual-Stream
- Cold Start -40°F (-40°C)
- 60’ Smart IR™ with Intelligent Camera Sync.
- Smart DNR 3D Digital Noise Reduction
- Programmable Privacy Zones
- Auto Gain Control (AGC)
- Auto White Balance (AWB)
- Motion Detection
- Two-Way Audio
- Micro SD/SDHC/SDXC Class 10 Card Slot (Card Not Included)
- Alarm Sensor Input
- Relay Output
- Web Server Built-in
- PoE Class 3 and DC 12V
- Waterproof Cabling
- UL listed
- ONVIF Conformant, Profile S
- IP66 Weather and Tamper Resistant
- 5 Year Warranty
IMAGE | |
| Image sensor | 4MP 1/3” CMOS |
| Total pixels | 2688 (H) x 1520 (V) |
| Minimum scene illumination | 0 lux (B&W) |
| Video output | Local video output CVBS 1.0V p-p (75?), 4:3 aspect ratio |
LENS | |
| Focal length | 6.0 ~ 50mm, F1.6 |
| Lens type | Motorized zoom auto-focus p-iris lens |
| Field of view (FoV) | 90° ~ 7.3° |
| IR distance | 60ft range |
| Optical zoom | x8.3 |
I/O | |
| Audio in / out | 1/1 |
| Audio compression | G.711A |
| Alarm in / out | 1/1 |
OPERATIONAL | |
| Image capture range | Up to 60’ and 50 MPH |
| Shutter mode | Auto, manual, anti-flicker, slow shutter |
| Shutter speed | 1/15~1/32000 |
| Slow shutter | off, x2, x3, x5, x6, x7.5, x10 |
| Auto gain control | Auto |
| Day / night | B/W mode only |
| Smart DNR™ 3D digital noise reduction | 0~11 |
| Privacy zone | 16 programmable privacy masks |
| Alarm notifications | Notifications via e-mail, FTP server, alarm output activation or SD card recording |
| Memory slot | Micro SD / SDHC / SDXC (card not Included) |
NETWORK | |
| LAN | 802.3 compliance 10/100 LAN |
| Video compression type | H.264, MJPEG |
| Resolution | H.264: 1440p/1080p/720p/VGA/D1/CIF MJPEG: 1280 x 720/800 x 600/VGA/768 x 432/D1/CIF |
| Frame rate | Up to 30fps at all resolutions |
| Video bitrate | 100Kbps ~ 10Mbps, multi-rate for preview and recording |
| Bitrate control | Multi-streaming CBR/VBR at H.264 controllable frame rate and bandwidth |
| Streaming capability | Dual-stream at different rates and resolutions |
| IP | IPv4 |
| Protocol | ONVIF, TCP/IP, UDP, autoIP, RTP(UDP/TCP), RTSP, NTP, HTTP,HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, CMP, SNMPv1/v2c/v3 (MIB-2) |
| Security | HTTPS(TLS), IP filtering, 802.1x, digest authentication (ID/PW) |
| ONVIF conformance | Yes |
| Web viewer | OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari® |
| Video management software | DW Spectrum® IPVMS |
ENVIRONMENTAL | |
| Operating temperature | -40°F ~ 122°F (-40°C ~ 50°C) |
| Operating humidity | 10–90% RH (non–condensing) |
| IP rating | IP66 certified weather and tamper-resistant |
| Other certifications | CE, FCC, RoHS |
ELECTRICAL | |
| Power requirement | DC12V, PoE IEEE 802.3af Class 3 (adaptor not Included) |
| Power consumption | DC12V Max 11W PoE Max 12.9W |
MECHANICAL | |
| Material | Aluminum bullet housing |
| Dimensions | 9.73” x 3.8” (247.2 x 96.7mm) *Dimensions based on the position of the sun shield cover |
| Weight | 1.98 lbs (0.9kg) |
