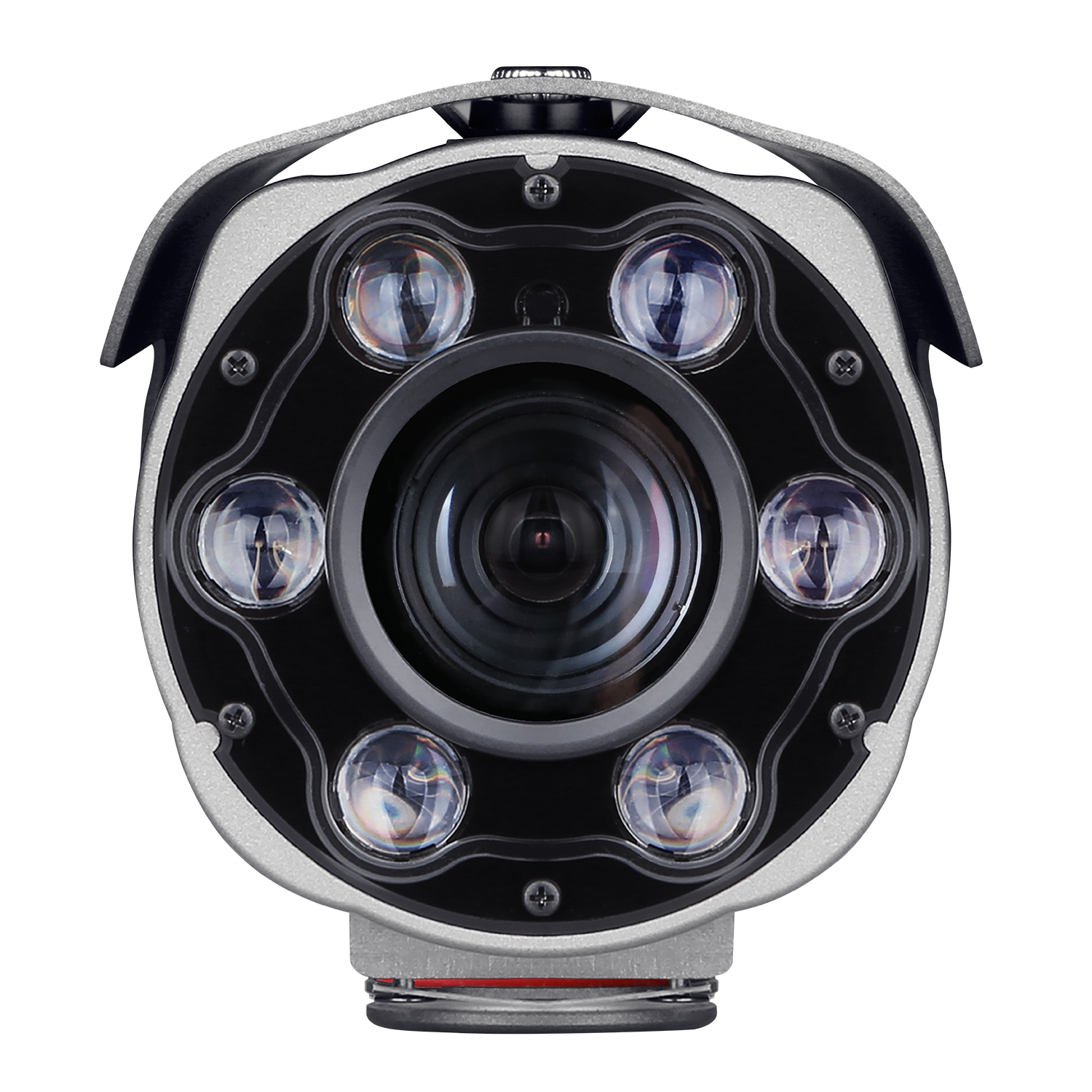

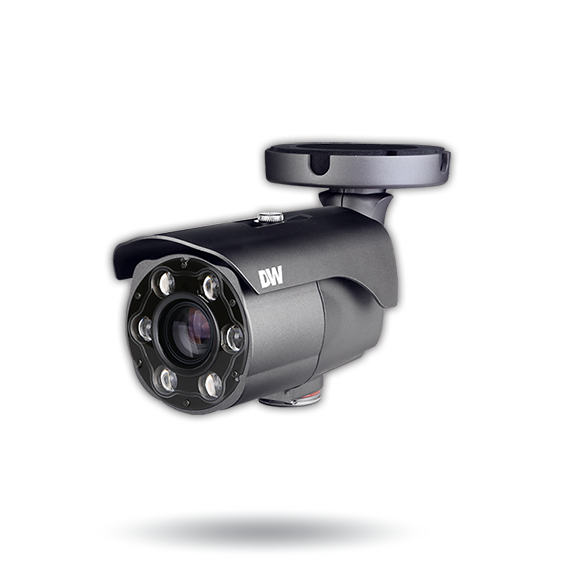

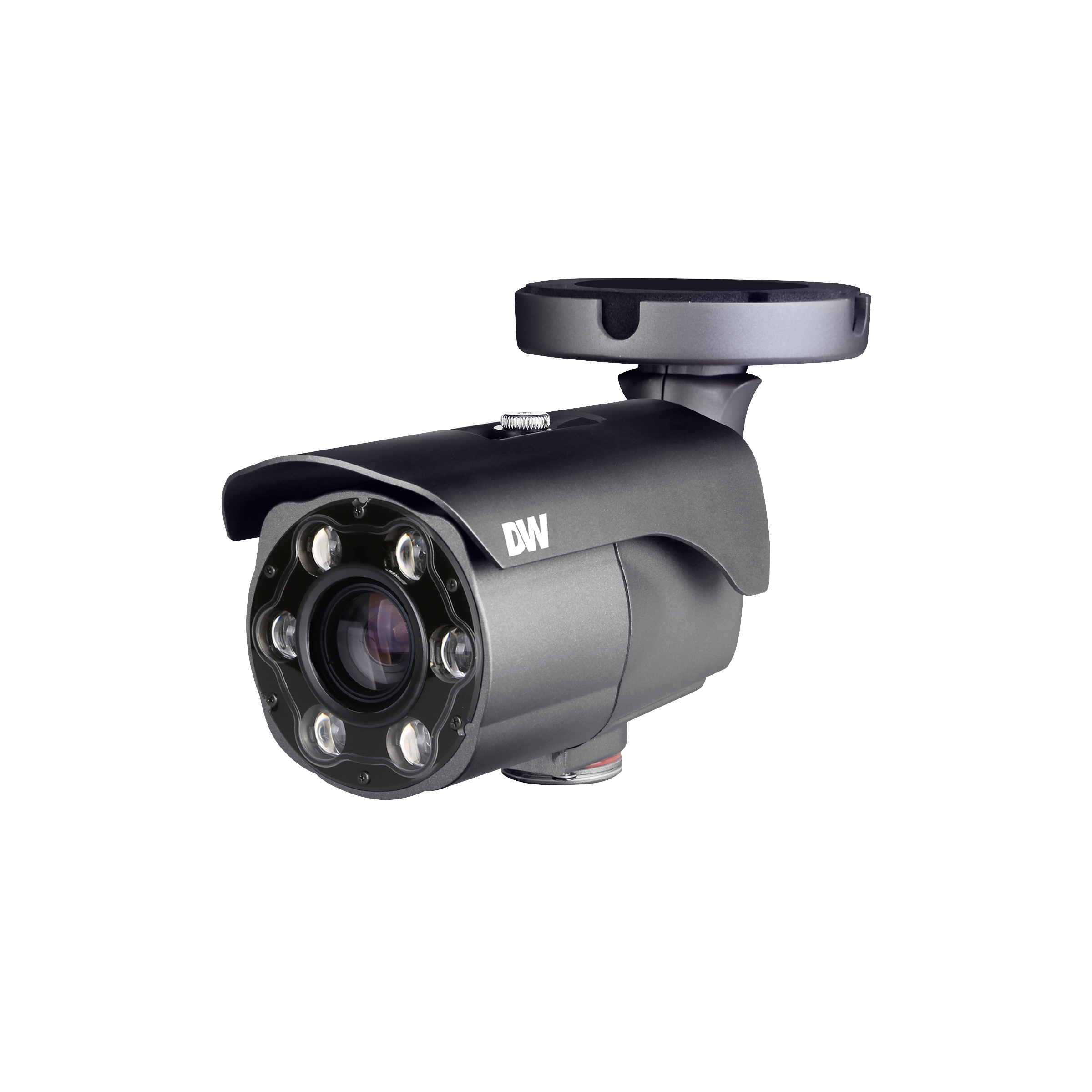

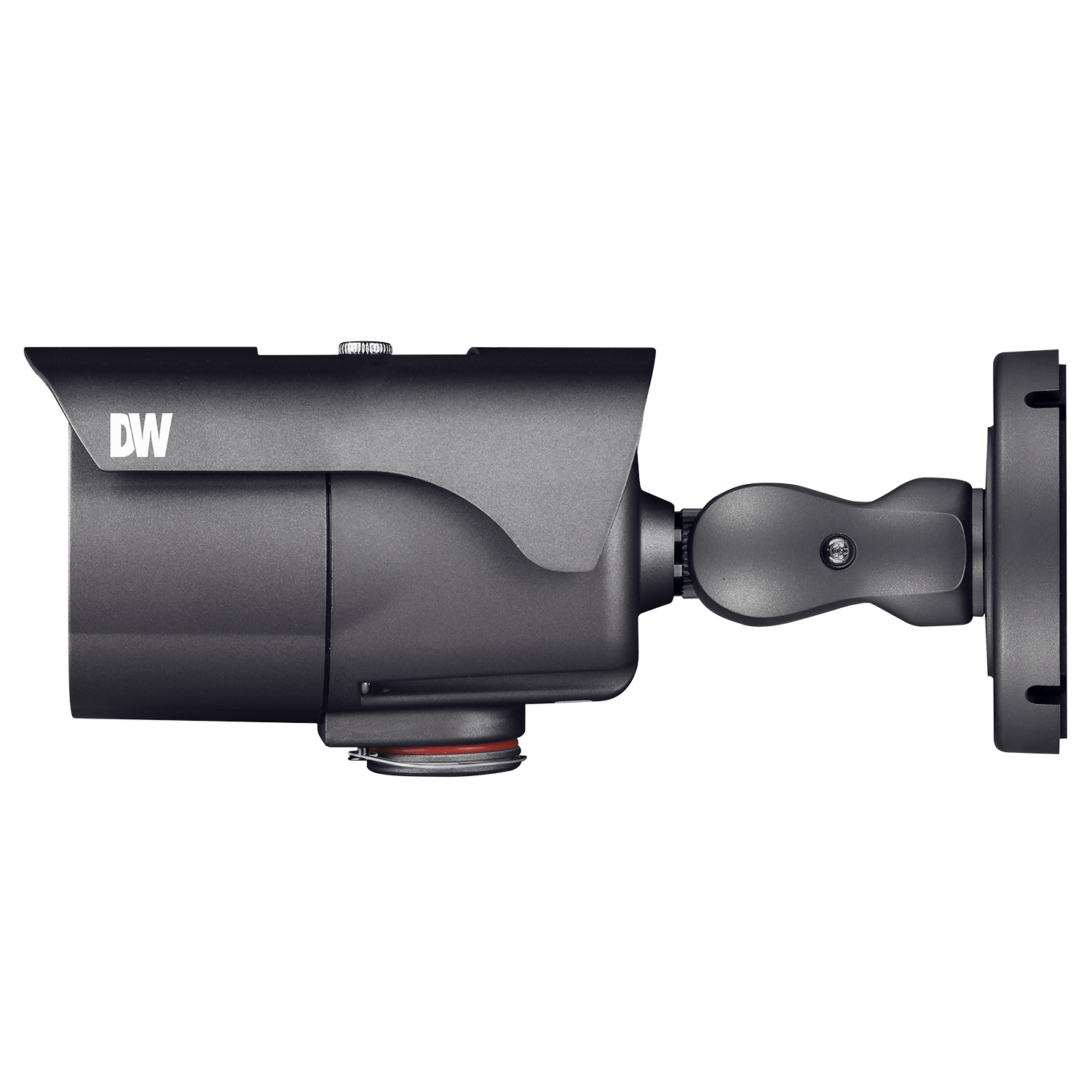

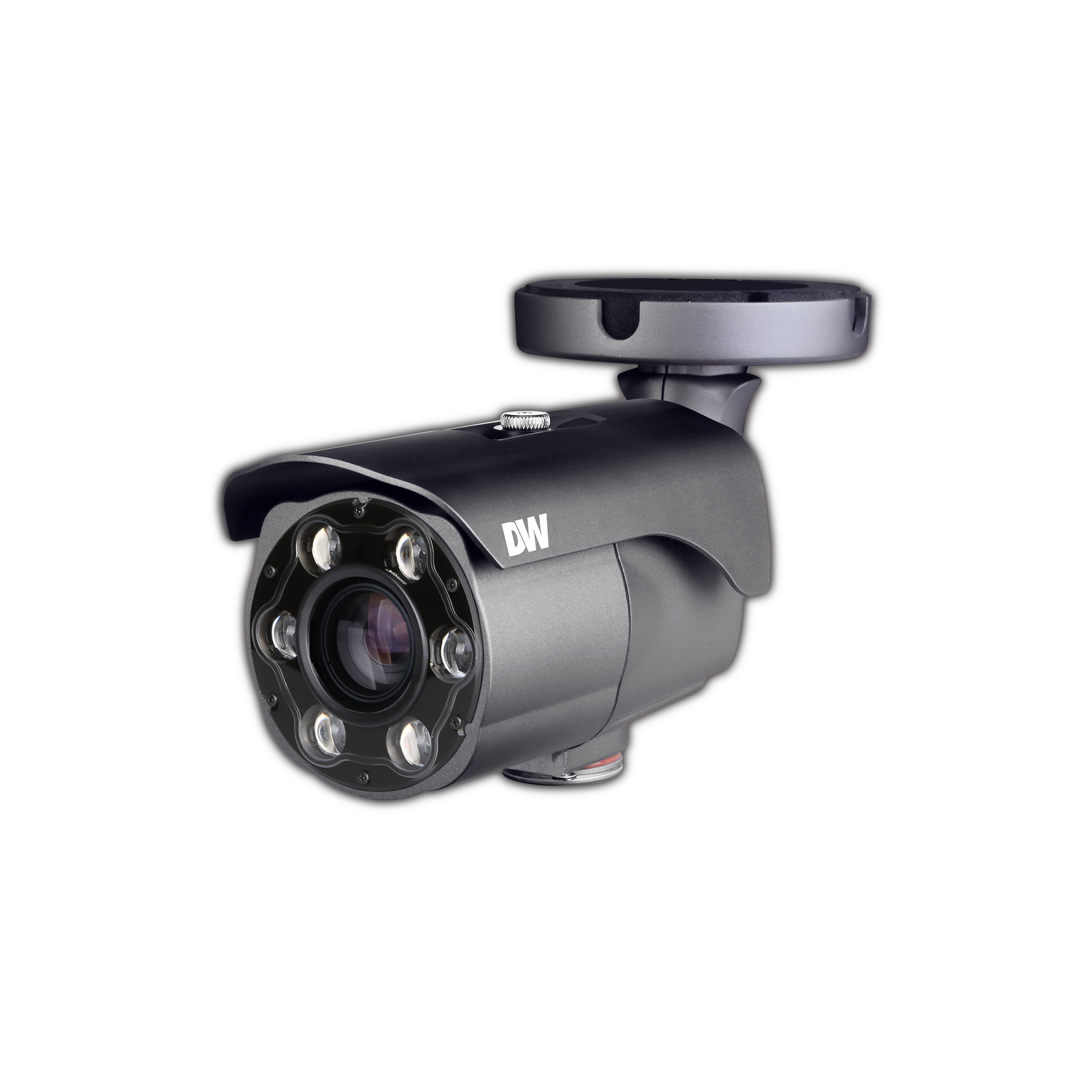

Digital Watchdog - DWC-MB44Wi650C1 - MEGApix CaaS all-in-one 4MP bullet camera with 6~50mm vari-focal p-iris lens with motorized zoom and auto-focus and IR
Part number:
DWC-MB44Wi650C1
Price:
The MEGApix CaaS series (Camera as a Server) combines the quality of MEGApix cameras with the ease and power of DW Spectrum® IPVMS pre-loaded and on-board storage, MAKING EACH CaaS™ CAMERA ITS OWN SELF-CONTAINED VIDEO SURVEILLANCE SYSTEM!
Features:
- All-in-one cameras, no server required
- 4MP 1/3” image sensor at real-time 30fps
- 6~50mm vari-focal p-iris lens with motorized zoom and auto-focus
- Built-in 256/128/64GB storage options for up to 30 days retained video*
- Easily to deploy with pre-loaded DW Spectrum® IPVMS for out-of-the-box operation
- 24/7 access to live and recorded video feed
- Automatic installation and licensing with first power on
- Connect up to 30 MEGApix CaaS edge cameras
- True Wide Dynamic Range (WDR)
- Dual recording option with Blackjack® NAS appliance
- Dual codecs (H.264, MJPEG) with simultaneous dual-stream
- Cold start -40°F (-40°C)
- 140’ Smart IR with intelligent camera sync
- Smart DNR 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Two-way audio
- Alarm sensor input
- Relay output
- Web server built-in
- PoE class 3 and DC12V
- Waterproof cabling
- UL listed
- ONVIF conformant, profile S
- NDAA/TAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- 5 year warranty
IMAGE | |
| Image sensor | 4MP 1/3” CMOS |
| Total pixels | 2688 (H) x 1520 (V) |
| Minimum scene illumination | 0.26 lux (color) 0 lux (B/W) |
| Video output | Local video output CVBS 1.0V p-p (75?), 4:3 aspect ratio |
| Resolution | 4MP (2560 x 1440) |
LENS | |
| Focal length | 6.0 ~ 50mm, F1.6 |
| Lens type | Vari-focal p-iris lens with motorized-zoom and auto-focus |
| Field of view (FoV) | 90° ~ 7.3° |
| IR distance | 140ft range |
| Optical zoom | x8.3 |
I/O | |
| Audio in/out | 1/1 |
| Audio compression | G.711 |
| Alarm in/out | 1/1 |
OPERATIONAL | |
| Shutter mode | Auto, manual, anti-flicker, slow shutter |
| Shutter speed | 1/15~1/32000 |
| Slow shutter | off, x2, x3, x5, x6, x7.5, x10 |
| Auto gain control | Auto |
| Day / night | Auto, day (color), night (B/W) |
| Smart DNR™ 3D digital noise reduction | 0~11 |
| Wide dynamic range (WDR) | True WDR off, WDR2x, WDR3x |
| Wide dynamic range (WDR)dB | 120dB |
| Privacy zone | 16 programmable privacy masks |
| Alarm notifications | Notifications via e-mail, FTP server, alarm output activation or SD card recording |
NETWORK | |
| LAN | 802.3 compliance 10/100 LAN |
| Video compression type | H.264, MJPEG |
| Resolution | H.264: 1440p/1080p/720p/VGA/D1/CIF MJPEG: 1280x720/800x600/VGA/768x432/D1/CIF |
| Frame rate | Up to 30fps at all resolutions |
| Video bitrate | 100Kbps ~ 10Mbps, multi-rate for preview and recording |
| Bitrate control | Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth) |
| Streaming capability | Dual-stream at different rates and resolutions |
| IP | IPv4 |
| Protocol | Zero config(Auto IP), ONVIF, TCP/IP, UDP, RTP(UDP/TCP), RTSP, NTP, HTTP,HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3(MIB-2) |
| Security | HTTPS(TLS), IP filtering, 802.1x, digest authentication(ID/PW) |
| ONVIF conformance | Yes |
| Web viewer | OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari® |
| Video management software | DW Spectrum® IPVMS |
| Number of DW Spectrum® CaaS™ licenses included | 1 DW Spectrum® CaaS™ license included |
| Local server recording | DWC-MB44Wi650C2: 256GB local memory for recording DWC-MB44Wi650C1: 128B local memory for recording DWC-MB44Wi650C6: 64GB local memory for recording |
| Max. number of CaaS™ cameras in the same network/system | Up to 30 MEGApix® CaaS™ cameras in the same network/system |
ENVIRONMENTAL | |
| Operating temperature | -40°F ~ 122°F (-40°C ~ 50°C) |
| Operating humidity | 10–90% RH (non–condensing) |
| IP rating | IP66-rated weather and tamper-resistant |
| Other certifications | CE, FCC, RoHS  |
ELECTRICAL | |
| Power requirement | DC12V, POE IEEE 802.3af class 3 (adaptor not Included) |
| Power consumption | DC12V Max 11W PoE Max 12.9W |
MECHANICAL | |
| Material | Aluminum bullet housing |
| Dimensions | 9.73” x 3.8” (247.2 x 96.7mm). Dimensions based on the position of the sun shield cover |
| Weight | 1.98 lbs (0.9kg) |
| Warranty | 5 year warranty |
