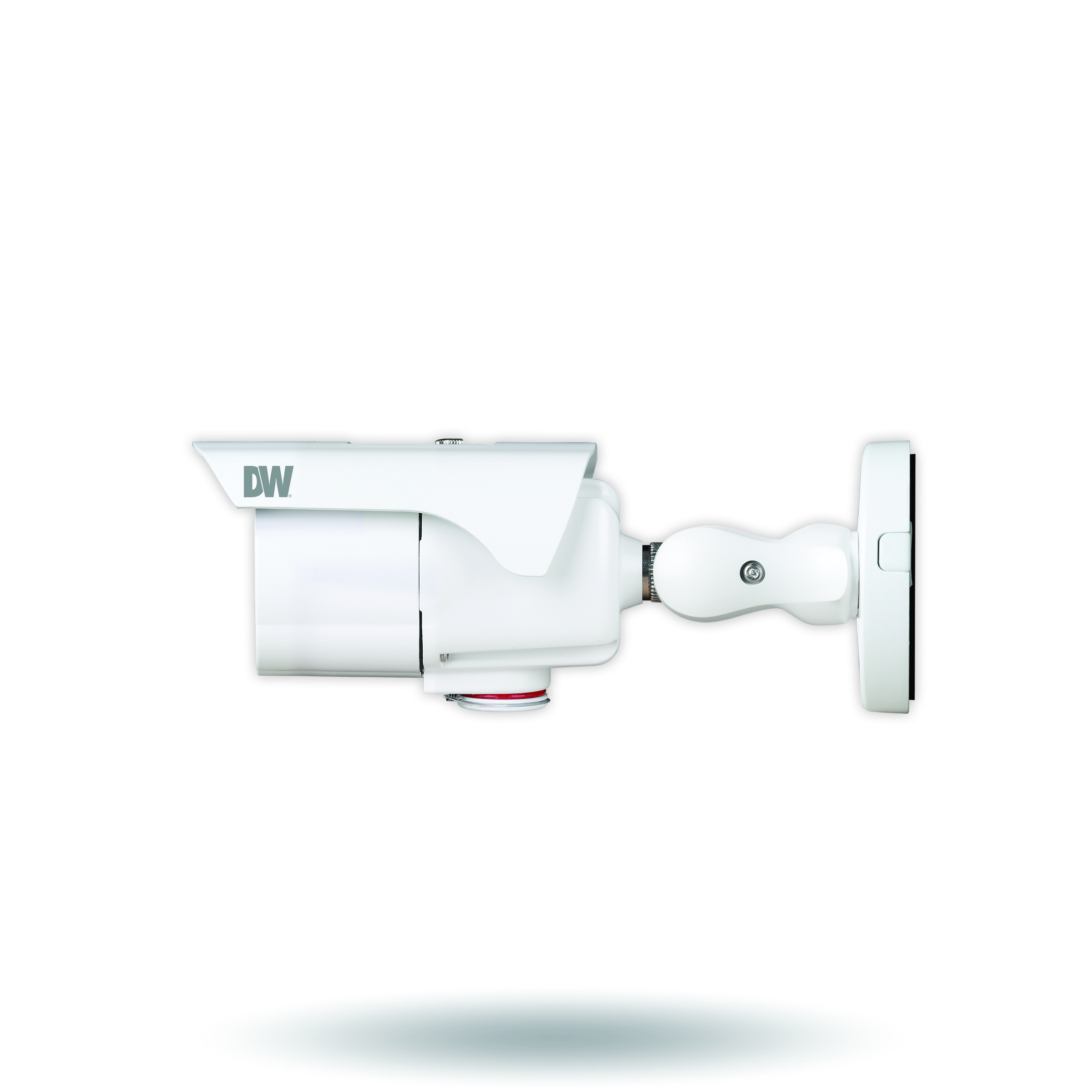

Digital Watchdog - DWC-MB44WiAWC1T - MEGApix CaaS 4MP bullet IP camera with a vari-focal lens and IR with 1TB Storage
Part number:
DWC-MB44WiAWC1T
Price:
Ideal complete DW Spectrum solution for small scale applications
The MEGApix CaaS, combined with Blackjack NAS desktop products can deliver a complete DW Spectrum network solution.
All-in-one cameras that do not require NVR’s, DVR’s or on-premise servers
MEGApix CaaS cameras act as an all-in-one solution, handling recording, notifications, management and monitoring all accessed remotely, with no need for a dedicated server or remote recorder.
Cold Start -40°F (-40°C)
The installed heater helps the camera power up in extreme cold weather conditions where temperatures may go as low as -40°F. This makes the cameras ideal for any harsh environment installation.
Features
- All-in-one cameras, no server required
- 4MP 1/3” image sensor at real-time 30fps
- 2.8~12mm vari-focal p-iris lens with motorized zoom and auto-focus
- Built-in 512GB/1TB storage options for up to 30 days retained video*
- Easily to deploy with pre-loaded DW Spectrum IPVMS for out-of-the-box operation
- 24/7 access to live and recorded video feed
- Automatic installation and licensing with first power on
- Connect up to 30 MEGApix CaaS edge cameras
- True Wide Dynamic Range (WDR)
- Dual recording option with Blackjack NAS appliance
- Dual codecs (H.264, MJPEG) with simultaneous dual-stream
- Cold start -40°F (-40°C)
- 120’ Smart IR with intelligent camera sync
- Smart DNR 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Two-way audio
- Alarm sensor input
- Relay output
- Web server built-in
- PoE class 3 and DC12V
- Waterproof cabling
- UL listed
- ONVIF conformant, profile S
- NDAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- 5 year warranty
| Image | |
|---|---|
| Image sensor | 4MP 1/3" CMOS sensor |
| Maximum resolution | 4MP |
| Minimum Scene Illumination in color | 0.0 lux (B/W), 0.20 lux (color) |
| Test Video Output | Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio |
| Total Pixels | 2688 (H) x 1520 (V) |
| Stream speed | |
| Local server recording | 1TB local memory for recording, 512GB local memory for recording |
| Max. number of CaaS cameras in the same network/system | Up to 30 MEGApix CaaS cameras in the same network/system |
| Number of DW Spectrum CaaS licenses included | 1 DW Spectrum CaaS license included |
| Lens | |
| Advanced Lens Features | Auto focus, Motorized zoom, P-iris |
| Focal Length | 2.8mm ~ 12mm |
| Horizontal Field of View (HFOV) | 87° ~ 32° |
| IR Distance | 120' range Smart IR |
| Lens Type | Vari-focal Lens |
| Vertical Field of View (VFOV) | 47° ~ 18° |
| I/O | |
| Audio compression | G.711 |
| I/O Alarm in/out | 1 input, 1 output |
| I/O Audio in/out | *Cameras provide a line level audio. The use of amplified microphones and speakers is recommended., 1 input, 1 output |
| Operational | |
| 3D digital noise reduction | Smart DNR 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Day and night | Auto day/night, Day (color), Night (B/W) |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Operational Notifications | Alarm output activation, Email, FTP server |
| Privacy Zones | 4 programmable privacy masks |
| Sharpness | Yes |
| Shutter Mode | Anti-Flicker, Auto, Manual, Slow Shutter |
| Shutter Speed | 1/15 ~ 1/32000 |
| Slow Shutter Speed | Off, x10, x5, x7.5 |
| White Balance | Yes |
| Wide Dynamic Range (WDR) | True WDR 120dB |
| Network | |
| Bitrate Control | Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth) |
| IP | IPv4 |
| LAN | 802.3 compliance 10/100 LAN |
| Network resolution | H.264: 1440p, 2.1MP/1080p, 720p, VGA, D1, CIF, MJPEG: 1280x720, 800x600, VGA, 768x432, D1, CIF |
| Network Web Viewer | Google Chrome browser, Linux OS, Mac OS, Microsoft Edge browser, Mozilla Firefox browser, Safari browser, Windows OS |
| Protocol | DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP) |
| Security | 802.1x, Digest authemtication (ID/PW), HTTPS (TLS), IP filtering |
| Stream Speed | Up to 30fps at all resolutions |
| Video Bitrate | 100Kbps~10Mbps, multi-rate for preview and recording |
| Video Compression Type | H.264, MJPEG |
| Video Management Software | DW Spectrum IPVMS |
| Environmental | |
| Environmental Operating Humidity | 10-90% (non-condensing) |
| Environmental Operating Temperature | -40°F ~ 122°F (-40°C ~ 50°C) |
| Mounting Accessories (Required/Optional) | Optional. Sold separately |
| Mechanical | |
| Camera Dimensions (H X W X D) | *Dimensions based on the position of the sun shield cover, 9.73” x 3.8” (247.2 x 96.7mm) |
| Camera Weight | 1.98 lbs (0.9kg) |
| Housing | Bullet |
| Housing Color | White |
| IP rating | Weather Resistant (IP66) |
| Materials | Aluminum die-casting |
| Electrical | |
| American wire gauge (AWG) | Cable type #18 |
| Power Consumption | DC12V: max 11.0W, 916.6mA, PoE: max 12.9W |
| Power Requirements | Adapter not included, PoE |
| General | |
| Warranty | 5 Year Warranty |
