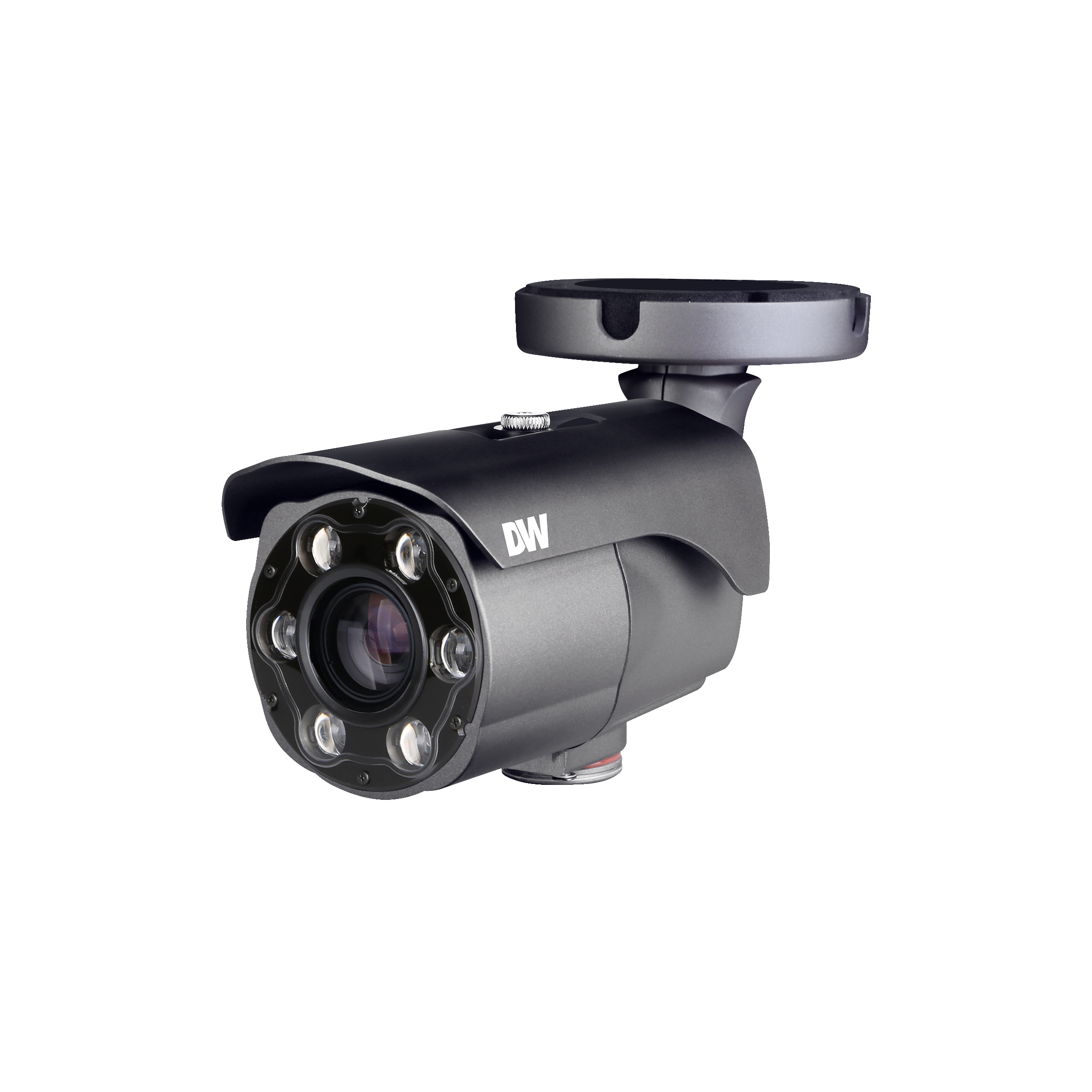

These MEGApix IP cameras deliver crystal-clear images at 5MP resolution and real-time 30fps with a 6-50mm long range vari-focal auto-focus lens and motorized zoom. The cameras are engineered to capture license plates of moving vehicles in extreme light conditions, from ranges of up to 60’ at up to 50mph. They deliver simultaneous H.265/H.264/MJPEG codec support. The IP66 weather-resistant housing and Cold Start at -40° F/-40° C assure that license plates are captured clearly and visibly no matter the lighting conditions or weather challenges.
Features:
- 5MP 1/2.8" image sensor at real-time 30fps
- License plate recognition technology captures reflective license plates up to 50mph with up to 60’ capture range
- Reliable performance under any lighting conditions
- 6~50mm vari-focal p-iris lens with motorized zoom and auto-focus
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- Cold start -40°F (-40°C)
- 80' Smart IR with intelligent camera sync
- Smart DNR 3D digital noise reduction
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Two-way audio
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Alarm sensor input
- Relay output
- Web server built-in
- PoE class 3 and DC12V
- ONVIF conformant, profile S
- NDAA/TAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- IK 9-rated impact-resistant
- 5 year warranty
IMAGE | ||
| Image sensor | 5MP 1/2.8” CMOS | |
| Total pixels | 2592 (H) × 1944 (V) | |
| Minimum scene illumination | 0 lux (B/W) | |
| Video output | Local video output CVBS 1.0V p-p (75?), 4:3 aspect ratio | |
LENS | ||
| Focal length | 6 ~ 50mm, F1.6 | |
| Lens type | Vari-focal p-iris lens with motorized-zoom and auto-focus | |
| Field of view (FoV) | 6.9° ~ 40.8° | |
| IR distance | 80ft range | |
| Optical zoom | x8 optical zoom | |
I/O | ||
| Audio in / out | 1/1 | |
| Audio compression | G.711 | |
| Alarm in / out | 1/1 | |
OPERATIONAL | ||
| Image capture range | Up to 60’ and 50 MPH | |
| Shutter mode | Auto, manual, anti-flicker, slow shutter | |
| Shutter speed | 1/15 ~ 1/32,000 | |
| Slow shutter | off, x2, x3, x5, x6, x7.5, x10 | |
| Auto gain control | Auto | |
| Day / night | B/W mode only | |
| Smart DNR™ 3D digital noise reduction | 3D DNR | |
| Privacy zones | 16 programmable privacy masks | |
| Alarm notifications | Notifications via e-mail, FTP, alarm output activation and SD card recording | |
| Memory slot | Micro SD / SDHC / SDXC (card not included) | |
NETWORK | ||
| LAN | RJ45 (10/100Base-T) | |
| Video compression type | H.265, H.264, MJPEG | |
| Resolution | H.265: 2592x1944, 2304x1296, 2.1MP/1080p, 720p, VGA, D1, CIF H.264: 2592x1944, 2304x1296, 2.1MP/1080p, 720p, VGA, D1, CIF MJPEG: 2.1MP/1080p, 720p, 800x600, VGA, 768x432, D1, CIF | |
| Frame rate | Up to 30fps at all resolutions | |
| Video bitrate | 100Kbps ~ 10Mbps, multi-rate for preview and recording | |
| Bitrate control | Multi Streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth) | |
| Streaming capability | Dual-stream at different rates and resolutions | |
| IP | IPv4, IPv6 | |
| Protocol | TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF | |
| Security | HTTPS(TLS), IP filtering, 802.1x, digest authentication(ID/PW) | |
| ONVIF conformance | Yes | |
| Web viewer | OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari® | |
| Video management software | DW Spectrum® IPVMS | |
ENVIRONMENTAL | ||
| Operating temperature | -40°F ~ 122°F (-40°C ~ 50°C) | |
| Operating humidity | 10–90% RH (non–condensing) | |
| IP rating | IP66 certified | |
| IK rating | IK9 impact-resistant | |
| Other certifications | CE, FCC, RoHS | |
ELECTRICAL | ||
| Power requirement | DC12V, POE IEEE 802.3af class 3 (adaptor not Included) | |
| Power consumption | DC12V: max 9W PoE: max 10.5W | |
MECHANICAL | ||
| Material | Aluminum bullet housing | |
| Dimensions | 9.73” x 3.8” (247.2 x 96.7mm) *Dimensions based on the position of the sun shield cover | |
| Weight | 1.98 lbs (0.9kg) | |
| Warranty | 5 year warranty | |
