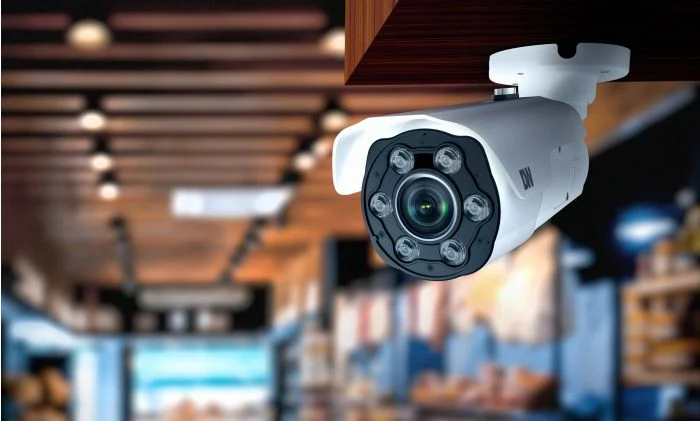

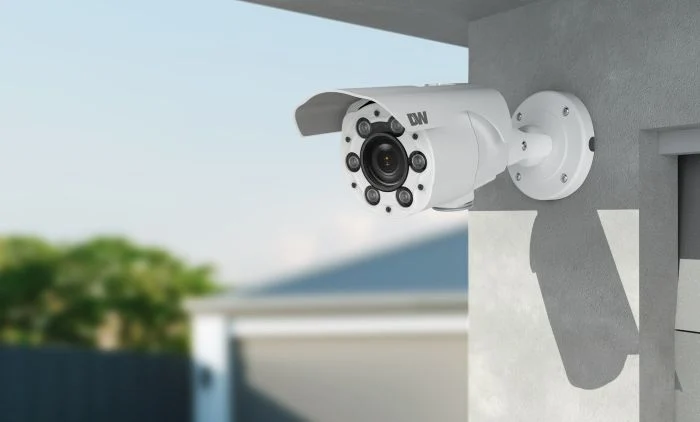

Digital Watchdog - DWC-MB45WiATX - 5 MP Network IP Bullet Camera with 2.7-13.5mm Lens
Product Overview
The DWC-MB45WiATX is a 5MP IP bullet camera featuring a 2.7~13.5mm motorized vari-focal lens and Star-Light Plus™ for low-light color imaging. It includes a full IVA analytics license (intrusion, loitering, counting) and Smart IR™ up to 140 feet. Built for extremes, it features an IP67-rated housing with Cold Start technology down to -40°F, along with two-way audio and local storage support up to 1TB.
Key Configuration
- • Image sensor: 5MP 1/2.8" CMOS; total pixels: 2592 × 1944 (5MP)
- • Lens: 2.7~13.5mm motorized vari-focal, p-iris, auto focus; HFOV: 85° (wide) to 31° (tele); VFOV: 62° to 24°
- • IR distance: Smart IR up to 140 ft (42.7 m); minimum illumination: 0.08 lux color, 0.0 lux B/W
- • Power: DC12V or PoE; power consumption: DC12V max 9.0W, PoE max 10.5W (adapter not included)
- • Dimensions: 12.2" × 3.81" (310 × 97 mm) or 9.4" × 3.8" (264 × 96.7 mm) based on sun shield position; weight: 1.96 lbs (0.89 kg)
Key Features
The features Star-Light Plus™ for low-light color, True WDR (120dB) for high contrast, and Cold Start functionality down to -40°F. It includes a full IVA analytics license (intrusion, counting, loitering), two-way audio, alarm I/O, and 1TB microSD support. ONVIF- and NDAA-compliant, it integrates seamlessly with major platforms such as DW Spectrum® and Milestone.
Technical Context
The high-speed shutter (up to 1/32,000s) and slow shutter modes for optimized exposure. It supports high-resolution streaming up to 3008×3000 in H.265/H.264 and provides broad protocol support, including HTTPS (TLS) and 802.1x security. Housed in a white, IP66-rated aluminum body, it operates from -40°F to 122°F and is fully NDAA-, UL-, and CE-certified. Mounting accessories sold separately. Power adaptor not included. 5-year warranty.
| Image | |
|---|---|
| Active Pixels | 4x 1944 (H) x 1092 (V) |
| Image sensor | 5MP 1/2.8" CMOS sensor |
| Maximum resolution | 5MP |
| Minimum Scene Illumination in color | 0.0 lux (B/W) 0.08 lux (color) |
| Test Video Output | Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio |
| Total Pixels | 2592 (H) × 1944 (V) |
| Lens | |
| Advanced Lens Features | Auto focus, Motorized zoom, P-iris |
| Horizontal Field of View (HFOV) | 85° ~ 31° |
| Illumination Distance | 140' range Smart IR™ |
| Lens Type | Vari-focal Lens |
| Vertical Field of View (VFOV) | 24° ~ 62° |
| I/O | |
| Audio compression | G.711 |
| I/O Alarm in/out | 1 input, 1 output |
| I/O Audio in/out | 1 input, 1 output *Cameras provide a line level audio. The use of amplified microphones and speakers is recommended. |
| Intelligent Video Analytics | |
| IVA license | Intrusion, line crossing, counting line, loitering, enter, exit, tamper, object removed, tailgating, direction, stopped, appear, disappear, object left, logical rules. |
| Operational | |
| 3D digital noise reduction | Smart DNR™ 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Day and night | Auto day/night, Day (color), Night (B/W) |
| De-fog | Yes |
| Memory slot | Micro SD/SDHC/SDXC class 10 card (card not included) Up to 1TB micro SD / FAT32 |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Operational Notifications | Alarm output activation, Email, SD card recording |
| Privacy Zones | 16 programmable privacy masks |
| Shutter Mode | Auto, Manual, Slow Shutter |
| Shutter Speed | 1/15 ~ 1/32000 |
| Slow Shutter Speed | Off |
| x15 | |
| x2 | |
| x3 | |
| x4 | |
| x5 | |
| x6 | |
| x7.5 | |
| Wide Dynamic Range (WDR) | True WDR 120dB |
| Network | |
| Bitrate Control | Multi-streaming CBR/VBR at H.265 (controllable frame rate and bandwidth) |
| IP | IPv4 |
| LAN | RJ45 (10/100Base-T) |
| Network resolution | H.264: 3008x3000, 2800x2800, 2048x2048, 1600x1600, 640x640, 320x320 |
| H.265: 3008x3000, 2800x2800, 2048x2048, 1600x1600, 640x640, 320x320 | |
| MJPEG: 1280x720, 800x600, VGA, 768x432, D1, CIF | |
| Network Web Viewer | Google Chrome® browser, Linux® OS, Mac® OS |
| Microsoft Edge® browser, Mozilla Firefox® browser, Safari® browser | |
| Windows OS | |
| Protocol | Bonjour, DDNS, DHCP, DNS, Genetec Protocol, HTTP, HTTPs, IGMP, NTP, RTP, RTP (UDP/TCP), RTSP, SMTP, SNMP, SNMPv1/v2/v3 (MIB-2), TCP, Telnet, uPNP, Zeroconf (AutoIP) |
| Security | 802.1x, HTTPS (TLS), IP filtering, Multi-user authority |
| Stream Speed | Up to 30fps at all resolutions |
| Streaming Capability | Dual-stream at different rates and resolutions |
| Video Bitrate | 100Kbps~10Mbps, multi-rate for preview and recording |
| Video Compression Type | H.264 |
| H.265 | |
| MJPEG | |
| Video Management Software | Any ONVIF conformant CMS |
| DW Spectrum® | |
| ExacqVision Technologies | |
| Genetec Inc. | |
| Milestone Systems | |
| Environmental | |
| Compliance | CE, FCC, NDAA Comp, ONVIF, UL Listing |
| Environmental Operating Humidity | 10-90% (non-condensing) |
| Environmental Operating Temperature | -40°F ~ 122°F (-40°C ~ 50°C) |
| Mounting Accessories (Required/Optional) | Optional. Sold separately |
| Mechanical | |
| Camera Dimensions (H X W X D) | *Dimensions based on the position of the sun shield cover 12.2" x 3.81" (310 x 97mm) |
| 9.4" x 3.8" (264 x 96.7 mm) | |
| Camera Weight | 1.96 lbs (0.89 kg) |
| Housing | Bullet |
| Housing Color | White |
| IP rating | Weather Resistant (IP66) |
| Materials | Aluminum die-casting, Polycarbonate Dome |
| Electrical | |
| American wire gauge (AWG) | 30M, Cable type #18 |
| Power Consumption | DC12V: max 9.0W, 750mA |
| PoE: max 10.5W | |
| Power Requirements | Adapter not included, PoE |
| General | |
| Warranty | 5 Year Warranty |
