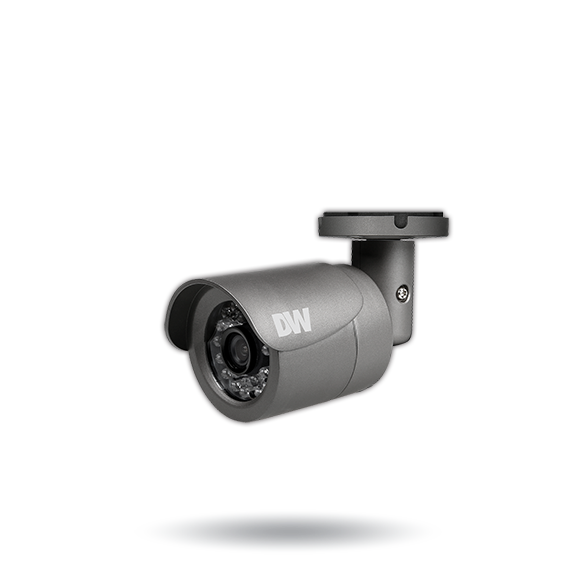

Digital Watchdog - DWC-MB721M8TIR - MEGApix 2.1MP/1080p bullet IP Camera with 4.0mm and 8.0mm fixed lenses and IR
Part number:
DWC-MB721M8TIR
Price:
MEGApix IP cameras deliver crystal-clear 2.1 Megapixel 1080p resolution images at real-time 30fps. Features include Smart IR™, WDR and 3D DNR for quality video in challenging lighting environments. PoE simplifies installation.
Features:
- 2.1MP/1080p 1/2.7" image sensor at real-time 30fps
- 4.0mm fixed lens (DWC-MB721M4TIR)
- 8.0mm fixed lens (DWC-MB721M8TIR)
- True Wide Dynamic Range (WDR)
- Dual codecs (H.264, MJPEG) with simultaneous streaming
- 50' Smart IR™ with intelligent camera sync
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Web server built-in
- PoE class 2 and DC12V
- UL listed
- ONVIF conformant, profile S
- NDAA/TAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- 5 year warranty
IMAGE | |
| Image sensor | 2.1MP/1080p 1/2.7“ CMOS |
| Total pixels | 1928 (H) x 1088 (V) |
| Minimum scene illumination | 0.41 lux (color) |
| 0.0 lux (B&W) | |
LENS | |
| Focal length | 4.0mm, F2.0 (DWC-MB721M4TIR) 8.0mm, F2.0 (DWC-MB721M4TIR) |
| Lens type | Fixed lens |
| Field of view (FoV) | 88° (DWC-MB721M4TIR) 42° (DWC-MB721M8TIR) |
| IR distance | 50ft range |
OPERATIONAL | |
| Shutter mode | Auto, manual, anti-flicker, slow shutter |
| Shutter speed | 1/30 ~ 1/8000 |
| Slow Shutter | 1~1/5,1/7.5, 1/15 |
| Auto gain control | Auto |
| Day / night | Auto, day (color), night (B/W) |
| Smart DNR™ 3D digital noise reduction | 0 ~ 11 |
| Wide dynamic range (WDR) | True WDR on, off |
| Wide dynamic range (WDR) dB | 120dB |
| Privacy zone | 16 programmable privacy masks |
| Backlight Compensation (BLC) | On / off / HSBLC |
| Mirror & Flip | Yes |
| Alarm notifications | Notifications via e-mail, FTP server or SD card recording |
| Memory Slot | Micro SD / SDHC / SDXC up to 128GB (card not Included) |
NETWORK | |
| LAN | 802.3 compliance 10/100 LAN |
| Video compression type | H.264, MJPEG |
| Resolution | H.264: 1080p/720p/VGA/D1/CIF MJPEG: 1280 x 720/800 x 600/VGA/768 x 432/D1/CIF |
| Frame rate | Up to 30fps at all resolutions |
| Video bitrate | 100Kbps ~ 10Mbps, Multi-rate for preview and recording |
| Bitrate control | Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth) |
| Streaming capability | Dual-stream at different rates and resolutions |
| IP | IPv4 |
| Protocol | ONVIF, TCP/IP, UDP, autoIP, RTP(UDP/TCP), RTSP, NTP, HTTP,HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3(MIB-2) |
| Security | HTTPS(TLS), IP filtering, 802.1x, digest authentication (ID/PW) |
| ONVIF conformance | Yes |
| Web viewer | OS: Windows®, Mac® OS, Linux® |
| Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari® | |
| Video management software | DW Spectrum® IPVMS |
ENVIRONMENTAL | |
| Operating temperature | 14°F ~ 122°F (-10°C ~ 50°C) |
| Operating humidity | Less than 90% (non-condensing) |
| IP rating | IP66 certified weather and tamper-resistant |
| Other certifications | CE, FCC, RoHS |
ELECTRICAL | |
| Power requirement | DC 12V, PoE (IEEE 802.3af Class 3). (adaptor not included) |
| Power consumption | DC12V: max 5.6W PoE: max 7.3W |
MECHANICAL | |
| Material | Aluminum bullet housing |
| Dimensions | 6.41" x 2.65" (163 x 67.5 mm) |
| Weight | 1.1 lbs (0.5kg) |
