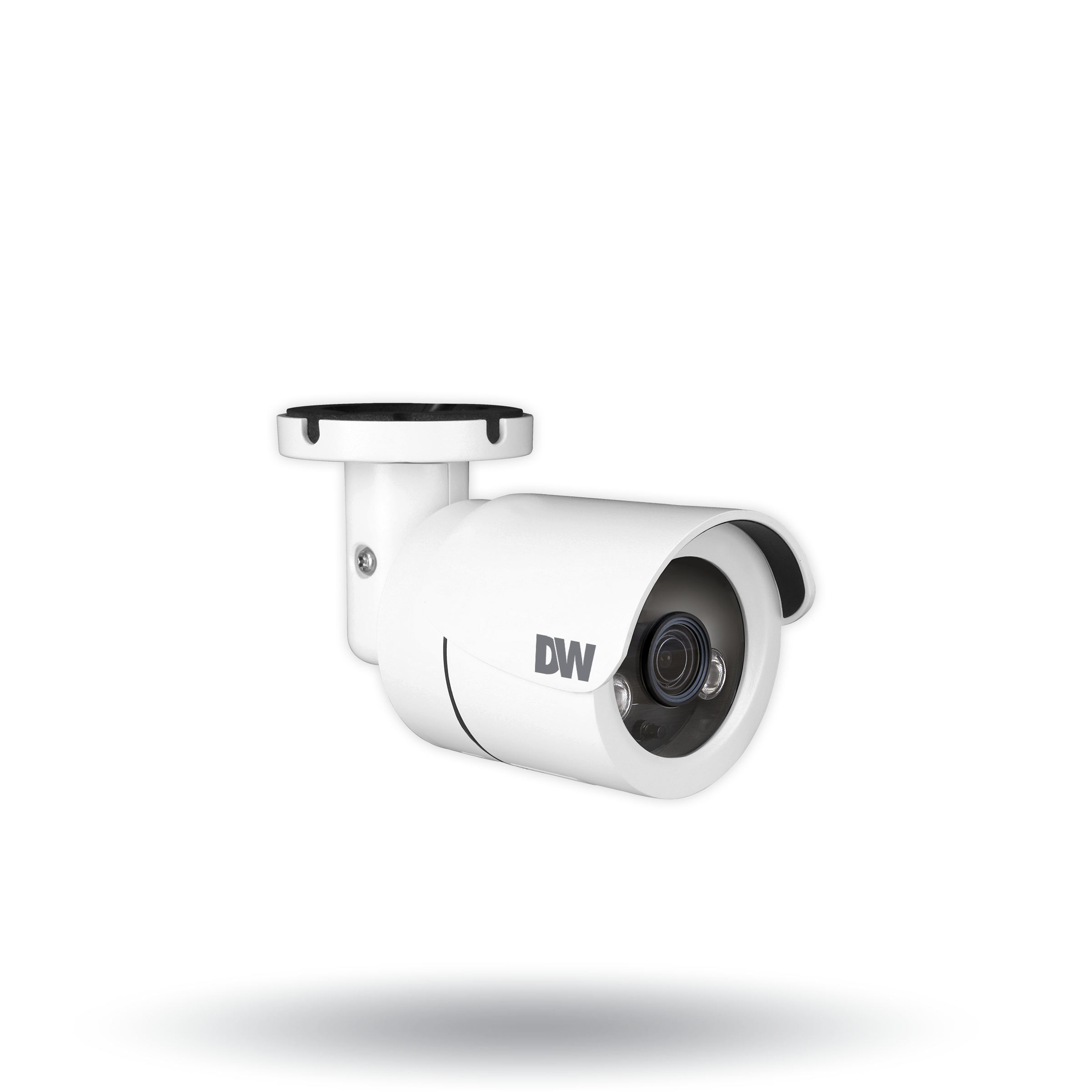

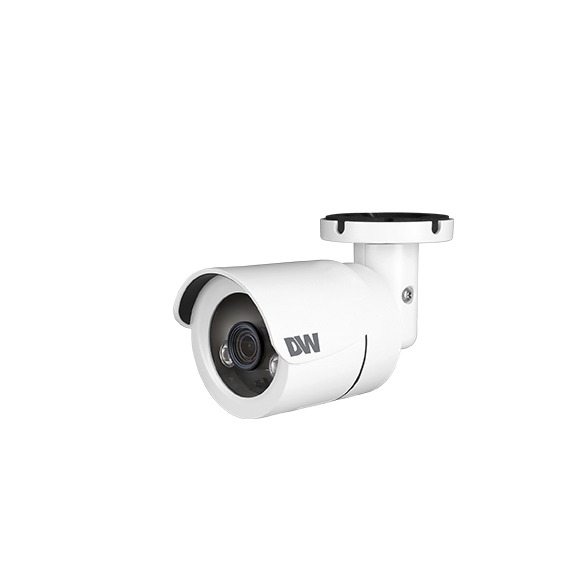

Digital Watchdog - DWC-MB72Wi4TW - 5 MP Network Outdoor IR Bullet Camera with 4mm Lens
• 2.1MP/1080P sensor at real-time 30fps
• Star-Light Plus™ color in near-total darkness technology
• Intelligent Video Analytics (IVA)
• Seamless integration and control of IVA rules with DW Spectrum® IPVMS
• Reduce false alarms
• Increase your recording storage with logic rules and smart recording
• 4.0mm fixed lens
• True Wide Dynamic Range (WDR) for clear images in challenging light
• Simultaneous streaming and multiple codec options for smart bandwidth management
• 100' Smart IR™ with intelligent camera sync for clear B/W images with no need for external light
• Smart DNR™ 3D digital noise reduction reduces noise and ghosting for motion in low-light environments.
• Privacy zones cover sensitive areas in the camera's field of view.
• Local SD card slot for local recording in case of network loss
• Web server built-in for easy camera management from any browser
• PoE and DC12V for single cable simplified installation
• NDAA compliant for federal and government projects
• IP66- and IK10-rated camera housing built to last
| Image | |
|---|---|
| Image sensor | 2.1MP/1080p 1/2.8" CMOS sensor |
| Maximum resolution | 2.1MP/1080p |
| Minimum Scene Illumination in color | 0.0 lux (B/W) 0.09 lux (color) |
| Test Video Output | Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio |
| Total Pixels | 1945 (H) X 1109 (V) |
| Lens | |
| Focal Length | 4.0mm |
| Horizontal Field of View (HFOV) | 86° |
| Illumination Distance | 100' range Smart IR™ |
| Lens Type | Fixed Lens |
| Vertical Field of View (VFOV) | 46° |
| Intelligent Video Analytics | |
| IVA license | Intrusion, line crossing, counting line, loitering, enter, exit, tamper, object removed, tailgating, direction, stopped, appear, disappear, object left, logical rules. NOTE: object removed, tailgating, direction, stopped, appear, disappear, object left, and logical rules are available via IVA+ plugin update. For existing cameras, contact your DW sales representative for a complimentary update. |
| Operational | |
| 3D digital noise reduction | Smart DNR™ 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Day and night | Auto day/night, Day (color), Night (B/W) |
| De-fog | Yes |
| Memory slot | Micro SD/SDHC/SDXC class 10 card (card not included) Up to 1TB micro SD / FAT32 |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Operational Notifications | Alarm output activation, Email, SD card recording |
| Privacy Zones | 16 programmable privacy masks |
| Shutter Mode | Auto, Manual, Slow Shutter |
| Shutter Speed | 8 ~ 1/50000 |
| Slow Shutter Speed | Off |
| x15 | |
| x2 | |
| x3 | |
| x4 | |
| x5 | |
| x6 | |
| x7.5 | |
| White Balance | Yes |
| Wide Dynamic Range (WDR) | True WDR 120dB |
| Network | |
| Bitrate Control | Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth) |
| IP | IPv4 |
| Network resolution | H.264: QFHD, 2.1MP/1080p, 720p, VGA, D1, CIF |
| H.265: QFHD, 2.1MP/1080p, 720p, VGA, D1, CIF | |
| MJPEG: 1280x1024, 800x600, 480x360, 320x240, CIF | |
| Network Web Viewer | Google Chrome® browser, Linux® OS, Mac® OS |
| Microsoft Edge® browser, Mozilla Firefox® browser, Safari® browser | |
| Windows OS | |
| Protocol | Bonjour, DDNS, DHCP, DNS, Genetec Protocol, HTTP, HTTPs, IGMP, NTP, RTP, RTP (UDP/TCP), RTSP, SNMP, SNMPv1/v2/v3 (MIB-2), TCP, Telnet, uPNP, Zeroconf (AutoIP) |
| Security | 802.1x, HTTPS (TLS), MAC filtering, Multi-user authority |
| Stream Speed | Up to 30fps at all resolutions |
| Streaming Capability | Dual-stream at different rates and resolutions |
| Video Bitrate | 32Kbps~20Mbps |
| Video Compression Type | H.264 |
| H.265 | |
| MJPEG | |
| Video Management Software | DW Spectrum® |
| ExacqVision Technologies | |
| Milestone Systems | |
| Environmental | |
| Compliance | CE, FCC, NDAA Comp, UL Listing |
| Environmental Operating Temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Mounting Accessories (Required/Optional) | Optional. Sold separately |
| Mechanical | |
| Camera Dimensions (H X W X D) | 6.06" x 5.9" (154 x 150 mm) |
| Camera Weight | 1.01 lbs (0.46 kg) |
| Housing | Bullet |
| Housing Color | White |
| IP rating | Weather Resistant (IP67) |
| Materials | Aluminum die-casting |
| Electrical | |
| American wire gauge (AWG) | Cable type #18 |
| Power Consumption | DC12V: max 4.5W, 375mA |
| PoE: max 6.0W | |
| Power Requirements | Adapter not included, PoE |
| General | |
| Warranty | 5 Year Warranty |
This MEGApix IP camera provides access to a range of powerful video analytics features. NDAA-compliant, it provides 2.1MP/1080p resolution at 30fps in real time. The camera includes a 4.0 mm fixed lens and supports simultaneous H.265, H.264 and MJPEG codecs. It also features Star-Light Plus™ technology for capturing colour images in near-total darkness, ensuring high-quality video in any lighting condition. The camera is housed in an IP67-rated, dust-tight and waterproof bullet housing.
