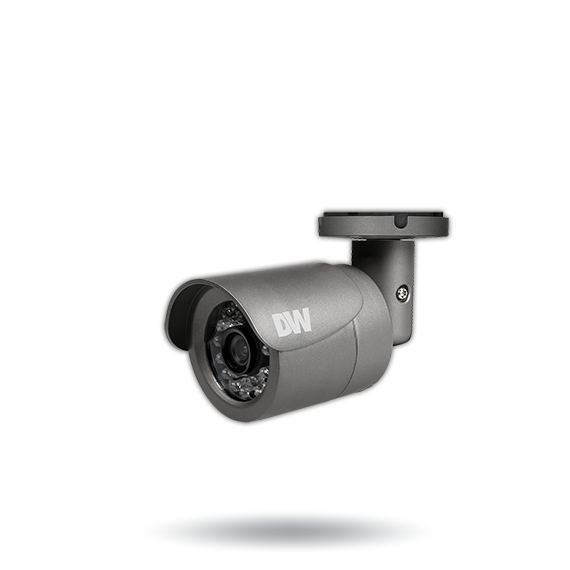

Digital Watchdog - DWC-MB74Wi4 - MEGApix 4MP bullet IP Camera with 4.0mm fixed lens and IR
Part number:
DWC-MB74Wi4
Price:
MEGApix IP cameras provide 4 megapixel resolution at up to real-time 30fps. Features include Smart IR, WDR and 3D DNR for quality video in challenging lighting environments. PoE simplifies installation.
Features:
- 4MP 1/3” CMOS Sensor at Real-Time 30fps
- 4.0mm Fixed Lens
- True Wide Dynamic Range (WDR)
- Dual Codecs (H.264, MJPEG) with Simultaneous Dual-Stream
- 60’ Smart IR with Intelligent Camera Sync.
- Smart DNR 3D Digital Noise Reduction
- True Day/Night with Mechanical IR Cut Filter
- Programmable Privacy Zones
- Auto Gain Control (AGC)
- Auto White Balance (AWB)
- Motion Detection
- Micro SD/SDHC/SDXC Class 10 Card Slot (Card Not Included)
- Web Server Built-in
- PoE Class 3 and DC12V
- Waterproof Cabling
- OnVIF Conformant, Profile S
- NDAA/TAA compliant
- IP66 Weather and Tamper Resistant
- 5 Year Warranty
IMAGE | ||
| Image sensor | 4MP 1/3” CMOS | |
| Total pixels | 2688 (H) x 1520 (V) | |
| Minimum scene illumination | 0.41 lux (color) | |
| 0.0 lux (B&W) | ||
LENS | ||
| Focal length | 4.0mm, F2.0 | |
| Lens type | Fixed lens | |
| Field of view (FoV) | 81° | |
| IR distance | 60ft range | |
OPERATIONAL | ||
| Shutter mode | Auto, manual, anti-flicker, slow shutter | |
| Shutter speed | 1/30~1/32000 | |
| Slow shutter | 1~1/5,1/7.5, 1/10 | |
| Auto gain control | Auto | |
| Day / night | Auto, day (color), night (B/W) | |
| Smart DNR™ 3D digital noise reduction | 0~11 | |
| Wide dynamic range (WDR) | True WDR off, WDR2x, WDR3x | |
| Wide dynamic range (WDR) dB | 120dB | |
| Privacy zone | 16 programmable privacy masks | |
| Alarm notifications | Notifications via e-mail, FTP server, alarm output activation or SD card recording | |
| Memory slot | Micro SD / SDHC / SDXC (card not included) | |
NETWORK | ||
| LAN | 802.3 compliance 10/100 LAN | |
| Video compression type | H.264, MJPEG | |
| Resolution | H.264: 1440p/1080p/720p/VGA/D1/CIF MJPEG: 1280x720/800x600/VGA/768x432/D1/CIF | |
| Frame rate | Up to 30fps at all resolutions | |
| Video bitrate | 100Kbps ~ 10Mbps, multi-rate for preview and recording | |
| Bitrate control | Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth) | |
| Streaming capability | Dual-stream at different rates and resolutions | |
| IP | IPv4 | |
| Protocol | Zero config(Auto IP), ONVIF, TCP/IP, UDP, RTP(UDP/TCP), RTSP, NTP, HTTP,HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3(MIB-2) | |
| Security | HTTPS(TLS), IP filtering, 802.1x, digest authentication(ID/PW) | |
| ONVIF conformance | Yes | |
| Web viewer | OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari® | |
| Video management software | DW Spectrum® IPVMS | |
ENVIRONMENTAL | ||
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) | |
| Operating humidity | 10–90% RH (non–condensing) | |
| IP rating | IP66 certified weather and tamper resistant | |
| Other certifications | CE, FCC, RoHS | |
ELECTRICAL | ||
| Power requirement | DC12V, POE IEEE 802.3af class 3 (adaptor not Included) | |
| Power consumption | DC12V: Max 6.1W PoE: Max 7.8W | |
MECHANICAL | ||
| Material | Aluminum bullet housing | |
| Dimensions | 6.41" x 2.65" (163 x 67.5 mm) | |
| Weight | 1.1 lbs (0.5kg) | |
Name
Description
Size
Downloads
File
Data Sheet
0.3mb
File
Manual
1.7mb
File
Quick Guide
1.7mb
File
Brochure
7.3mb
File
AE specifications
0.1mb
File
DW Accessories Chart
0.1mb
