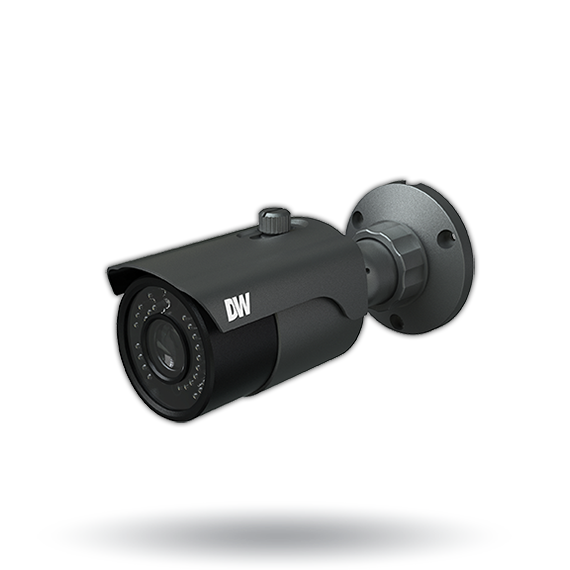

Digital Watchdog - DWC-MBT4Wi28 - MEGApix 4MP bullet IP camera with 2.8mm fixed lens, IR and basic video analytics
Part number:
DWC-MBT4Wi28
Price:
This MEGApix IP camera provides 4MP resolution at real-time 30fps. The IP66-rated outdoor bullet features a 100ft range IR, true WDR and H.265 codec support. Added intelligence includes line crossing, perimeter intrusion, video tampering detection and object classification. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution.
Features:
- 4MP 1/3” image sensor at real-time 30fps
- 2.8mm fixed lens
- True Wide Dynamic Range (WDR)
- Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
- 100ft range IR
- Line crossing video analytics
- Perimeter intrusion video analytics
- Video tampering with scene change detection video analytics
- Video tampering with video blur detection video analytics
- Video tampering with abnormal color detection video analytics
- Smart DNR™ 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- Motion detection
- Audio input
- Web server built-in
- PoE class 2 and DC12V
- Waterproof cabling
- ONVIF conformant, profile S
- IP66 certified weather and tamper resistant
- 5 year warranty
IMAGE | ||
| Image sensor | 4MP 1/3” CMOS | |
| Total pixels | 2688 (H) x 1520 (V) | |
| Minimum scene illumination | 0.045 lux (color) | |
| 0.0 lux (B&W) | ||
| S/N ratio | 50dB | |
| Video output | CVBS video output (BNC × 1) | |
LENS | ||
| Focal length | 2.8mm, F1.6 | |
| Lens type | Fixed lens | |
| Field of view (FoV) | 103° | |
| IR distance | 100ft range | |
I/O | ||
| Audio in / out | 1/0 | |
| Audio compression | G.711A / U | |
OPERATIONAL | ||
| Shutter mode | Auto, manual | |
| Shutter speed | 1/25s ~ 1/100000s | |
| Auto gain control | Auto | |
| Day / night | Auto, day (color), night (B/W), schedule | |
| Smart DNR™ 3D digital noise reduction | 2D / 3D DNR | |
| Wide dynamic range (WDR) | True WDR low, middle, high | |
| Wide dynamic range (WDR) dB | 120dB | |
| Privacy zone | 4 programmable privacy masks | |
| Camera analytics | Line crossing, perimeter intrusion, video tampering detection (scene change, video blur, abnormal color detection) | |
| Alarm notifications | Notifications via e-mail or FTP server | |
NETWORK | ||
| LAN | 802.3 compliance 10/100 LAN | |
| Video compression type | H.265. H.264, MJPEG | |
| Resolution | 4MP (2592×1520) | |
| Frame rate | Up to 30fps at all resolutions | |
| Video bitrate | 64 Kbps ~ 10 Mbps | |
| Bitrate control | Multi-streaming CBR/VBR at H.264/ H.265 (controllable frame rate and bandwidth) | |
| Streaming capability | Dual-stream at different rates and resolutions | |
| IP | IPv4, IPv6 | |
| Protocol | TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP | |
| Security | IP filtering, MAC filtering, authentication (ID/PW), SSL/TSL | |
| ONVIF conformance | Yes | |
| Web viewer | OS: Windows® Browser: Internet Explorer | |
| Video management software | DW Spectrum® IPVMS | |
ENVIRONMENTAL | ||
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) | |
| Operating humidity | 10–90% RH (non–condensing) | |
| IP rating | IP66 certified weather and tamper resistant | |
| Other certifications | CE, FCC, RoHS | |
ELECTRICAL | ||
| Power requirement | DC12V, POE (IEEE 802.3af Class 2). | |
| Power consumption | LED on: 6W LED off: 2.5W | |
MECHANICAL | ||
| Material | Metal bullet housing | |
| Dimensions | 3.41" x 8.03" inch (86.7 x 204mm) | |
| Weight | 1.34 lb (0.609kg) | |
