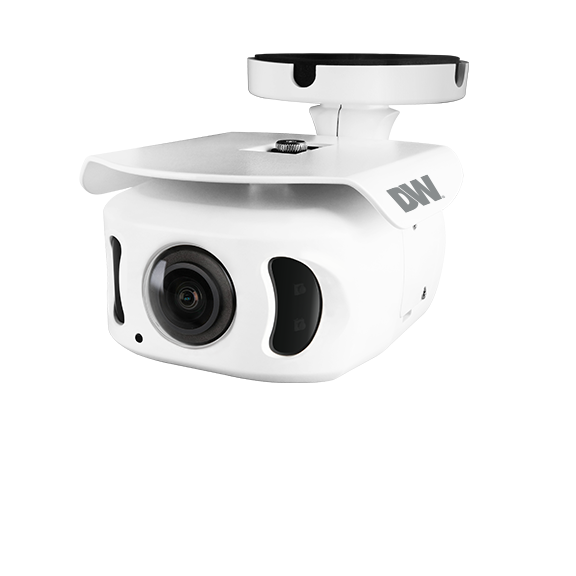

Digital Watchdog - DWC-MBW8Wi2TX - 8MP MEGApix Ultra Wide Angle Pano Bullet, Star-Light Plus, 2.3mm Ultra Wide Lens
• Ultra-Wide Coverage: Capture expansive areas with a 2.3mm ultra-wide lens offering edge-to-edge clarity, reducing the need for multiple cameras and maximizing surveillance efficiency.
• 4K Resolution at 30fps: Achieve vibrant color imaging in near-total darkness, ensuring reliable nighttime surveillance without the need for additional lighting.
• Star-Light Plus™ Technology: Achieve vibrant color imaging in near-total darkness, ensuring reliable nighttime surveillance without the need for additional lighting.
• True Wide Dynamic Range (WDR): Maintain image clarity in challenging lighting conditions with WDR, balancing bright and dark areas for optimal visibility.
• Smart IR™ Illumination: Built-in 100’ Smart IR™ provides clear black-and-white images in complete darkness, intelligently syncing with ambient light levels.
• Durable Outdoor Design: IP66 and IK9-rated housing ensures the camera withstands harsh weather and vandalism, making it ideal for demanding outdoor environments.
• Flexible Installation Options: Supports PoE and DC12V power inputs for simplified single-cable installation, reducing setup time and infrastructure costs.
• Two-Way Audio Support: Facilitates direct communication between the monitoring station and the camera location, enhancing situational awareness.
• NDAA Compliance: Meets federal and government security standards, making it suitable for sensitive installations and public sector deployments.
• Long-Term Value: Backed by a 5-year warranty for peace of mind and reduced total cost of ownership.
| Image & Sensor | |
|---|---|
| Active Pixels | 3840 (H) x 2160 (V) |
| Image sensor | 8MP 1/1.8" CMOS sensor |
| Maximum resolution | 8MP |
| Minimum Scene Illumination in color | 0.0 lux (B/W) 0.29 lux (color) |
| Test Video Output | Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio |
| Total Pixels | 3952 (H) x 2320 (V) |
| Lens | |
| Focal Length | 2.3mm |
| Horizontal Field of View (HFOV) | 175° |
| Illumination Distance | 100' range Smart IR™ |
| Lens Type | Fixed Lens |
| Vertical Field of View (VFOV) | 80° |
| I/O | |
| Audio compression | G.711 |
| I/O Alarm in/out | 1 input 1 output |
| I/O Audio in/out | *Cameras provide a line level audio. The use of amplified microphones and speakers is recommended. 1 input 1 output |
| Intelligent Video Analytics | |
| IVA license | Intrusion, line crossing, counting line, loitering, enter, exit, tamper, object removed, tailgating, direction, stopped, appear, disappear, object left, logical rules. |
| Operational | |
| 3D digital noise reduction | Smart DNR™ 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Day and night | Auto day/night Day (color) Night (B/W) |
| De-fog | Yes |
| Memory slot | Micro SD/SDHC/SDXC class 10 card (card not included) Up to 1TB micro SD / FAT32 |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Operational Notifications | Alarm output activation FTP server SD card recording |
| Sharpness | Yes |
| Shutter Mode | Anti-Flicker Auto Manual Slow Shutter |
| Shutter Speed | 1/15 ~ 1/32000 |
| Slow Shutter Speed | Off x10 x2 x3 x5 x6 x7.5 |
| White Balance | Yes |
| Wide Dynamic Range (WDR) | True WDR 120dB |
| Network | |
| Bitrate Control | Multi-streaming CBR/VBR at H.265 (controllable frame rate and bandwidth) |
| IP | IPv4 |
| LAN | 1000Base-T (1Gbps) |
| Network resolution | H.264: QFHD, 2.1MP/1080p, 720p, VGA, D1, CIF H.265: QFHD, 2.1MP/1080p, 720p, VGA, D1, CIF MJPEG: 2.1MP/1080p, 720p, 800x600, VGA, 768x432, D1, CIF |
| Network Web Viewer | Google Chrome® browser Linux® OS Mac® OS Microsoft Edge® browser Mozilla Firefox® browser Safari® browser Windows OS |
| Protocol | DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP) |
| Security | 802.1x Digest authentication (ID/PW) HTTPS (TLS) IP filtering |
| Stream Speed | Up to 30fps at all resolutions |
| Streaming Capability | Dual-stream at different rates and resolutions |
| Video Bitrate | 100Kbps~10Mbps, multi-rate for preview and recording |
| Video Compression Type | H.264 H.265 MJPEG |
| Video Management Software | Any ONVIF conformant CMS DW Spectrum® ExacqVision Technologies Genetec Inc. Milestone Systems |
| Environmental | |
| Compliance | CE FCC NDAA Comp ONVIF |
| Environmental Operating Humidity | 10-90% (non-condensing) |
| Environmental Operating Temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Mounting Accessories (Required/Optional) | Optional. Sold separately |
| Mechanical | |
| Camera Dimensions (H X W X D) | *Dimensions based on the position of the sun shield cover 5.03" x 8.75" x 3.8" (127.9 x 222.5 x 96.7 mm) |
| Camera Weight | 2.13 lbs (0.97 kg) |
| Housing | Bullet Panoramic |
| Housing Color | White |
| IP rating | Weather Resistant (IP67) |
| Materials | Aluminum die-casting |
| Electrical | |
| American wire gauge (AWG) | 30M Cable type #18 |
| Power Consumption | DC12V: max 8.9W, 741.6mA PoE: max 12.3W |
| Power Requirements | Adapter not included PoE |
| General | |
| Warranty | 5 Year Warranty |
The DWC-MBW8Wi2TX MEGApix® 8MP Bullet Camera delivers 4K video at 30 fps, providing edge-to-edge clarity even at close range thanks to its 2.3 mm ultra-wide lens. It features Star-Light Plus™, True WDR, Smart IR™ and De-Fog™ technology. It is built tough with an IP66/IK9 housing and is NDAA compliant, making it ideal for wide-area surveillance.
