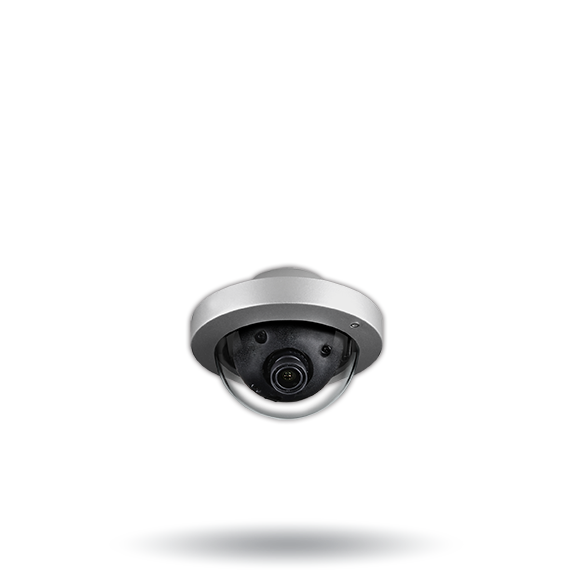

Star-Light Universal Series, Micro Dome, 1/3" 2.1MP CMOS Sensor, P-Iris, 1920x1080 resolution, AHD,CVI,TVI,960H, 2.8MM Fixed Lens, Wide Dynamic Range ( WDR ), True Day/Night with IR Cut Filter, Smart 3D-DNR, 12VDC. 5 Year Warranty.
Star-Light 2.1MP Universal HD over Coax cameras deliver crystal-clear images and support real-time 30fps HD-Analog, HD-TVI, HD-CVI to 2.1MP/1080p and all analog signals to 960H. The micro dome cameras are IP66 and IK-10 rated and offers color ring accessories to match any application (sold separately). Star-Light Universal HD over Coax cameras are engineered to work with our VMAX A1 Universal HD over Coax DVRs using your existing coax infrastructure for a cost-effective, high resolution surveillance solution.
Features:
- Universal HD over Coax technology with HD-Analog, HD-TVI, HD-CVI to 1080p and all analog to 960H signal support
- Star-Light super low light technology
- 2.1MP 1/3” image sensor at real-time 30fps
- 2.8mm fixed lens
- True Wide Dynamic Range (WDR)
- OSD control via coaxial (UTC)
- Smart DNR 3D digital noise reduction
- De-Fog extreme weather image compensation
- Highlight masking exposure (HME)
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- NDAA/TAA compliant
- IP66 certified weather and tamper-resistant
- IK-10 impact rated
- 5 year warranty
IMAGE | ||
| Image sensor | 2.1MP/1080p 1/3" CMOS | |
| Active pixels | 1944 (H) x 1092 (V) | |
| Scanning system | Progressive scan | |
| Frequency | 60Hz / 50Hz | |
| Signal technology | Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI to 1080p and all analog to 960H signal support | |
| Synchronization | Internal | |
| Resolution | 1920 x 1080 (1080p) | |
| Minimum scene illumination | 0.06 lux (color) | |
| S/N ratio | 55dB | |
| Video output | HD-Analog, HD-TVI, HD-CVI 2.1MP/1080p CVBS Analog up to 960H | |
LENS | ||
| Focal length | 2.8mm | |
| Lens type | Fixed lens | |
OPERATIONAL | ||
| Shutter mode | Auto, manual, FLC | |
| Shutter speed | 1/30-1/30,000 | |
| Backlight | On, off | |
| Star-Light (sense-up) | Off, x2 – x32 | |
| Wide dynamic range (WDR) | True WDR, off, on | |
| Wide dynamic range (WDR) dB | 100dB | |
| Smart DNR™ 3D digital noise reduction | Off, low, middle, high | |
| White balance | Auto / auto-ex / preset / manual | |
| Day / night | Auto, day (color), night (B/W) | |
| Mirror / flip | Yes | |
| Auto gain control | 0~10 | |
| Motion detection | Yes | |
| Privacy zones | 16 programmable privacy zones | |
| Sharpness | 0 ~ 10 | |
| Gamma | 0.45 ~ 0.75 | |
| De-fog | On, off | |
ENVIRONMENTAL | ||
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) | |
| Operating humidity | 10–90% RH (non–condensing) | |
| IP rating | IP66 certified weather and tamper resistant | |
| IK rating | IK10-rated impact resistant | |
| Other certifications | FCC, CE, ROHS | |
ELECTRICAL | ||
| Power requirement | DC12V | |
| Power consumption | DC12V: 1.7W | |
MECHANICAL | ||
| Material | Aluminum vandal housing, polycarbonate micro dome | |
| Dimensions | 3.15" x 2.34" (80 x 59.5mm) | |
| Weight | 0.56lbs | |
