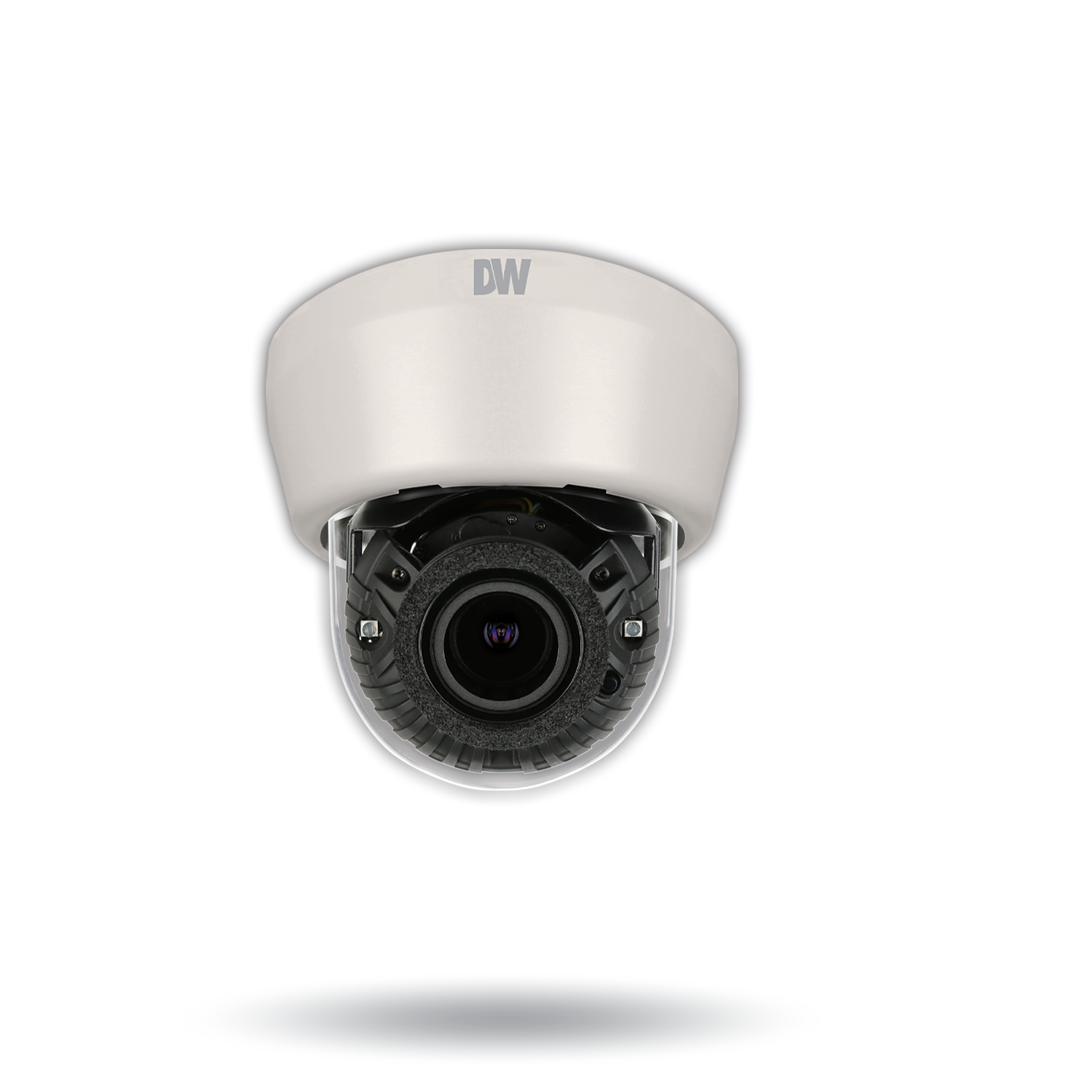

Digital Watchdog - DWC-MD421TIR - MEGApix 2.1MP/1080p indoor dome Snapit camera with 2.8~12mm vari-focal p-iris lens with motorized zoom and auto-focus and IR
Part number:
DWC-MD421TIR
Price:
These MEGApix IP cameras deliver crystal-clear images at 2.1 Megapixel 1080p resolution and real-time 30fps. The unique Snapit housing is easy to install and includes CleanView™ dome treatment. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Features:
- 2.1MP/1080p 1/2.7" image sensor at real-time 30fps
- 2.8~12mm motorized zoom auto-focus p-iris lens
- True Wide Dynamic Range (WDR)
- Dual codecs (H.264, MJPEG) with simultaneous streaming
- 100' Smart IR with intelligent camera sync
- Snapit easy installation housing
- Smart DNR 3D digital noise reduction
- True day/night mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Alarm sensor input
- Relay output
- Web server built-in
- PoE class 3 and DC12V
- ONVIF conformant, profile S
- NDAA/TAA compliant
- Black housing (DWC-MD421TIRB)
- 5 year warranty
IMAGE | ||
| Image sensor | 2.1MP/1080p 1/2.7“ CMOS | |
| Total pixels | 1928 (H) x 1088 (V) | |
| Minimum scene illumination | 0.12 lux (color) | |
| 0.0 lux (B&W) | ||
| Video output | Local video output CVBS 1.0V p-p (75?), 4:3 aspect ratio | |
LENS | ||
| Focal length | 2.8-12mm, F1.4 | |
| Lens type | Motorized zoom auto-focus p-iris lens | |
| Field of view (FoV) | 106° ~ 32° | |
| IR distance | 100ft range | |
| Optical zoom / digital zoom | x4.2 optical zoom | |
I/O | ||
| Audio in / out | 1/1 | |
| Audio compression | G.711 | |
| Alarm In/Out | 1/1/2017 | |
OPERATIONAL | ||
| Shutter mode | Auto, manual, anti-flicker, slow shutter | |
| Shutter speed | 1/30 ~ 1/8000 | |
| Slow Shutter | 1~1/5,1/7.5, 1/15 | |
| Auto gain control | Auto | |
| Day / night | Auto, day (color), night (B/W) | |
| Smart DNR™ 3D digital noise reduction | 0 ~ 11 | |
| Wide dynamic range (WDR) | True WDR on, off | |
| Wide dynamic range (WDR) dB | 120dB | |
| Privacy zone | 16 programmable privacy masks | |
| Backlight Compensation (BLC) | On / off / HSBLC | |
| Mirror & Flip | Yes | |
| Alarm notifications | Notifications via e-mail, FTP server or SD card recording | |
| Memory Slot | Micro SD / SDHC / SDXC up to 128GB (card not Included) | |
NETWORK | ||
| LAN | 802.3 compliance 10/100 LAN | |
| Video compression type | H.264, MJPEG | |
| Resolution | H.264: 1080p/720p/VGA/D1/CIF MJPEG: 1280 x 720/800 x 600/VGA/768 x 432/D1/CIF | |
| Frame rate | Up to 30fps at all resolutions | |
| Video bitrate | 100Kbps ~ 10Mbps, Multi-rate for preview and recording | |
| Bitrate control | Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth) | |
| Streaming capability | Dual-stream at different rates and resolutions | |
| IP | IPv4 | |
| Protocol | ONVIF, TCP/IP, UDP, autoIP, RTP(UDP/TCP), RTSP, NTP, HTTP,HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3(MIB-2) | |
| Security | HTTPS(TLS), IP filtering, 802.1x, digest authentication (ID/PW) | |
| ONVIF conformance | Yes | |
| Web viewer | OS: Windows®, Mac® OS, Linux® | |
| Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari® | ||
| Video management software | DW Spectrum® IPVMS | |
ENVIRONMENTAL | ||
| Operating temperature | -40°F ~ 122°F (-40°C ~ 50°C) | |
| Operating humidity | 10–90% RH (non–condensing) | |
| Other certifications | CE, FCC, RoHS | |
ELECTRICAL | ||
| Power requirement | DC 12V, PoE (IEEE 802.3af Class 3). (adaptor not included) | |
| Power consumption | DC12V: max 6.9W PoE: max 8.6W | |
MECHANICAL | ||
| Material | Snapit™ plastic housing, polycarbonate dome | |
| Housing color | DWC-MD421TIR: ivory DWC-MD421TIRB: black | |
| Dimensions | 4.72" x 3.63" (120 x 92.4 mm) | |
| Weight | 0.66 lbs (0.3kg) | |
