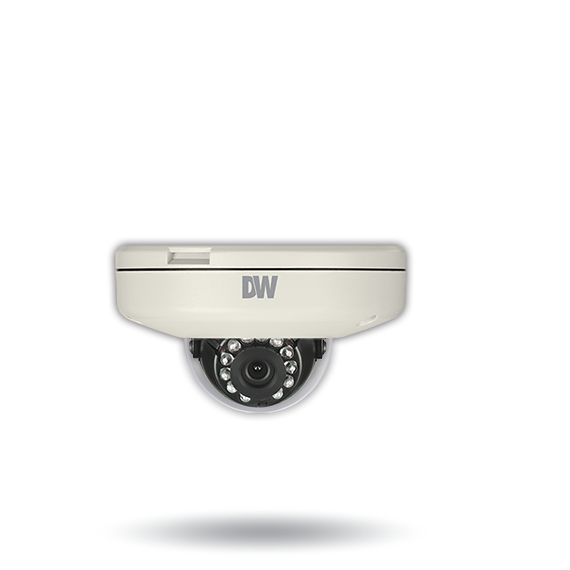

Digital Watchdog - DWC-MF21M8TIR - MEGApix 2.1MP/1080p ultra low-profile vandal dome IP camera with 4.0mm and 8.0mm fixed lenses and IR
Part number:
DWC-MF21M8TIR
Price:
The MF21M4TIR MEGApix camera is a dual codec Surface Mount Outdoor Dome network camera that provides 1080P megapixel resolution at 30 frames per second. The camera’s advanced technologies such as True Day and Night, 3D-DNR, WDR, and Smart IR will deliver the best images in any type of environment. Power over Ethernet will simplify installation by connecting both power and network through a single cable. Housed in our attractive vandal-resistant aluminum die-cast dome enclosure.
Features:
- 2.1MP/1080p 1/2.7" image sensor at real-time 30fps
- 8.0mm fixed lens (DWC-MF21M8TIR)
- True Wide Dynamic Range (WDR)
- Dual codecs (H.264, MJPEG) with simultaneous streaming
- 50' Smart IR with intelligent camera sync
- Ultra low-profile vandal dome camera housing
- Smart DNR 3D digital noise reduction
- True day/night mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Web server built-in
- PoE class 2 and DC12V
- ONVIF conformant, profile S
- NDAA/TAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- IK 10-rated impact-resistant
- 5 year warranty
Image | |
| Image sensor | 1/2.7“ 2.0M CMOS |
| Total pixels | 1928(H) X 1088(V) |
| Minimum scene illumination | 0.25 lux (color) |
| 0.0 lux (B/W) | |
Lens | |
| Focal length | 4.0mm F2.0 (DWC-MF21M4TIR) 8.0mm F2.0 (DWC-MF21M8TIR) |
| Lens type | Fixed lens |
| IR distance | 50ft range IR |
| Angle of view | 86° (DWC-MF21M4TIR) 42° (DWC-MF21M8TIR) |
OPERATIONAL | |
| Shutter mode | Auto, manual, anti-flicker |
| Shutter speed | 1/15~1/32000 |
| Smart DNR™ 3D Digital Noise Reduction | 0~11 |
| Auto gain control | Auto |
| Wide Dynamic Range (WDR) | On, Off |
| Day and night | Auto, day (color), night (B/W) |
| Privacy zones | 4 programmable privacy zones |
| Alarm notifications | Notifications via E-mail, FTP server or SD card recording |
NETWORK | |
| LAN | 802.3 compliance 10/100 LAN |
| Video compression type | H.264, MJPEG |
| Resolution | H.264: 1920x1080 ~ CIF MJPEG: 1280x720 ~ CIF |
| Frame rate | Up to 30fps at all resolutions |
| Streaming capability | Dual-stream at different rates and resolutions |
| IP | IPv4 |
| Protocol | ONVIF, TCP/IP, UDP, RTP/RTSP(TCP/UDP), NTP, HTTP, DNS, DDNS, DHCP, FTP, SMTP, ICMP |
| Security | Password authentication, multi-level user configuration |
| Maximum user access | 5 users |
| ONVIF conformance | Yes |
| Web viewer | OS: Windows®, Mac® OS, Linux® |
| Browser: Internet Explorer®, Chrome®, Firefox®, Safari® | |
| Video management software | DW Spectrum® IPVMS |
| Memory slot | Micro SD / SDHC / SDXC card up to 128GB, not included |
ENVIRONMENTAL | |
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Operating humidity | Less than 90% (Non-Condensing) |
| IP rating | IP66 rated |
| Other certifications | CE, FCC, RoHS |
ELECTRICAL | |
| Power requirement | DC 12V, PoE (IEEE802.3af class 2) |
| Power consumption | DC12V: max 5.2W PoE: max 7.1W |
MECHANICAL | |
| Material | Aluminum die-casting |
| Dimensions | 4.9" x 2.9" (125 x 74.3 mm) |
| Weight | 1.5 lbs (0.68kg) |
