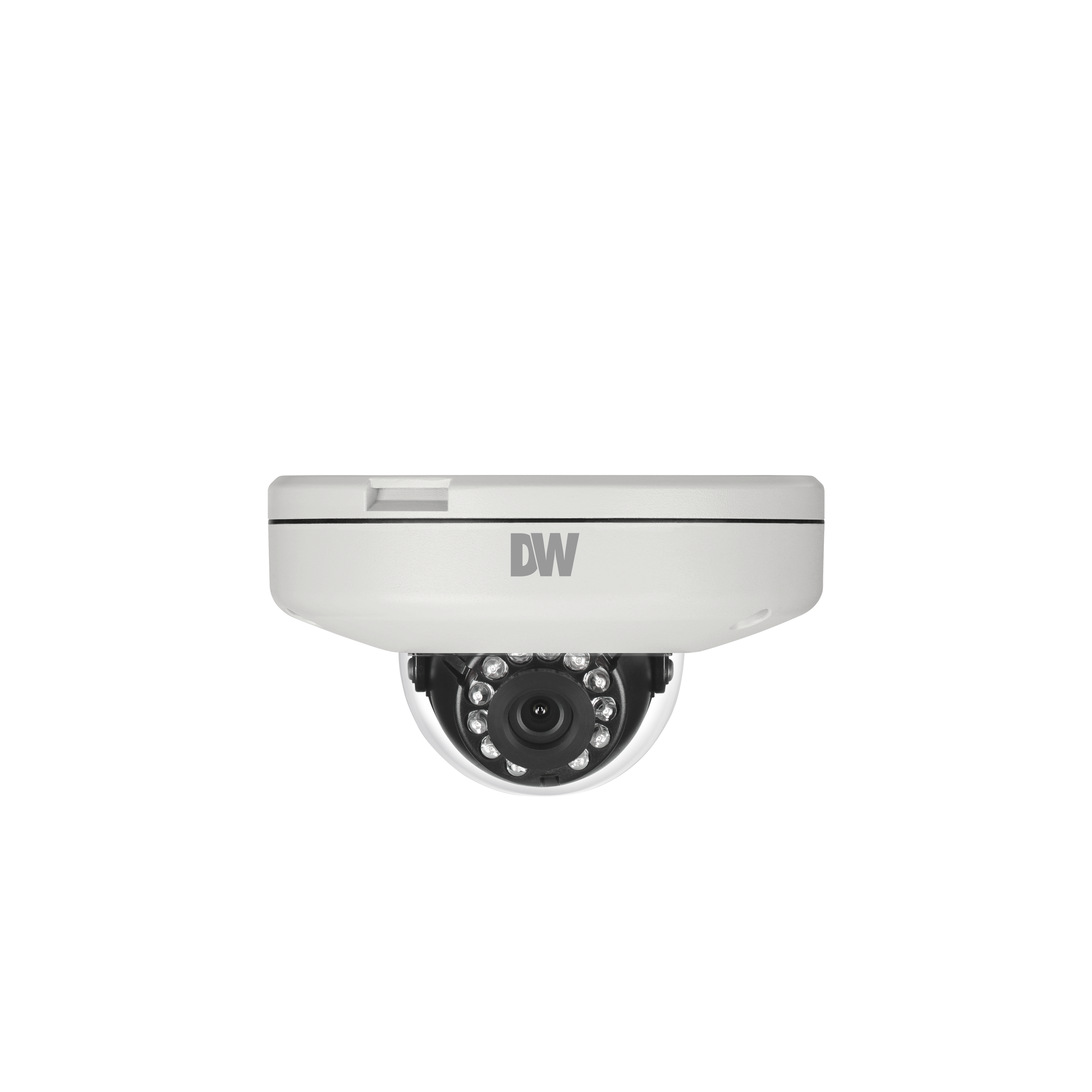

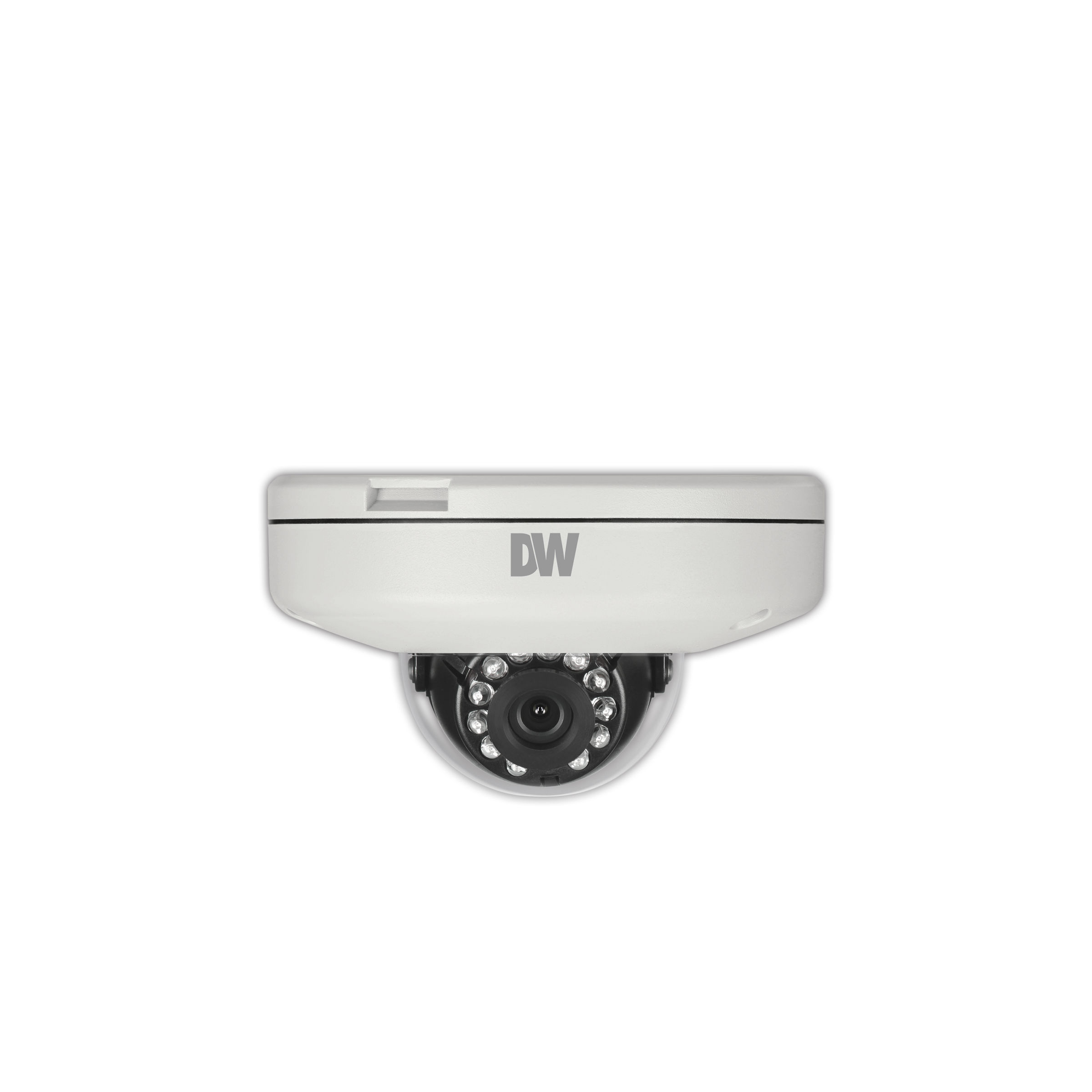

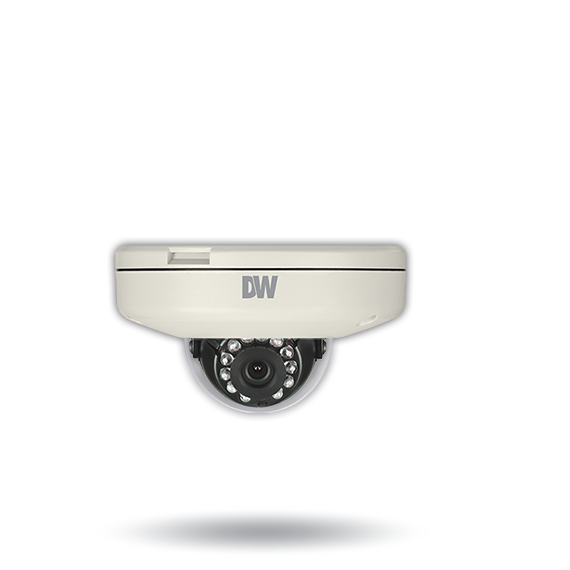

Digital Watchdog - DWC-MF4Wi4C6 - MEGApix CaaS all-in-one 4MP ultra low-profile vandal dome IP camera with 4.0mm fixed lens and IR
Part number:
DWC-MF4Wi4C6
Price:
MEGApix CaaS Flat Indoor/Outdoor Vandal Dome Camera, 4.0mm Fixed Lens, 50ft Range IR, OnVIF Compliant, True D&N, 4 Megapixel (2560x1440 @ 30fps), 1/3 CMOS Sensor, PoE + DC12V, WDR (120dB), 3D-DNR, IP66 Certified. 5 Year Warranty.Note: DW Spectrum IPVMS pre loaded. Connect up to 30 CaaS cameras simultaneously in a single system. Built in 64GB memory for local recording. Dual recording option with Blackjack NAS.
Features:
- All-in-one cameras, no server required
- 4MP 1/3" image sensor at real-time 30fps
- 4.0mm fixed lens
- Built-in 256/128/64GB storage options for up to 30 days retained video*
- Easily to deploy with pre-loaded DW Spectrum® IPVMS for out-of-the-box operation
- 24/7 access to live and recorded video feed
- Automatic installation and licensing with first power on
- Connect up to 30 MEGApix CaaS edge cameras
- True Wide Dynamic Range (WDR)
- Dual recording option with Blackjack® NAS appliance
- Dual codecs (H.264, MJPEG) with simultaneous dual-stream
- 50’ Smart IR with intelligent camera sync
- Ultra low-profile outdoor vandal dome
- Smart DNR 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Web server built-in
- PoE class 3 and DC12V
- Waterproof cabling
- UL listed
- ONVIF conformant, profile S
- NDAA/TAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- IK 10-rated impact-resistant
- 5 year warranty
IMAGE | |
| Image sensor | 4MP 1/3” CMOS |
| Total pixels | 2688 (H) x 1520 (V) |
| Minimum scene illumination | 0.41 lux (color) |
| 0.0 lux (B&W) | |
| Video output | Local video output CVBS 1.0V p-p (75 ?), 4:3 aspect ratio |
| Resolution | 4MP (2560 x 1440) |
LENS | |
| Focal length | 4.0mm F2.0 |
| Lens type | Fixed lens |
| Field of view (FoV) | 81° |
| IR distance | 50ft range |
OPERATIONAL | |
| Shutter mode | Auto, manual, anti-flicker, slow shutter |
| Shutter speed | 1/30~1/32000 |
| Slow shutter | 1~1/5,1/7.5, 1/10 |
| Auto gain control | Auto |
| Day / night | Auto, day (color), night (B/W) |
| Smart DNR™ 3D digital noise reduction | 0~11 |
| Wide dynamic range (WDR) | True WDR Off, WDR2x, WDR3x |
| Wide dynamic range (WDR) dB | 120dB |
| Privacy zone | 4 programmable privacy masks |
| Alarm notifications | Notifications via e-mail, FTP server or SD card recording (card not included) |
NETWORK | |
| LAN | 802.3 compliance 10/100 LAN |
| Video compression type | H.264, MJPEG |
| Resolution | H.264: 1440p/1080p/720p/VGA/D1/CIF MJPEG: 1280x720/800x600/VGA/768x432/D1/CIF |
| Frame rate | Up to 30fps at all resolutions |
| Video bitrate | 100Kbps ~ 10Mbps, multi-rate for preview and recording |
| Bitrate control | Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth) |
| Streaming capability | Dual-stream at different rates and resolutions |
| IP | IPv4 |
| Protocol | Zero config(Auto IP), ONVIF, TCP/IP, UDP, RTP(UDP/TCP), RTSP, NTP, HTTP,HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3(MIB-2) |
| Security | HTTPS(TLS), IP filtering, 802.1x, digest authentication(ID/PW) |
| ONVIF conformance | Yes |
| Web viewer | OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari® |
| Video management software | DW Spectrum® IPVMS |
| Number of DW Spectrum® CaaS™ licenses included | 1 DW Spectrum® CaaS™ license included |
| Local server recording | DWC-MF4Wi4C2: 256GB local memory for recording DWC-MF4Wi4C1: 128GB local memory for recording DWC-MF4Wi4C6: 64GB local memory for recording |
| Max. number of CaaS™ cameras in the same network/system | Up to 30 MEGApix® CaaS™ cameras in the same network/system |
ENVIRONMENTAL | |
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Operating humidity | 10–90% RH (non–condensing) |
| IP rating | IP66-rated weather and tamper-resistant |
| IK rating | IK10 rated impact resistant |
| Other certifications | CE, FCC, RoHS |
ELECTRICAL | |
| Power requirement | DC12V, POE (IEEE 802.3af class 3). Adaptor not Included. |
| Power consumption | DC12V: Max 5.6W PoE: Max 7.4W |
MECHANICAL | |
| Material | Aluminum vandal housing, polycarbonate dome |
| Dimensions | 4.9" x 2.9" (125 x 74.3 mm) |
| Weight | 1.54 lbs (0.7kg) |
