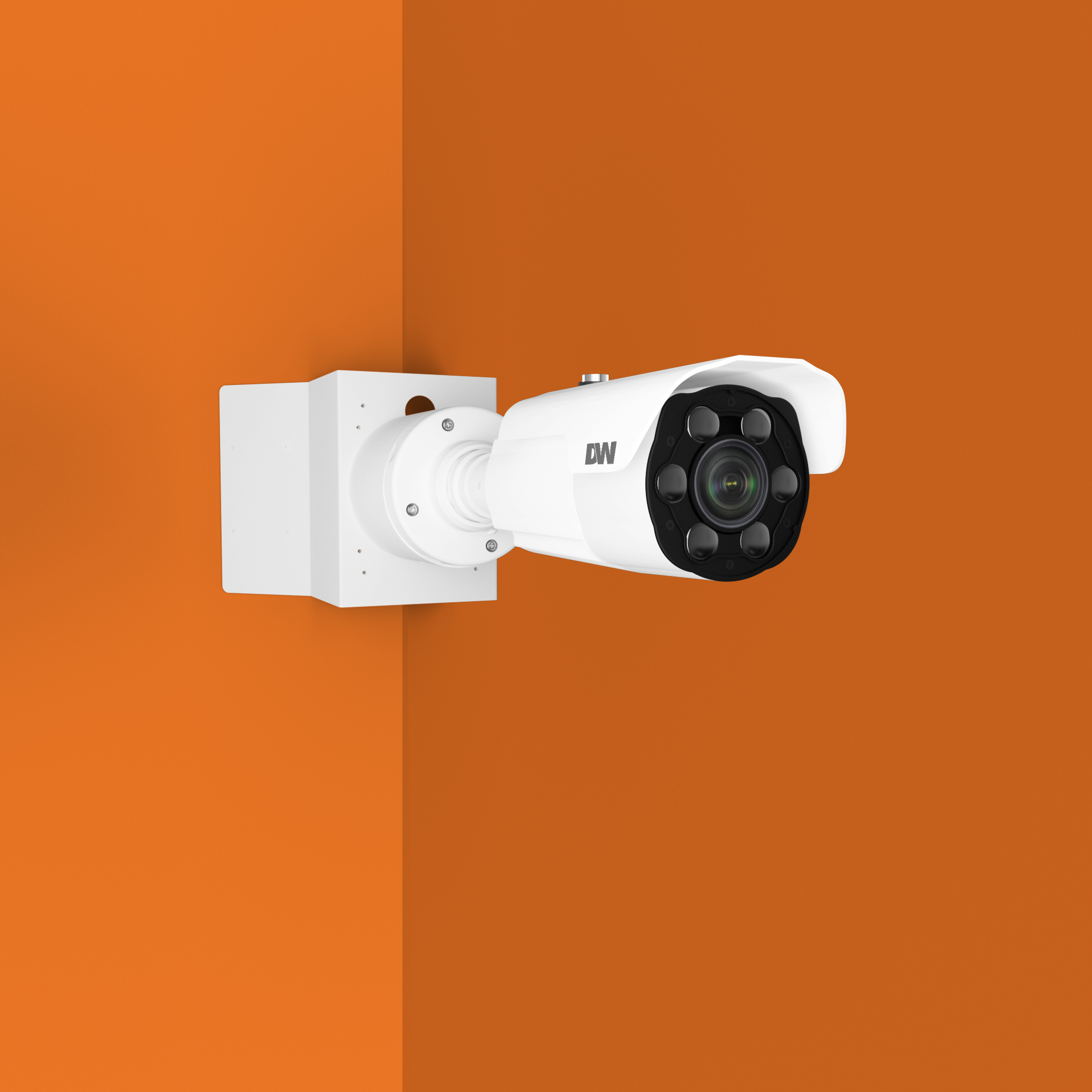

Digital Watchdog - DWC-MPB48WiATW - MEGApix 4K bullet IP camera with a vari-focal lens, IR with IVA+ license
Part number:
DWC-MPB48WiATW
Price:
Megapixel resolution
DW’s technology delivers crystal clear images in any resolution. Higher-resolution offers forensic details with zooming into the camera’s field of view.
Star-Light Plus color in darkness technology
Star-Light Plus color in near-total darkness technology provides crisp, clear images in the absence of ambient light.
IVA Analytics
MEGApix IVA cameras include a base package of Intelligent Video Analytics detection capabilities already activated on the camera and ready for deployment.
IVA+ Analytics
The MEGApix IVA+ package offers advanced rules to the IVA Video Content Analysis detection capabilities.
True Wide Dynamic Range (WDR)
Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.
Cold Start -40°F (-40°C)
The installed heater helps the camera power up in extreme cold weather conditions where temperatures may go as low as -40°F. This makes the cameras ideal for any harsh environment installation.
Features
- 4K 1/2.8" image sensor at real-time 30fps
- Star-Light Plus color in near-total darkness technology
- Intelligent Video Analytics (IVA) with extended features (IVA+)
- Seamless integration and control of IVA rules with DW Spectrum IPVMS
- Reduce false alarms
- Increase your recording storage with logic rules and smart recording
- Vari-focal p-iris lens with motorized zoom and autofocus for complete remote lens control and focused image any time
- True Wide Dynamic Range (WDR) for clear images in challenging light
- Simultaneous streaming and multiple codec options for smart bandwidth management
- Cold Start -40°F (-40°C), allowing the camera to power up in extremely cold environments
- 140' Smart IR with intelligent camera sync for clear B/W images with no need for external light
- Smart DNR 3D digital noise reduction reduces noise and ghosting for motion in low-light environments.
- Privacy zones cover sensitive areas in the camera's field of view.
- Two-way audio for direct communication between the monitoring station and the camera's location
- Local SD card slot for local recording in case of network loss
- Alarm sensor input and relay output for access control integration
- Web server built-in for easy camera management from any browser
- PoE and DC12V for single cable simplified installation
- NDAA compliant for federal and government projects
- IP66- and IK9-rated camera housing built to last
- 5 year warranty
| Image | |
|---|---|
| Active Pixels | 3840 (H) x 2160 (V) |
| Image sensor | 4K 1/2.8" CMOS sensor |
| Maximum resolution | 4K |
| Minimum Scene Illumination in color | 0.0 lux (B/W), 0.09 lux (color) |
| Test Video Output | Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio |
| Total Pixels | 3952 (H) x 2320 (V) |
| Lens | |
| Advanced Lens Features | Auto focus, Motorized zoom, P-iris |
| Focal Length | 2.7mm ~ 13.5mm |
| Horizontal Field of View (HFOV) | 90.3° ~ 33.1° |
| IR Distance | 140' range Smart IR |
| Lens Type | Vari-focal Lens |
| Vertical Field of View (VFOV) | 18.9°~49 |
| I/O | |
| Audio compression | G.711 |
| I/O Alarm in/out | 1 input, 1 output |
| I/O Audio in/out | *Cameras provide a line level audio. The use of amplified microphones and speakers is recommended., 1 input, 1 output |
| Intelligent Video Analytics | |
| IVA license | Intrusion, line crossing, counting line, loitering, enter, exit, tamper |
| IVA+ license | Logical rules, object removed, tailgating, direction, stopped, appear, disappear, object left |
| Operational | |
| 3D digital noise reduction | Smart DNR 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Backlight compensation (BLC) | Yes |
| Day and night | Auto day/night, Day (color), Night (B/W) |
| De-fog | Yes |
| Memory slot | Micro SD/SDHC/SDXC class 10 card (card not included), Up to 1TB micro SD / FAT32 |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Operational Notifications | Alarm output activation, Email, FTP server, SD card recording |
| Privacy Zones | 16 programmable privacy masks |
| Sharpness | Yes |
| Shutter Mode | Anti-Flicker, Auto, Manual, Slow Shutter |
| Shutter Speed | 1/15 ~ 1/32000 |
| Slow Shutter Speed | Off, x10, x2, x3, x5, x6, x7.5 |
| White Balance | Yes |
| Wide Dynamic Range (WDR) | True WDR 120dB |
| Network | |
| Bitrate Control | Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth) |
| IP | IPv4 |
| LAN | 1000Base-T (1Gbps) |
| Network resolution | H.264: QFHD, 2.1MP/1080p, 720p, VGA, D1, CIF, H.265: QFHD, 2.1MP/1080p, 720p, VGA, D1, CIF, MJPEG: 2.1MP/1080p, 720p, 800x600, VGA, 768x432, D1, CIF |
| Network Web Viewer | Google Chrome browser, Linux OS, Mac OS, Microsoft Edge browser, Mozilla Firefox browser, Safari browser, Windows OS |
| Protocol | DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP) |
| Security | 802.1x, Digest authemtication (ID/PW), HTTPS (TLS), IP filtering |
| Stream Speed | Up to 30fps at all resolutions |
| Streaming Capability | Dual-stream at different rates and resolutions |
| Video Bitrate | 100Kbps~10Mbps, multi-rate for preview and recording |
| Video Compression Type | H.264, H.265, MJPEG |
| Video Management Software | Any ONVIF conformant CMS, DW Spectrum IPVMS, ExacqVision Technologies, Genetec Inc., Milestone Systems |
| Environmental | |
| Environmental Operating Humidity | 10-90% (non-condensing) |
| Environmental Operating Temperature | -40°F ~ 122°F (-40°C ~ 50°C) |
| Mounting Accessories (Required/Optional) | Optional. Sold separately |
| Mechanical | |
| Camera Dimensions (H X W X D) | *Dimensions based on the position of the sun shield cover |
| Camera Weight | 2.64 lbs (1.2 kg) |
| Housing | Bullet |
| Housing Color | White |
| IK rating | IK10 Rated |
| IP rating | Weather Resistant (IP67) |
| Materials | Aluminum die-casting |
| Electrical | |
| American wire gauge (AWG) | Cable type #18 |
| Power Consumption | DC12V: 10.2W, 850mA, PoE: 16W |
| Power Requirements | 12V DC, Adapter not included, PoE |
| General | |
| Warranty | 5 Year Warranty |
