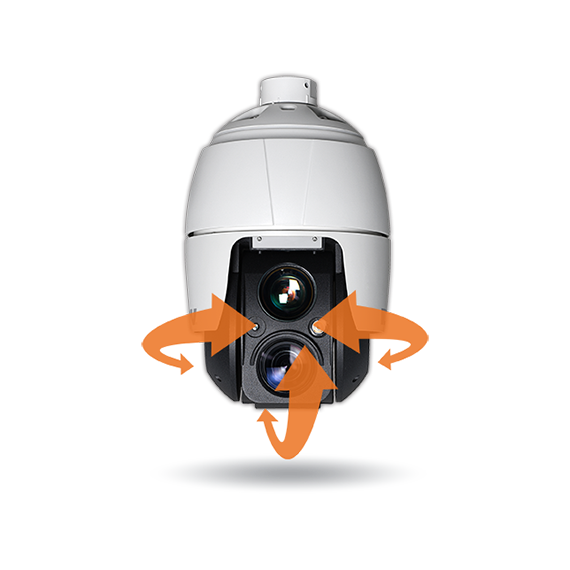

Digital Watchdog - DWC-MPTZ336XW - MEGApix 3MP PTZ IP camera with a vari-focal lens, 36x optical zoom and IR
Part number:
DWC-MPTZ336XW
Price:
36x Optical zoom
The optical zoom lens uses internal glass elements to bring an image up to 36x closer, allowing the magnified image to be recorded at full resolution.
1148ft Smart IR illumination
DW’s IP PTZ cameras have Smart IR LEDs built-in that provide illumination up to 1148ft (350m) from the camera, delivering clear images and details for both objects in the camera’s foreground and deep into the background.
True Wide Dynamic Range (WDR)
Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.
Features
- 3MP 1/2.8" image sensor at real-time 30fps
- Star-Light Plus color in near-total darkness technology
- 4.6~165.6mm vari-focal lens with motorized zoom and auto-focus
- True wide dynamic range (WDR)
- Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
- 36x optical zoom
- 1148' (350m) Smart IR with intelligent camera sync
- Smart DNR 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Backlight compensation (BLC)
- Auto white balance (AWB)
- Motion detection
- Two-way audio
- Pan 0~360° endless, 380° per second pan speed
- Vector drive technology – pan/tilt motion in the shortest path
- 256 preset positions
- 8 patterns
- 8 tours
- Micro SD/SDHC/SDXC class 10 card slot for emergency backup (card not included)
- Alarm sensor input
- Relay output
- Web server built-in
- PoE injector included
- PoE+ high power and DC12V
- ONVIF conformant, profile S
- IP66 environmental-rated dust-tight and water-resistant
- IK 10-rated impact-resistant
- 2 year warranty
IMAGE | ||
| Image sensor | 3MP 1/2.8” CMOS sensor | |
| Total pixels / active pixels | 2065 (H) x 1565 (V) / 2048 (H) x 1536 (V) | |
| Minimum scene illumination | 0.35 lux (color) | |
| 0.0 lux (B/W) | ||
LENS | ||
| Focal length | 4.6 ~ 165.6mm | |
| Lens type | Vari-focal lens with motorized zoom and auto-focus | |
| IR distance | 1148 range | |
| Angle of view | 58.1° ~ 1.9° | |
| Digital zoom / zoom | 36x optical zoom | |
I/O | ||
| Audio input / output | 1/1 | |
| Audio compression | G.711 | |
| Audio alert | User-defined 3 audio files | |
| Alarm input/ output | 4/1 | |
| Manual triggers | 4 programmable triggers | |
OPERATIONAL | ||
| Shutter mode | Auto, manual, flicker-free mode | |
| Shutter speed | 1/10,000 ~ x 1sec. | |
| Backlight | Yes | |
| De-fog | Yes | |
| Wide dynamic range (WDR) | True WDR, off, low, middle, high | |
| Wide dynamic range (WDR) dB | 120dB | |
| Smart DNR 3D digital noise reduction | 2DNR, 3DNR | |
| White balance | Auto, manual | |
| Day and night | Auto, day (color), night (B/W) | |
| Mirror / flip | Yes | |
| Privacy zones | 16 programmable privacy masks | |
| Motion detection | 16 programmable motion zones (8 include areas and 8 exclude areas) | |
| Memory slot | Micro SD/SDHC/SDXC card (not included). | |
| SD card recording mode | Event and continuous recording | |
| Event buffering - FTP | Pre: 30 seconds, post: 30 seconds | |
| Event buffering - SD card | Pre: 10 seconds, post: 60 seconds | |
| Alarm notifications | Notifications via e-mail, FTP server, alarm output activation, audio output activation, preset activation, notification server, XML notifications or SD card recording. | |
PTZ FUNCTION | ||
| Pan range | 360° endless | |
| Pan speed | Max. 380°/sec. (preset) | |
| Tilt range | -10~190° | |
| Tilt speed | Max. 380°/sec. (preset) | |
| Auto calibration | 0.1~6° | |
| Preset | 256 | |
| Tour | 8 | |
| Pattern | 8 | |
| Home function | Yes | |
NETWORK | ||
| LAN | RJ-45 (10/100Base-T) | |
| Video compression type | H.265 (main profile), H.264 (baseline, main, high profile), MJPEG | |
| Resolution | 2048x1536, 1920x1080, 1440x1080, 1280x1024/720, 1024x768, 800x600/480, D1, 640x480, 400x240, CIF | |
| Video bitrate | 100Kbps ~ 8Mbps, multi-rate for preview and recording | |
| Frame rate | Up to 30fps at all resolutions | |
| Streaming capability | Quad-stream (H.265x3, H.265x1, MJPGx1) | |
| Bitrate control | Multi-streaming CVBR/VBR at H.265, H.264 (controllable framerate and bandwidth) | |
| IP | IPv4, IPv6 | |
| Protocol | TCP/IP, UDP, HTTP, HTTPS, QoS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour | |
| Security | Password authentication, multi-user authority, IP filtering, HTTPS (TLS) | |
| Maximum user access | Live: 10 users, playback: 3 users | |
| ONVIF conformance | Yes | |
| Web viewer | OS: Windows, MAC OS, Linux | |
| Browser: Internet Explorer | ||
| Network time sync | NTP server, synchronized computer, manual | |
| Software reset | Restart, reset, factory default | |
| Remote upgrade | Bakup and restore | |
ENVIRONMENTAL | ||
| Operating temperature | -22°F ~ 131°F (-30°C ~ 55°C ) | |
| Operating humidity | 0–90% RH (non–condensing) | |
| IP rating | IP66-rated | |
| IK rating | IK-10 impact-resistant | |
| Other certifications | CE, FCC, RoHS | |
ELECTRICAL | ||
| Power requirement | DC 12V, PoE (UPoE, Class4), PoE injector included | |
| Power consumption | PoE: 28W, 500mA DC 12V: 28W, 2.3A | |
MECHANICAL | ||
| Material | Aluminum PTZ, polycarbonate dome | |
| Dimensions | 7.94 x 12.51 Inch (201.8 x 317.8 mm) | |
| Weight | 11.24 lb (5.1kg) | |
