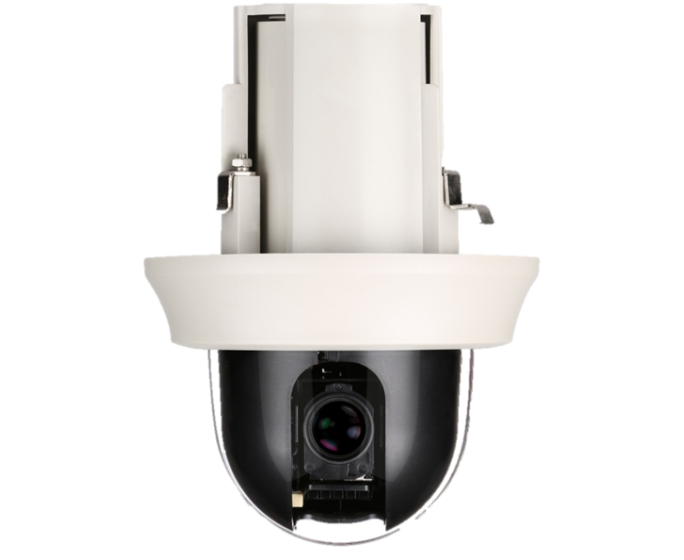

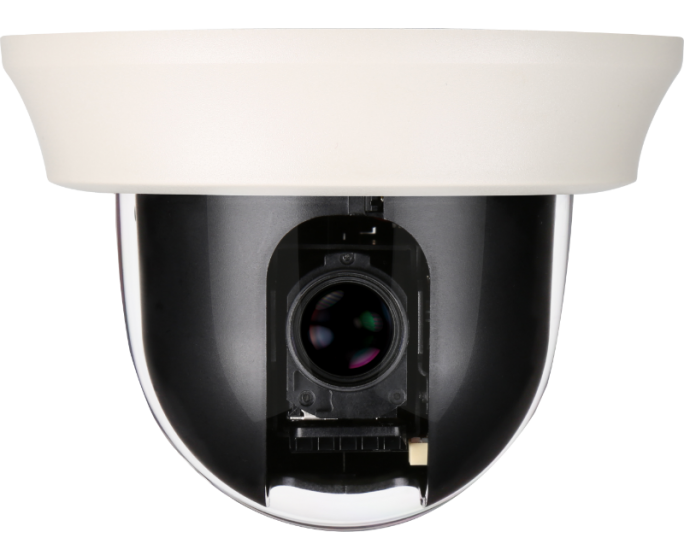

Digital Watchdog - DWC-MPTZ5XFM - MEGApix 2.1MP/1080p Pan, Tilt, Zoom 5x Flush Mount Indoor Dome IP Camera
Part number:
DWC-MPTZ5XFM
Price:
The MEGAPIX IP cameras provide real-time 2.1MP (1080P) resolution with features such as 3D DNR and WDR, delivering superb image in any environment. And PoE simplifies installation, connecting power and network through a single cable. All cameras are ONVIF compliant, guaranteeing successful integration with any open platform solution.
Features:
- 2.1 Megapixel Image Sensor (1080P, 30fps)
- Wide Dynamic Range (WDR)
- Triple Codecs (H.264, MJPEG, MPEG4) with Simultaneous Dual-Stream
- 5~25mm Zoom Lens
- 12x Digital Zoom + 5x Optical Zoom
- True Day/Night with Mechanical IR Cut Filter
- Smart DNR 3D Digital Noise Reduction
- Auto Gain Control (AGC)
- Back Light Compensation (BLC)
- Auto White Balance (AWB)
- Motion Detection
- Pan 0~350°, 120° Per Second Pan Speed
- 2-Way Audio
- 255 Preset Positions, 4 Sequences, 8 Swings, 8 Tours
- Micro SD/SDHC Class 10 Card Slot for Emergency Backup [card not included]
- Alarm Sensor Input
- Relay Output
- Web Server Built-in
- PoE and DC12V
- ONVIF Compliant, Profile S
Image | |
| Image Sensor | 1/2.8” CMOS Sensor |
| Minimum Illumination | F3.5 (50IRE): 0.1 Lux [Color] F3.5 (50IRE): 0.01 Lux [B&W] |
| Resolution | 2.1 Megapixels, 1080P (1920x1080) |
| Total Pixels (H X V) | 2016 (H) X 1108 (V) |
Pan/ Tilt | |
| Groups | 8 Tours |
| Pan Speed | 120? Per Second Pan Speed |
| Patterns | 4 Preset Sequences |
| Presets | 255 Prests |
| Range | 350? Pan, 90? Tilt |
| Scans | 8 Swings |
Lens | |
| Digital Zoom | 12x Digital Zoom |
| Focal Length | 5~25mm |
| Lens Type | Remote Auto Focus Lens |
| Optical Zoom | 5x Digital Zoom |
Mechanical | |
| Dimensions | 110 x 149.2 mm 4.33 X 5.87 in |
| Housing Material | Polycarbonate |
| Housing Type | Pan Tilt Zoom Dome |
| Sensor Input/ Output | 1 Input/ 1 Output |
| Warranty | 2 Years |
| Weight | 0.8lbs |
Network | |
| Frame Rate | Up to 30 frames per second at all resolutions on all streams |
| LAN | 802.3 Compliance 10/100 LAN |
| Maximum Simultaneous User Access | 4 Simultaneous Users |
| ONVIF Conformant | Profile S |
| Protocols | TCP/IP, HTTP, DHCP, PPPoE, ICMP, ARP, RARP, RTSP, NTP, UDP, Multicast |
| SD Card Backup | Up to 24 Hours to Micro SD Card (4~32GB) for Network Loss Emergency Recording Only (Card not included) |
| Streaming Capability | Dual-Stream at Different Rates and Resolutions |
| Video Compression Type | H.264, MPEG4, MJPEG (Super Fine~ Low) |
| Video Management Software | DW Spectrum, Pivot CMS, DW's VMS |
| Web Viewer | OS: Windows XP / Vista / 7, MAC OS Browser: Internet Explorer, Chrome, Firefox, Safari. |
Operational | |
| AGC | Max 41dB |
| AWB | AWB, Indoor, Outdoor, Manual |
| Alarm Notifications | E-mail & Remote Monitoring Software Notifications |
| BLC | ON/OFF |
| Brightness | 0~20 |
| D/N | Auto, Day (Color), Night (B/W) |
| DSS- Digital Slow Shutter | Off, up to 8x |
| Recording Schedule | On Network Loss: Continuous, Motion, Pre- and Post- Alarm |
| Smart DNR™ 3D Digital Noise Reduction | Off/ Level1/ Level2/ Level3 |
| WDR | ON/OFF |
Environmental | |
| Operating Humidity | Less than 90% (Non-Condensing) |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Power Consumption | PTZ Idle: 5W, 430mA PTZ in Action: 8W, 670mA |
| Voltage | DC12V, PoE (IEEE802.3af Class 3), Max 700mA |
Name
Description
Size
Downloads
File
Manual
5.7mb
File
Quick Guide
1.8mb
