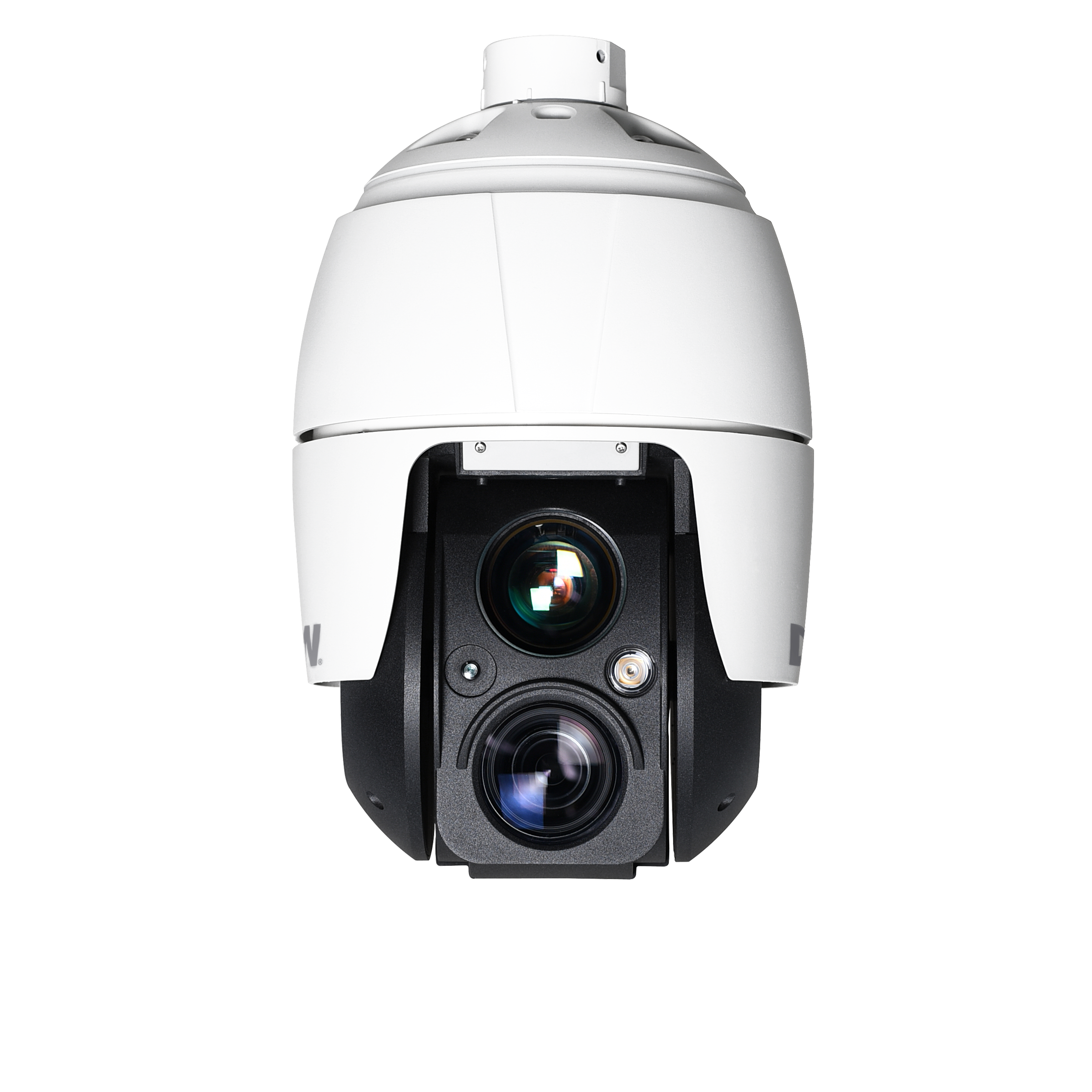

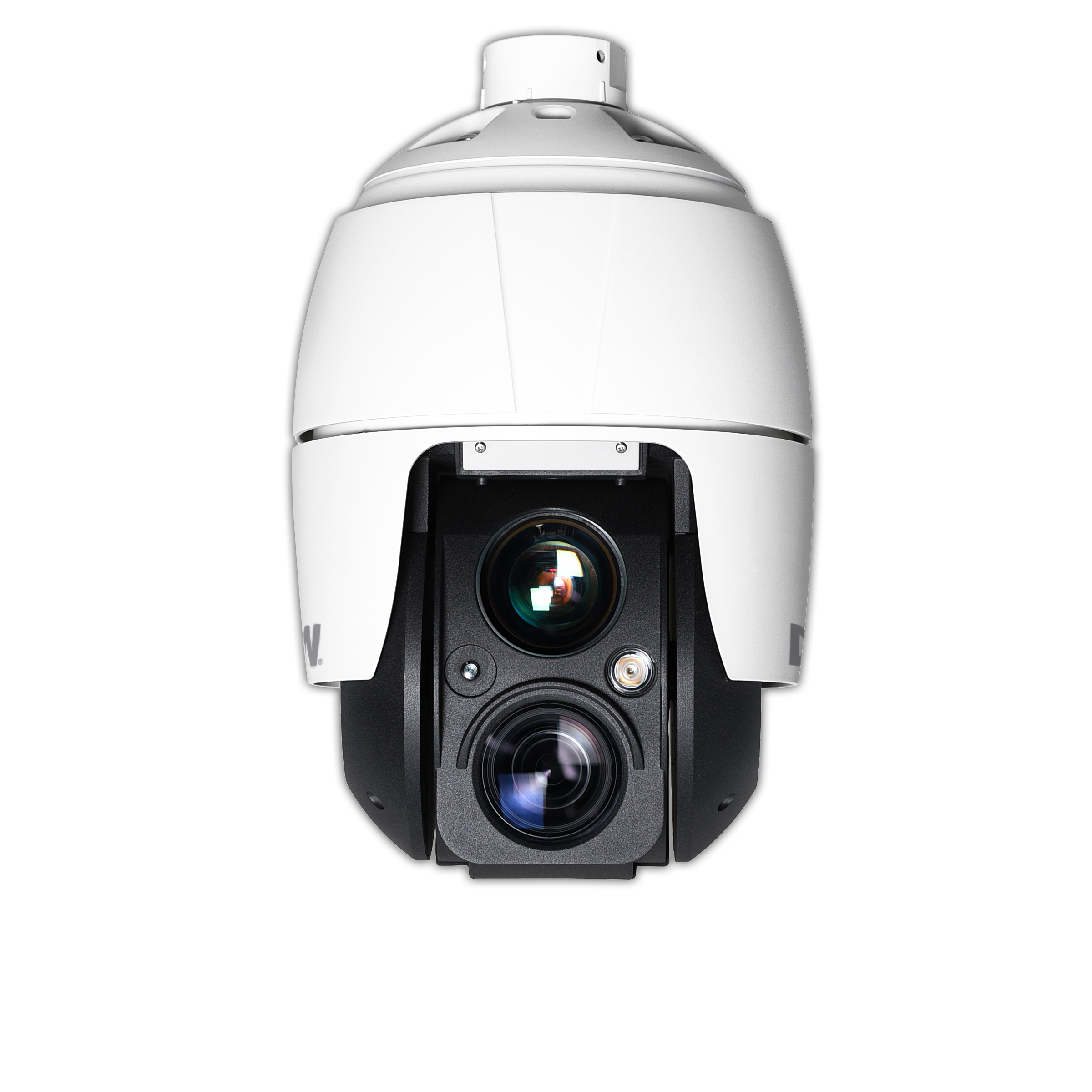

Digital Watchdog - DWC-MPTZ830XW - MEGApix 4K PTZ IP camera with 6~180mm vari-focal lens with motorized zoom and auto-focus and 30x optical zoom and IR
Part number:
DWC-MPTZ830XW
Price:
The MEGApix 30x PTZ Camera delivers crystal-clear 4K resolution at real-time 30fps. The camera is powered by Star-Light Plus technology for outstanding color in near-total darkness. Features include 30x optical zoom and Smart IR up to 1148ft (350m) in an IP66-rated, IK-10 impact-resistant vandal housing. A wall mount and ceiling mount are sold separately and are required to complete the camera's installation.
Features:
- 4K 1/1.7" image sensor at real-time 30fps
- Star-Light Plus color in near-total darkness technology
- 6~180mm vari-focal lens with motorized zoom and auto-focus
- True wide dynamic range (WDR)
- Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
- 30x optical zoom
- 1148' (350m) Smart IR with intelligent camera sync
- Smart DNR 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Backlight compensation (BLC)
- Auto white balance (AWB)
- Motion detection
- Two-way audio

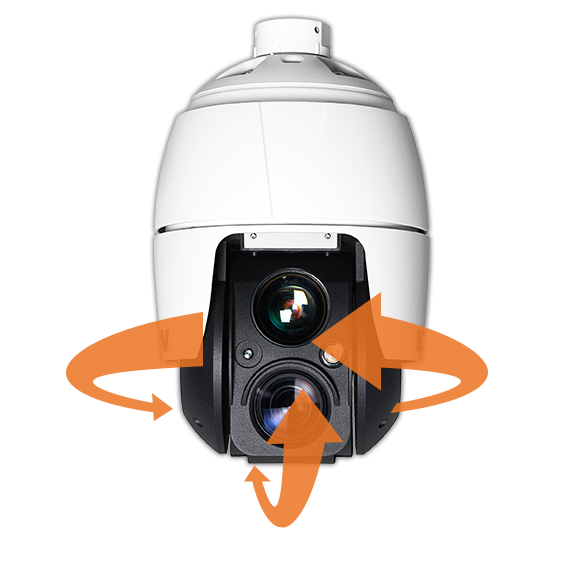

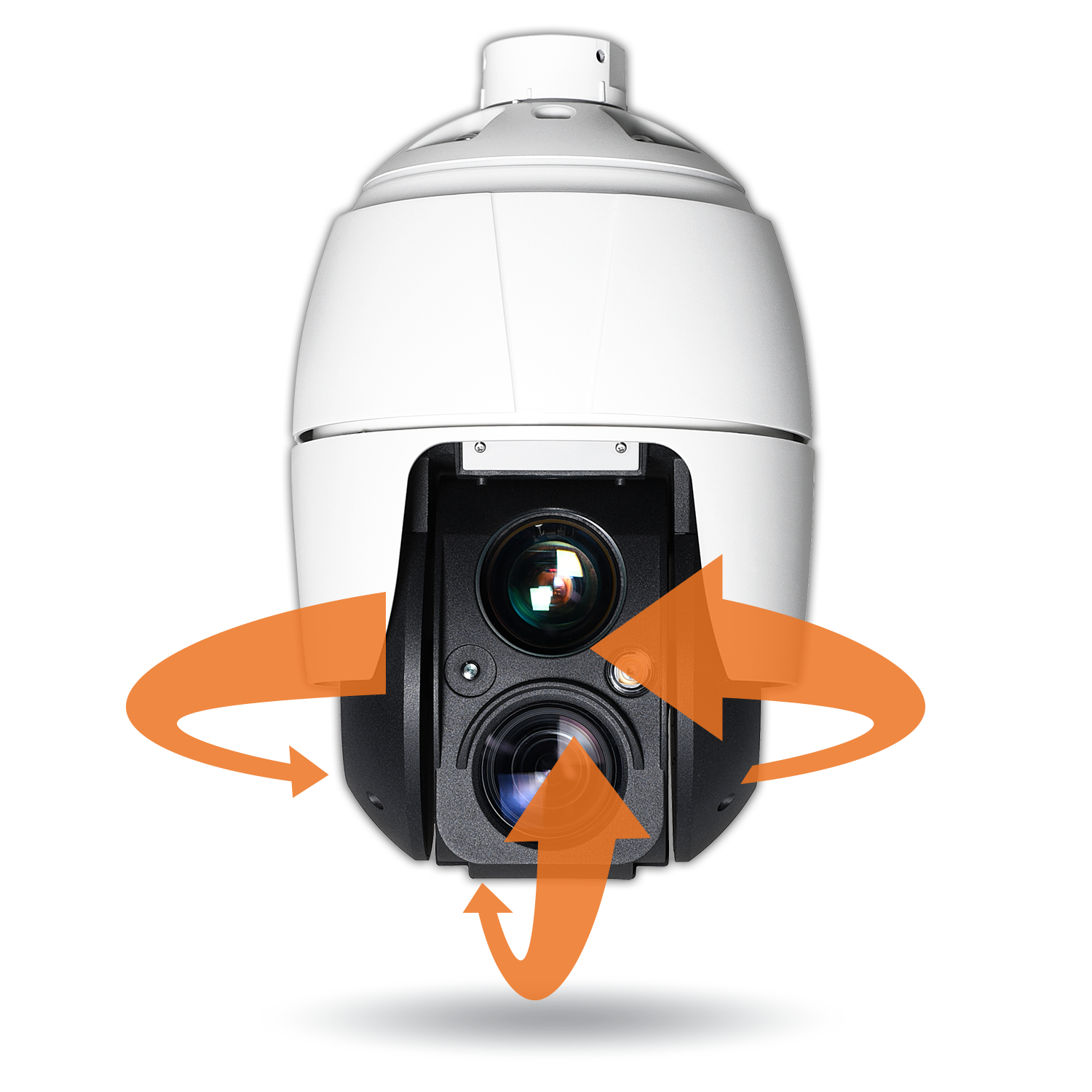

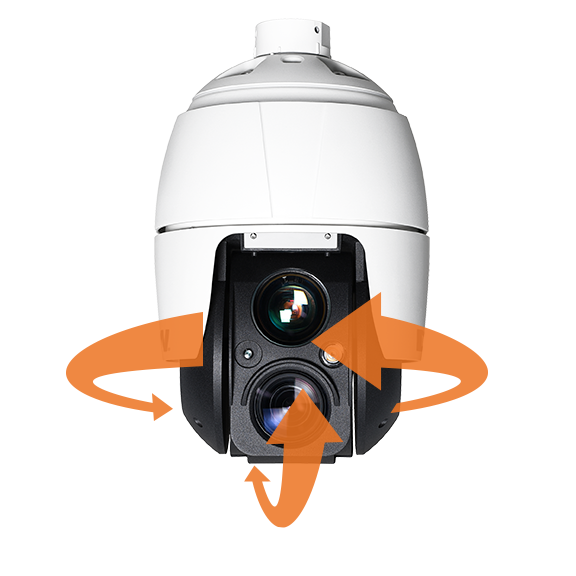

- Pan 0~360° endless, 380° per second pan speed
- Vector drive technology – pan/tilt motion in shortest path
- 256 preset positions
- 8 patterns
- 8 tours
- Micro SD/SDHC/SDXC class 10 card slot for emergency backup (card not included)
- Alarm sensor input
- Relay output
- Web server built-in
- PoE injector included
- PoE class 4 and DC12V
- ONVIF conformant, profile S
- IP66 environmental-rated dust-tight and water-resistant
- IK 10-rated impact-resistant
IMAGE | |
| Image sensor | 4K 1/1.7” CMOS sensor |
| Total pixels / active pixels | 4168 (H) x 3062 (V), 3840 (H) x 2160 (V) |
| Minimum scene illumination | 0.75 lux (color) |
| 0.0 lux (B/W) | |
LENS | |
| Focal length | 6 ~ 180mm |
| Lens type | Vari-focal lens with motorized zoom and auto-focus |
| IR distance | 1148 range |
| Angle of view | 55.4° ~ 2.7° |
| Digital zoom / zoom | 30x optical zoom |
I/O | |
| Audio input / output | 1/1 |
| Audio compression | G.711 |
| Audio alert | User-defined 3 audio files |
| Alarm input/ output | 4/1 |
| Manual triggers | 4 programmable triggers |
OPERATIONAL | |
| Shutter mode | Auto, manual, flicker-free mode |
| Shutter speed | 1/10,000 ~ x 1sec. |
| Backlight | Yes |
| De-fog | Yes |
| Wide dynamic range (WDR) | True WDR, off, low, middle, high |
| Wide dynamic range (WDR) dB | 120dB |
| Smart DNR™ 3D digital noise reduction | 2DNR, 3DNR |
| White balance | Auto, manual |
| Day and night | Auto, day (color), night (B/W) |
| Mirror / flip | Yes |
| Privacy zones | 16 programmable privacy masks |
| Motion detection | 16 programmable motion zones (8 include areas and 8 exclude areas) |
| Memory slot | Micro SD/SDHC/SDXC card (not included). |
| SD card recording mode | Event and continuous recording |
| Event buffering - FTP | Pre: 30 seconds, post: 30 seconds |
| Event buffering - SD card | Pre: 10 seconds, post: 60 seconds |
| Alarm notifications | Notifications via e-mail, FTP server, alarm output activation, audio output activation, preset activation, notification server, XML notifications or SD card recording. |
PTZ FUNCTION | |
| Pan range | 360° endless |
| Pan speed | Max. 380°/sec. (preset) |
| Tilt range | -10~190° |
| Tilt speed | Max. 380°/sec. (preset) |
| Auto calibration | 0.1~6° |
| Preset | 256 |
| Tour | 8 |
| Pattern | 8 |
| Home function | Yes |
NETWORK | |
| LAN | RJ-45 (10/100Base-T) |
| Video compression type | H.265 (main profile), H.264 (baseline, main, high profile), MJPEG |
| Resolution | 3840x2160, 3072x2048, 2592x1944/1520, 2560x1440, 1920x1080, 1440x1080, 1280x1024/720, 1024x768, 800x600/480, D1, 640x480, 400x240, CIF |
| Video bitrate | 100Kbps ~ 8Mbps, multi-rate for preview and recording |
| Frame rate | Up to 30fps at all resolutions |
| Streaming capability | Quad-stream (H.265x3, H.265x1, MJPGx1) |
| Bitrate control | Multi-streaming CVBR/VBR at H.265, H.264 (controllable framerate and bandwidth) |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP, HTTP, HTTPS, QoS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour |
| Security | Password authentication, multi-user authority, IP filtering, HTTPS (TLS) |
| Maximum user access | Live: 10 users, playback: 3 users |
| ONVIF conformance | Yes |
| Web viewer | OS: Windows®, MAC® OS, Linux® |
| Browser: Internet Explorer® | |
| Network time sync | NTP server, synchronized computer, manual |
| Software reset | Restart, reset, factory default |
| Remote upgrade | Bakup and restore |
ENVIRONMENTAL | |
| Operating temperature | -22°F ~ 131°F (-30°C ~ 55°C ) |
| Operating humidity | 0–90% RH (non–condensing) |
| IP rating | IP66-rated |
| IK rating | IK-10 impact-resistant |
| Other certifications | CE, FCC, RoHS |
ELECTRICAL | |
| Power requirement | DC 12V, PoE (UPoE, Class4), PoE injector included |
| Power consumption | PoE: 28W, 500mA DC 12V: 28W, 2.3A |
MECHANICAL | |
| Material | Aluminum PTZ, polycarbonate dome |
| Dimensions | 7.94 x 12.51 Inch (201.8 x 317.8 mm) |
| Weight | 11.24 lb (5.1kg) |
