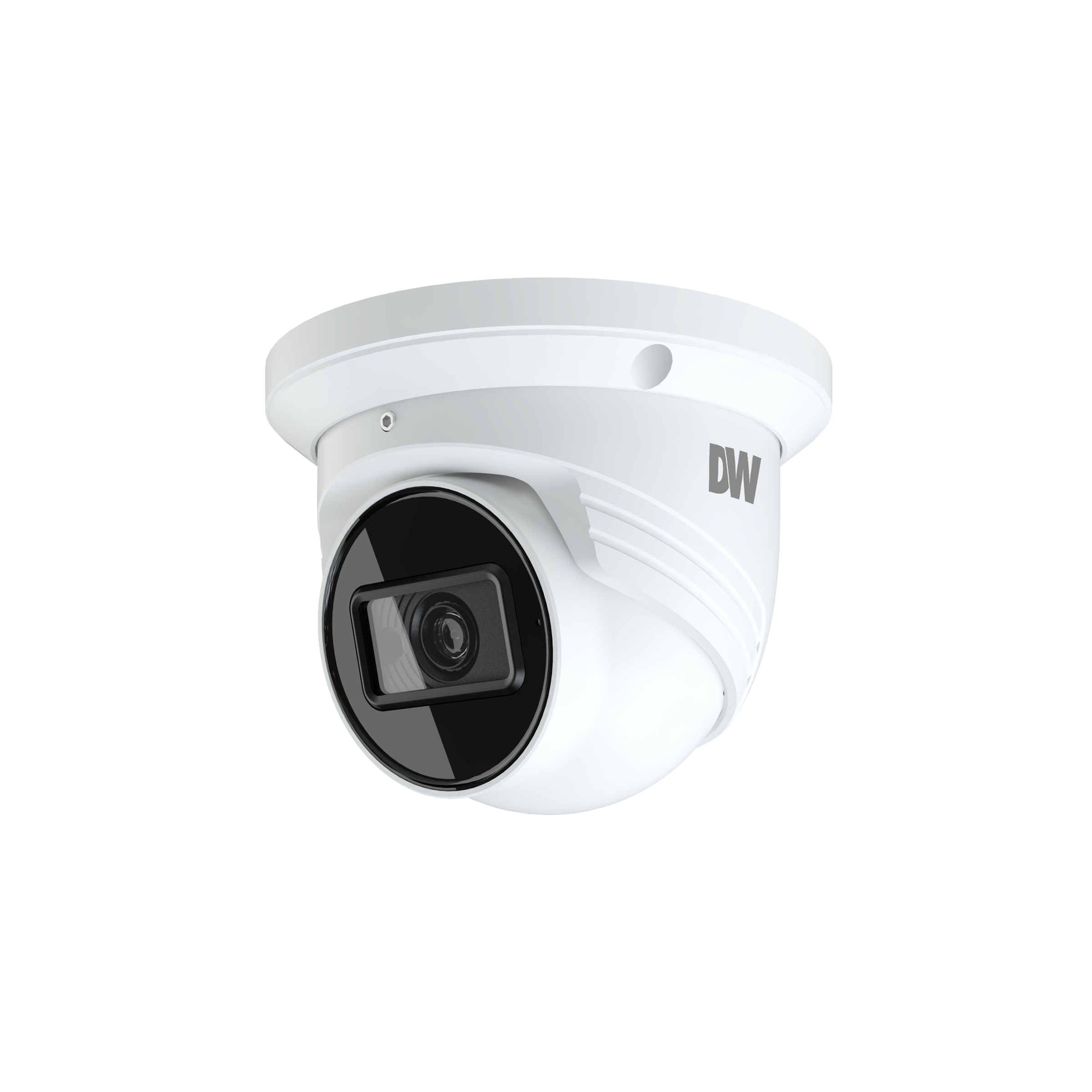

Digital Watchdog - DWC-MT94Wi28T - MEGApix 4MP turret IP camera with 2.8mm fixed lens options and IR
Part number:
DWC-MT94Wi28T
Price:
These MEGApix IP cameras deliver crystal-clear images at 4MP resolution and real-time 30fps. The IP67-rated turret camera features 2.8mm and 3.6mm fixed lens options and a 360° camera gimbal for absolute view adjustment. Added intelligence includes line crossing, perimeter intrusion, video tampering detection and object classification. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Features:
- 4MP 1/3” image sensor at real-time 30fps
- 2.8mm fixed lens (DWC-MT94Wi28T)
- 3.6mm fixed lens (DWC-MT94Wi36T)
- True Wide Dynamic Range (WDR)
- Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
- 100ft range Smart IR
- Object classification video analytics
- Line crossing video analytics
- Perimeter intrusion video analytics
- Video tampering with scene change detection video analytics
- Video tampering with video blur detection video analytics
- Video tampering with abnormal color detection video analytics
- Smart DNR3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- De-Fogextreme weather image compensation
- Auto white balance (AWB)
- Motion detection
- Audio input through built-in microphone
- Micro SD class 10 card slot (card not included)
- Web server built-in
- PoE class 3 and DC12V
- Waterproof cabling
- ONVIF conformant, profile S
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
IMAGE | |
| Image sensor | 4MP 1/3” CMOS |
| Total pixels | 2592 (H) x 1520 (V) |
| Minimum scene illumination | 0.005 lux (color) |
| 0.0 lux (B/W) | |
| S/N ratio | ≧50dB |
LENS | |
| Focal length | 2.8mm, F1.6 (DWC-MT94Wi28) 3.6mm, F1.6 (DWC-MT94Wi36) |
| Lens type | Fixed lens |
| Field of view (FoV) | 100.4° (DWC-MTT4Wi28) 80.6° (DWC-MTT4Wi36) |
| IR distance | 100ft Range |
I/O | |
| Audio in/out | 1 microphone built-in/1 |
| Audio compression | G.711A / U |
OPERATIONAL | |
| Shutter mode | Auto, manual |
| Shutter speed | 1/30s ~ 1/100000s |
| Auto gain control | Auto |
| Day / night | Auto, day (color), night (B/W), schedule |
| Smart DNR™ 3D digital noise reduction | 3D DNR |
| Wide dynamic range (WDR) | True WDR low, middle, high |
| Wide dynamic range (WDR) dB | 120dB |
| Privacy zone | 4 programmable privacy masks |
| Camera analytics | Line crossing, perimeter intrusion, video tampering detection (scene change, video blur, abnormal color detection), object classification (differentiate humans from objects) |
| Alarm notifications | Notifications via e-mail or FTP server |
| Memory slot | Micro SD / SDHC / SDXC (card not Included) |
NETWORK | |
| LAN | 802.3 compliance 10/100 LAN |
| Video compression type | H.265. H.264, MJPEG |
| Resolution | 4MP (2592×1520) |
| Frame rate | Up to 30fps at all resolutions |
| Video bitrate | 64 Kbps ~ 8 Mbps |
| Bitrate control | Multi-streaming CBR/VBR at H.264/ H.265 (controllable frame rate and bandwidth) |
| Streaming capability | Dual-stream at different rates and resolutions |
| IP | IPv4, IPv6 |
| Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS |
| Security | IP filtering, MAC filtering, authentication (ID/PW), SSL/TSL |
| ONVIF conformance | Yes |
| Web viewer | OS: Windows® Browser: Internet Explorer |
| Video management software | DW Spectrum® IPVMS |
ENVIRONMENTAL | |
| Operating temperature | -22°F ~ 140°F (-30°C ~ 60°C) |
| Operating humidity | 10–95% RH (non–condensing) |
| IP rating | IP67-rated |
| IK rating | IK 10 impact-resistant |
| Other certifications | CE, FCC, RoHS |
ELECTRICAL | |
| Power requirement | DC 12V, PoE IEEE 802.3af Class 3. (Adapter not included) |
| Power consumption | <7.5W |
MECHANICAL | |
| Material | Metal turret housing |
| Dimensions | 4.66" x 3.58" (118.6 x 91 mm) |
| Weight | 1.01 lb (0.46 kg) |
| Warranty | 5 year warranty |
