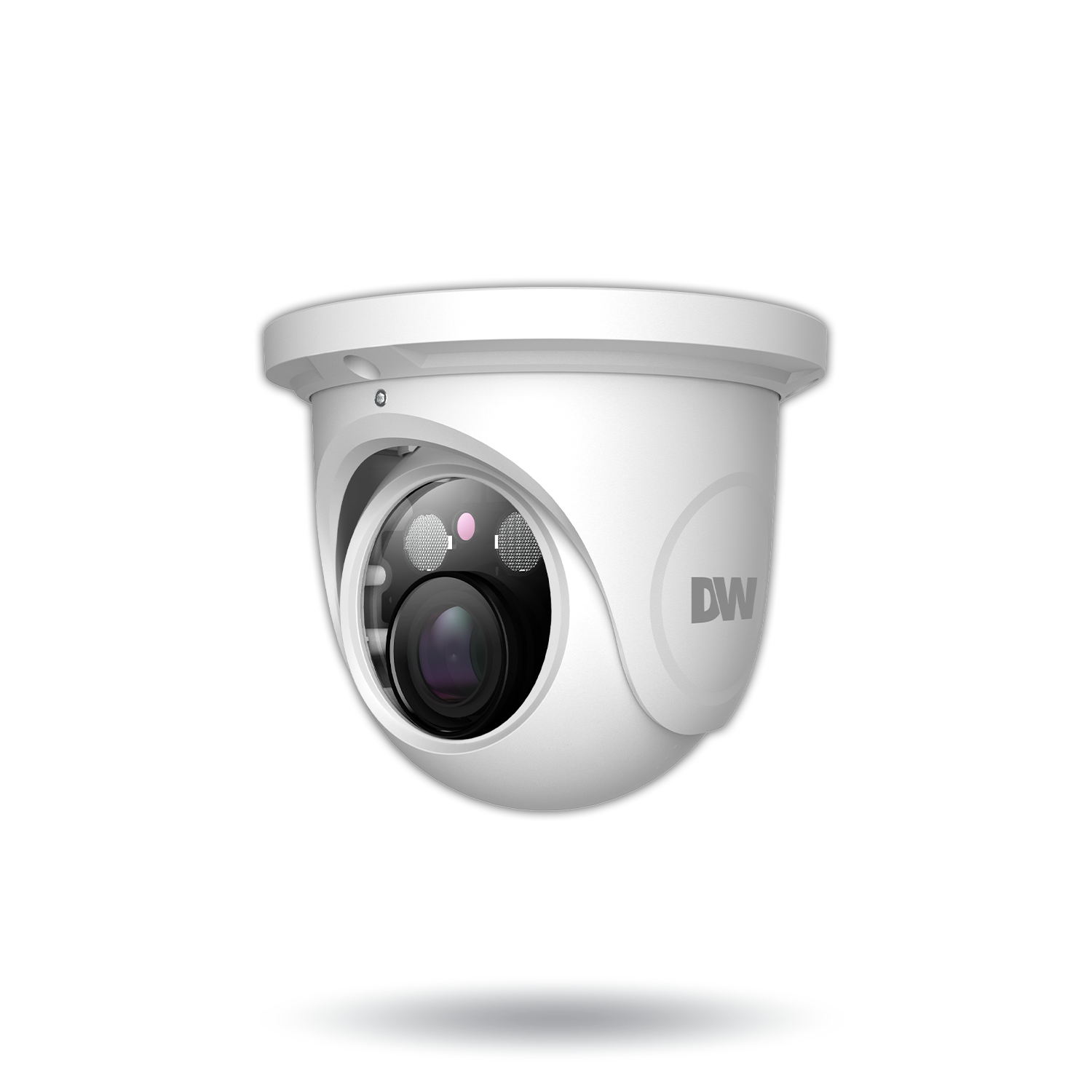

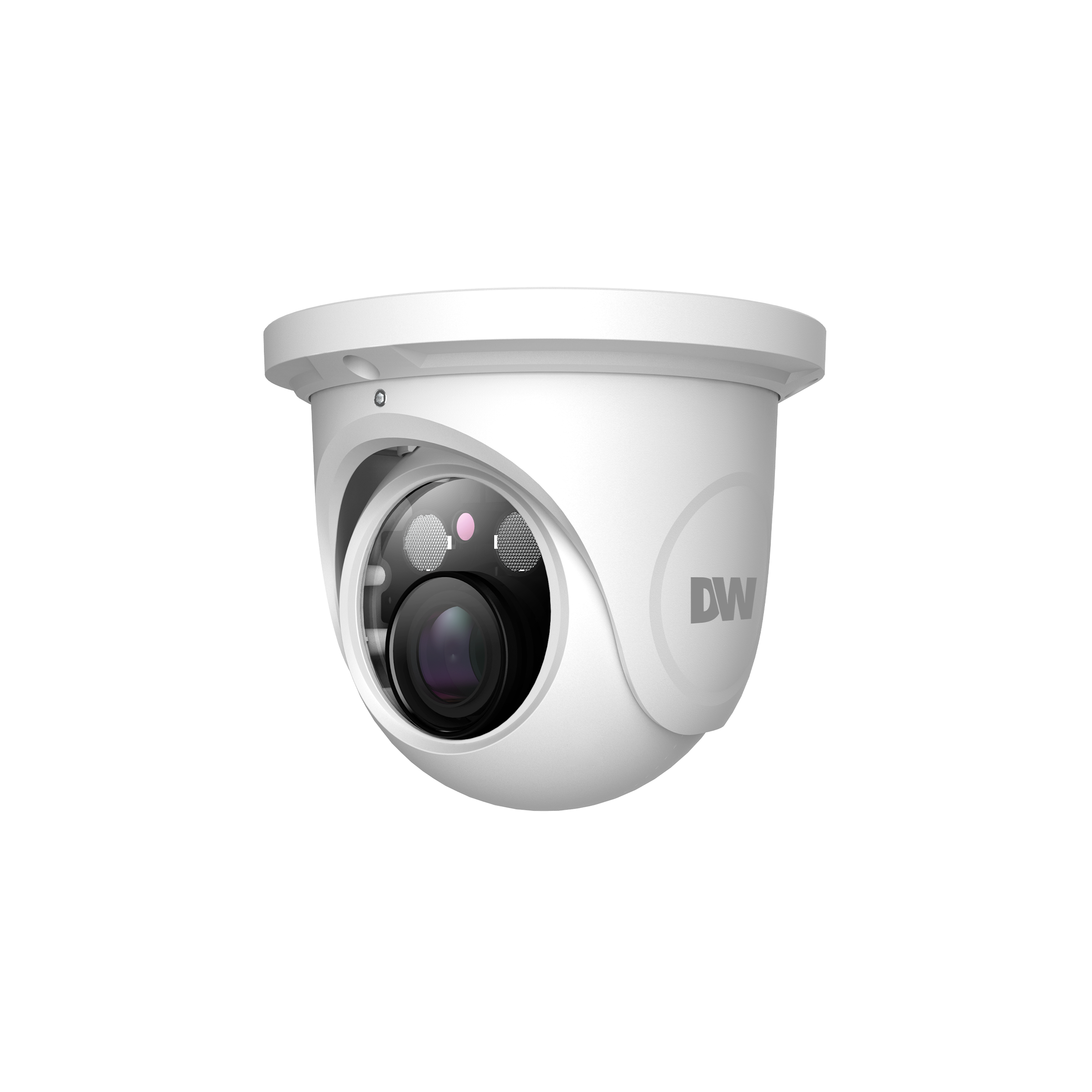

Digital Watchdog - DWC-MTT4WiA - MEGApix 4MP turret IP camera with 3.3~12mm vari-focal lens, IR and basic video analytics
Part number:
DWC-MTT4WiA
Price:
This MEGApix IP camera provides 4MP resolution at real-time 30fps. The IP66-rated turret camera features a 360° camera gimbal for absolute view adjustment of the camera’s autofocus lens. Added intelligence includes line crossing, perimeter intrusion, video tampering detection and object classification. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Features:
- 4MP 1/3” image sensor at real-time 30fps
- 3.3~12mm varifocal remote auto-focus lens
- True Wide Dynamic Range (WDR)
- Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
- 100ft range IR
- Line crossing video analytics
- Perimeter intrusion video analytics
- Video tampering with scene change detection video analytics
- Video tampering with video blur detection video analytics
- Video tampering with abnormal color detection video analytics
- Smart DNR 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- Motion detection
- Audio input
- Web server built-in
- PoE class 2 and DC12V
- Waterproof cabling
- ONVIF conformant, profile S
- IP66 certified weather and tamper resistant
- IK 10-rated impact-resistant
- 5 year warranty
IMAGE | ||
| Image sensor | 4MP 1/3” CMOS | |
| Total pixels | 2688 (H) x 1520 (V) | |
| Minimum scene illumination | 0.045 lux (color) | |
| 0.0 lux (B&W) | ||
| S/N ratio | 50dB | |
| Video output | CVBS video output (BNC × 1) | |
LENS | ||
| Focal length | 3.3~12mm, F1.4 | |
| Lens type | Varifocal remote auto-focus lens | |
| Field of view (FoV) | 80° ~ 38° | |
| IR distance | 100ft range | |
| Optical zoom | 4x optical zoom | |
I/O | ||
| Audio in / out | 1/0 | |
| Audio compression | G.711A / U | |
OPERATIONAL | ||
| Shutter mode | Auto, manual | |
| Shutter speed | 1/25s ~ 1/100000s | |
| Auto gain control | Auto | |
| Day / night | Auto, day (color), night (B/W), schedule | |
| Smart DNR™ 3D digital noise reduction | 2D / 3D DNR | |
| Wide dynamic range (WDR) | True WDR low, middle, high | |
| Wide dynamic range (WDR) dB | 120dB | |
| Privacy zone | 4 programmable privacy masks | |
| Camera analytics | Line crossing, perimeter intrusion, video tampering detection (scene change, video blur, abnormal color detection) | |
| Alarm notifications | Notifications via e-mail or FTP server | |
NETWORK | ||
| LAN | 802.3 compliance 10/100 LAN | |
| Video compression type | H.265. H.264, MJPEG | |
| Resolution | 4MP (2592×1520) at 30fps | |
| Frame rate | Up to 30fps at all resolutions | |
| Video bitrate | 64 Kbps ~ 10 Mbps | |
| Bitrate control | Multi-streaming CBR/VBR at H.264/ H.265 (controllable frame rate and bandwidth) | |
| Streaming capability | Dual-stream at different rates and resolutions | |
| IP | IPv4, IPv6 | |
| Protocol | TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP | |
| Security | IP filtering, MAC filtering, authentication (ID/PW), SSL/TSL | |
| ONVIF conformance | Yes | |
| Web viewer | OS: Windows® Browser: Internet Explorer | |
| Video management software | DW Spectrum® IPVMS | |
ENVIRONMENTAL | ||
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) | |
| Operating humidity | 10–90% RH (non–condensing) | |
| IP rating | IP66 certified weather and tamper resistant | |
| IK rating | IK 10-rated impact-resistant | |
| Other certifications | CE, FCC, RoHS | |
ELECTRICAL | ||
| Power requirement | DC12V, POE (IEEE 802.3af Class 2). | |
| Power consumption | LED on: 5.5W LED off: 2.5W | |
MECHANICAL | ||
| Material | Metal turret housing | |
| Dimensions | 5.13" x 4.33" (130.3 x 109 mm) | |
| Weight | 1.51 lb (0.689kg) | |
