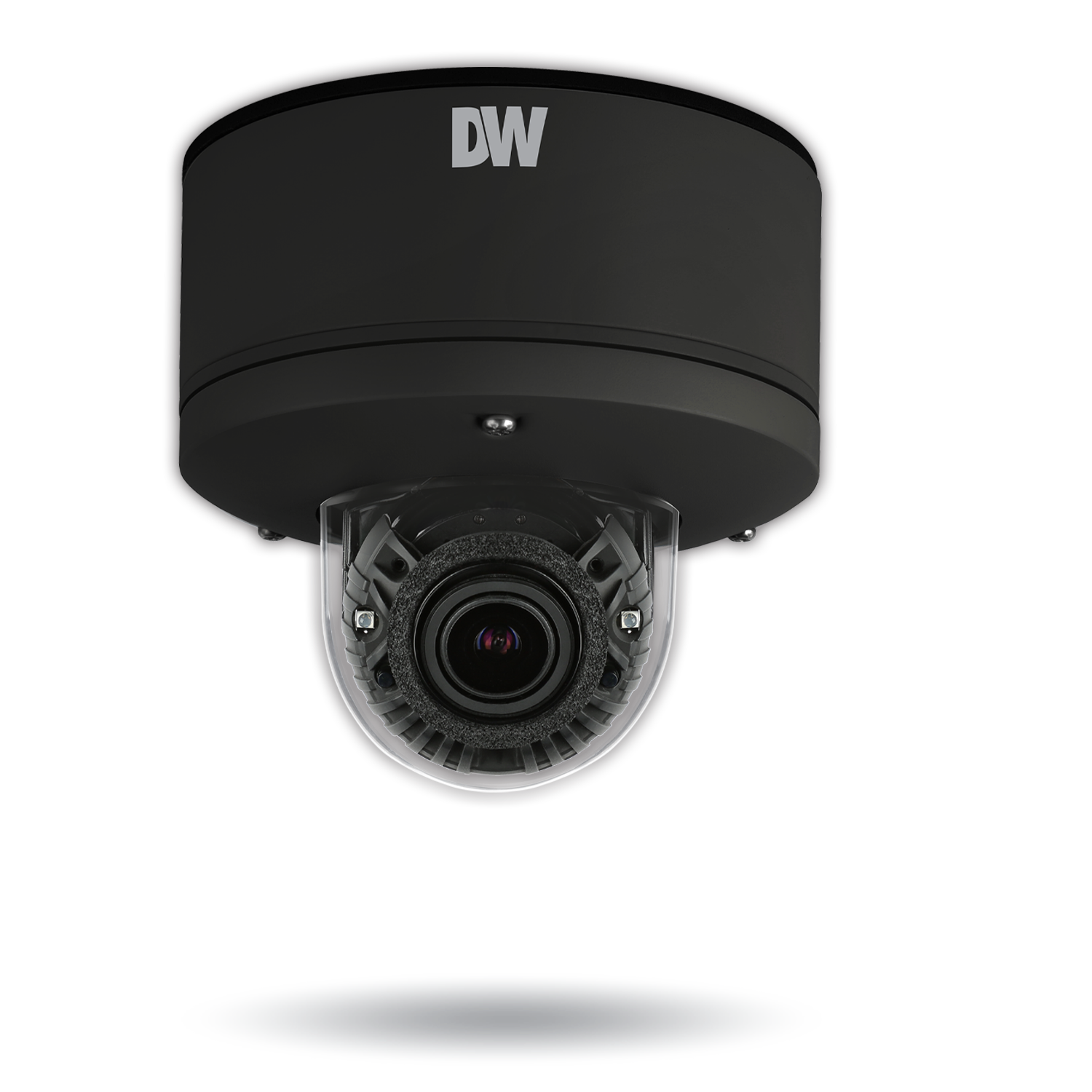

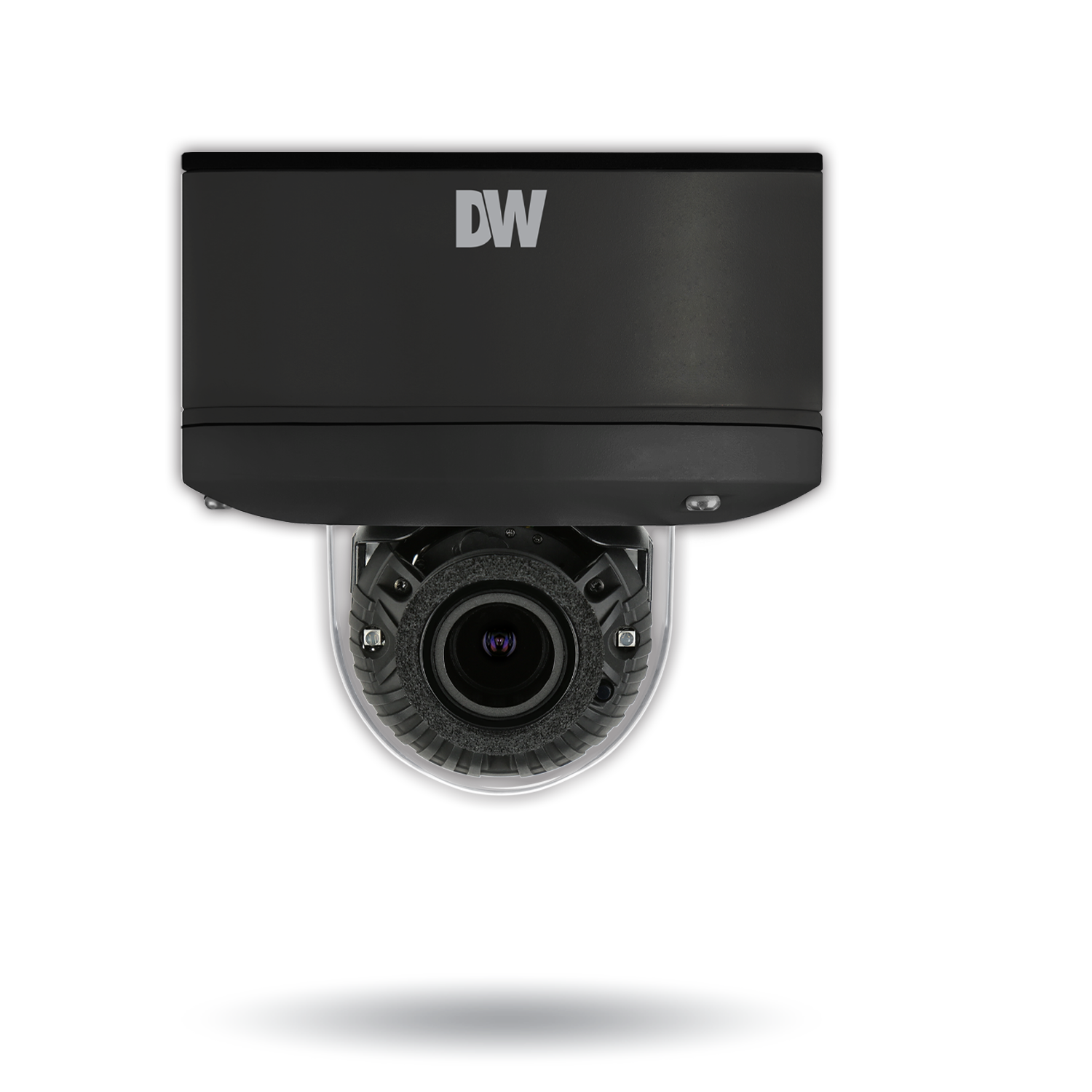

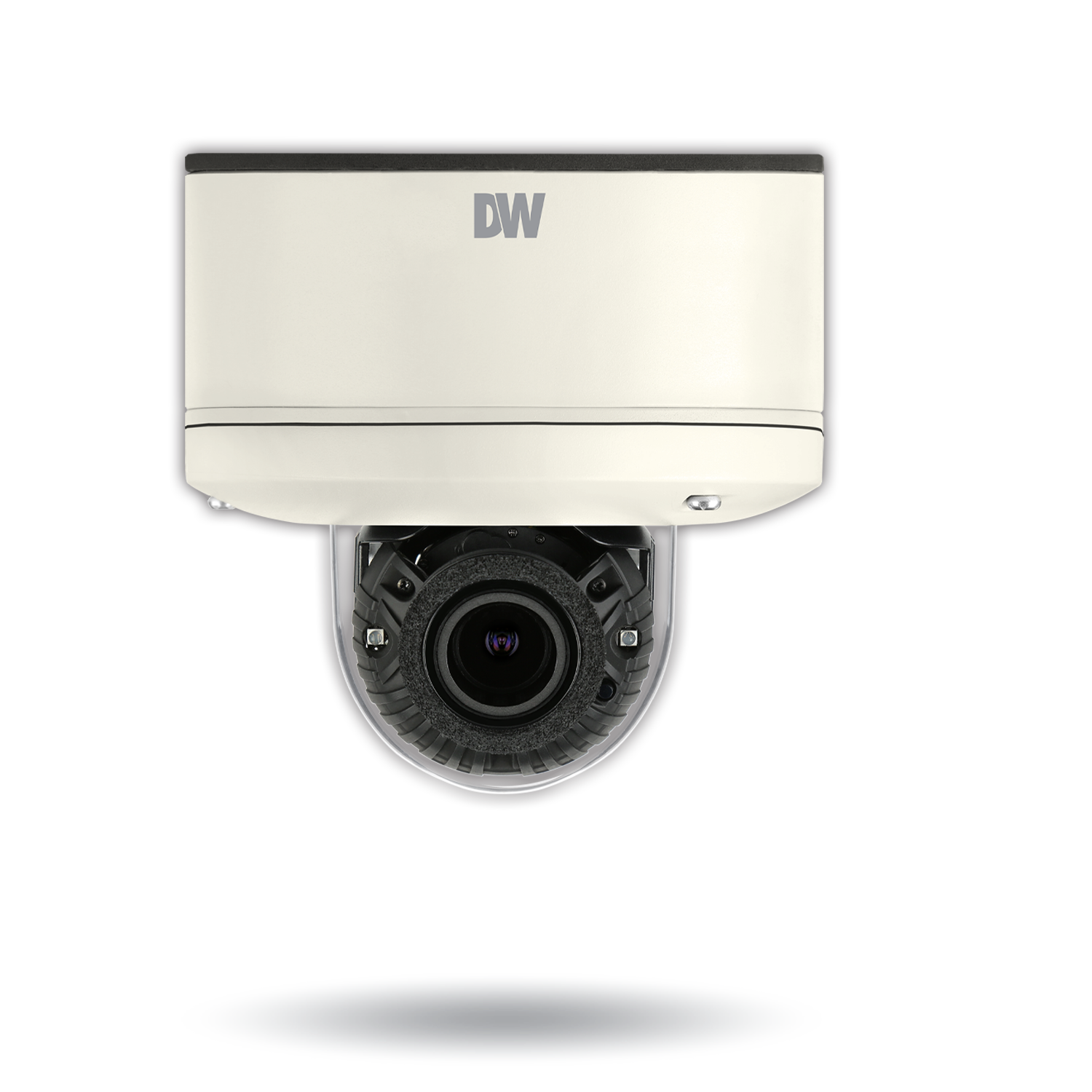

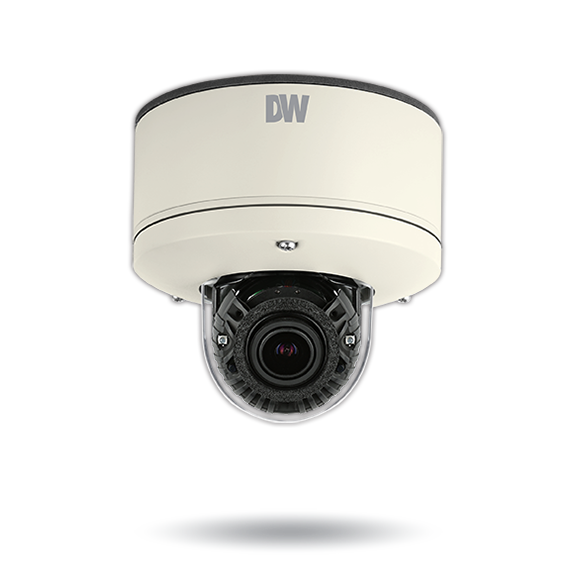

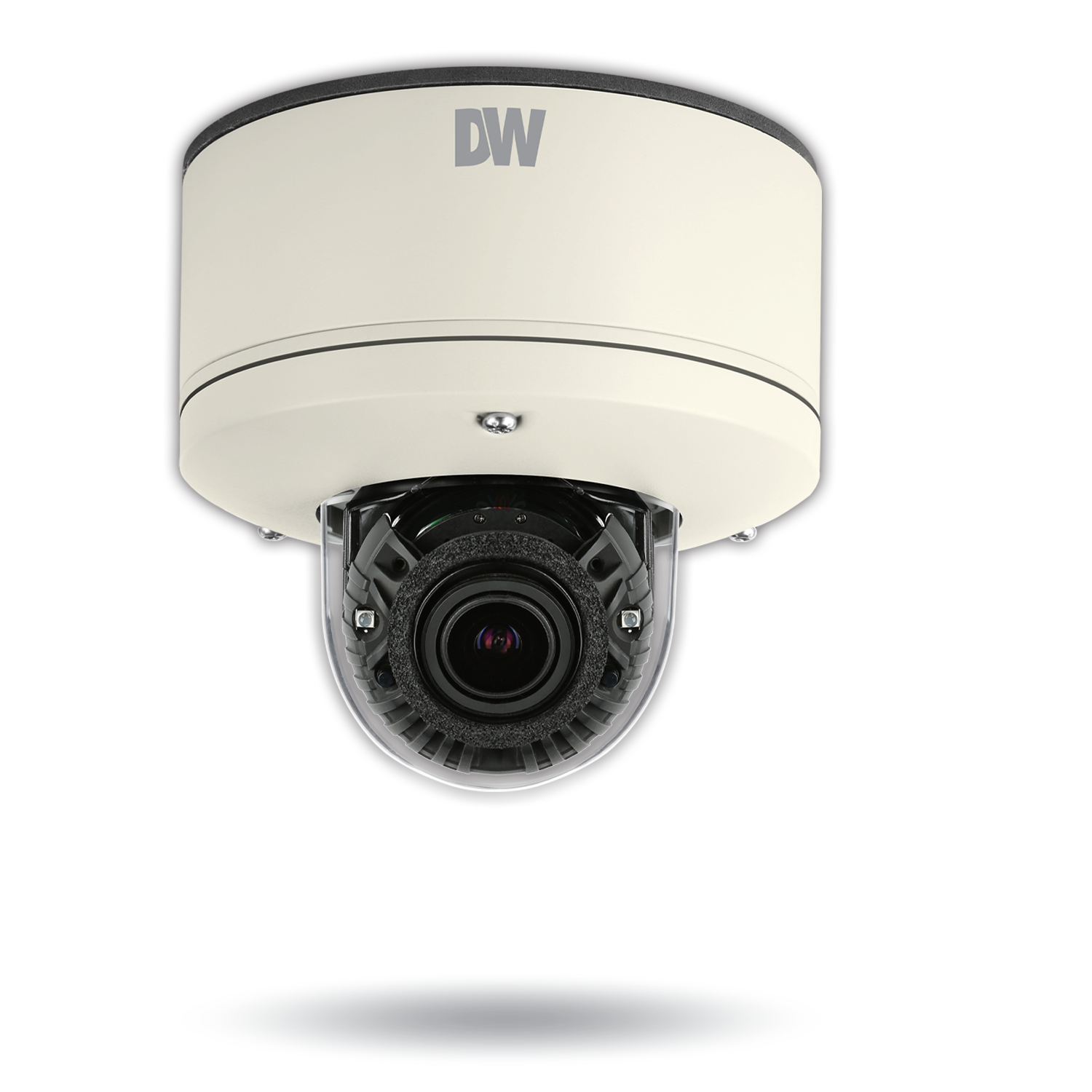

Digital Watchdog - DWC-MV44WiA - MEGApix 4MP vandal dome Snapit camera with 2.8~12mmvari-focal p-iris lens with motorized zoom and auto-focus and IR
Part number:
DWC-MV44WiA
Price:
MEGApix IP cameras provide 4 megapixel resolution at up to real-time 30fps. The IP68-rated Snapit housing is easy to install and features CleanView dome treatment and Cold Start at -40º F/-40º C. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Features:
- 4MP 1/3” image sensor at real-time 30fps
- 2.8~12mm motorized zoom auto-focus p-iris lens
- True Wide Dynamic Range (WDR)
- Dual codecs (H.264, MJPEG) with simultaneous dual-stream
- Cold Start -40°F (-40°C)
- 100’ Smart IR™ with intelligent camera sync
- CleanView hydrophobic dome Coating repels water, dust and grease
- Snapit easy installation camera
- Smart DNR™ 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Two-way audio
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Junction box built-in
- Alarm sensor input
- Relay output
- Web server built-in
- PoE class 3 and DC12V
- UL listed
- ONVIF conformant, profile S
- NDAA/TAA compliant
- IP68 dust-tight and water-proof
- IK 10-rated impact-resistant
- 5 year warranty
IMAGE | |
| Image sensor | 4MP 1/3” CMOS |
| Total pixels | 2688 (H) x 1520 (V) |
| Minimum scene illumination | 0.2 lux (color) |
| 0.0 lux (B&W) | |
| Video output | Local video output CVBS 1.0V p-p (75 ?), 4:3 aspect ratio |
LENS | |
| Focal length | 2.8-12mm, F1.4 |
| Lens type | Motorized-zoom auto-focus p-iris lens |
| Field of view (FoV) | 87° ~ 32° |
| IR distance | 100ft Range |
| Optical zoom | x4.2 |
I/O | |
| Audio in / out | 1/1 |
| Audio compression | G.711 |
| Alarm in / out | 1/1 |
OPERATIONAL | |
| Shutter mode | Auto, manual, anti-flicker, slow shutter |
| Shutter speed | 1/30~1/32000 |
| Slow shutter | 1~1/5,1/7.5, 1/10 |
| Auto gain control | Auto |
| Day / night | Auto, day (color), night (B/W) |
| Smart DNR™ 3D digital noise reduction | 0~11 |
| Wide dynamic range (WDR) | True WDR off, WDR2x, WDR3x |
| Wide dynamic range (WDR) dB | 120dB |
| Privacy zone | 16 programmable privacy masks |
| Alarm notifications | Notifications via e-mail, FTP server, alarm output activation or SD card recording |
| Memory slot | Micro SD / SDHC / SDXC (card not included) |
NETWORK | |
| LAN | 802.3 compliance 10/100 LAN |
| Video compression type | H.264, MJPEG |
| Resolution | H.264: 1440p/1080p/720p/VGA/D1/CIF MJPEG: 1280x720/800x600/VGA/768x432/D1/CIF |
| Frame rate | Up to 30fps at all resolutions |
| Video bitrate | 100Kbps ~ 10Mbps, multi-rate for preview and recording |
| Bitrate control | Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth) |
| Streaming capability | Dual-stream at different rates and resolutions |
| IP | IPv4 |
| Protocol | Zero config(Auto IP), ONVIF, TCP/IP, UDP, RTP(UDP/TCP), RTSP, NTP, HTTP,HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3(MIB-2) |
| Security | HTTPS(TLS), IP filtering, 802.1x, digest authentication(ID/PW) |
| ONVIF conformance | Yes |
| Web viewer | OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari® |
| Video management software | DW Spectrum® IPVMS |
ENVIRONMENTAL | |
| Operating temperature | -40°F ~ 122°F (-40°C ~ 50°C) |
| Operating humidity | 10–90% RH (non–condensing) |
| IP rating | IP68 certified water and tamper-resistant |
| IK rating | IK10 rated impact resistant |
| Other certifications | CE, FCC, RoHS |
ELECTRICAL | |
| Power requirement | DC12V, POE (IEEE 802.3af Class 3). Adaptor not Included. |
| Power consumption | DC12V: Max 7.3W PoE: Max 9W |
MECHANICAL | |
| Material | Snapit™ aluminum vandal housing, polycarbonate dome |
| Dimensions | 5.47" x 4.93" (139 x 125.4 mm) |
| Weight | 2.75 lbs (1.25kg) |
