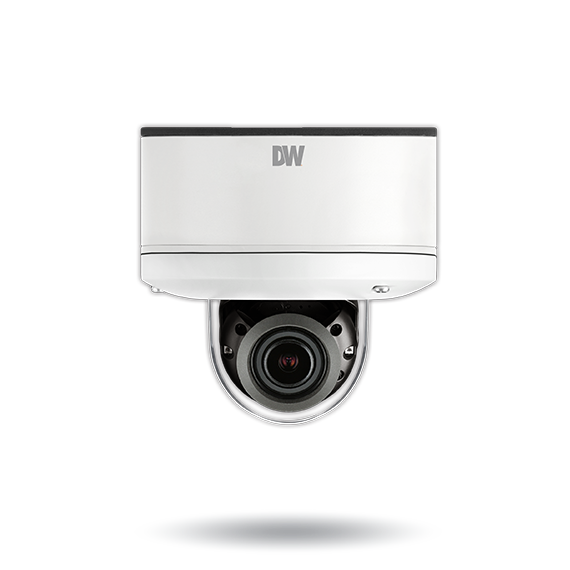

Digital Watchdog - DWC-MV45WiATW - MEGApix 5MP Vandal Dome IP Camera with a Vari-focal Lens and IR with IVA License
This NDAA/TAA-compliant MEGApix IP camera provides 5MP resolution at real-time 30fps, includes a 2.7~13.5mm vari-focal p-iris lens with motorized zoom and auto-focus and simultaneous H.265/H.264/ MJPEG codec support. The camera is powered by Star-Light Plus™ color in near-total darkness technology for quality video in any lighting conditions and Cold Start at -40° F/-40° C. The unique Snapit housing is easy to install, includes CleanView dome treatment and is IP68- rated. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Megapixel resolution
DW’s technology delivers crystal clear images in any resolution. Higher-resolution offers forensic details with zooming into the camera’s field of view.
Star-Light Plus color in darkness technology
Star-Light Plus color in near-total darkness technology provides crisp, clear images in the absence of ambient light.
Snapit Outdoor Vandal Dome Housing
Our Snapit housing offers a simple to install, three-step process. All Snapit outdoor dome models are IP68 and IK10 rated, include DW’s CleanView hydrophobic dome coating to repel water, dust and grease and will Cold Start at -40°F./-40°C.
IVA Analytics
MEGApix IVA cameras include a base package of Intelligent Video Analytics detection capabilities already activated on the camera and ready for deployment.
IVA+ Analytics
The MEGApix IVA+ package offers advanced rules to the IVA Video Content Analysis detection capabilities.
Cold Start -40°F (-40°C)
The installed heater helps the camera power up in extreme cold weather conditions where temperatures may go as low as -40°F. This makes the cameras ideal for any harsh environment installation.
True Wide Dynamic Range (WDR)
Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.
H.265 codec support
High-Efficiency video codec standards deliver 25% to 50% better data compression while maintaining video quality.
Features
- 5MP sensor at real-time 30fps
- Star-Light Plus color in near-total darkness technology
- Intelligent Video Analytics (IVA) with extended features (IVA+)
- Seamless integration and control of IVA rules with DW Spectrum IPVMS
- Reduce false alarms
- Increase your recording storage with logic rules and smart recording
- Vari-focal p-iris lens with motorized zoom and autofocus for complete remote lens control and focused image any time
- Snapit easy installation camera
- True Wide Dynamic Range (WDR) for clear images in challenging light
- Simultaneous streaming and multiple codec options for smart bandwidth management
- Cold Start -40°F (-40°C), allowing the camera to power up in extremely cold environments
- 100' Smart IR with intelligent camera sync for clear B/W images with no need for external light
- CleanView hydrophobic dome coating repels water, dust and grease.
- Smart DNR 3D digital noise reduction reduces noise and ghosting for motion in low-light environments.
- Privacy zones cover sensitive areas in the camera's field of view.
- Two-way audio for direct communication between the monitoring station and the camera's location
- Local SD card slot for local recording in case of network loss
- Alarm sensor input and relay output for access control integration
- Web server built-in for easy camera management from any browser
- PoE and DC12V for single cable simplified installation
- NDAA compliant for federal and government projects
- IP67- and IK10-rated camera housing built to last
- 5 year warranty
| Image | |
| Active Pixels | 4x 1944 (H) x 1092 (V) |
| Image sensor | 5MP 1/2.8" CMOS sensor |
| Maximum resolution | 5MP |
| Minimum Scene Illumination in color | 0.0 lux (B/W), 0.08 lux (color) |
| Test Video Output | Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio |
| Total Pixels | 2592 (H) × 1944 (V) |
| Lens | |
| Advanced Lens Features | Auto focus, Motorized zoom, P-iris |
| Focal Length | 2.7mm ~ 13.5mm |
| Horizontal Field of View (HFOV) | 96° ~ 31° |
| IR Distance | 100' range Smart IR |
| Lens Type | Vari-focal Lens |
| Vertical Field of View (VFOV) | 24° ~ 70° |
| I/O | |
| Audio compression | G.711 |
| I/O Alarm in/out | 1 input, 1 output |
| I/O Audio in/out | *Cameras provide a line level audio. The use of amplified microphones and speakers is recommended., 1 input, 1 output |
| Intelligent Video Analytics | |
| IVA license | Intrusion, line crossing, counting line, loitering, enter, exit, tamper |
| IVA+ license | Logical rules, object removed, tailgating, direction, stopped, appear, disappear, object left |
| Operational | |
| 3D digital noise reduction | Smart DNR 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Day and night | Auto day/night, Day (color), Night (B/W) |
| De-fog | Yes |
| Memory slot | Micro SD/SDHC/SDXC class 10 card (card not included), Up to 1TB micro SD / FAT32 |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Operational Notifications | Alarm output activation, Email, SD card recording |
| Privacy Zones | 16 programmable privacy masks |
| Shutter Mode | Auto, Manual, Slow Shutter |
| Shutter Speed | 8 ~ 1/50000 |
| Slow Shutter Speed | Off, x15, x2, x3, x4, x5, x6, x7.5 |
| White Balance | Yes |
| Wide Dynamic Range (WDR) | True WDR 120dB |
| Network | |
| Bitrate Control | Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth) |
| IP | IPv4 |
| Network resolution | H.264: 2.1MP/1080p, 720p (main), CIF (sub), H.264: 3008x3000, 2800x2800, 2048x2048, 1600x1600, 640x640, 320x320, H.265: 3008x3000, 2800x2800, 2048x2048, 1600x1600, 640x640, 320x320, MJPEG: CIF |
| Network Web Viewer | Google Chrome browser, Linux OS, Mac OS, Microsoft Edge browser, Mozilla Firefox browser, Safari browser, Windows OS |
| Protocol | Bonjour, DDNS, DHCP, DNS, Genetec Protocol, HTTP, HTTPs, IGMP, NTP, RTP, RTP (UDP/TCP), RTSP, SNMP, SNMPv1/v2/v3 (MIB-2), TCP, Telnet, UPnP, Zeroconf (AutoIP) |
| Security | 802.1x, HTTPS (TLS), MAC filtering, Multi-user authority |
| Stream Speed | Up to 30fps at all resolutions |
| Streaming Capability | Dual-stream at different rates and resolutions |
| Video Bitrate | 32Kbps~20Mbps |
| Video Compression Type | H.264, H.265, MJPEG |
| Video Management Software | DW Spectrum IPVMS, ExacqVision Technologies, Genetec Inc., Milestone Systems |
| Environmental | |
| Environmental Operating Humidity | 10-90% (non-condensing) |
| Environmental Operating Temperature | -40°F ~ 122°F (-40°C ~ 50°C) |
| Mounting Accessories (Required/Optional) | Optional. Sold separately |
| Mechanical | |
| Camera Dimensions (H X W X D) | 5.47" x 4.79" (139 x 121.8 mm) |
| Camera Weight | 2.64 lbs (1.2 kg) |
| Features | Cleanview |
| Housing | Vandal Dome |
| Housing Color | White |
| IK rating | IK10 Rated |
| IP rating | Weather Resistant (IP68) |
| Materials | Aluminum die-casting, Plastic |
| Electrical | |
| American wire gauge (AWG) | Cable type #18 |
| Power Consumption | DC12V: max 8.3W, 691.6mA, PoE: max 10.5W |
| Power Requirements | Adapter not included, PoE |
| General | |
| Warranty | 5 Year Warranty |
