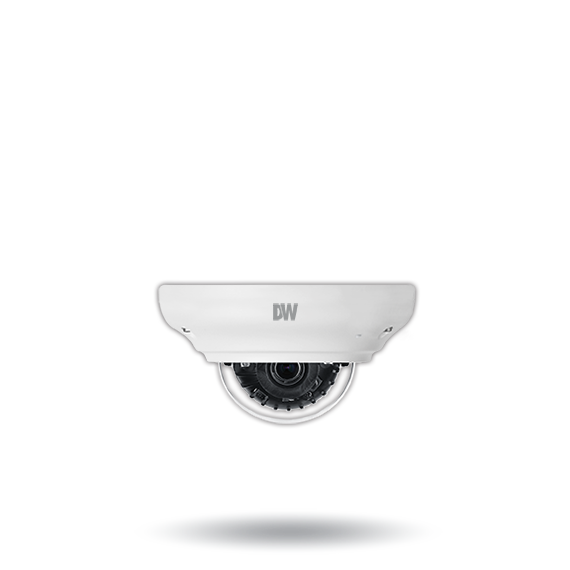

Digital Watchdog - DWC-MV72Wi28TW - MEGApix 2.1MP/1080p ultra low-profile vandal dome IP camera with 2.8mm fixed lenses, color in near-total darkness and IR
Part number:
DWC-MV72Wi28TW
Price:
This MEGApix IP camera provides 2.1MP/1080p resolution at real-time 30fps. It includes 2.8mm, 4.0mm and 6.0mm fixed lens options, simultaneous H.265/H.264/MJPEG codec support and Star-Light Plus™ color in near-total darkness technology for quality video in any lighting condition, all in an IP67-rated, IK-10 impact-resistant ultra low-profile vandal dome housing. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Features:
- 2.1MP/1080p 1/2.8" image sensor at real-time 30fps
- Star-Light Plus color in near-total darkness technology
- 2.8mm fixed lens (DWC-MV72Wi28TW)
- 4.0mm fixed lens (DWC-MV72Wi4TW)
- 6.0mm fixed lens (DWC-MV72Wi6TW)
- True Wide Dynamic Range (WDR) / Digital Wide Dynamic Range (D-WDR)
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- 80' Smart IR with intelligent camera sync
- Ultra low-profile vandal dome camera
- Smart DNR 3D digital noise reduction
- True day/night mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Audio in
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Web server built-in
- PoE class 2 and DC12V
- ONVIF conformant, profile S
- NDAA/TAA compliant
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
IMAGE | |
| Image sensor | 2.1MP/1080p 1/2.8” Star-Light Plus CMOS |
| Total pixels | 1945 (H) × 1109 (V) |
| Minimum scene illumination | 0.5 lux (color) (DW-MV72Wi28TW) 0.9 lux (color) (DW-MV72Wi4TW, DW-MV72Wi6TW) |
| 0.0 lux (B/W) | |
| Video output | Local video output CVBS 1.0V p-p (75?), 4:3 aspect ratio |
LENS | |
| Focal length | 2.8mm, F2.0 (DWC-MV72Wi28TW) 4.0mm, F2.6 (DWC-MV72Wi4TW) 6.0mm, F2.0 (DWC-MV72Wi6TW) |
| Lens type | Fixed lens |
| Field of view (FoV) | 115° (DWC-MV72Wi28TW) 86° (DWC-MV72Wi4TW) 55° (DWC-MV72Wi6TW) |
| IR distance | 80ft range |
OPERATIONAL | |
| Shutter mode | Auto, manual, anti-flicker, slow shutter |
| Shutter speed | 1/30 ~ 1/32,000 |
| Slow shutter | 1/2,1/3,1/5,1/6,1/7.5, 1/10 |
| Auto gain control | Auto |
| Day / night | Auto, day (color), night (B/W) |
| Smart DNR™ 3D digital noise reduction | 3D DNR |
| Wide dynamic range (WDR) | True WDR (D-WDR) On, Off |
| Wide dynamic range (WDR) dB | 120dB |
| Privacy zones | 16 programmable privacy masks |
| Mirror and flip | Yes |
| Alarm notifications | Notifications via e-mail, FTP, alarm output and SD card recording |
| Memory slot | Micro SD / SDHC / SDXC (card not included) |
NETWORK | |
| LAN | RJ45 (10/100Base-T) |
| Video compression type | H.265, H.264, MJPEG |
| Resolution | H.265: 2.1MP/1080p, 720p, VGA, D1, CIF H.264: 2.1MP/1080p, 720p, VGA, D1, CIF MJPEG: 1280x720, 800x600, VGA, 768x432, D1, CIF |
| Frame rate | Up to 30fps at all resolutions |
| Video bitrate | 100Kbps ~ 10Mbps, multi-rate for preview and recording |
| Bitrate control | Multistreaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth) |
| Streaming capability | Dual-stream at different rates and resolutions |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF |
| Security | HTTPS(TLS), IP filtering, 802.1x, digest authentication(ID/PW) |
| ONVIF conformance | Yes |
| Web viewer | OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari® |
| Video management software | DW Spectrum® IPVMS |
ENVIRONMENTAL | |
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Operating humidity | 10–90% RH (non–condensing) |
| IK rating | IK10 impact-resistant |
| IP rating | IP67-rated |
| Other certifications | CE, FCC, RoHS |
ELECTRICAL | |
| Power requirement | DC12V, POE IEEE 802.3af class 2 (adaptor not Included) |
| Power consumption | DC12V: max 3.7W PoE: max 5.5W |
MECHANICAL | |
| Material | Aluminum vandal housing, polycarbonate dome |
| Dimensions | 4.13" x 2.4" (105 x 61mm) |
| Weight | 0.79 lbs (0.36kg) |
| Warranty | 5 year warranty |
