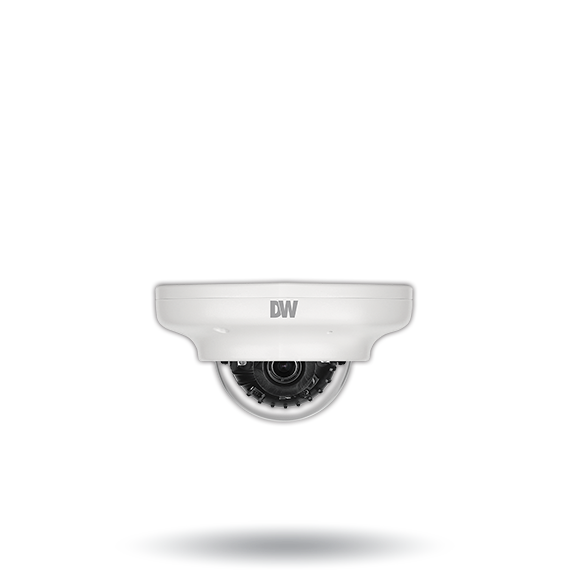

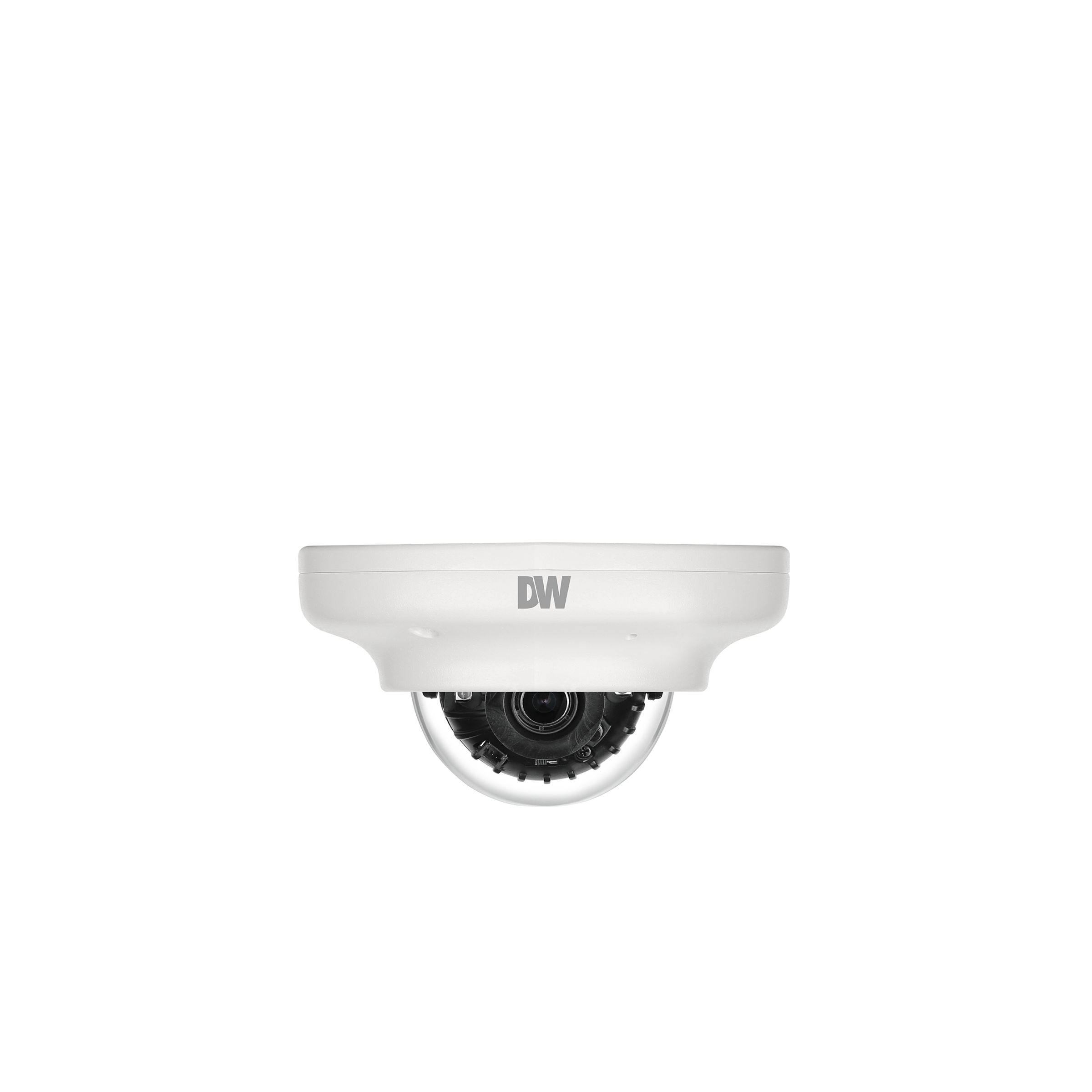

Digital Watchdog - DWC-MV74Wi28 - MEGApix 4MP ultra low-profile vandal dome IP camera with 2.8mm, 4.0mm and 6.0mm fixed lenses and IR
Part number:
DWC-MV74Wi28
Price:
This MEGApix IP camera provides 4 megapixel resolution at real-time 30fps. It includes a 2.8mm, 4.0mm and 6.0mm fixed lens options with image enhancement features such as 120db True WDR, Smart IR™ and Smart DNR™, all in an IP66-rated, IK10 impact-resistant vandal housing. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Features:
- 4MP 1/3” image sensor at real-time 30fps
- DWC-MV74Wi28: 2.8mm fixed lens
- DWC-MV74Wi4: 4.0mm fixed lens
- DWC-MV74Wi6: 60.mm fixed lens
- True Wide Dynamic Range (WDR)
- Dual codecs (H.264, MJPEG) with simultaneous dual-stream
- 50' Smart IR with intelligent camera sync
- Extreme low-profile vandal camera
- Smart DNR™ 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Dynamic range compression (DRC)
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- Motion detection
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Web server built-in
- PoE class 3 and DC12V
- Waterproof cabling
- ONVIF conformant, profile S
- NDAA/TAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- IK 10-rated impact-resistant
- 5 year warranty
IMAGE | ||
| Image sensor | 4MP 1/3” CMOS | |
| Total pixels | 2688 (H) x 1520 (V) | |
| Minimum scene illumination | 0.41 lux (color) | |
| 0.0 lux (B/W) | ||
| Video output | Local video output CVBS 1.0V p-p (75 ?), 4:3 aspect ratio | |
LENS | ||
| Focal length | DWC-MV72Wi28: 2.8mm, F2.0 DWC-MV72Wi4: 4.0mm, F2.0 DWC-MV72Wi6: 6.0mm, F2.0 | |
| Lens type | Fixed lens | |
| Field of view (FoV) | DWC-MV74Wi28: 90° DWC-MV74Wi4: 81° DWC-MV74Wi6: 51° | |
| IR distance | 50ft Range | |
OPERATIONAL | ||
| Shutter mode | Auto, manual, anti-flicker, slow shutter | |
| Shutter speed | 1/30~1/32000 | |
| Slow shutter | 1~1/5,1/7.5, 1/10 | |
| Auto gain control | Auto | |
| Day / night | Auto, day (color), night (B/W) | |
| Smart DNR™ 3D digital noise reduction | 0~11 | |
| Wide dynamic range (WDR) | True WDR off, WDR2x, WDR3x | |
| Wide dynamic range (WDR) dB | 120dB | |
| Privacy zone | 4 programmable privacy masks | |
| Alarm notifications | Notifications via e-mail, FTP server or SD card recording | |
| Memory slot | Micro SD / SDHC / SDXC (card not included) | |
NETWORK | ||
| LAN | 802.3 compliance 10/100 LAN | |
| Video compression type | H.264, MJPEG | |
| Resolution | H.264: 1440p/1080p/720p/VGA/D1/CIF MJPEG: 1280x720/800x600/VGA/768x432/D1/CIF | |
| Frame rate | Up to 30fps at all resolutions | |
| Video bitrate | 100Kbps ~ 10Mbps, multi-rate for preview and recording | |
| Bitrate control | Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth) | |
| Streaming capability | Dual-stream at different rates and resolutions | |
| IP | IPv4 | |
| Protocol | Zero config(Auto IP), ONVIF, TCP/IP, UDP, RTP(UDP/TCP), RTSP, NTP, HTTP,HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3(MIB-2) | |
| Security | HTTPS(TLS), IP filtering, 802.1x, digest authentication(ID/PW) | |
| ONVIF conformance | Yes | |
| Web viewer | OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari® | |
| Video management software | DW Spectrum® IPVMS | |
ENVIRONMENTAL | ||
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) | |
| Operating humidity | 10–90% RH (non–condensing) | |
| IP rating | IP66-rated | |
| IK rating | IK10-rated impact resistant | |
| Other certifications | CE, FCC, RoHS | |
ELECTRICAL | ||
| Power requirement | DC12V, PoE IEEE 802.3af Class 3 (adaptor not Included) | |
| Power consumption | DC12V: Max 5.6W PoE: Max 7.4W | |
MECHANICAL | ||
| Material | Aluminum vandal housing, polycarbonate dome | |
| Dimensions | 4.13" x 2.4" (105 x 61mm) | |
| Weight | 0.88lbs (0.4kg) | |
Name
Description
Size
Downloads
File
Data Sheet
0.4mb
File
Manual
8.5mb
File
Quick Guide
1.6mb

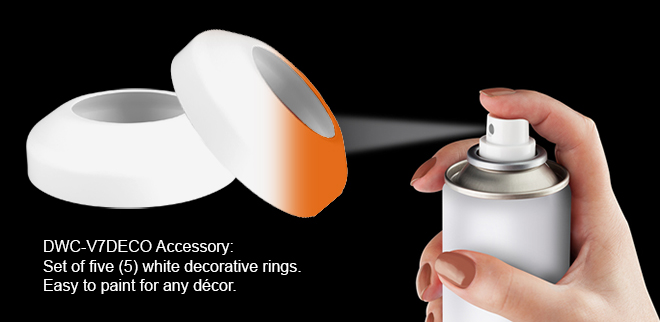

accessories
