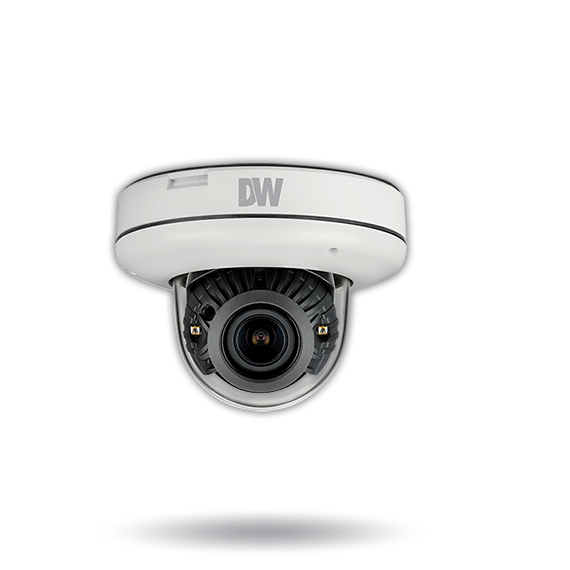

Digital Watchdog - DWC-MV82WiAT - MEGApix 2.1MP/1080p low-profile vandal dome IP camera with 2.8~12mmvari-focal p-iris lens with motorized zoom and auto-focus and color in near-total darkness and IR
Part number:
DWC-MV82WiAT
Price:
This MEGApix IP camera provides 2.1MP/1080p resolution at real-time 30fps. It includes a 2.8~12mm vari-focal auto-focus lens with motorized zoom, simultaneous H.265/H.264/MJPEG codec support and Star-Light Plus color in near-total darkness technology for quality video in any lighting condition. The IP66-rated, IK-10 impact resistant vandal housing features CleanView self-cleaning dome treatment. All MEGApix® cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Features:
- 2.1MP/1080p 1/2.8" image sensor at real-time 30fps
- Star-Light Plus color in near-total darkness technology
- 2.8~12mm vari-focal p-iris lens with motorized zoom and auto-focus
- True Wide Dynamic Range (WDR)
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- 100' Smart IR with intelligent camera sync
- CleanView hydrophobic dome coating repels water, dust and grease
- Smart DNR 3D digital noise reduction
- True day/night mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Two-way audio
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Alarm sensor input
- Relay output
- Web server built-in
- PoE class 3 and DC12V
- Waterproof cabling
- ONVIF conformant, profile S
- NDAA/TAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- IK 10-rated impact-resistant
- 5 year warranty
IMAGE | ||
| Image sensor | 2.1MP/1080p 1/2.8” CMOS | |
| Total pixels | 1945 (H) × 1109 (V) | |
| Minimum scene illumination | 0.02 lux (color) | |
| 0.0 lux (B/W) | ||
| Video output | Local video output CVBS 1.0V p-p (75?), 4:3 aspect ratio | |
LENS | ||
| Focal length | 2.8 ~ 12mm, F1.4 | |
| Lens type | Vari-focal p-iris lens with motorized-zoom and auto-focus | |
| Field of view (FoV) | 96° ~ 35° | |
| IR distance | 100ft range | |
| Optical zoom | x4.2 optical zoom | |
I/O | ||
| Audio in / out | 1/1 | |
| Audio compression | G.711 | |
| Alarm in / out | 1/1 | |
OPERATIONAL | ||
| Shutter mode | Auto, manual, anti-flicker, slow shutter | |
| Shutter speed | 1/30 ~ 1/32,000 | |
| Slow shutter | 1/2,1/3,1/5,1/6,1/7.5, 1/10 | |
| Auto gain control | Auto | |
| Day / night | Auto, day (color), night (B/W) | |
| Smart DNR™ 3D digital noise reduction | 3D DNR | |
| Wide dynamic range (WDR) | True WDR (D-WDR) On, Off | |
| Wide dynamic range (WDR) dB | 120dB | |
| Privacy zones | 16 programmable privacy masks | |
| Mirror and flip | Yes | |
| Alarm notifications | Notifications via e-mail, FTP, alarm output and SD card recording | |
| Memory slot | Micro SD / SDHC / SDXC (card not included) | |
NETWORK | ||
| LAN | RJ45 (10/100Base-T) | |
| Video compression type | H.265, H.264, MJPEG | |
| Resolution | H.265: 2.1MP/1080p, 720p, VGA, D1, CIF H.264: 2.1MP/1080p, 720p, VGA, D1, CIF MJPEG: 1280x720, 800x600, VGA, 768x432, D1, CIF | |
| Frame rate | Up to 30fps at all resolutions | |
| Video bitrate | 100Kbps ~ 10Mbps, multi-rate for preview and recording | |
| Bitrate control | Multi streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth) | |
| Streaming capability | Dual-stream at different rates and resolutions | |
| IP | IPv4, IPv6 | |
| Protocol | TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF | |
| Security | HTTPS(TLS), IP filtering, 802.1x, digest authentication(ID/PW) | |
| ONVIF conformance | Yes | |
| Web viewer | OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari® | |
| Video management software | DW Spectrum® IPVMS | |
ENVIRONMENTAL | ||
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) | |
| Operating humidity | 10–90% RH (non–condensing) | |
| IK rating | IK10 impact resistant | |
| IP rating | IP66 certified | |
| Other certifications | CE, FCC, RoHS | |
ELECTRICAL | ||
| Power requirement | DC12V, POE IEEE 802.3af class 3 (adaptor not Included) | |
| Power consumption | DC12V: max 6.5W PoE: max 8.5W | |
MECHANICAL | ||
| Material | Aluminum vandal housing, polycarbonate dome | |
| Dimensions | 4.9" x 3.6" (125 x 92 mm) | |
| Weight | 1.12 lbs (0.51kg) | |
| Warranty | 5 year warranty | |
