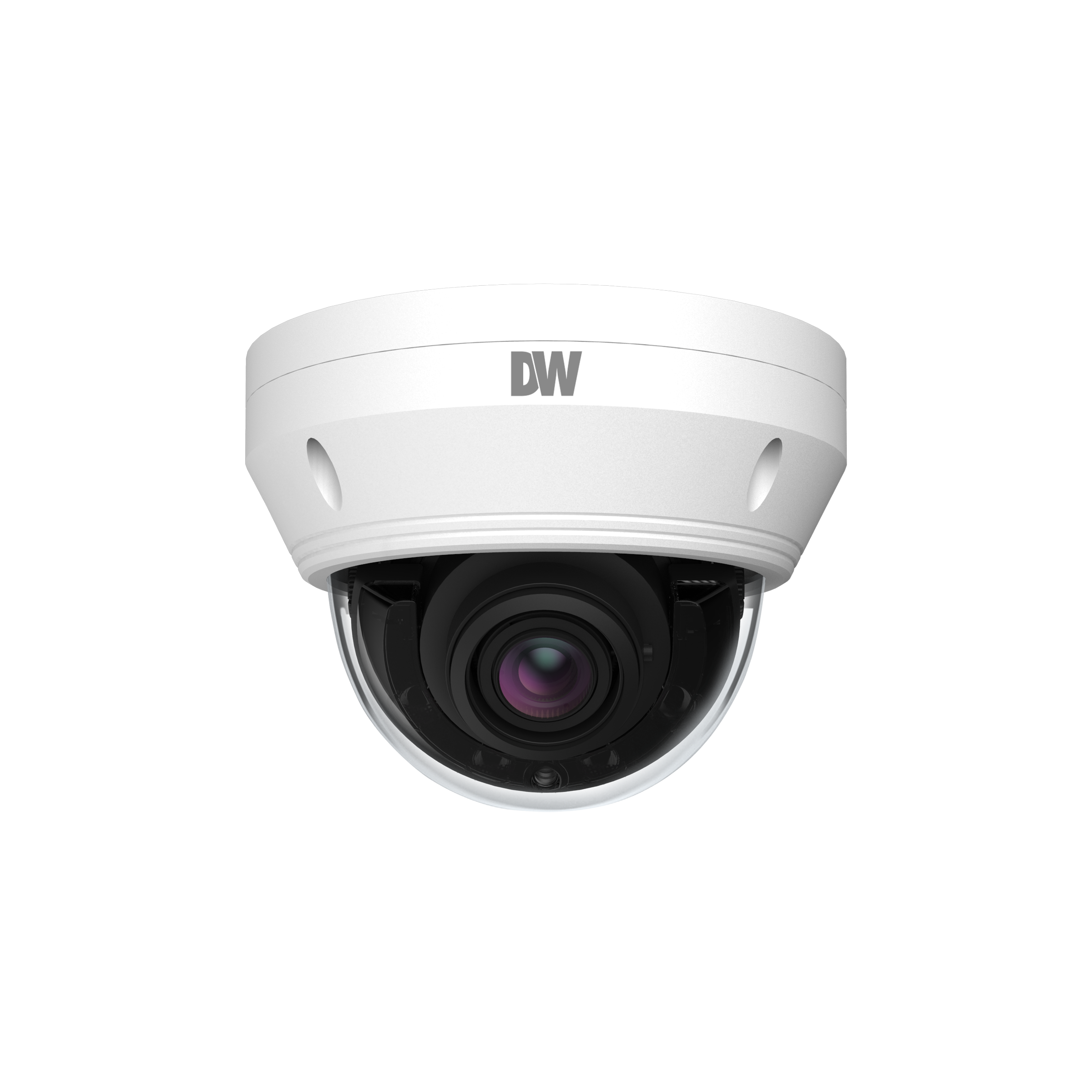

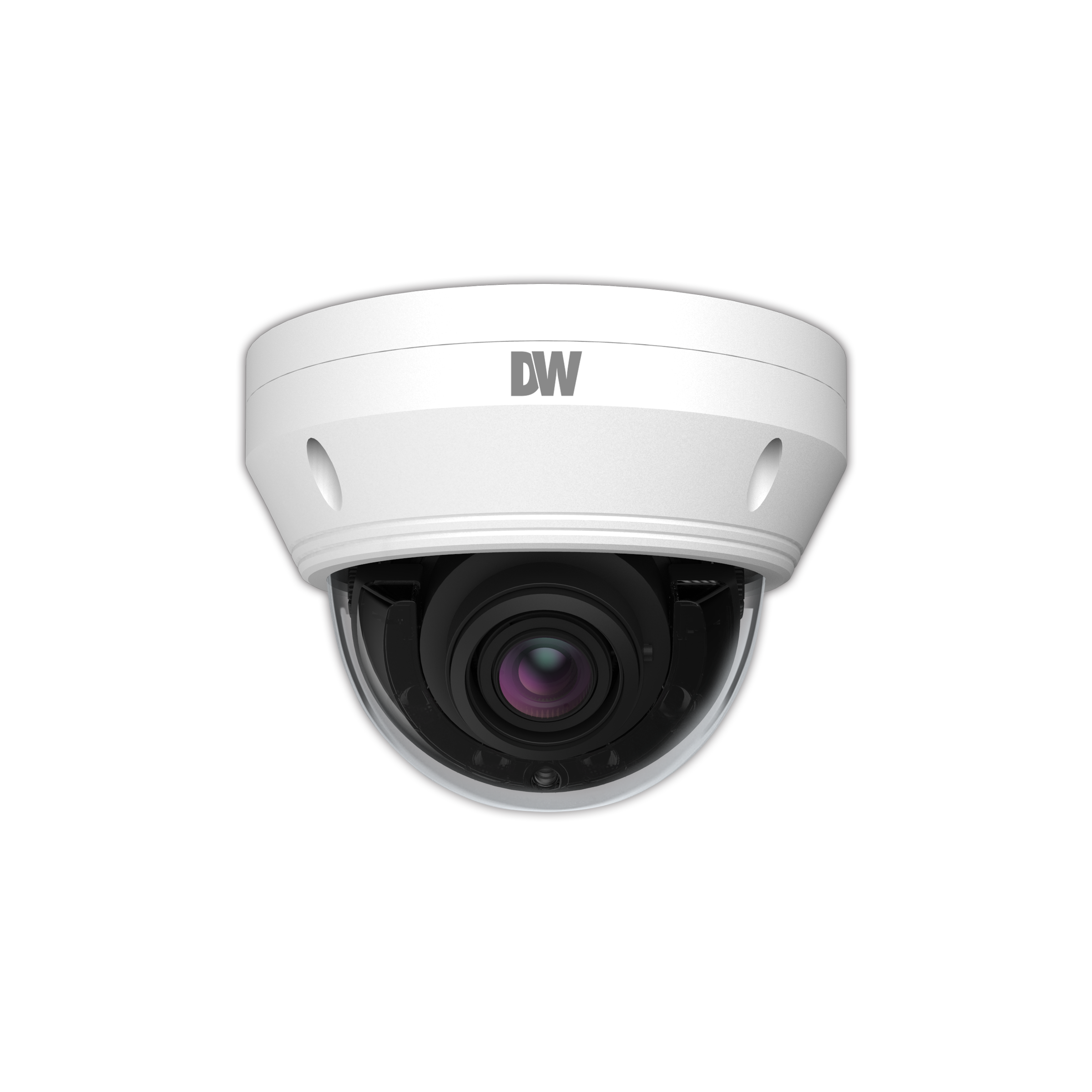

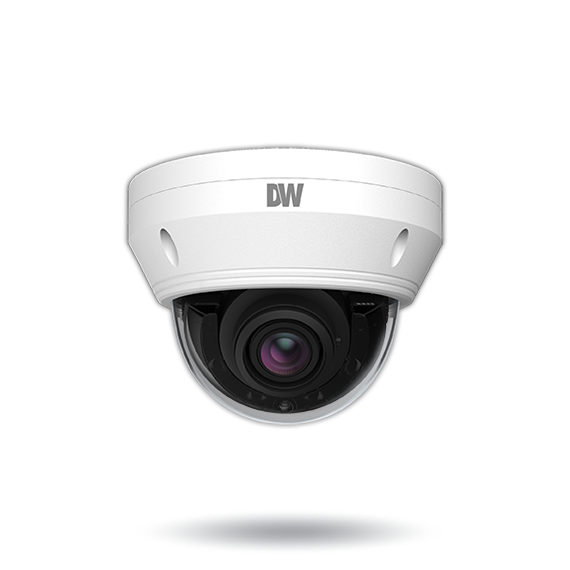

Digital Watchdog - DWC-MV94WiAT - MEGApix 4MP vandal dome IP camera with 2.8~12mm vari-focal lens with remote auto-focus and IR
Part number:
DWC-MV94WiAT
Price:
These MEGApix IP cameras deliver crystal-clear images at 4MP resolution and real-time 30fps. The vandal dome camera features a 2.8~12mm vari-focal lens with motorized zoom in an IP67-rated, IK10 impact-resistant housing. Added intelligence includes line crossing, perimeter intrusion, video tampering detection and object classification. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Features:
- 4MP 1/3” image sensor at real-time 30fps
- 2.8~12mm vari-focal lens with motorized zoom and auto-focus
- True Wide Dynamic Range (WDR)
- Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
- 164ft range Smart IR™
- Object classification video analytics
- Line crossing video analytics
- Perimeter intrusion video analytics
- Video tampering with scene change detection video analytics
- Video tampering with video blur detection video analytics
- Video tampering with abnormal color detection video analytics
- Smart DNR 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- De-Fog extreme weather image compensation
- Auto white balance (AWB)
- Motion detection
- Two-way audio with built-in microphone
- Micro SD class 10 card slot (card not included)
- Alarm sensor input
- Relay output
- Web server built-in
- PoE class 3 and DC12V
- Waterproof cabling
- ONVIF conformant, profile S
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
IMAGE | ||
| Image sensor | 4MP 1/3” CMOS | |
| Total pixels | 2592(H) X 1520(V) | |
| Minimum scene illumination | 0.0038 lux (color) | |
| 0.0 lux (B/W) | ||
| S/N ratio | ≧50dB | |
LENS | ||
| Focal length | 2.8~12mm, F1.4 | |
| Lens type | Vari-focal lens with motorized-zoom and auto-focus | |
| Field of view (FoV) | 94.2° ~ 29.8° | |
| IR distance | 164ft range | |
I/O | ||
| Audio in/out | 1 microphone built-in/1 output | |
| Audio compression | G.711A / U | |
| Alarm in/out | 1/1 | |
OPERATIONAL | ||
| Shutter mode | Auto, manual | |
| Shutter speed | 1/30s ~ 1/100000s | |
| Auto gain control | Auto | |
| Day / night | Auto, day (color), night (B/W), schedule | |
| Smart DNR™ 3D digital noise reduction | 3D DNR | |
| Wide dynamic range (WDR) | True WDR low, middle, high | |
| Wide dynamic range (WDR) dB | 120dB | |
| Privacy zone | 4 programmable privacy masks | |
| Camera analytics | Line crossing, perimeter intrusion, video tampering detection (scene change, video blur, abnormal color detection), object classification (differentiate humans from objects) | |
| Alarm notifications | Notifications via e-mail or FTP server | |
| Memory slot | Micro SD / SDHC / SDXC (card not Included) | |
NETWORK | ||
| LAN | 802.3 compliance 10/100 LAN | |
| Video compression type | H.265. H.264, MJPEG | |
| Resolution | 4MP (2592×1520) at 30fps | |
| Frame rate | Up to 30fps at all resolutions | |
| Video bitrate | 64 Kbps ~ 8 Mbps | |
| Bitrate control | Multi-streaming CBR/VBR at H.264/ H.265 (controllable frame rate and bandwidth) | |
| Streaming capability | Dual-stream at different rates and resolutions | |
| IP | IPv4, IPv6 | |
| Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS | |
| Security | IP filtering, MAC filtering, authentication (ID/PW), SSL/TSL | |
| ONVIF conformance | Yes | |
| Web viewer | OS: Windows® Browser: Internet Explorer | |
| Video management software | DW Spectrum® IPVMS | |
ENVIRONMENTAL | ||
| Operating temperature | -22°F ~ 140°F (-30°C ~ 60°C) | |
| Operating humidity | 10–95% RH (non–condensing) | |
| IP rating | IP67-rated | |
| IK rating | IK10 impact-resistant | |
| Other certifications | CE, FCC, RoHS | |
ELECTRICAL | ||
| Power requirement | DC 12V, PoE IEEE 802.3af Class 3. (Adapter not included) | |
| Power consumption | <8W | |
MECHANICAL | ||
| Material | Metal vandal housing, polycarbonate dome | |
| Dimensions | 5.43" x 3.93" (138 x 100 mm) | |
| Weight | 1.96 lb (0.89 kg) | |
| Warranty | 5 year warranty | |
