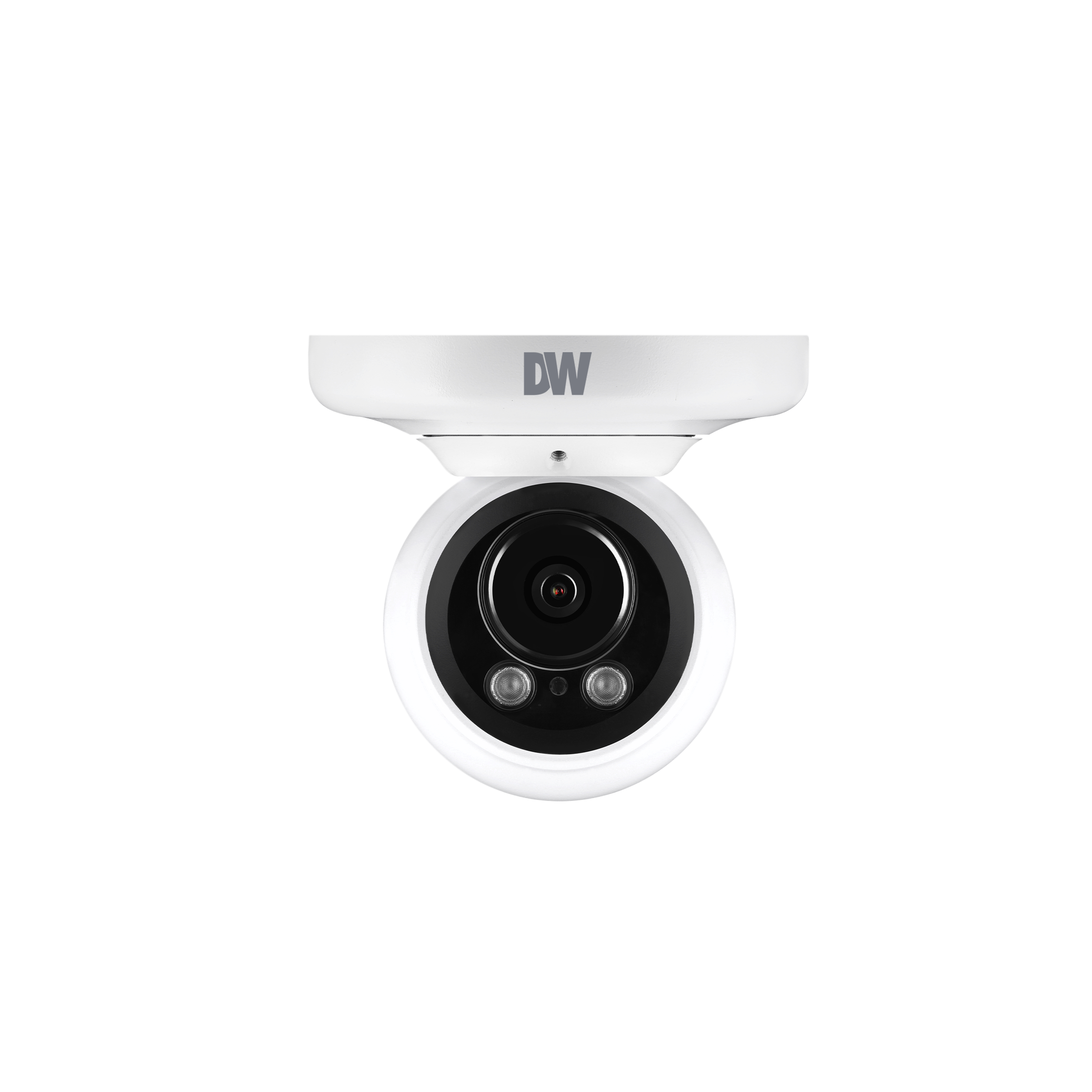

Digital Watchdog - DWC-MVA5Wi28TX - MEGApix IVA Indoor/Outdoor Vandal Turret Camera, 2.8mm Lens
• 5MP Real-Time Video: Captures high-resolution footage at 30 frames per second for smooth, detailed surveillance.
• Star-Light Plus™ Technology: Delivers color video in near-total darkness, enhancing visibility in low-light environments.
• Wide-Angle Fixed Lens - Equipped with a 2.8mm fixed lens, the camera offers a broad field of view for optimal area coverage—perfect for monitoring entrances, hallways, and open spaces without the need for manual zoom or repositioning.
• True Wide Dynamic Range (WDR): 120dB WDR ensures balanced exposure in scenes with both bright and dark areas.
• Smart IR™ Night Vision: Provides up to 100 feet of infrared illumination with intelligent sync for clear black-and-white images.
• Smart DNR™ 3D Noise Reduction: Minimizes image noise and ghosting, especially in low-light motion scenes.
• Privacy Masking Zones - Allows sensitive areas within the camera’s view to be obscured for privacy compliance.
• Triple Codec Support (H.265, H.264, MJPEG): Optimizes bandwidth and storage with simultaneous streaming.
• NDAA Compliance: Offer peace of mind with NDAA compliance for government use.
• Long-Term Value - Backed by a 5-year warranty for peace of mind and reduced total cost of ownership.
| Image | |
|---|---|
| Image sensor | 5MP 1/2.8" CMOS sensor |
| Maximum resolution | 5MP |
| Minimum Scene Illumination in color | 0.0 lux (B/W) 0.13 lux (color) |
| Test Video Output | Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio |
| Total Pixels | 2592 (H) × 1944 (V) |
| Lens | |
| Focal Length | 2.8mm |
| Horizontal Field of View (HFOV) | 103° |
| Illumination Distance | 100' range Smart IR™ |
| Lens Type | Fixed Lens |
| Vertical Field of View (VFOV) | 78° |
| Intelligent Video Analytics | |
| IVA license | Intrusion, line crossing, counting line, loitering, enter, exit, tamper, object removed, tailgating, direction, stopped, appear, disappear, object left, logical rules. |
| Operational | |
| 3D digital noise reduction | Smart DNR™ 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Backlight compensation (BLC) | Yes |
| Day and night | Auto day/night, Day (color), Night (B/W) |
| De-fog | Yes |
| Memory slot | Micro SD/SDHC/SDXC class 10 card (card not included) Up to 1TB micro SD / FAT32 |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Operational Notifications | Alarm output activation, Email, SD card recording |
| Privacy Zones | 16 programmable privacy masks |
| Shutter Mode | Auto, Manual, Slow Shutter |
| Shutter Speed | 1/15 ~ 1/32000 |
| Slow Shutter Speed | Off |
| x15 | |
| x2 | |
| x3 | |
| x4 | |
| x5 | |
| x6 | |
| x7.5 | |
| Wide Dynamic Range (WDR) | True WDR 120dB |
| Network | |
| Bitrate Control | Multi-streaming CBR/VBR at H.265 (controllable frame rate and bandwidth) |
| IP | IPv4 |
| LAN | RJ45 (10/100Base-T) |
| Network resolution | H.264: 3008x3000, 2800x2800, 2048x2048, 1600x1600, 640x640, 320x320 |
| H.265: 3008x3000, 2800x2800, 2048x2048, 1600x1600, 640x640, 320x320 | |
| MJPEG: 1280x720, 800x600, VGA, 768x432, D1, CIF | |
| Network Web Viewer | Google Chrome® browser, Linux® OS, Mac® OS |
| Microsoft Edge® browser, Mozilla Firefox® browser, Safari® browser | |
| Windows OS | |
| Protocol | Bonjour, DDNS, DHCP, DNS, Genetec Protocol, HTTP, HTTPs, IGMP, NTP, RTP, RTP (UDP/TCP), RTSP, SMTP, SNMP, SNMPv1/v2/v3 (MIB-2), TCP, Telnet, uPNP, Zeroconf (AutoIP) |
| Security | 802.1x, HTTPS (TLS), IP filtering, Multi-user authority |
| Stream Speed | Up to 30fps at all resolutions |
| Streaming Capability | Dual-stream at different rates and resolutions |
| Video Bitrate | 100Kbps~10Mbps, multi-rate for preview and recording |
| Video Compression Type | H.264 |
| H.265 | |
| MJPEG | |
| Video Management Software | Any ONVIF conformant CMS |
| DW Spectrum® | |
| ExacqVision Technologies | |
| Genetec Inc. | |
| Milestone Systems | |
| Environmental | |
| Compliance | CE, FCC, NDAA Comp, ONVIF, UL Listing |
| Environmental Operating Humidity | 10-90% (non-condensing) |
| Environmental Operating Temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Mounting Accessories (Required/Optional) | Optional. Sold separately |
| Mechanical | |
| Camera Dimensions (H X W X D) | 4.92" x 4.4" (125 x 112mm) |
| Camera Weight | 1.65 lbs (0.75kg) |
| Housing | Vandal ball turret, Turret |
| Housing Color | White |
| IK rating | IK10 Rated |
| IP rating | Weather Resistant (IP67) |
| Materials | Aluminum die-casting, Polycarbonate Dome |
| Electrical | |
| American wire gauge (AWG) | 40M, Cable type #18 |
| Power Consumption | DC12V: max 6.5W, 541.6mA |
| PoE: max 7.8W | |
| Power Requirements | Adapter not included, PoE |
| General | |
| Warranty | 5 Year Warranty |
The DWC-MVA5Wi28TX MEGApix 5MP IP camera is compact and rugged. This NDAA-compliant turret camera features Star-Light Plus low-light imaging, a 2.8 mm wide-angle lens, True WDR, Smart DNR™ and 100 ft Smart IR™. Supporting H.265/H.264/MJPEG streaming, PoE/DC12V power, 360° rotation and up to 1TB microSD storage, it is ideal for secure indoor/outdoor surveillance.
