Digital Watchdog - DWC-MVT4WiA - 4MP MEGApix Vandal Dome IP Camera with Analytics
Product Overview

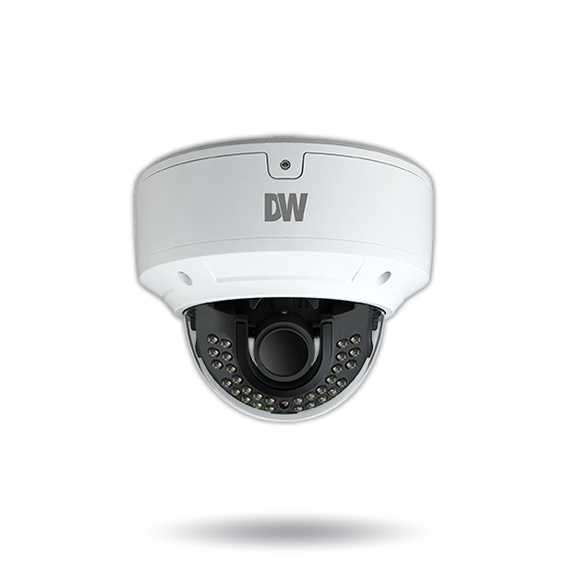

The Digital Watchdog MEGApix® 4MP vandal dome IP camera features a 1/3" CMOS sensor and a 3.3~12mm varifocal remote auto-focus lens. It provides a 4x optical zoom with an 80°–38° FOV and delivers 4MP resolution at 30 fps. The camera supports H.265, H.264, and MJPEG compression for flexible bandwidth management.
Key Configuration
- • Image sensor: 1/3" CMOS; total pixels: 2688 × 1520 (4MP)
- • Lens: 3.3~12mm varifocal remote auto-focus; F1.4; field of view: 80° (wide) to 38° (tele)
- • Optical zoom: 4x; IR distance: 100 ft range
- • Minimum illumination: 0.045 lux color, 0.0 lux B&W; S/N ratio: 50dB
- • Power: DC12V or PoE (IEEE 802.3af Class 2); power consumption: 5W (LED on), 2.5W (LED off)
Key Features
Equipped with True WDR (120dB) and Smart IR with a 100-foot range, this camera excels in high-contrast and low-light scenes. It features integrated video analytics, including line crossing and perimeter intrusion detection. Security is enhanced with two-way audio, an alarm input/relay output, and edge storage via a TF card slot (up to 128GB). It is ONVIF Profile S conformant for seamless integration with DW Spectrum® IPVMS.
Technical Context
The system is ONVIF Profile S compliant, allowing it to integrate seamlessly with DW Spectrum® IPVMS and other third-party management platforms. It operates within a temperature range of -4°F to 122°F and supports various network protocols including TCP/IP, RTSP, and SSL/TLS for secure data transmission. The camera also provides a CVBS video output to assist technicians with local testing and focal adjustments during setup.
Installation Notes
The camera is housed in a rugged IK10-rated and IP66-rated metal vandal dome, ensuring protection against impact and weather. It weighs 2.27 lbs and includes waterproof cabling to simplify outdoor deployment. Designed for versatile power setups, it operates in temperatures from -4°F to 122°F and is backed by a 5-year warranty.
IMAGE | ||
| Image sensor | 4MP 1/3” CMOS | |
| Total pixels | 2688 (H) x 1520 (V) | |
| Minimum scene illumination | 0.045 lux (color) | |
| 0.0 lux (B&W) | ||
| S/N ratio | 50dB | |
| Video output | CVBS video output (BNC × 1) | |
LENS | ||
| Focal length | 3.3~12mm, F1.4 | |
| Lens type | Varifocal remote auto-focus lens | |
| Field of view (FoV) | 80° ~ 38° | |
| IR distance | 100ft range | |
| Optical zoom | 4x optical zoom | |
I/O | ||
| Audio in / out | 1/1 | |
| Audio compression | G.711A / U | |
| Alarm in / out | 1/1 | |
OPERATIONAL | ||
| Shutter mode | Auto, manual | |
| Shutter speed | 1/25s ~ 1/100000s | |
| Auto gain control | Auto | |
| Day / night | Auto, day (color), night (B/W), schedule | |
| Smart DNR™ 3D digital noise reduction | 2D / 3D DNR | |
| Wide dynamic range (WDR) | True WDR low, middle, high | |
| Wide dynamic range (WDR) dB | 120dB | |
| Privacy zone | 4 programmable privacy masks | |
| Camera analytics | Line crossing, perimeter intrusion, video tampering detection (scene change, video blur, abnormal color detection) | |
| Alarm notifications | Notifications via e-mail or FTP server | |
| Memory slot | TF card (card not included, up to 128GB) | |
NETWORK | ||
| LAN | 802.3 compliance 10/100 LAN | |
| Video compression type | H.265. H.264, MJPEG | |
| Resolution | 4MP (2592×1520) at 30fps | |
| Frame rate | Up to 30fps at all resolutions | |
| Video bitrate | 64 Kbps ~ 10 Mbps | |
| Bitrate control | Multi-streaming CBR/VBR at H.264/ H.265 (controllable frame rate and bandwidth) | |
| Streaming capability | Dual-stream at different rates and resolutions | |
| IP | IPv4, IPv6 | |
| Protocol | TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP | |
| Security | IP filtering, MAC filtering, authentication (ID/PW), SSL/TSL | |
| ONVIF conformance | Yes | |
| Web viewer | OS: Windows® Browser: Internet Explorer | |
| Video management software | DW Spectrum® IPVMS | |
ENVIRONMENTAL | ||
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) | |
| Operating humidity | 10–90% RH (non–condensing) | |
| IP rating | IP66 certified weather and tamper resistant | |
| IK rating | IK10 rated impact resistant | |
| Other certifications | CE, FCC, RoHS | |
ELECTRICAL | ||
| Power requirement | DC12V, POE (IEEE 802.3af Class 2). | |
| Power consumption | LED on: 5W LED off: 2.5W | |
MECHANICAL | ||
| Material | Metal vandal housing, polycarbonate dome | |
| Dimensions | 4.48" x 5.9" (114 x 150 mm) | |
| Weight | 2.27 lb (1.030kg) | |
