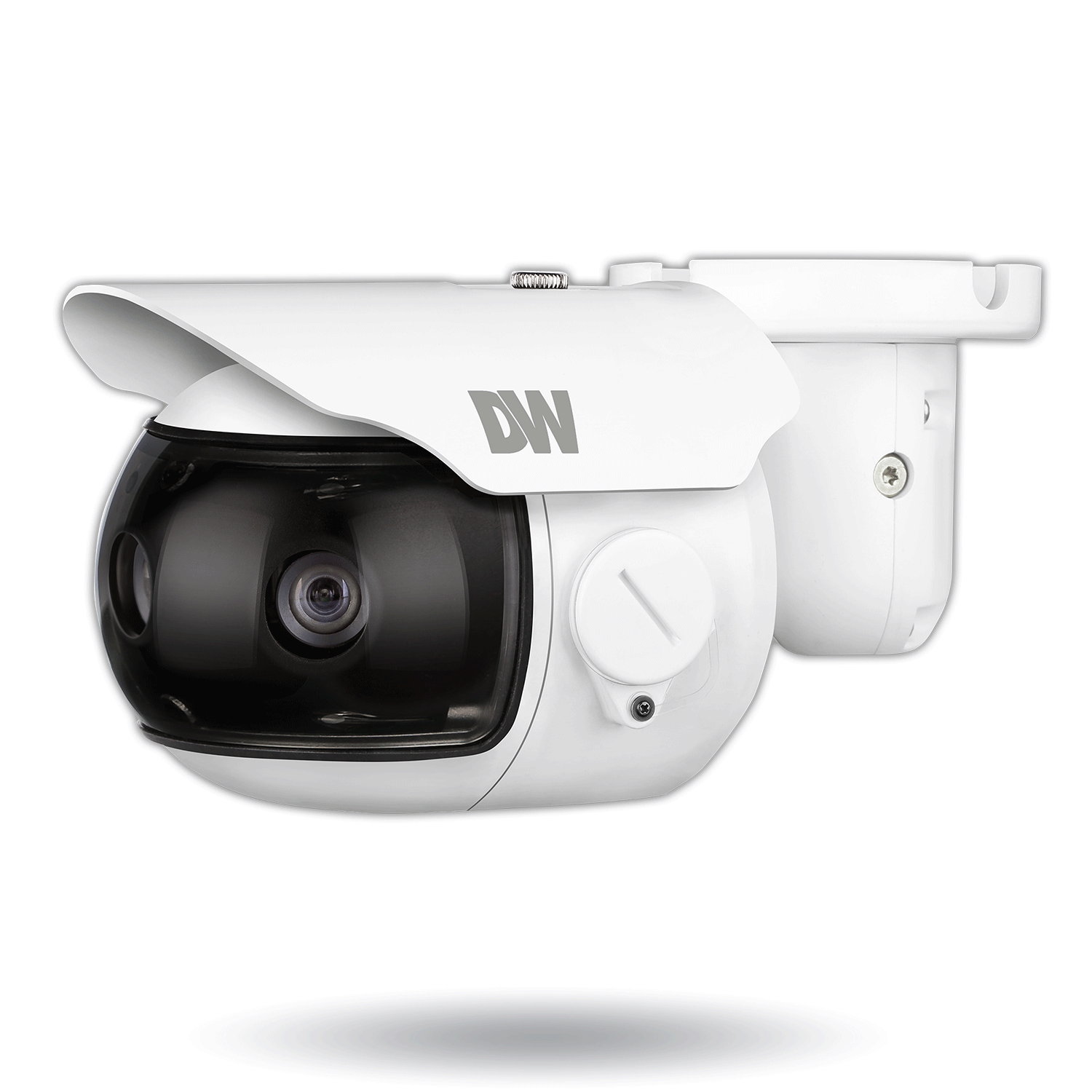

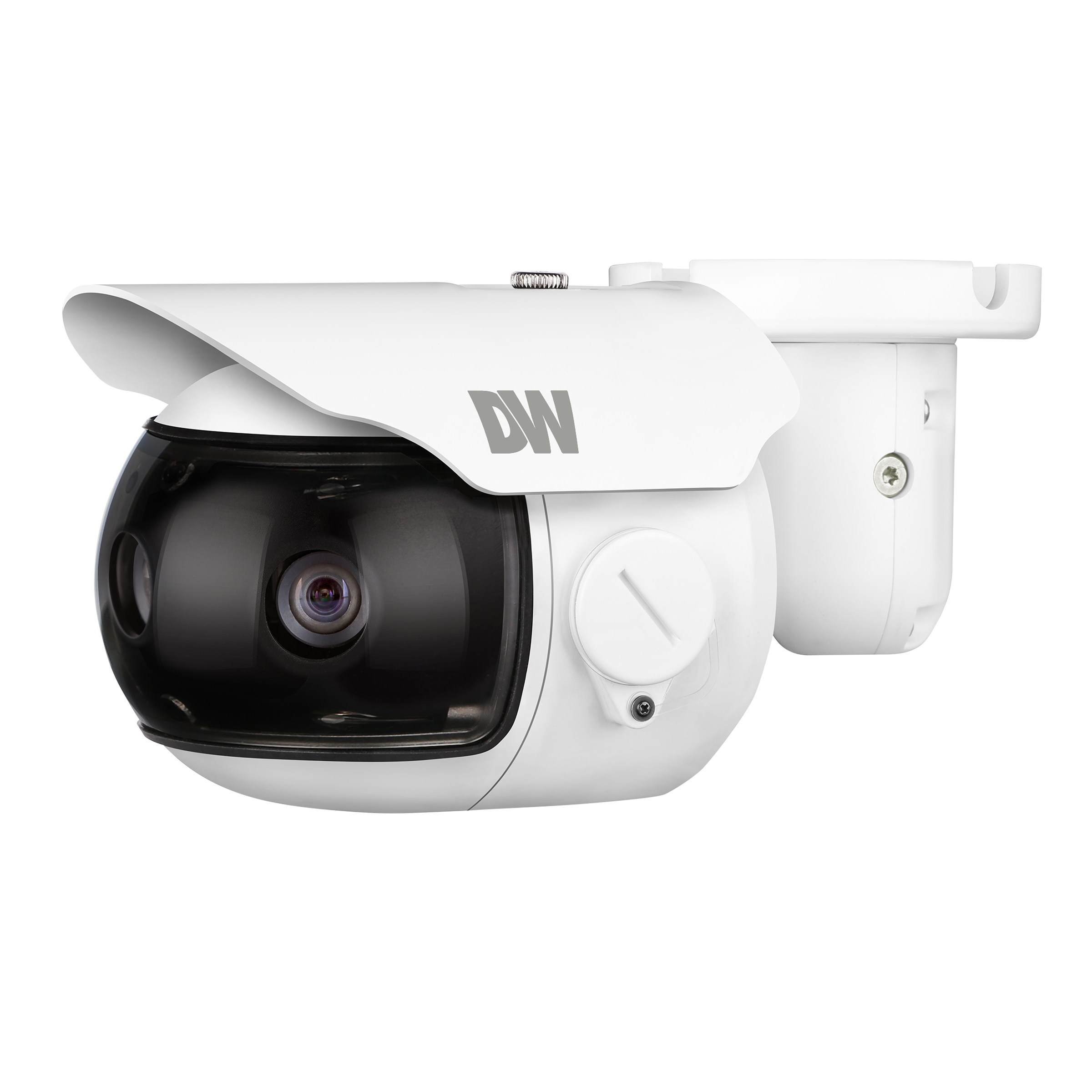

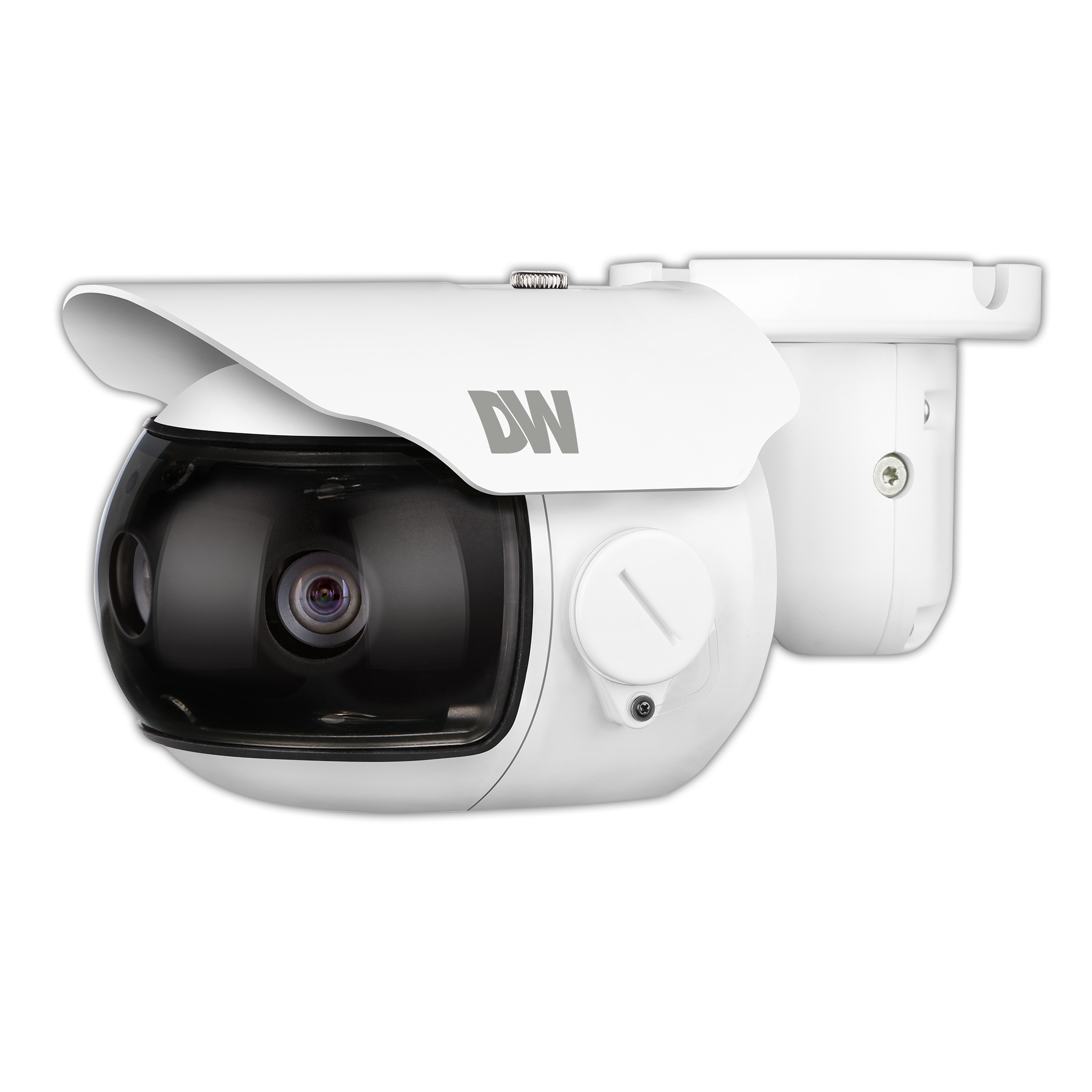

STAR-LIGHT PANO Cameras use three 2MP CMOS sensors and three 4.3mm fixed lenses to produce stunning 180° views at up to 30fps when placed side by side in a CMS. DW AHD cameras are engineered to work with VMAX A1 All-in-One DVRs that record 1080p AHD, TVI and all analog to 960H. AHD provides an easy system upgrade to high definition video.
Features:
- Analog HD over Coax technology with HD-Analog signal support
- Star-Light™ super low light technology
- 3x 2.1MP/1080p 1/3" image sensor at real-time 30fps
- 6MP 180° panoramic camera
- 3x 4.3mm fixed lenses
- True wide dynamic range (WDR)
- OSD control via coaxial (UTC)
- Smart DNR 3D digital noise reduction
- True day/night mechanical IR cut filter
- De-Fog extreme weather image compensation
- Highlight masking exposure (HME)
- Auto sensing 24VAC/12VDC with line lock
- Easy icon driven OSD menu with built-in joystick
- Programmable Privacy Zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- IP66 environmental-rated dust-tight and water-resistant
- 5 year warranty
IMAGE | |
| Image sensor | 3x 2.1MP 1/3” CMOS |
| Active pixels | 3X 1944 (H) x 1092 (V) |
| Scanning system | Progressive scan |
| Frequency | 60Hz / 50Hz |
| Signal technology | HD over Coax® technology with HD-Analog and all analog to 960H signal support |
| Synchronization | Internal |
| Resolution | 6 megapixel (3x 1920x1080 Sensors) |
| Minimum scene illumination | 0.06 lux (Color) |
| 0.01 lux (B&W) | |
| S/N ratio | 55dB |
| Video output | HD-Analog 6MP (3x 1080p at 30fps + 4ch / 180° panoramic view) |
| Alarm output | 3 alarm outputs |
LENS | |
| Focal length | 4.3mm |
| Lens type | Fixed lens |
OPERATIONAL | |
| Operational | x3 (below specs per sensor) |
| Shutter speed | 1/30-1/30,000 |
| Backlight | On, off |
| Star-Light (sense-up) | Off, x2 – x32 |
| Wide dynamic range (WDR) | True WDR, On, Off |
| Wide Dynamic Range (WDR) dB | 100dB |
| Digital noise reduction (DNR) | Off, low, middle, high |
| White balance | Auto / auto-ex / preset / manual |
| Day / night | Auto, day (color), night (B/W) |
| Mirror / flip | Yes |
| Auto gain control | Max 60dB |
| Motion detection | 3 zones per camera, total 12 motion zones |
| Privacy zones | 16 privacy zones per camera, total 72 privacy zones |
| Sharpness | 0 ~ 10 |
| Gamma | 0.5 |
| RS485 / UTP built-in | Pelco D / A-PC |
ENVIRONMENTAL | |
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Operating humidity | 10–90% RH (non–condensing) |
| IP rating | IP66 certified weather and tamper resistant |
| Other certifications | FCC, CE, ROHS |
ELECTRICAL | |
| Power requirement | DC12V/AC24V dual voltage |
| Power consumption | DC12V: 8.5W, 708mA |
| AC24V: 8.5W, 354mA | |
MECHANICAL | |
| Material | Aluminum bullet housing |
| Dimensions | 9.9" x 3.58" (252 x 91 mm) |
| Weight | 2.2 lbs (1.0 kg) |
