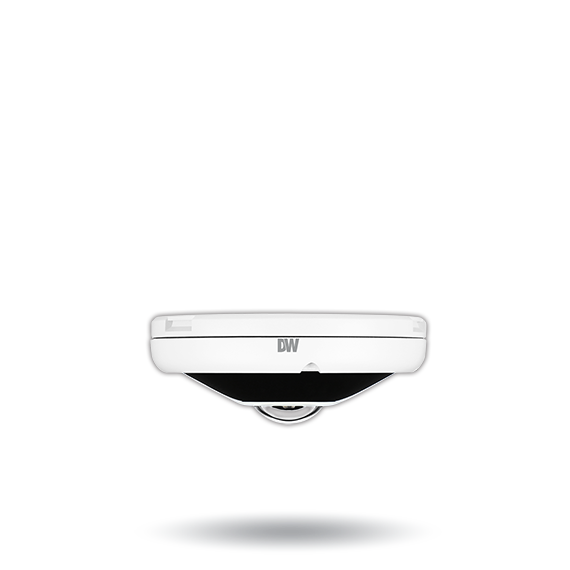

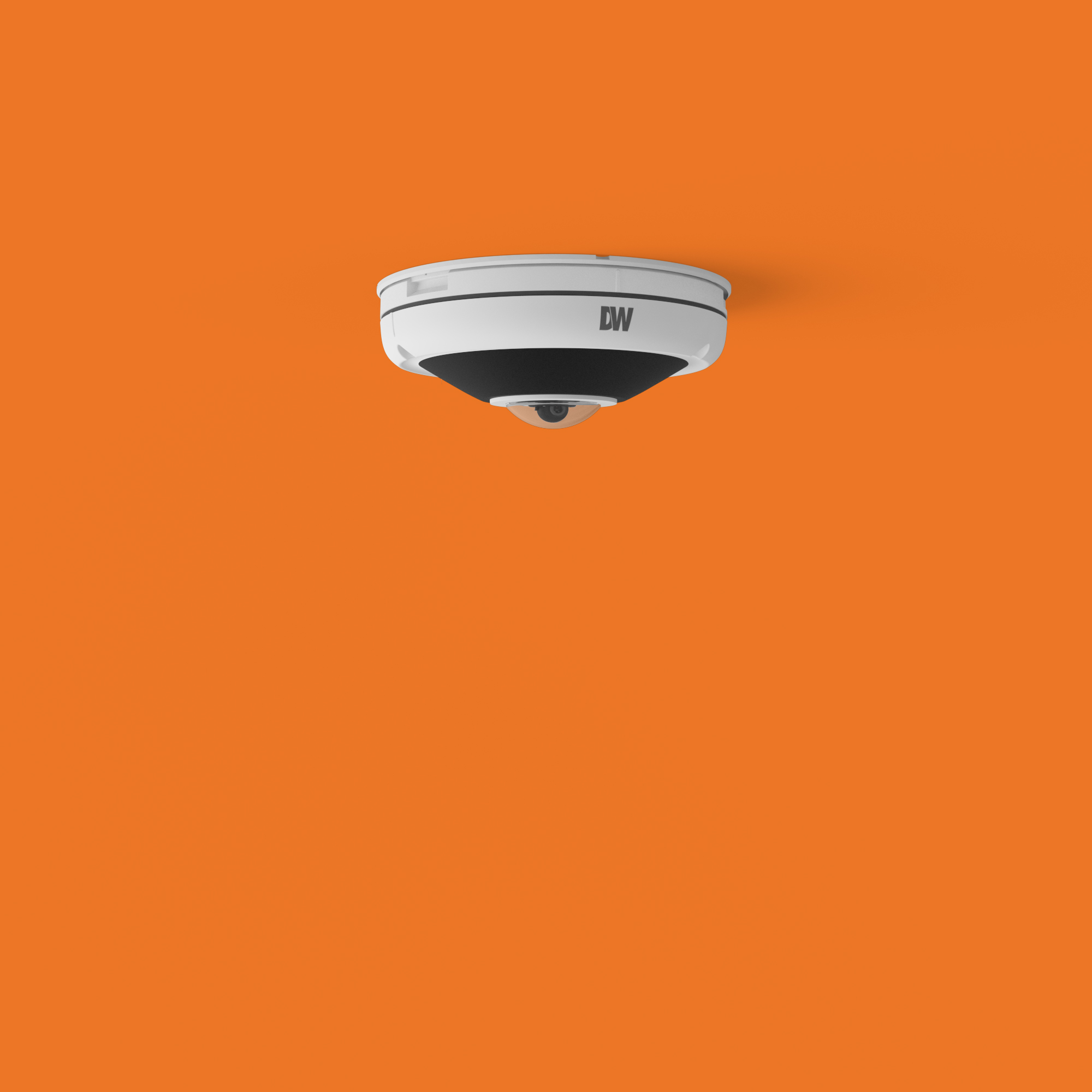

Digital Watchdog - DWC-PPVF9Di2TW - MEGApix 9MP fisheye IP camera with fisheye lens and IR with IVA+ license
Part number:
DWC-PPVF9Di2TW
Price:
Complete situational awareness with a single camera
Fisheye cameras can cover complete room monitoring with situational awareness and a 360 hemispheric image that can be dewarped with minimal loss of pixels. The result is a more efficient way to monitor indoor spaces with one solution replacing multiple cameras.
360° hemispheric and panoramic fisheye views at real-time 30fps
360° fisheye view IP cameras MEGApix Pano 360° view fisheye cameras with IR monitor an entire room with a single camera, providing the ultimate ROI.
Star-Light Plus color in darkness technology
Star-Light Plus color in near-total darkness technology provides crisp, clear images in the absence of ambient light.
IVA Analytics
MEGApix IVA cameras include a base package of Intelligent Video Analytics detection capabilities already activated on the camera and ready for deployment.
IVA+ Analytics
The MEGApix IVA+ package offers advanced rules to the IVA Video Content Analysis detection capabilities.
Megapixel resolution
DW’s technology delivers crystal clear images in any resolution. Higher-resolution offers forensic details with zooming into the camera’s field of view.
Features
- 9MP sensor at real-time 30fps
- Star-Light Plus color in near-total darkness technology
- Intelligent Video Analytics (IVA) with extended features (IVA+)
- Seamless integration and control of IVA rules with DW Spectrum IPVMS
- Reduce false alarms
- Increase your recording storage with logic rules and smart recording
- 2.1mm fisheye lens with 360° hemispheric view
- Support 360° hemispheric fisheye view and 360°, 180° and 90° panoramic view
- Edge-to-edge image clarity with no pixel loss
- Easy dewarping with DW Spectrum IPVMS and C3 CMS
- Simultaneous streaming and multiple codec options for smart bandwidth management
- 360° 80' Smart IR with intelligent camera sync for clear B/W images with no need for external light
- Smart DNR 3D digital noise reduction reduces noise and ghosting for motion in low-light environments.
- Two-way audio for direct communication between the monitoring station and the camera's location
- Local SD card slot for local recording in case of network loss
- Alarm sensor input and relay output for access control integration
- Web server built-in for easy camera management from any browser
- PoE and DC12V for single cable simplified installation
- NDAA/TAA compliant for federal and government projects
- IP66- and IK9-rated camera housing built to last
- 5 year warranty
| Image | |
|---|---|
| Active Pixels | 3008 (H) X 3000 (V) |
| Image sensor | 12.4MP 1/1.7” CMOS |
| Maximum resolution | 9MP |
| Minimum Scene Illumination in color | 0.0 lux (B/W), 0.03 lux (color) |
| Total Pixels | 3096 (H) X 2080 (V) |
| Lens | |
| Focal Length | 2.1mm |
| Horizontal Field of View (HFOV) | 185° |
| IR Distance | 80' range Smart IR |
| Lens Type | Fixed Lens |
| Vertical Field of View (VFOV) | 185° |
| I/O | |
| Audio compression | G.711 |
| I/O Alarm in/out | 1 input, 1 output |
| I/O Audio in/out | 1 input (1.0Vms, 3K ohm) |
| Intelligent Video Analytics | |
| IVA license | Intrusion, line crossing, counting line, loitering, enter, exit, tamper |
| IVA+ license | Logical rules, object removed, tailgating, direction, stopped, appear, disappear, object left |
| Operational | |
| 3D digital noise reduction | Smart DNR 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Backlight compensation (BLC) | Yes |
| Day and night | Auto day/night, Day (color), Night (B/W) |
| De-fog | Yes |
| Memory slot | Micro SD/SDHC/SDXC class 10 card (card not included), Up to 1TB micro SD / FAT32 |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Operational Notifications | Alarm output activation, Email, FTP server, SD card recording |
| Privacy Zones | 16 programmable privacy masks |
| Shutter Mode | Anti-Flicker, Auto, Manual, Slow Shutter |
| Shutter Speed | 1/15 ~ 1/32000 |
| Slow Shutter Speed | Off, x10, x2, x3, x5, x6, x7.5 |
| White Balance | Yes |
| Network | |
| Bitrate Control | Multi-streaming CBR/VBR at H.265 (controllable frame rate and bandwidth) |
| IP | IPv4 |
| LAN | RJ45 (10/100Base-T) |
| Network resolution | H.264: 3008x3000, 2800x2800, 2048x2048, 1600x1600, 640x640, 320x320, H.265: 3008x3000, 2800x2800, 2048x2048, 1600x1600, 640x640, 320x320, MJPEG: 1280x1280, 640x640, 320x320 |
| Network Web Viewer | Google Chrome browser, Linux OS, Mac OS, Microsoft Edge browser, Mozilla Firefox browser, Safari browser, Windows OS |
| Protocol | Bonjour, DDNS, DHCP, DNS, Genetec Protocol, HTTP, HTTPs, IGMP, NTP, RTP, RTP (UDP/TCP), RTSP, SNMP, SNMPv1/v2/v3 (MIB-2), TCP, Telnet, UPnP, Zeroconf (AutoIP) |
| Security | 802.1x, HTTPS (TLS), MAC filtering, Multi-user authority |
| Stream Speed | Up to 30fps at all resolutions |
| Streaming Capability | Dual-stream at different rates and resolutions |
| Video Bitrate | 100Kbps~10Mbps, multi-rate for preview and recording |
| Video Compression Type | H.264, H.265, MJPEG |
| Video Management Software | DW Spectrum IPVMS, ExacqVision Technologies, Genetec Inc., Milestone Systems |
| Environmental | |
| Environmental Operating Humidity | 10-90% (non-condensing) |
| Environmental Operating Temperature | -4°F ~ 122°F (-20°C ~ 50°C) |

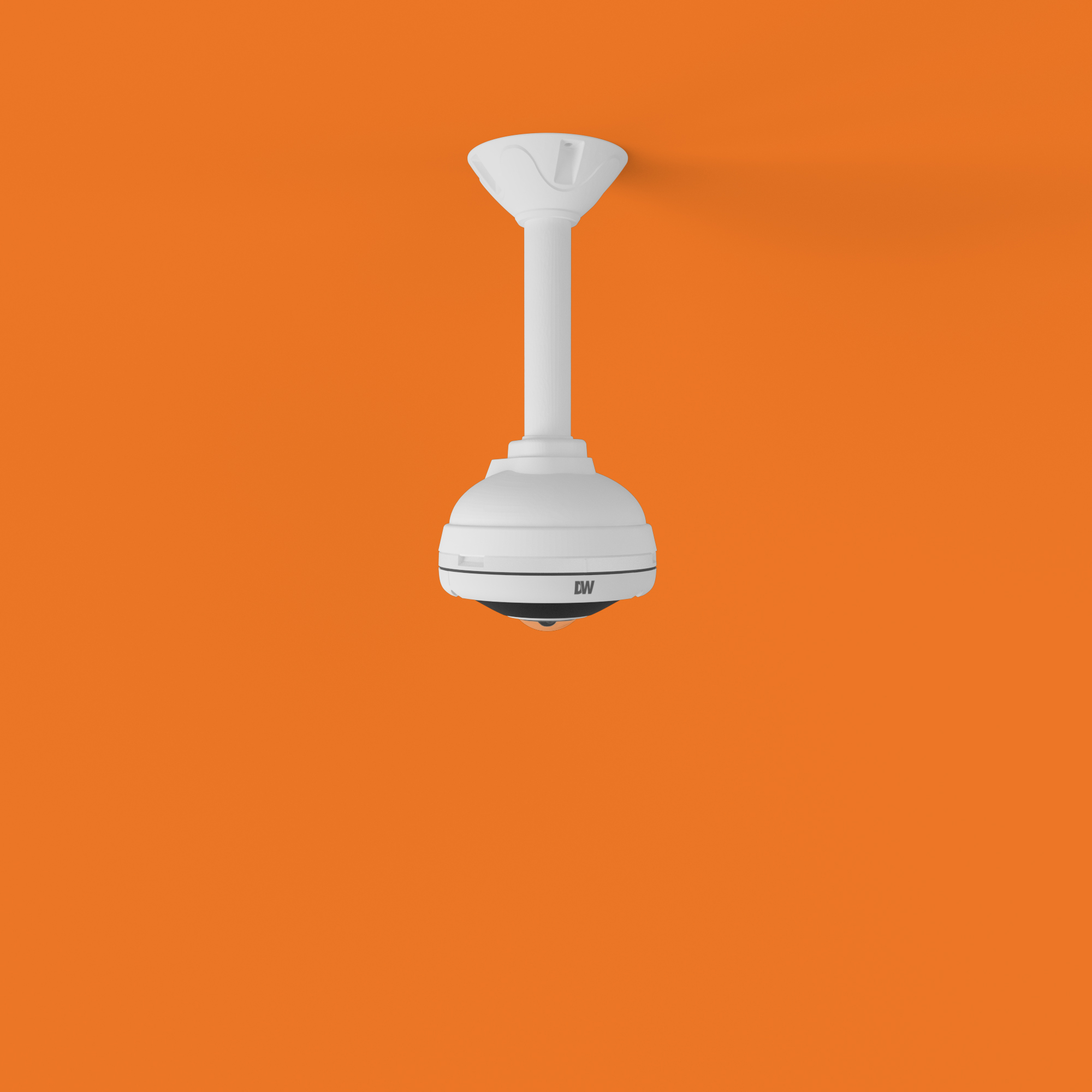

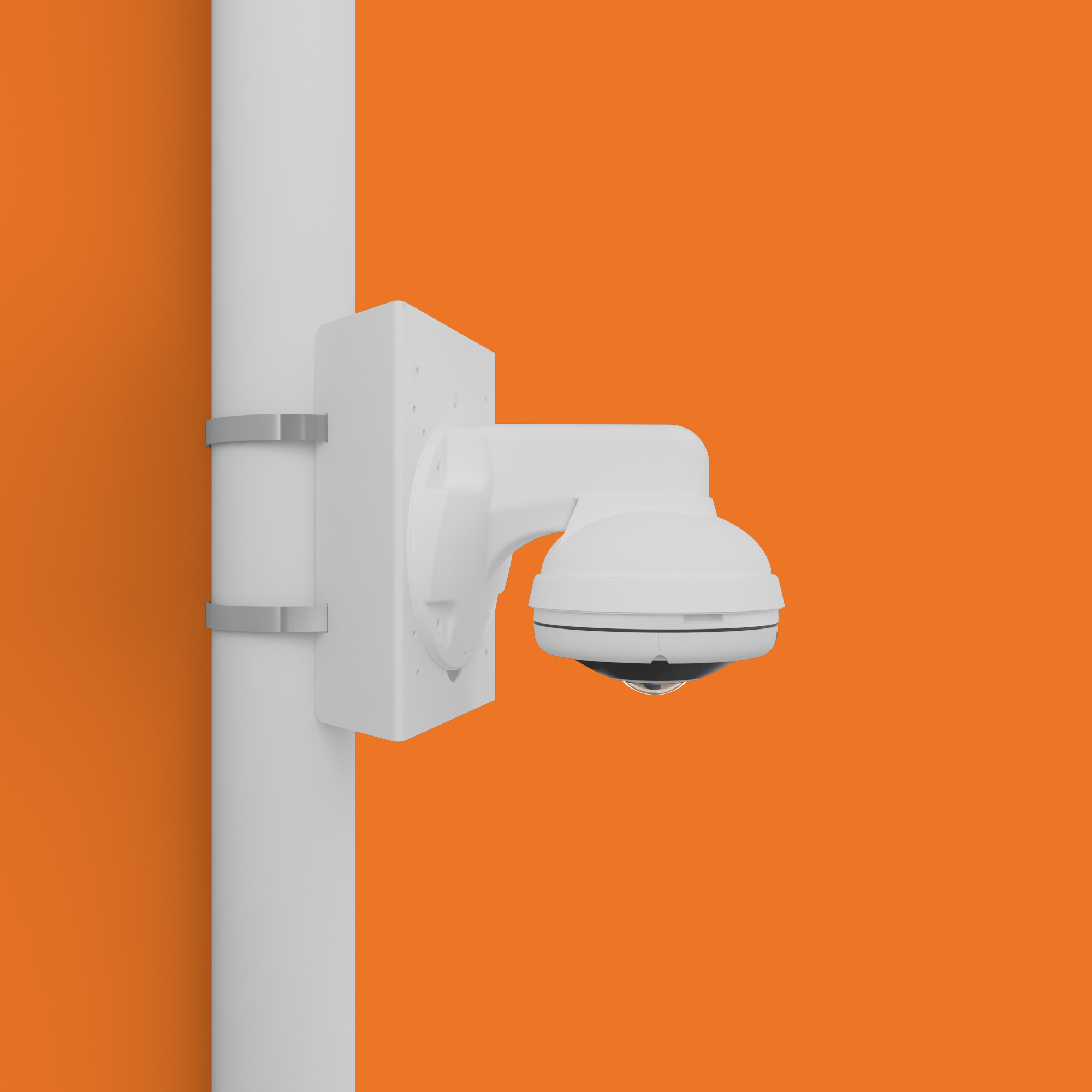

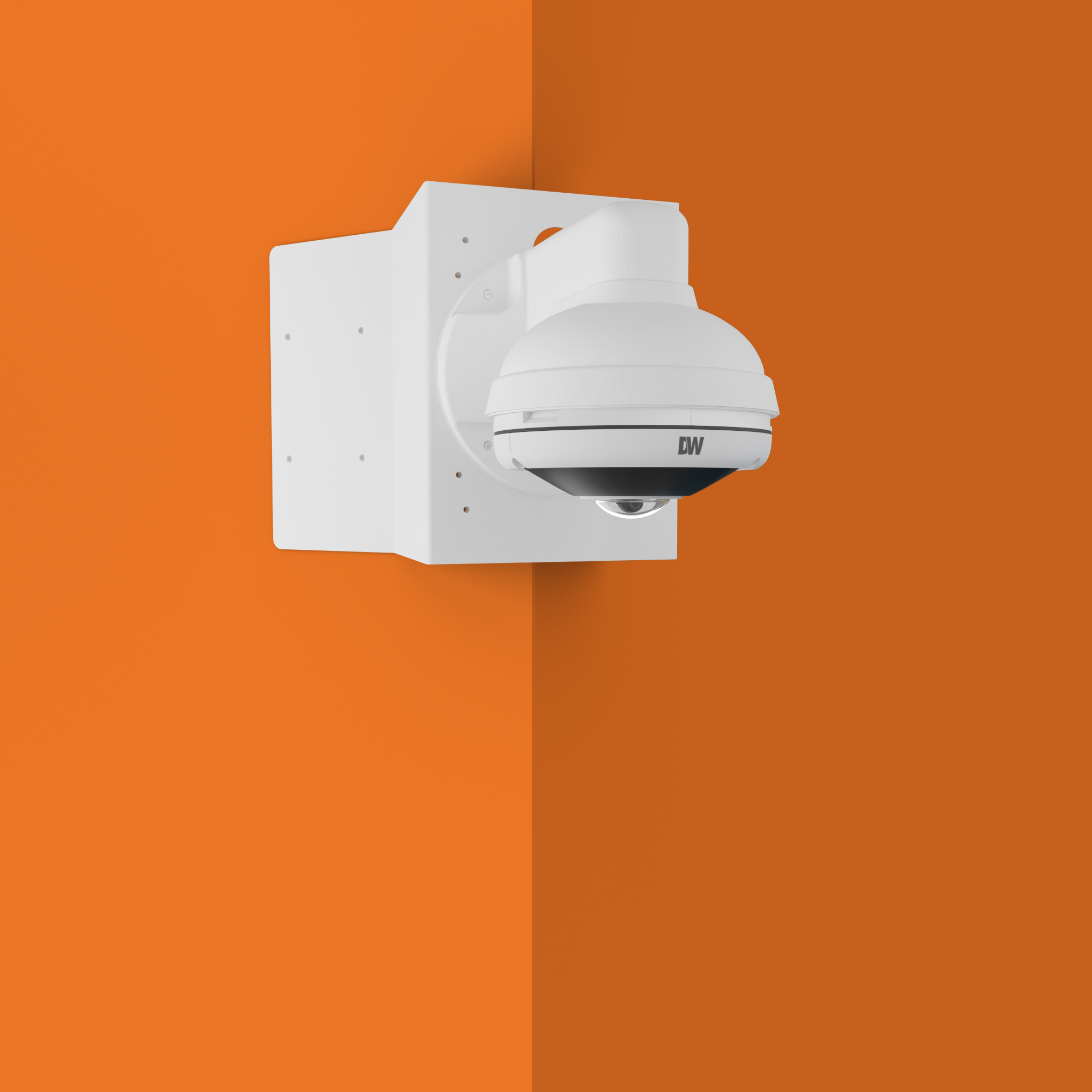

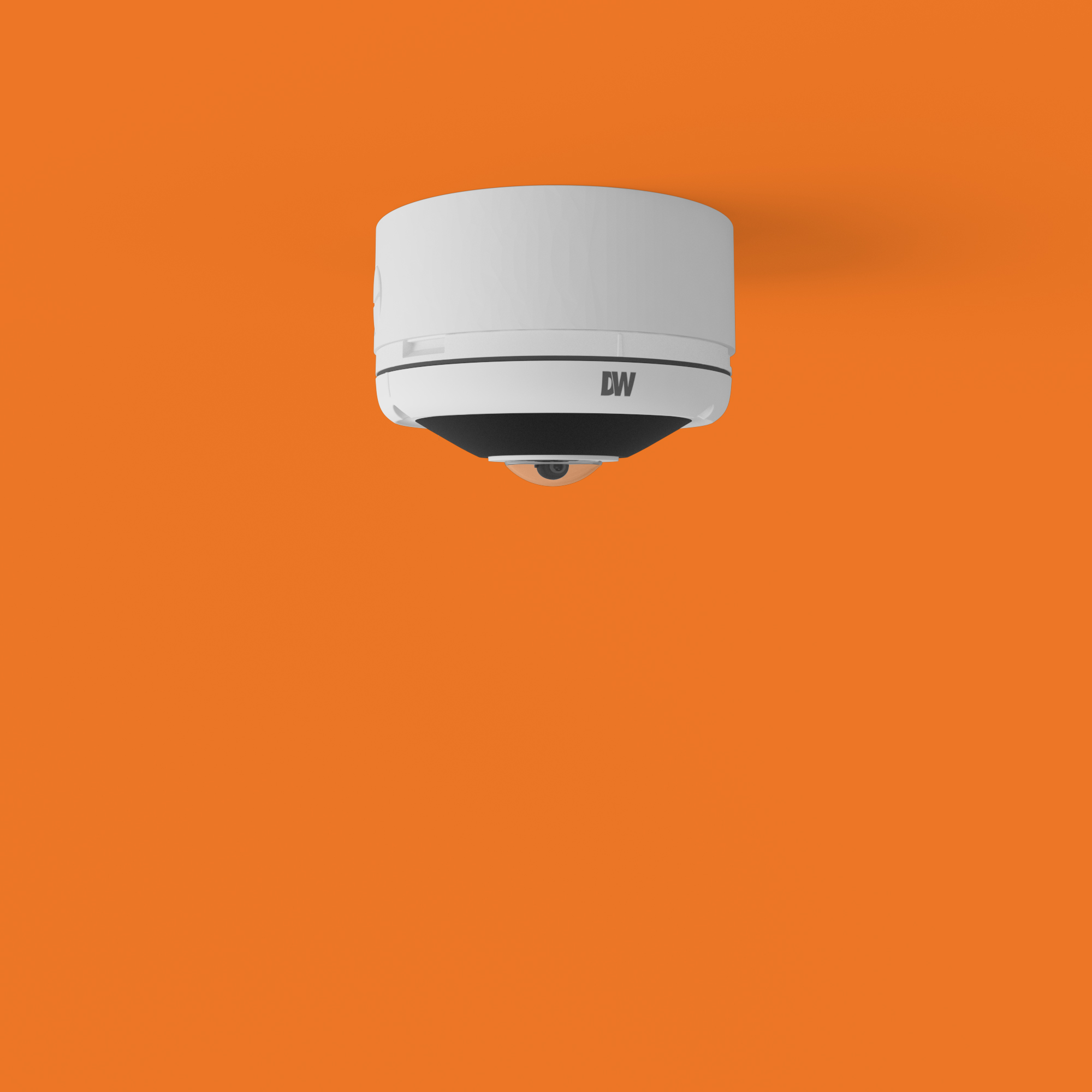

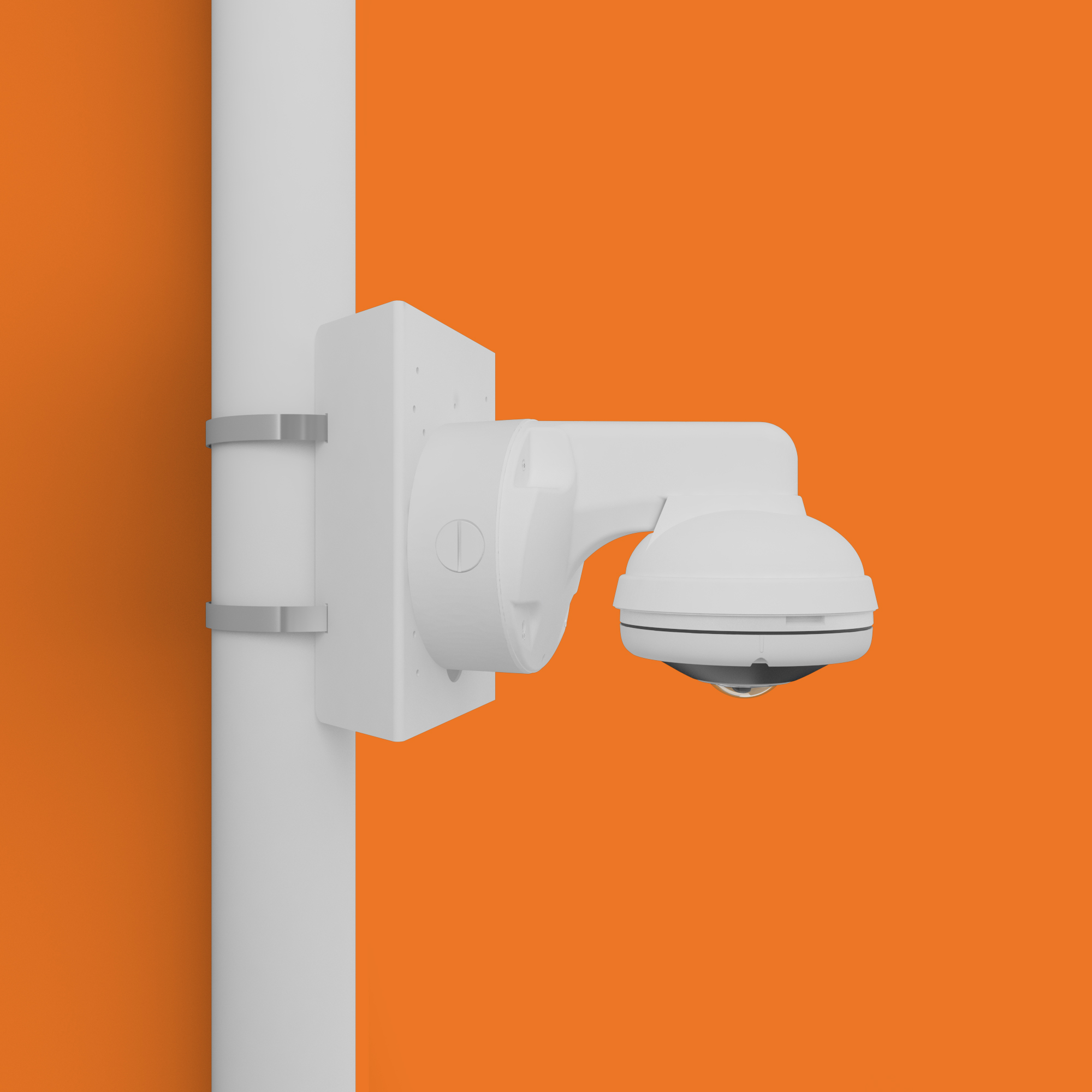

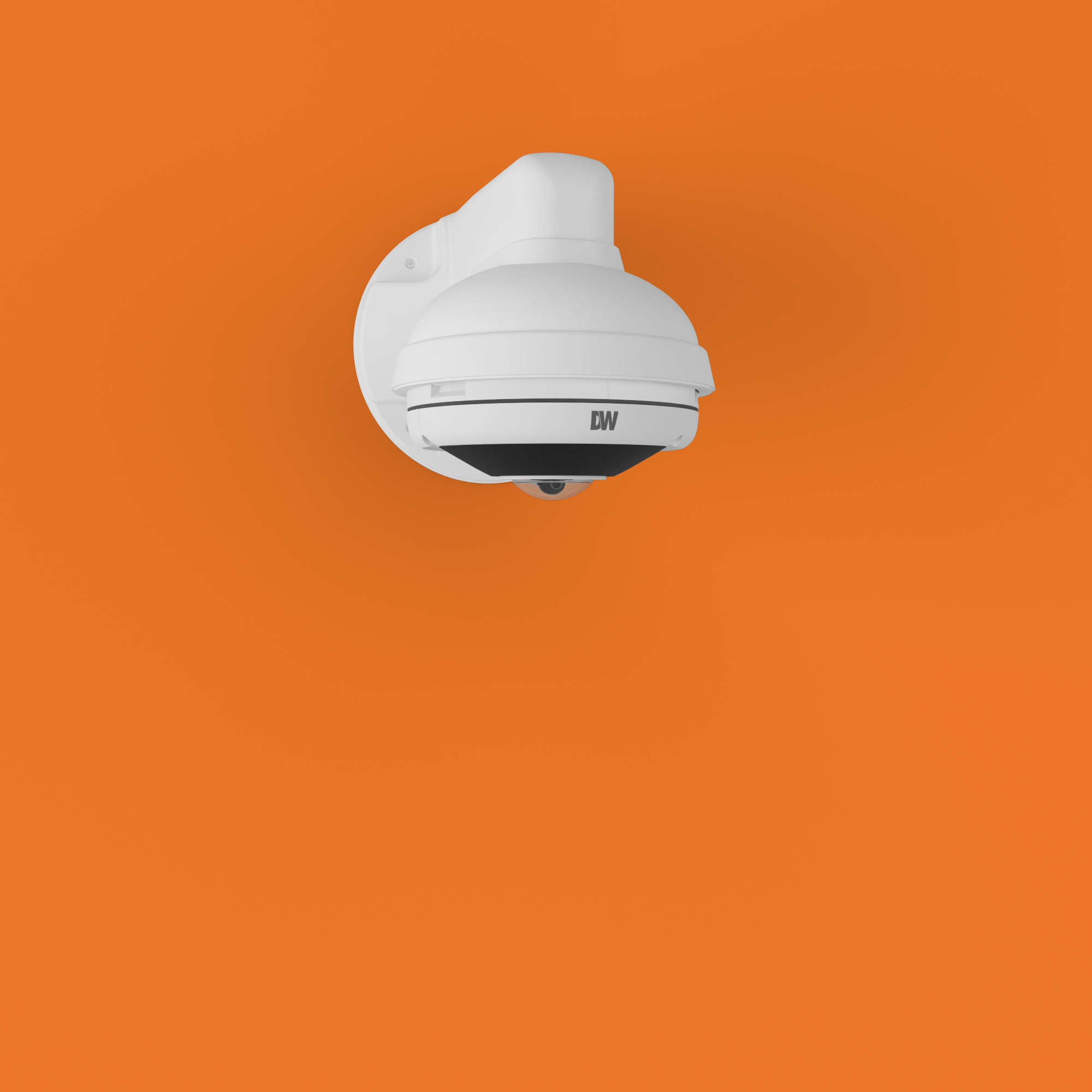

| Mounting Accessories (Required/Optional) | Optional. Sold separately |
| Mechanical | |
| Camera Dimensions (H X W X D) | 4.92" x 1.88” (125 x 48 mm) |
| Camera Weight | 1.10 lbs (0.5kg) |
| Housing | Fisheye |
| Housing Color | White |
| IK rating | IK09 Rated |
| IP rating | Weather Resistant (IP66) |
| Materials | Aluminum die-casting |
| Electrical | |
| American wire gauge (AWG) | Cable type #18 |
| Power Consumption | DC12V: max 8.5W, 708.3mA, PoE: max 10.0W |
| Power Requirements | Adapter not included, PoE |
| General | |
| Warranty | 5 Year Warranty |
