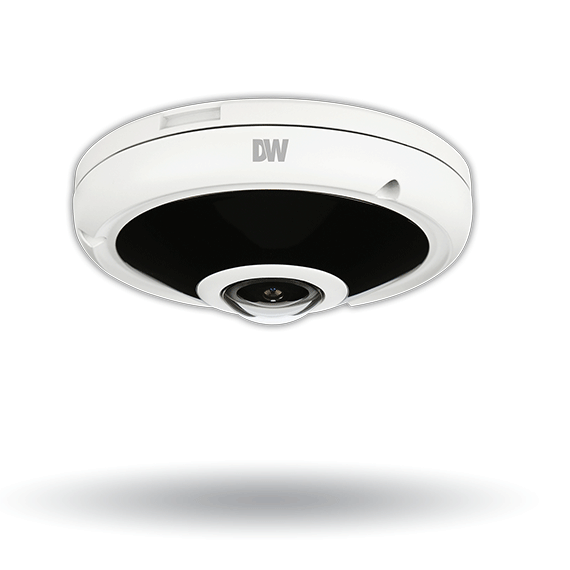

Digital Watchdog - DWC-PVF5M1TIRC2 - 5MP Vandal Fisheye Edge IP Camera
Product Overview
The DWC-PVF5M1TIRC2 is an all-in-one 5MP 360° fisheye camera featuring DW Spectrum® IPVMS pre-loaded. It includes 256GB of local storage (30-day retention) and functions as its own NVR. With an IP66-rated housing and 55ft Smart IR™, it supports systems of up to 30 CaaS cameras with optional dual recording to a Blackjack® NAS.
Key Configuration
- • Image sensor: 6.4MP 1/1.8" CMOS; total pixels: 3096 × 2080; resolution: 2592×1944 (5MP) at 30 fps
- • Lens: 1.55mm fixed fisheye, F2.5; field of view: 360°
- • IR distance: Smart IR up to 55 ft (16.8 m); minimum illumination: 0.39 lux color, 0 lux B/W
- • Built-in storage: 256GB local memory for recording (up to 30 days retained video)
- • Power: PoE (IEEE 802.3af Class 3) or DC12V; power consumption: 6.5W (LED on), 3.6W (LED off)
Key Features
All-in-one 5MP 360° camera pre-loaded with DW Spectrum® IPVMS. It offers multiple panoramic views, 256GB of edge storage, and supports systems up to 30 CaaS cameras with optional Blackjack® NAS dual recording. NDAA/TAA compliant and ONVIF Profile S conformant, it features Smart DNR™, privacy masking, and automatic out-of-the-box licensing.
Technical Context
The features include versatile shutter modes (up to 1/32,000s) and robust protocol support, including HTTPS (TLS) and 802.1x security. Built with an aluminum vandal housing and polycarbonate dome, it operates from -4°F to 122°F. This CE, FCC, and RoHS-certified camera ensures secure, reliable performance in demanding environments.
Installation Notes
Dimensions: 4.9" × 1.88" (125 × 48 mm); weight: 1.1 lbs (0.5 kg). Protection ratings: IP66 weather and tamper-resistant. Waterproof cabling included. Power adaptor not included. 5-year warranty.
IMAGE | |
| Image sensor | 6.4MP 1/1.8” CMOS |
| Total pixels | 3096 (H) X 2080 (V) |
| Minimum scene illumination | 0.39 lux (color) |
| 0 lux (B/W) | |
| Video output | Local video output CVBS 1.0V p-p (75 ?), 4:3 aspect ratio |
| Resolution | 5MP (2592x1944) |
LENS | |
| Focal length | 1.55mm, F2.5 |
| Lens type | Fisheye lens |
| Field of view (FoV) | 360° |
| IR distance | 55ft range |
OPERATIONAL | |
| Shutter mode | Auto, manual, anti-flicker, slow shutter |
| Shutter speed | 1/30~1/32000 |
| Slow shutter | 1~1/5,1/7.5, 1/10 |
| Auto gain control | Auto |
| Day / night | Auto, day (color), night (B/W) |
| Smart DNR™ 3D digital noise reduction | 0~11 |
| Privacy zone | 4 programmable privacy masks |
| Alarm notifications | Notifications via e-mail, FTP server or SD card recording (card not included) |
NETWORK | |
| LAN | 10/100 based-T, RJ-45 connector |
| Video compression type | H.264, MJPEG |
| Resolution | 2592 X 1944 @ 30fps 640X480 @ 30fps 320X240 @ 30fps |
| Frame rate | Up to 30fps at all resolutions |
| Video bitrate | 100Kbps ~ 10Mbps, multi-rate for preview and recording |
| Bitrate control | Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth) |
| Streaming capability | Dual-stream at different rates and resolutions |
| IP | IPv4 |
| Protocol | Zero config(Auto IP), ONVIF, TCP/IP, UDP, RTP(UDP/TCP), RTSP, NTP, HTTP,HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3(MIB-2) |
| Security | HTTPS(TLS), IP filtering, 802.1x, digest authentication(ID/PW) |
| ONVIF conformance | Yes |
| Web viewer | OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari® |
| Video management software | DW Spectrum® IPVMS |
| Number of DW Spectrum® CaaS™ licenses included | 1 DW Spectrum® CaaS™ license included |
| Local server recording | DWC-PVF5M1TIRC2: 256GB local memory for recording DWC-PVF5M1TIRC1: 128GB local memory for recording DWC-PVF5M1TIRC6: 64GB local memory for recording |
| Max. number of CaaS™ cameras in the same network/system | Up to 30 MEGApix® CaaS™ cameras in the same network/system |
ENVIRONMENTAL | |
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Operating humidity | Less than 90% (Non-Condensing) |
| IP rating | IP66-rated weather and tamper-resistant |
| Other certifications | CE, FCC, RoHS |
ELECTRICAL | |
| Power requirement | DC12V, POE IEEE 802.3af class 3 (adaptor not Included) |
| Power consumption | LED On: 6.5W LED Off: 3.6W |
MECHANICAL | |
| Material | Aluminum vandal housing, polycarbonate dome |
| Dimensions | 4.9" x 1.88” (125 x 48mm) |
| Weight | 1.1 lbs (0.5kg) |
