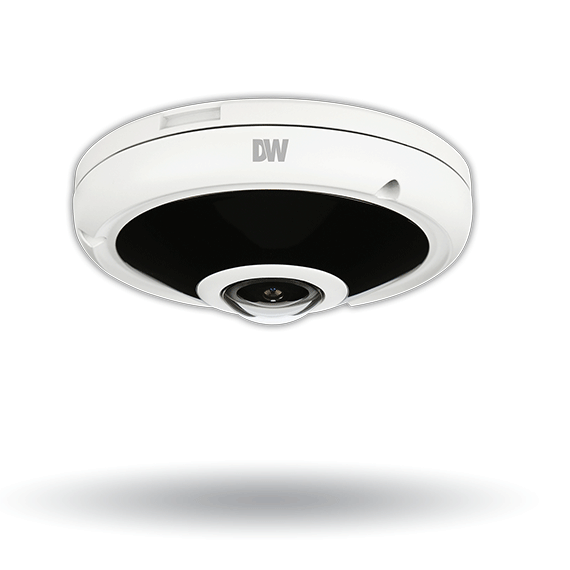

Digital Watchdog - DWC-PVF5M1TIRC6 - MEGApix CaaS all-in-one 5MP vandal fisheye IP camera with 1.5mm fisheye lens and IR
Part number:
DWC-PVF5M1TIRC6
Price:
MEGApix CaaS Pano 5 Megapixel 360-degree Hemispheric Fisheye Indoor/Outdoor Vandal Dome, 360 and 180-degree Panoramic view with Edge to Edge Clarity, 1/1.8 Image Sensor, 30fps @ 2592x1944, 1.55mm fixed lens, Multi Codecs (H.265, H.264, MJPEG) with Simultaneous Dual Streams, 55ft Smart IR, True Day/Night with Mechanical IR Cut Filter, Smart DNR 3D Digital Noise Reduction, Auto Gain Control (AGC), Auto White Balance (AWB), Motion Detection, Micro SD/SDHC Class 10 Card Slot (card not included), Web Server Bullet In, OnVIF Profile S, POE and DC12V, 5 Year Warranty. Note:DW Spectrum IPVMS pre loaded. Connect up to 30 CaaS cameras simultaneously in a single system. Built in 64GB memory for local recording. Dual recording option with Blackjack NAS.
Features:
- All-in-one cameras, no server required
- 5MP 1/1.8" image sensor at real-time 30fps
- 1.5mm fisheye lens
- Built-in 256/128/64GB storage options for up to 30 days retained video
- Support 360° hemispheric fisheye view and 360°, 180° and 90° panoramic views
- Edge-to-edge image clarity
- Easily to deploy with pre-loaded DW Spectrum IPVMS for out-of-the-box operation
- 24/7 access to live and recorded video feed
- Automatic installation and licensing with first power on
- Connect up to 30 MEGApix CaaS edge cameras
- Dual recording option with Blackjack NAS appliance
- Dual codecs (H.264, MJPEG) with simultaneous dual-stream
- 55’ Smart IR with intelligent camera sync
- Smart DNR 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- Motion detection
- Web server built-in
- PoE class 3 and DC12V
- Waterproof cabling
- UL listed
- ONVIF conformant, profile S
- NDAA/TAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- 5 year warranty
IMAGE | |
| Image sensor | 6.4MP 1/1.8” CMOS |
| Total pixels | 3096 (H) X 2080 (V) |
| Minimum scene illumination | 0.39 lux (color) |
| 0 lux (B/W) | |
| Video output | Local video output CVBS 1.0V p-p (75 ?), 4:3 aspect ratio |
| Resolution | 5MP (2592x1944) |
LENS | |
| Focal length | 1.55mm, F2.5 |
| Lens type | Fisheye lens |
| Field of view (FoV) | 360° |
| IR distance | 55ft range |
OPERATIONAL | |
| Shutter mode | Auto, manual, anti-flicker, slow shutter |
| Shutter speed | 1/30~1/32000 |
| Slow shutter | 1~1/5,1/7.5, 1/10 |
| Auto gain control | Auto |
| Day / night | Auto, day (color), night (B/W) |
| Smart DNR™ 3D digital noise reduction | 0~11 |
| Privacy zone | 4 programmable privacy masks |
| Alarm notifications | Notifications via e-mail, FTP server or SD card recording (card not included) |
NETWORK | |
| LAN | 10/100 based-T, RJ-45 connector |
| Video compression type | H.264, MJPEG |
| Resolution | 2592 X 1944 @ 30fps 640X480 @ 30fps 320X240 @ 30fps |
| Frame rate | Up to 30fps at all resolutions |
| Video bitrate | 100Kbps ~ 10Mbps, multi-rate for preview and recording |
| Bitrate control | Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth) |
| Streaming capability | Dual-stream at different rates and resolutions |
| IP | IPv4 |
| Protocol | Zero config(Auto IP), ONVIF, TCP/IP, UDP, RTP(UDP/TCP), RTSP, NTP, HTTP,HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3(MIB-2) |
| Security | HTTPS(TLS), IP filtering, 802.1x, digest authentication(ID/PW) |
| ONVIF conformance | Yes |
| Web viewer | OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari® |
| Video management software | DW Spectrum® IPVMS |
| Number of DW Spectrum® CaaS™ licenses included | 1 DW Spectrum® CaaS™ license included |
| Local server recording | DWC-PVF5M1TIRC2: 256GB local memory for recording DWC-PVF5M1TIRC1: 128GB local memory for recording DWC-PVF5M1TIRC6: 64GB local memory for recording |
| Max. number of CaaS™ cameras in the same network/system | Up to 30 MEGApix® CaaS™ cameras in the same network/system |
ENVIRONMENTAL | |
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Operating humidity | Less than 90% (Non-Condensing) |
| IP rating | IP66-rated weather and tamper-resistant |
| Other certifications | CE, FCC, RoHS |
ELECTRICAL | |
| Power requirement | DC12V, POE IEEE 802.3af class 3 (adaptor not Included) |
| Power consumption | LED On: 6.5W LED Off: 3.6W |
MECHANICAL | |
| Material | Aluminum vandal housing, polycarbonate dome |
| Dimensions | 4.9" x 1.88” (125 x 48mm) |
| Weight | 1.1 lbs (0.5kg) |
